Page 1

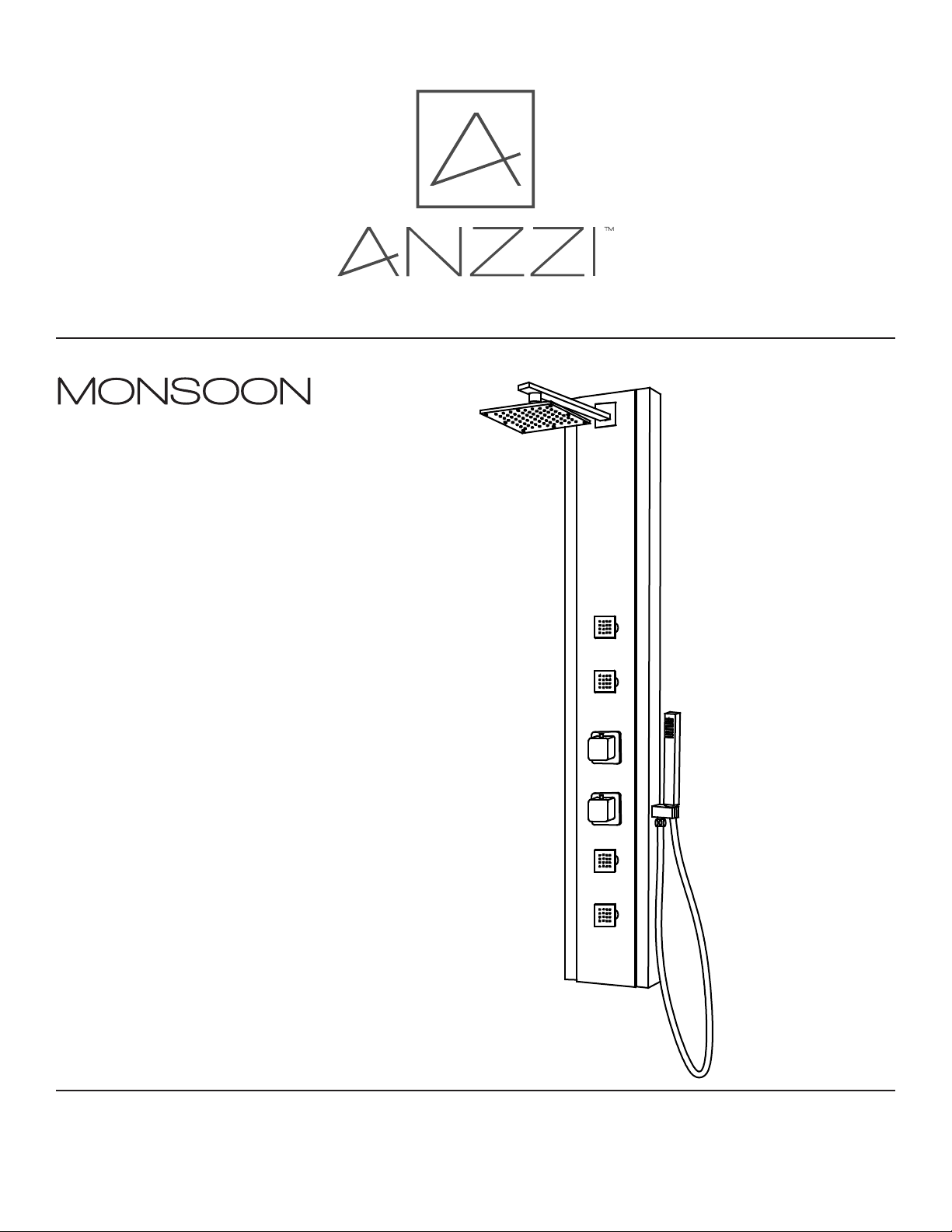

MONSOON
INSTALL GUIDE
Model#
SP-AZ012
PERFECTION IS OUR TRADITION™
v2.0516
Page 2
TABLE OF CONTENTS
Parts List Pg. 1
Before You Start Pg. 2
Spec Drawing Pg. 3
Installation Pg. 4
Care & Maintenance Pg. 10
Warranty Pg. 11
Registration Final Page
YOUR REVIEWS MATTER!
The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI
product for years to come! In the meantime let us know about your experience? We would love
to hear your thoughts from the packaging to the quality and function of the product.
Leave a review on www.ANZZI.com/reviews and let everyone know how satisfied you are with
ANZZI!
Also, we humbly request submitting as many pictures as possible along with your review.
Millions of shoppers will want to know about your experience with our products. Don’t just tell
but show, too!
For more information please call 1-844-44-ANZZI
or email us at [email protected]
Page 3

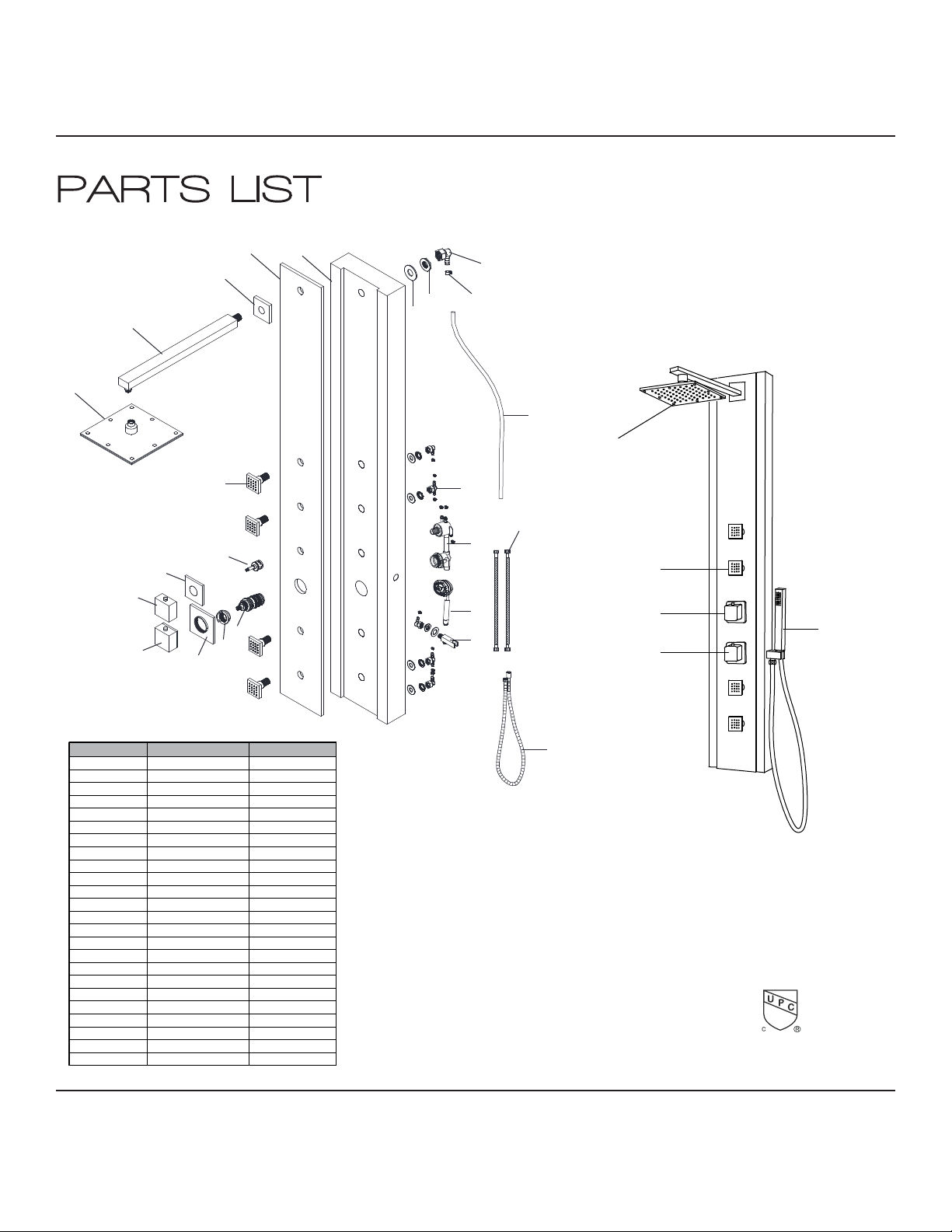

PARTS LIST
Component no.
Component
Material
1
head s hower
s/s
2
arm ba r
bras s
3
flange
bras s
4
front body
glas s
5
backs ide body
s/s
6
was her 1
rubber
7
arm ba r nut
bras s
8
clip
s/s
9
one way joint
ABS
10
body jets
bras s
11
knob
zinc
12
knob pla te cover
zinc
13
cartridge
ABS
14
handl e
zinc
15
handl e plate cover
zinc
16
valve cap
ABS
17
thermo static cartridge
ABS
18
two way joint
ABS
19
thermo static mi xer
bras s
20
hand s hower
ABS
21
hand s hower holder
22
pvc hose
23
braide d hose
24
flexible hos e
s/s
4
3
2
1
10
13
12
11
17
14
16
15
5
9
7
6
8
2. Body Jets
3. Diverter
4. Mixer
5. Hand Shower
22
1
18
23
19
2
20
21
3
5
4
1. Shower Head
24
ABS
PVC
s/s
ASME A112.18.1/CSA B125.1
PERFECTION IS OUR TRADITION™
pg. 1
Page 4

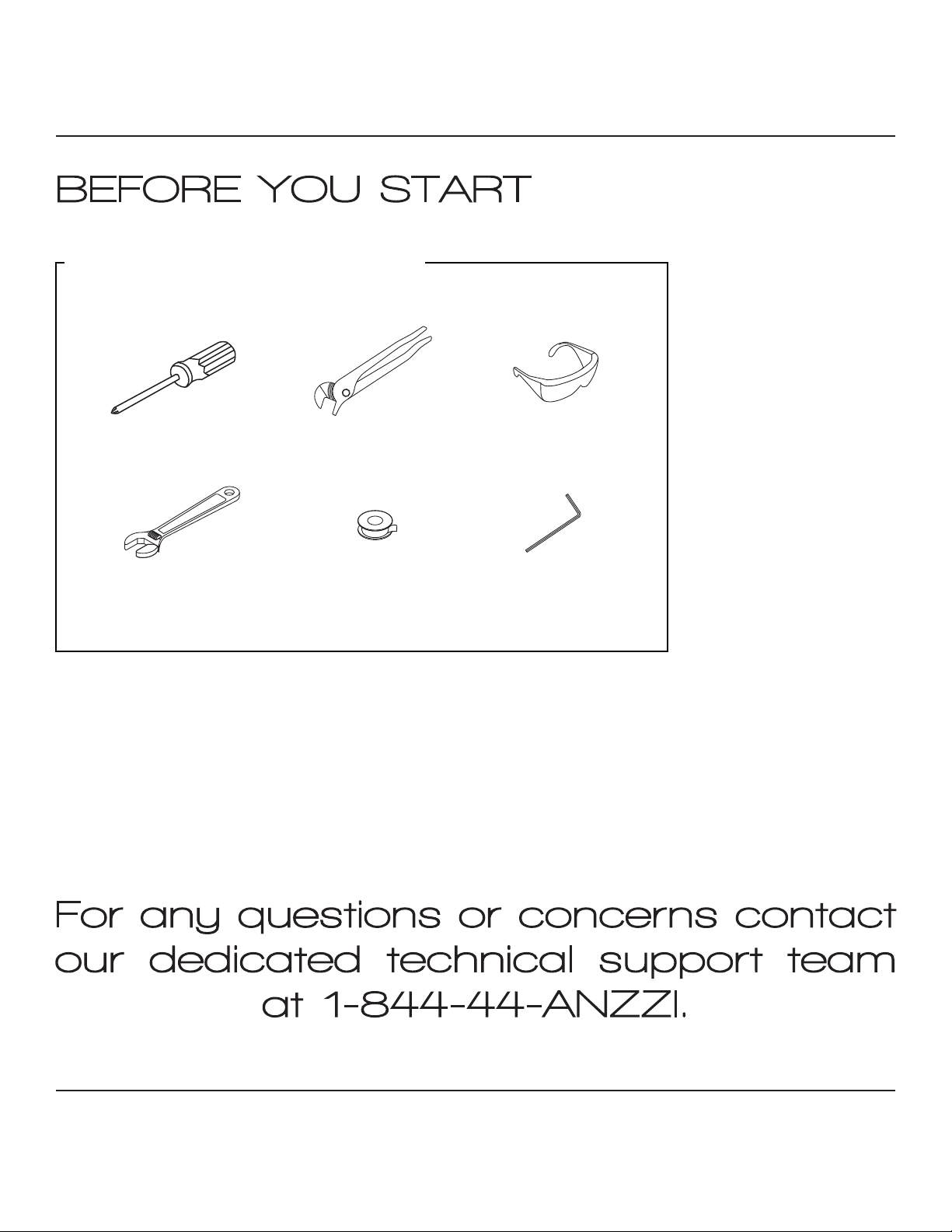

BEFORE YOU START
Recommended Items
Screwdriver Chan ne l Lo cks
Adju st ab le Wre nc h
Teflon tap e
Goggle s
Allen key
ATTENTION: Please read all instructions thoroughly
including all warnings, attentions and notes before
beginning installation.
For any questions or concerns contact
our dedicated technical support team
at 1-844-44-ANZZI.
PERFECTION IS OUR TRADITION™
pg. 2
Page 5

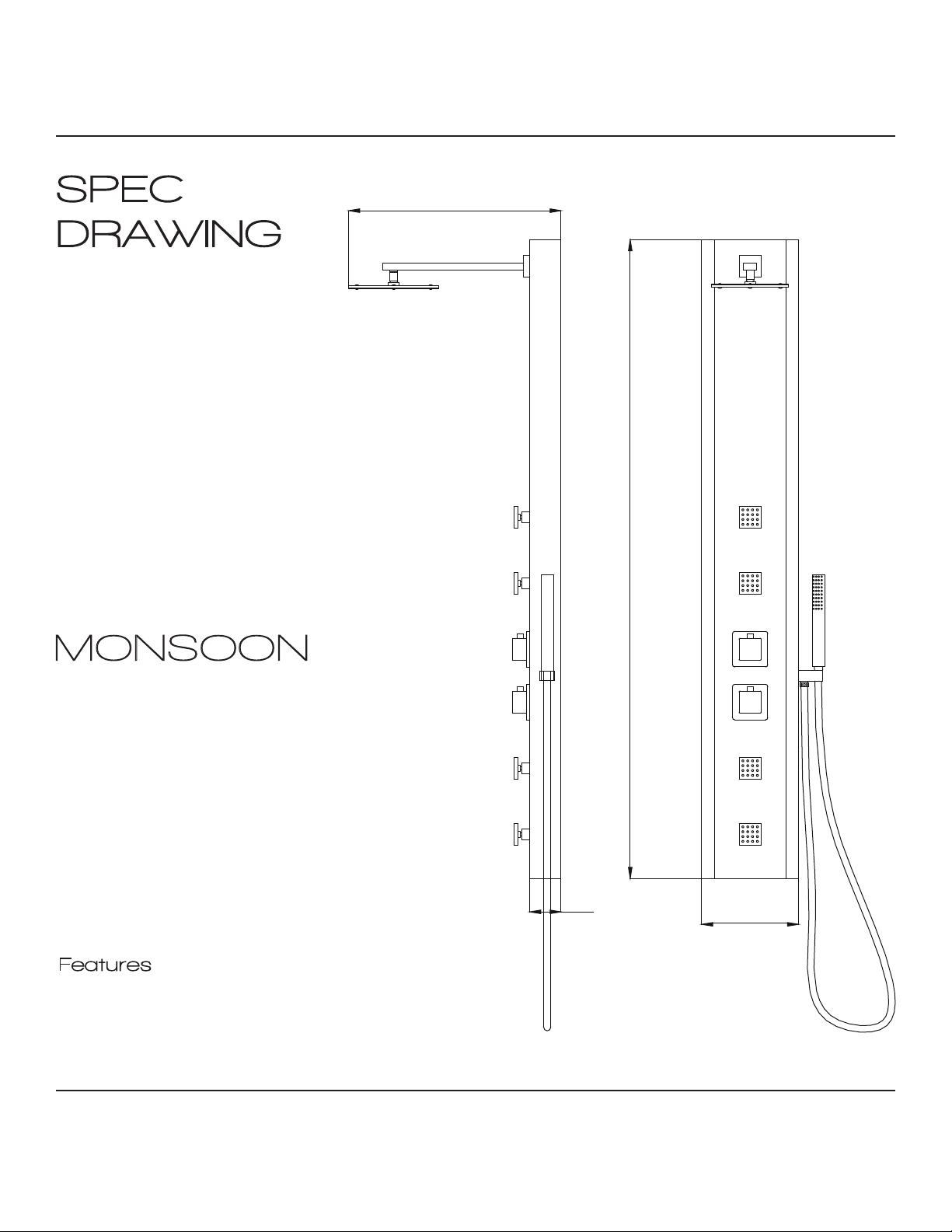

SPEC
DRAWING
20.5”
57”
MONSOON
SP-AZ012
Material: Tempered Glass
Finish: Wood Style Finish
Handles: 2
Jets: 4 fully directional
Shower: 6.875” x 6.875“
Sprayer: 60” reach
Weight: 30 lbs
Height: 57”
Supply: 1/2” connections
Flow: 2.5 gpm
Features
Heavy Rain™ Fixed Showerhead
Acu-Stream™ high pressure body jets
Euro-Grip™ hand held sprayer
Rhino Alloy™ certified materials
2.75”
8.75”
PERFECTION IS OUR TRADITION™
pg. 3
Page 6

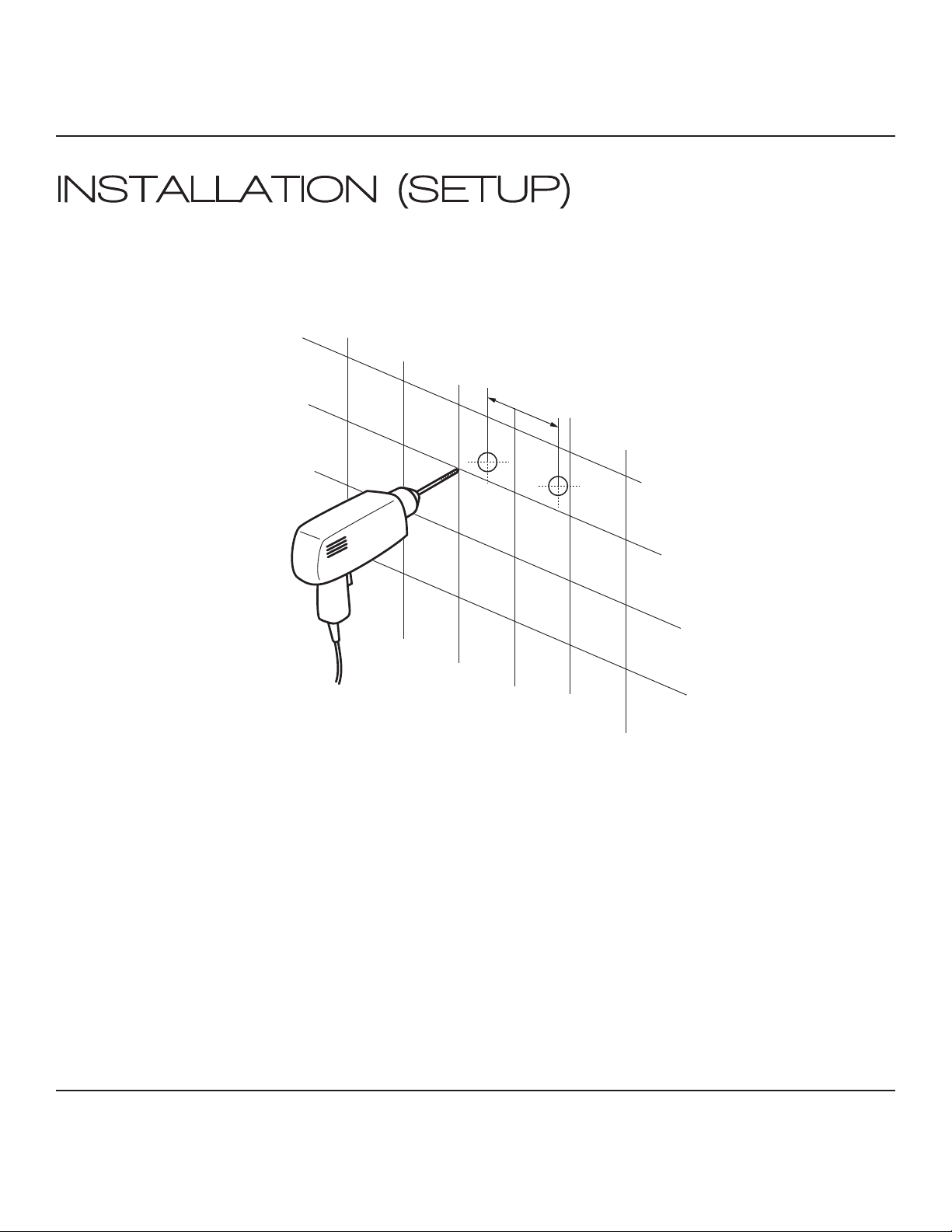

INSTALLATION (SETUP)
Figure A
1 INCH
IMPORTANT
Step A
Step A.2
Ø 6mm Drill
Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or
pipelines aligned with the desired drilling position.
Drill the two holes for the top bracket 1” apart at the desired height.
Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket.
PERFECTION IS OUR TRADITION™
pg. 4
Page 7

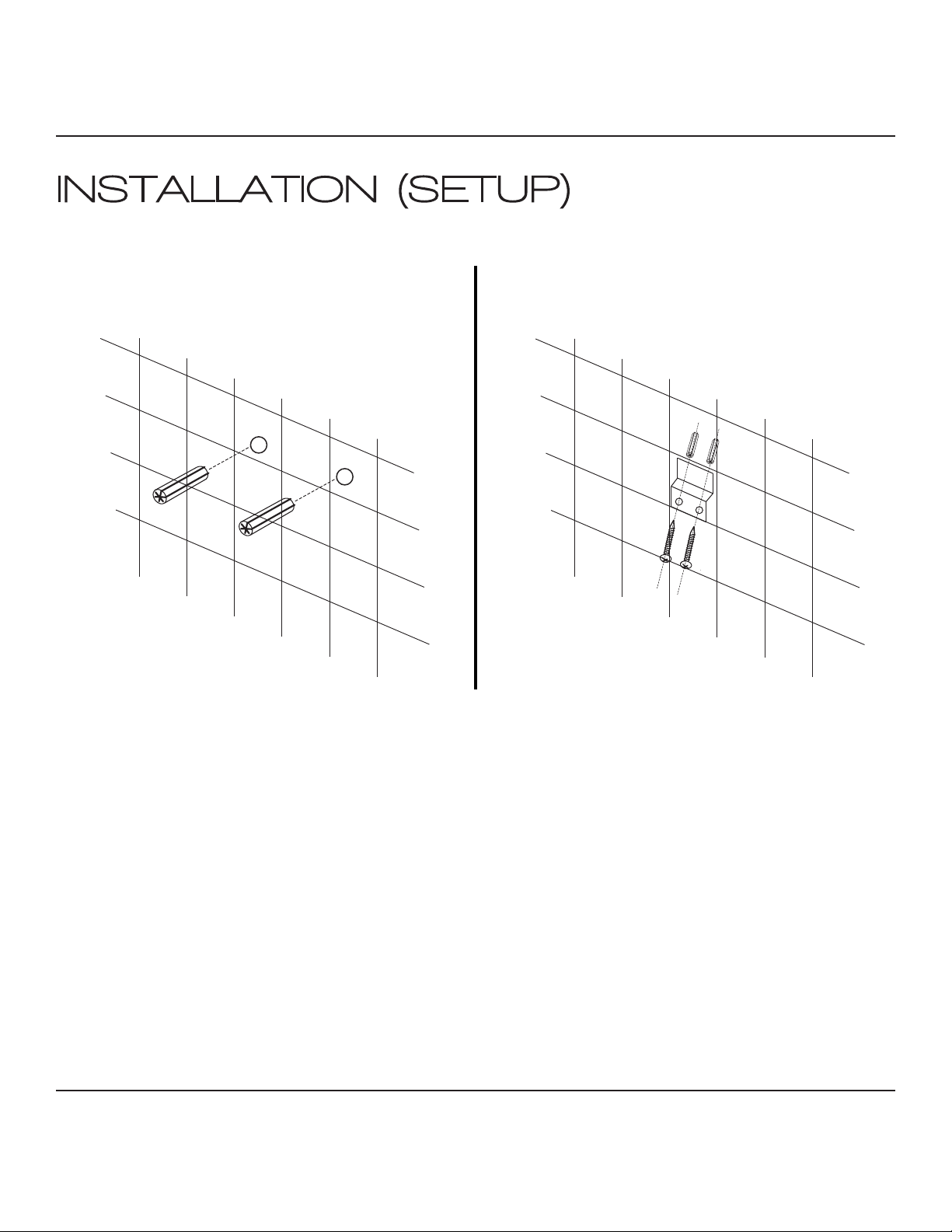

INSTALLATION (SETUP)
Figure B
Figure C
Step B
Step C
Insert the wall anchors into the pre-drilled holes as shown in Figure B.
Place the shower panel brackets aligned with the drilled holes and using a Philips screwdriver ighten the screws to secure the brackets.
PERFECTION IS OUR TRADITION™
pg. 5
Page 8

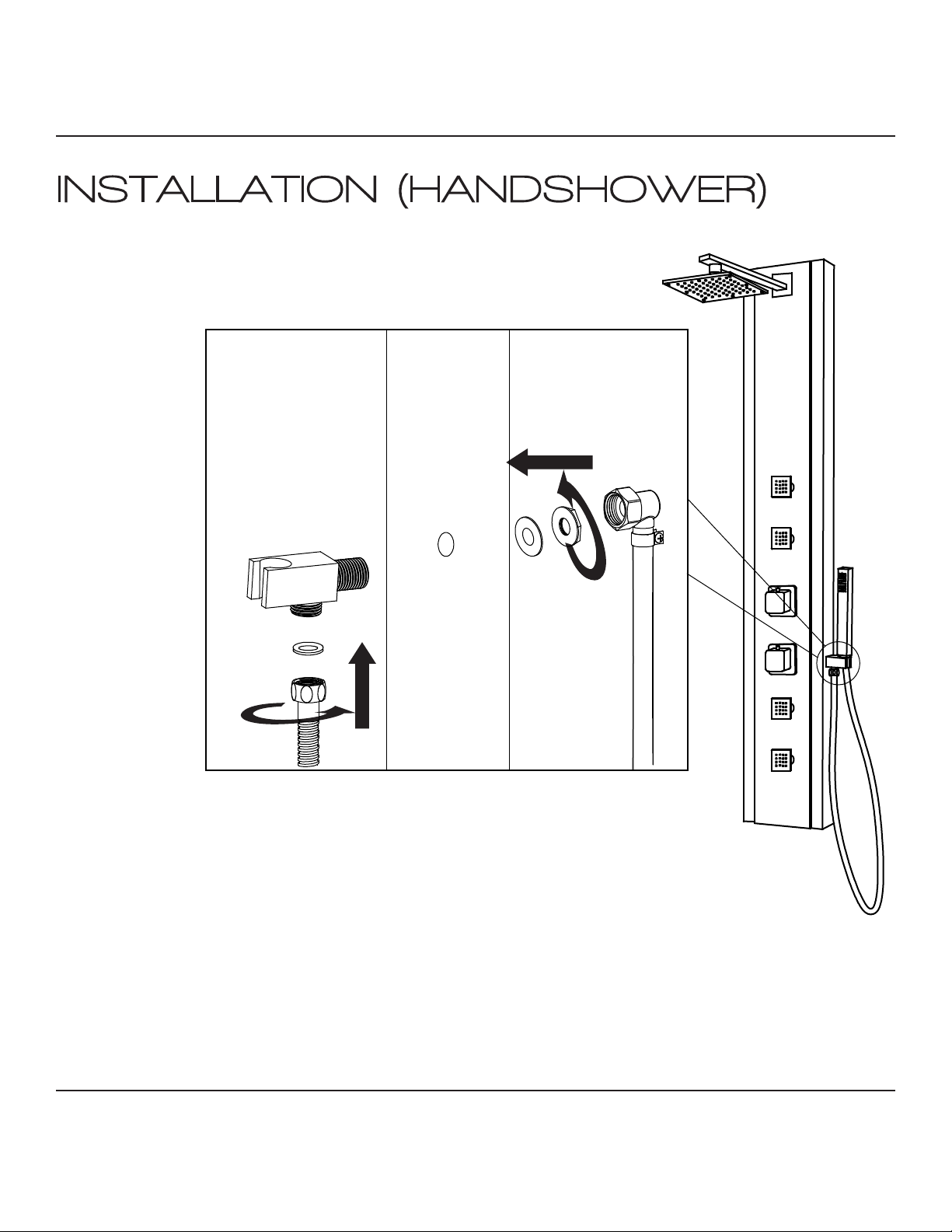

INSTALLATION (HANDSHOWER)
Figure 1
Step 1A
Step 1B
Step 1C
Step 1D
Insert the shower wand holder through the pre-drilled hole on the shower panel.
Install the water supply hose for the shower wand onto the holder, as shown.
Make sure all O-rings are inserted to prevent leakage.
Once the shower panel is fully installed and hung on the bracket, you can install the shower
wand hose to the holder connection.
PERFECTION IS OUR TRADITION™
pg. 6
Page 9

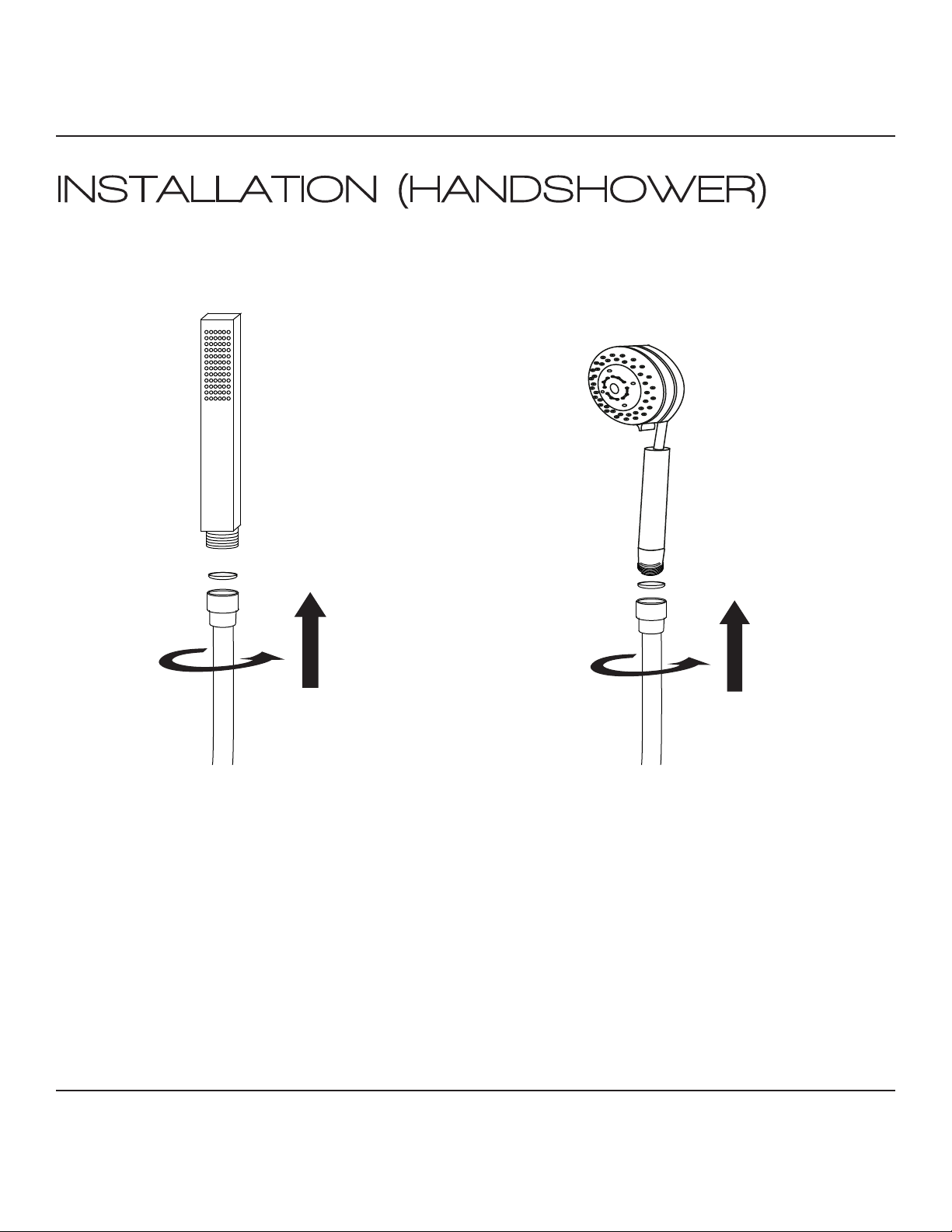

INSTALLATION (HANDSHOWER)
Figure 2
Single Setting
Hand
Shower
or
3 Setting
Hand
Shower
Finally, install the shower wand to the hose, as shown.Step 2A
PERFECTION IS OUR TRADITION™
pg. 7
Page 10

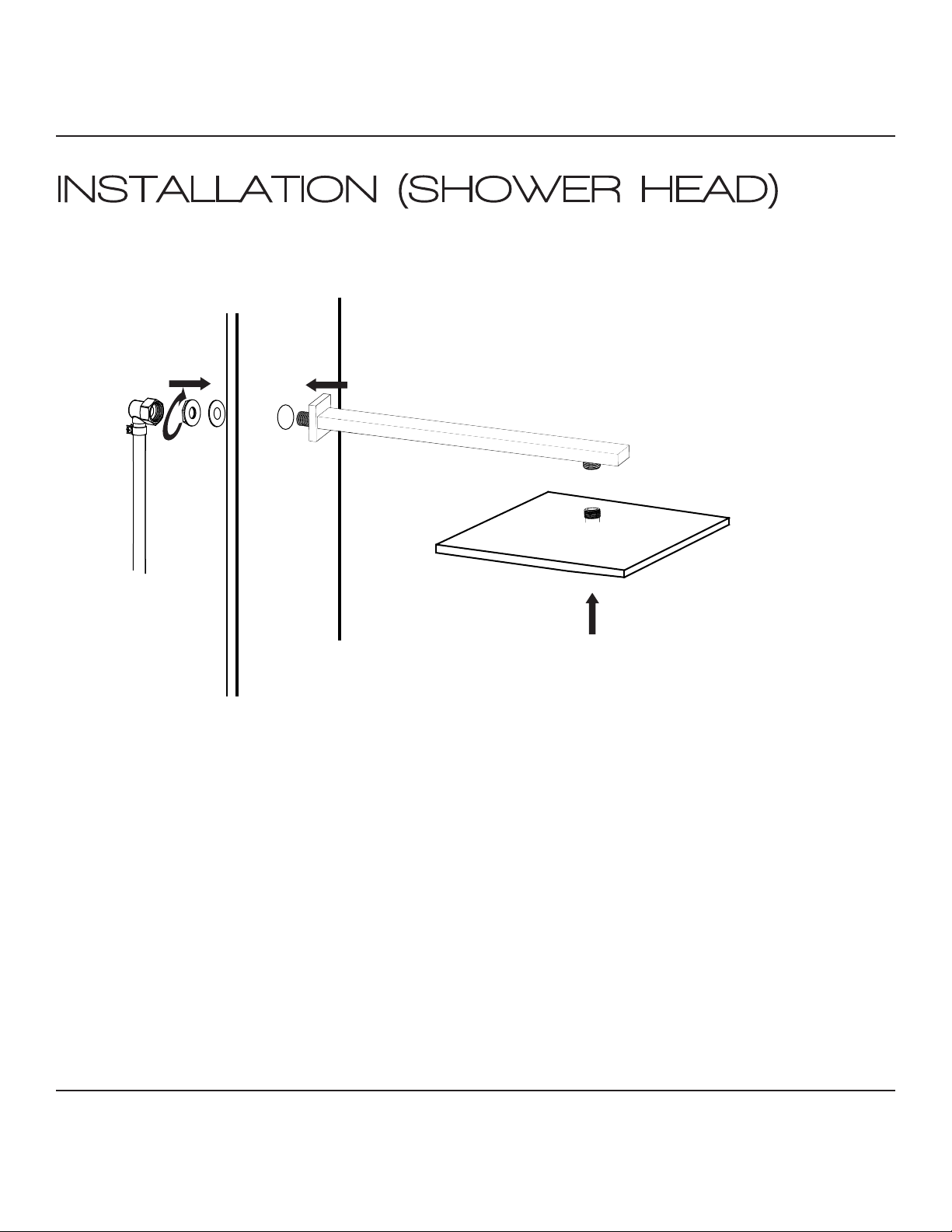

INSTALLATION (SHOWER HEAD)
Figure 3
Step 3A
Step 3B
Step 3C
Install the shower arm to the shower panel, using the rubber washer and nut on the opposite
side to tighten.
Makes sure the shower arm is sitting correctly before installed the shower head.
Screw the shower head onto the shower arm.
PERFECTION IS OUR TRADITION™
pg. 8
Page 11

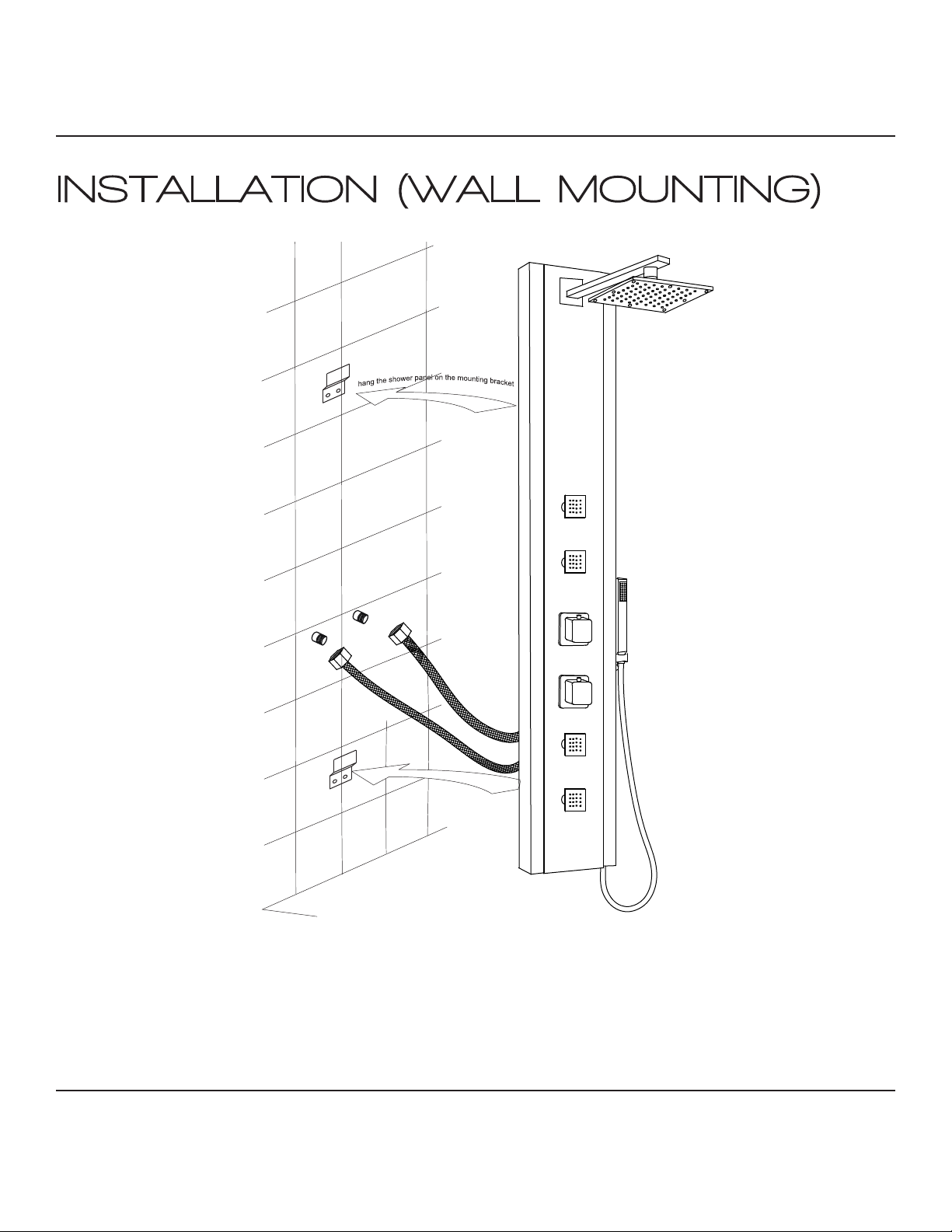

INSTALLATION (WALL MOUNTING)
Figure 4
Cold
Hot
Step 4A
Step 4B
Screw the cold and hot water hoese from the shower panel to the supply lines in the wall.
Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4.
PERFECTION IS OUR TRADITION™
pg. 9
Page 12
CARE AND MAINTENANCE
ANZZI™ products are crafted with superior quality standards and workmanship and are engineered to
stand the test of time. However, that does not mean the product can be neglected and will need some
care and cleaning.
It is recommended to use regular soap and hot water along with a non-abrasive cloth or sponge to
regularly clean the product. This avoids any nasty build up or deposits which would be tougher to
remove.
If you feel the use of stronger cleaning solutions or chemicals is necessary always test the cleaning
solution or chemical on an inconspicuous area before applying to the entire surface.
Wipe all surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and
dry any overspray that lands on nearby surfaces.
DO NOT ALLOW THE CLEANER TO SOAK.
Following these simple principles will ensure you ANZZI™ product will remain as lustrous and stunning as the day it was first received. ENJOY!
Sincerely,
La Familia ANZZI™
Perfection is our Tradition™
Perfection is our Tradition™
For more information visit us at www.ANZZI.com
For more information visit us at www.ANZZI.com
pg. 10
Page 13
LIMITED LIFETIME WARRANTY
ANZZI™ products are manufactured with superior quality standards and workmanship and are
backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer
purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any
product or parts that proves defective. Simply call 1-844-44-ANZZI (1-844-442-6994) to submit a
warranty claim and request an RMA. Proof of purchase (original sales receipt) from the original consumer purchaser must be made available for all ANZZI™ warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or
normal wear and tear. This warranty excludes all industrial, commercial & business usage, whose
purchasers are hereby, extended a five year limited warranty from the date of purchase, with all other
terms of this warranty applying except the duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations may not apply to you. This warranty gives you specific legal rights
and you may also have other rights that vary from state to state and province to province. Please contact 1-844-44-ANZZI (1-844-442-6994) or visit www.ANZZI.com/Warranty for more details.
Sincerely,
La Familia ANZZI™
Perfection is our Tradition™
*Shipping and handling fees are not covered under the ANZZI™ Warranty.
This warranty is in effect as of January, 2016. This warranty supersedes all previous warranties and/or claims both stated and implied. This warranty
is subject to change without notice.
pg. 11
Page 14
Page 15
PRODUCT AND WARRANTY REGISTRATION
To register your product and activate your Limited Lifetime Warranty contact us at 1-844-44-ANZZI
or email us at [email protected]. Or, if preferable, fill out the form below then scan/fax/mail us a
copy.
Email: [email protected]
Fax: 1-866-560-1060
In need of replacement parts?
Visit www.SpaWorldParts.com
Mail: ANZZI™
5701 NW 35th Ave.
Miami, FL 33142
ANZZI™ Product Registration Card
Name.....................................................................................
Address ............................................................................................................................
City ............................................... State ........................... Zip ..............................
Phone ......................................................................................
Email......................................................................................
Date of Purchase........................... Dealer .........................
Address ............................................................................................................................
Installed by .............................................................................
Address ............................................................................................................................ State ...............
Phone .................................................................................... State........................... Zip..........................
Email......................................................................................
I have read the ANZZI™ Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product
must be done strictly in accordance with instructions and guidelines contained in the ANZZI™ owner’s manual and installation guide.
Signature____________________________________________________________Date_______________________________________________
