FR-AZ102BN
FR-AZ102ORB
FIVE HOLES BATHROOM BATHTUB FAUCET
HAND SPRAYER FLOW RATE: 2.0GPM

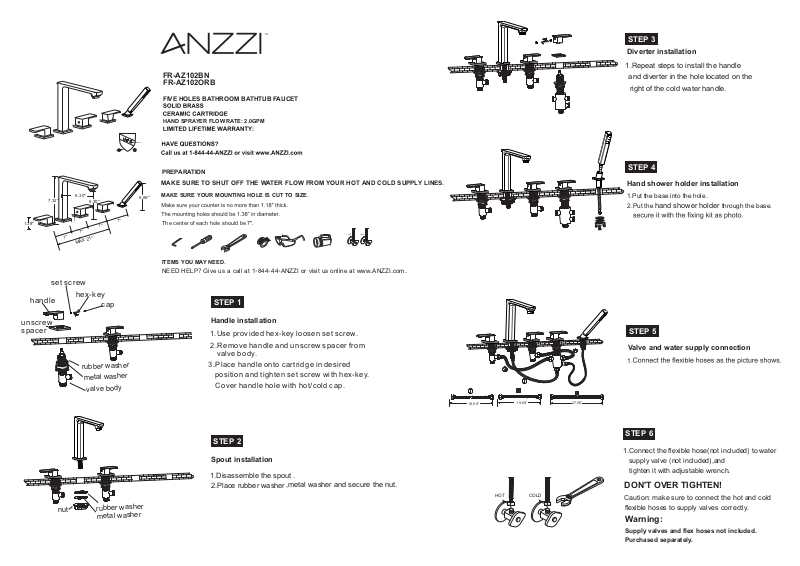

STEP 3
Diverter installation
1.Repeat steps to install the handle
and diverter in the hole located on the
right of the cold water handle.
1.38"
handle
unscrew
spacer
7.32"
7"
set screw
nut
6.30"
6.30"
7"
7"
MAX 21"
hex-key
cap
rubber washer
metal washer
valve body
rubber washer
metal washer
PREPARATION
MAKE SURE TO SHUT OFF THE WATER FLOW FROM YOUR HOT AND COLD SUPPLY LINES.
MAKE SURE YOUR MOUNTING HOLE IS CUT TO SIZE.
6.69"
STEP 4
Hand shower holder installation
1.Put the base into the hole.
2.Put the hand shower holder through the base.
7"
The center of each hole should be 7".
COLD
HOT
ITEMS YOU MAY NEED.
NEED HELP? Give us a call at 1-844-44-ANZZI or visit us online at www.ANZZI.com.
STEP 1
Handle installation
1.Use provided hex-key loos en s et s cr ew.
2.Remove handle and unscrew s pa ce r fr om
valve body.
3.Place handle onto cartrid ge i n de si re d
STEP 5
Valve and water supply connection
1.
position and tighten set sc re w wi th h ex -k ey.
Cover handle hole with hot/co ld c ap .
27.56”
STEP 6
STEP 2
19.69”
19.69”
1.Connect the flexible hose(not included) to water
Spout installation
1.Disassemble the spout .
2.Place rubber washer
,metal washer and secure the nut.
HOT
COLD
supply valve (not included),and
tighten it with adjustable wrench.
DON'T OVER TIGHTEN!
Caution: make sure to connect the hot and cold
flexible hoses to supply valves correctly.
Warning:
Supply valves and flex hoses not included.
Purchased separately.
