Page 1
FR-AZ091CH
FR-AZ091BN
FR-AZ091ORB

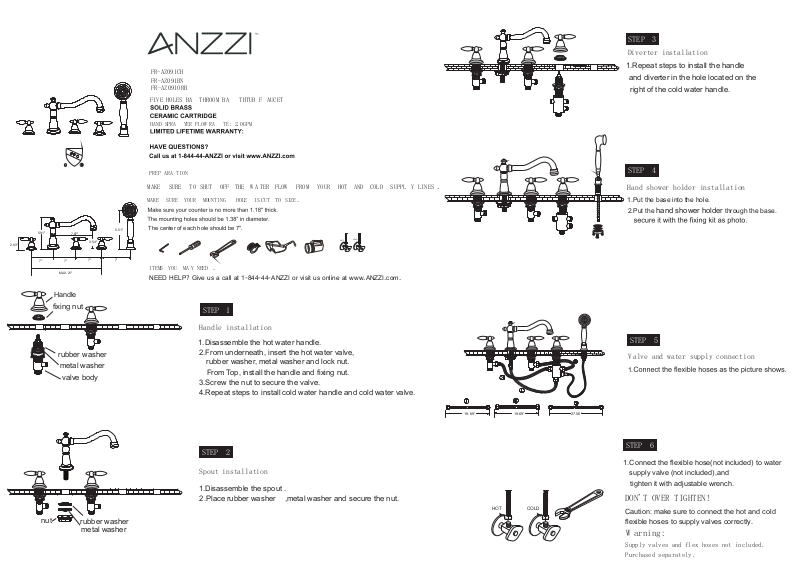

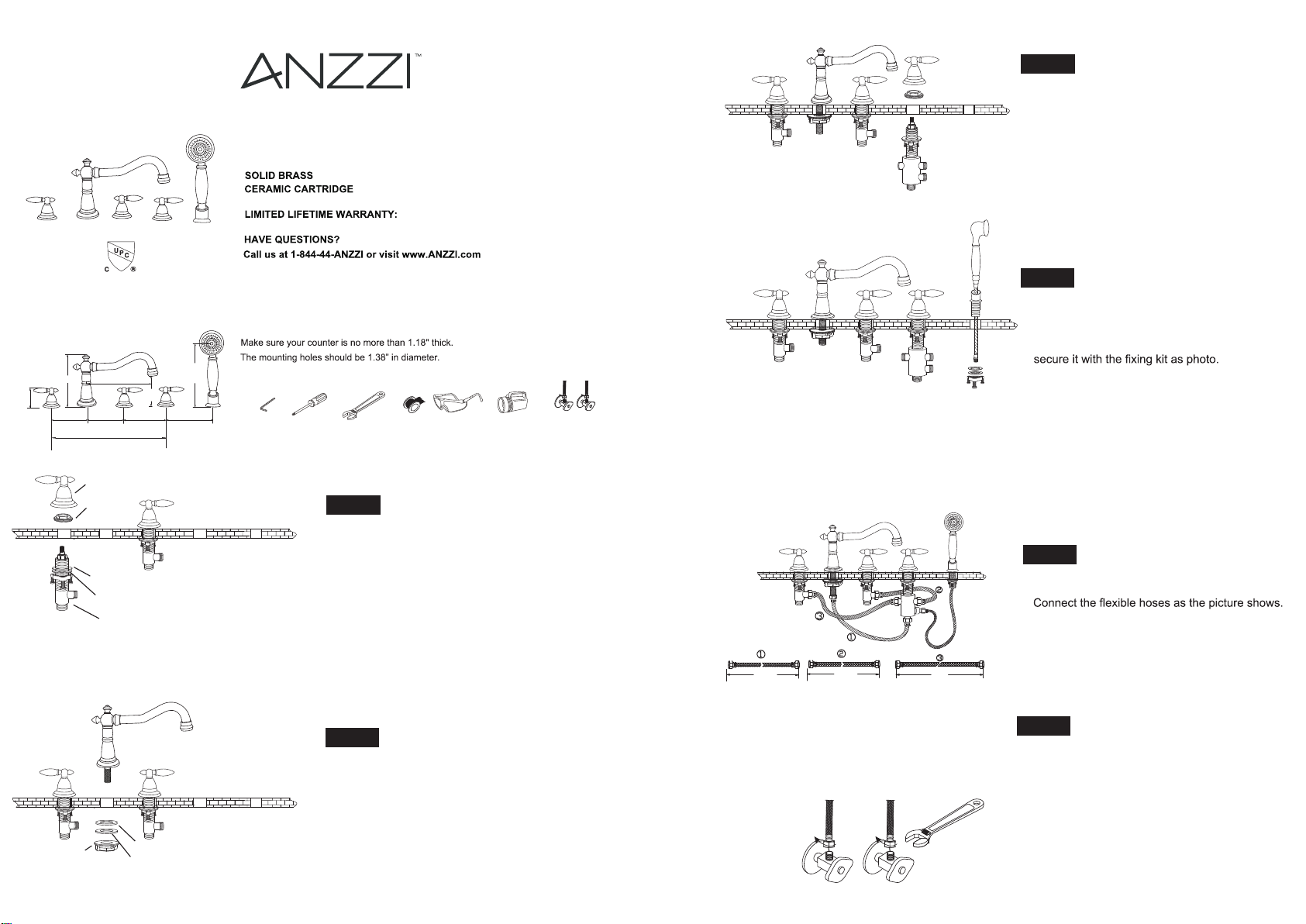

FIVE HOLES BA THROOM BA THTUB F AUCET
HAND SPRA YER FLOW RA TE: 2.0GPM
STEP 3
Diverter installation
1.Repeat steps to install the handle
and diverter in the hole located on the
right of the cold water handle.
2.83"
5.91"
7"
Handle
fixing nut
rubber washer
nut
7.87"
3.54"
7"
7"
MAX 21"
metal washer
valve body
rubber washer
metal washer
PREP ARA TION
MAKE SURE T O SHUT OFF THE W A TER FLOW FROM YOUR HOT AND COLD SUPPL Y LINES .
MAKE SURE YOUR MOUNTING HOLE IS CUT TO SIZE .
5.51"
7”
The center of each hole should be 7".
ITEMS YOU MA Y NEED .
COLD
HOT
STEP 4
Hand shower holder installation
1.Put the base into the hole.
2.Put the
hand shower holder through the base.
NEED HELP? Give us a call at 1-844-44-ANZZI or visit us online at www.ANZZI.com.
STEP 1
Handle installation
1.Disassemble the hot water handle.
2.From underneath, insert the hot water valve,
rubber washer, metal washer and lock nut.
From Top, install the handle and fixing nut.
STEP 5
Valve and water supply connection
1.
3.Screw the nut to secure the valve.
4.Repeat steps to install cold water handle and cold water valve.
27.56”
STEP 6
STEP 2
19.69”
19.69”
1.Connect the flexible hose(not included) to water
Spout installation
1.Disassemble the spout .
2.Place rubber washer
,metal washer and secure the nut.
HOT
COLD
supply valve (not included),and
tighten it with adjustable wrench.
DON'T OVER TIGHTEN!
Caution: make sure to connect the hot and cold
flexible hoses to supply valves correctly.
W arning:
Supply valves and flex hoses not included.
Purchased separately .
