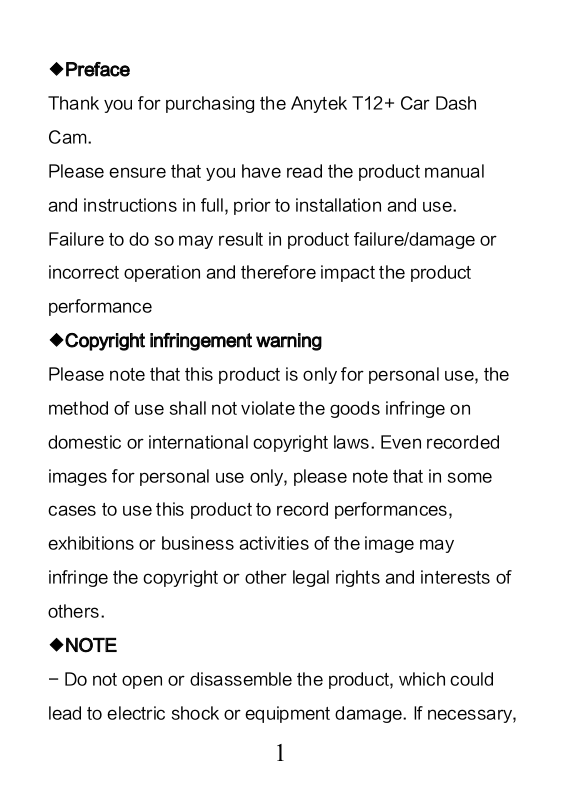

◆Preface
Thank you for purchasing the Anytek T12+ Car Dash
Cam.
Please ensure that you have read the product manual
and instructions in full, prior to installation and use.
Failure to do so may result in product failure/damage or
incorrect operation and therefore impact the product
performance
◆Copyright infringement warning
Please note that this product is only for personal use, the
method of use shall not violate the goods infringe on
domestic or international copyright laws. Even recorded
images for personal use only, please note that in some
cases to use this product to record performances,
exhibitions or business activities of the image may
infringe the copyright or other legal rights and interests of
others.
◆NOTE
- Do not open or disassemble the product, which could
lead to electric shock or equipment damage. If necessary,
1
referred to the service center or professional treatment.
- The product can be used in other applications, such as
photography, self-timer and so on.
- Do not stack items on the device, do not press the
screen, may cause the screen breakage.
- Do not use sharp objects touching the screen, in order
to avoid damage to the screen.
- Do not let children play with the device.
- When the device is working, if the car charger pulled
out from the cigarette lighter, the devic e will shut down.
If the following situations arise , please contact the
service center:
- Charger cable is damaged or broken;
- Housing damaged, transformer damage or the internal
components exposed;
Please note that the charger itself consumes power, if the
device is not in use, pull out the charger to avoid the
battery discharged.
◆The working conditions
- Don't be exposed to high temperatures or direct
2
sunlight, especially in the car. Avoid the dust get into the
device.
- Avoid to use in damp environment . Please note that in
a closed environment, the moisture in the air easy to
condense and attached to the device.
- Avoid touch and intense impact.
-Keep the device and its accessories away from
flammable and explosive, corrosive liquid or gas.
- Cleaning the device, please put down from the scaffold
before it. Using a soft wet cloth clean screen and device
surface.
- Don’t to disassemble, modify or repair the device by
yourself. This may lead damage to the device. Please
send it to special authorization service center for
maintenance.
◆Temperatur e and humidity
Normal operating temperature +0 ° - +50 °, humidity
15% --65%.
Please place the device in a safe place.
◆Transport
3
- In the case of sudden changes in temperature or
humidity, may cause moisture condensation inside the
device, which can cause prepare a short circuit.
- Protect the device, avoid the dust or encounter
collisions in the process of transportation .
- When in transport, please use the original packaging.
◆Car adapter (car charger)
Connect the car adapter with your car cigarette lighter
socket (DC 12V or 24 V).
◆Product Overview
1. Full HD Video Recording（1920*1080@30fps）
2. 4G+1R Multi-layer filter lens, 170 degree wide angel
lens
3. 9.66 inch IPS panel（1280*320）
4. quipped with G+G capacity touch screen
5. Support WDR
6. Automatic recording when start up
7. Support loop recording( video/ audio)
8. Support continuous shooting
9. Collision file lock
4
10. Parking monitor
11. Support TF card up to 32GB
12. Support recording video while charging
◆Product structure
1 GPS 2 TF card slot 3 AV-IN
4 USB port 5 Camera Lens 6
LCD
7
Screen
8 Reset 9
Power
Button
Loudspeak
er
5
ON/ OFF Button
Function 1: Power ON/ Power OFF
Press the power button to turn the Dash Cam on. It will
automatically start recording once it receives power.
When power is turned off manually or power is removed,
the Dash Cam will save the current file and turn off.
Function 2: Backgr ound light ON/ OFF
When standby, short press the power button to enter
screen saver. Short press again to turn off the screen.
【NOTE】
A. Turn on/ff the screen will not influence the video
recording.
B. After short pressing the power button to turn off the
screen, touch the screen can wake up the screen.
◆Installation of Dash Cam
1. Turn off the vehicle engine
2. Insert the TF Card into the card slot
【NOTE】
A. Please use the high speed TF card( above class 6).
The capacity of the TF card should be no less than 4GB
6
and max to 32GB.
B. Please pay attention to the card direction when
inserting the card into the card slot.( Please refer to the
icon near the card slot).
3. Fix the Dash Cam on the original rear view mirror of
the vehicle.
4. Insert car charger into the car cigarette lighter
5. Connect the recorder's USB port to the car charger
with a charging extension cable.
[Note] The wiring extension cable can be laid along the
edge of the windshield of the car during wiring.
6.Install the rear camera on the rear of the vehicle and
pay attention to the direction when installing. Wiring can
be laid along the roof of the vehicle. After the installation
is complete, connect the rear plug to the AV-IN hole of
the recorder.
7. Adjust the lens position to ensure that the lens is level
with the ground.
8. Start the engine and check if the machine is installed
correctly.
7
【NOTE】Turn vehicles ignition to accessories, and the
Dash Cam will power ON and start recording
automatically, you will hear an audible t one once
powered.
◆Video operation
1. Turn on the vehicles’ engine, the Dash Cam will
power ON and start to recording videos.
2. In the main interface, click to enter video recording
interface, click the icon “ ” to start recording. When
the icon “ ”appears and flashed , it stops recording.
3. If need to return to the main interface, click the return
icon.
Click the “function setting” to enter setting menu. Then
click “video recording” to set video recording.
4. Power off the vehicle engine, the Dash Cam will save
the recording video files and turn off the Dash Cam
automatically. The files will be saved in the TF card piece
by piece. When the card is full, the previous files will be
covered by the later files.
【NOTE】
8
A. The recording time setting has 1/3/5min. If choose any
of it, when the TF card is full, the previous files will be
covered by the later files.
B. The files of front and rear camera will be saved
separately in the TF card. Under the catalog “DCIM”
and the folders will be named of “DCIMA” and
“DCIMB” .
◆Photo Operation
1. In the main interface, click “photo shooting” to enter
photo mode. Click the icon “ ” can take one piece of
photo.
2. If need to return to the main interface, click the return
icon “ ”.
3. In the main interface, click “ function setting” to enter
setting menu. Click the photo setting to set the photo
setting.
◆Video Playback
1. In the main interface, click “ file management” to
enter playback mode.
2. Click UP/DOWN icon to find the video/photo. Click play
9
icon “ ” to playback.
◆One button lock function
When recording, click the lock icon “ ”to lock the
present file. The locked file will have “ ” icon. To
unlock the file, click unlock icon “ ”. The locked file will
not be covered.
◆One button mute function
In the main interface or video recording mode, click the
icon “ ” to turn on/ turn off the audio.
【NOTE】The setting will be saved automatically, the
mute function do not need to be set again when reuse the
Dash Cam.
◆Switch the cameras lens on the screen
In the video recording interface, slide right/left to switch
the front and rear camera on the screen as well as the
picture in picture mode.
◆Time/ date setting
In the main interface click “function setting” to enter
function setting interface. Click the function setting to
enter the general setting. Click time/date to set the time/
10
date.
【NOTE】Please make sure to set the time/ date before
using. In case of any accident happens and to save the
date/ time accordingly. Thus to provide the effective
evidences.
◆Motion detection function
In the main interface, click “function setting” to enter the
setting interface. Click motion detection to turn on/ off the
function. Click the icon “ ” at the bottom of right to
return the main interface, the up of the left will appear the
motion detection. When the camera lens interact there is
a moving object, the Dash Cam will start video recording.
After 10s, when there is no longer moving object, the
Dash Cam will stop recording.
【NOTE】
A. If the motion detection function need to be used all the
time, please make sure the Dash Cam is with power
supply all the time.
B. Enter the setting to turn off the motion detection
11
function when the Dash Cam is not recording.
◆G-sensor fundtion
The Dash Cam has built-in G-sensor. In the main
interface, click the “function setting” enter the function
setting interface. Click video recording setting to find
“G-sensor”. Click G-sensor to set it. When recording, if
there is any shock(such as collision, crash etc..), the
present file will be saved automatically.
【NOTE】The sensitivity of G-sensor can be set as High/
Middle/Low. Please set it according to personal need.
◆Parking monitor
In the main interface, click the function setting to enter
function setting interface. Click the recording setting to
find parking monitor. When using parking monitor
function and the Dash Cam is off, if there is any little
shock of the vehicle, the Dash Cam will start recording
and the file will be locked. The locked file will not be
covered. The Dash Cam will power off automatically after
12
recording for 24s.
Product Model No.
T12+
LCD
9.66 inch
◆Reversing view
First, please connect the Dash Cam with car charger and
the inset the rear camera into AV-IN slot, connect the red
and black line with reversing light. Connect the car
charger and the Dash Cam will start recording video
automatically. When there is any reversing status, the
reversing view will appear. It will return to the video
recording mode when reverse finished.
Product specification
Resolution 2M CMOS
Lens 170 degree
Video resolution 1080P
Video Format AVI
Loop recording 1/3/5 min
13
Memory card
TF Card up to 32GB
Power supply
aker
Frequency 50HZ/60HZ
Battery Capacity
Microphone/Loudspe
Language
NOTE: The specifications can be changed due to update,
upgrade etc.. Please refer to the Dash Cam.
Troubleshooting guide
Under normal operating conditions, if there are problems
with the
device, please refer to the following methods to resolve.
Cannot take pictures or record video?
USB, Car charger 5V.
2000mA
Li-on battery 3.7V.
500mAH
Support
Simple Chinese/
Traditional Chinese/
English
14
Please check whether there is enough space on the
micro
SD card or internal storage.
Stopping automatically while recording?
Due to the high amount of HD video data being recorded,
please use a high-speed Micro SD card. To tell if you
have the required high speed card, check if it has the
‘Micro SDHC’ logo on the SD card and 8GB class 10
or above is recommended. Make sure that your card is
labeled Micro SDHC and not Micro SDXC as SDXC
cards will not work with this Dash Cam.
Fuzzy/dirty image?
Please check if the lens is filled with dirt or fingerprints
and clean
carefully. Please clean lens with cloth before shooting.
Remove
transparent lens protector.
The DASH CAM is jammed or not responding?
Please hard reset the device by pushing in the reset
button on the
15
Dash Cam.
Why is the DASH CAM not turning on in the car?
Please check and make sure that there is power in the
cigarette lighter socket of your car.
Micro SD card not recognised by DASH CAM?
Format card in the Dash Cam’s menu setting’s before
use.
A coloured tinge showing up in the video?
Make sure to peel off the transparent protective sticker
on the front of the Dash Cam's lens.
Technical assistance
If you need assistance setting up or using your Anytek
product now or in the future, call Anytek Support.
TEL: 400-9300-520
Mon-Sat 8am – 6pm
Please retain this user guide for future reference
16
Copyright © 2019 by Anytek
All rights reserved. No part of this publication may be
reproduced,
distributed, or transmitted in any form or by any means,
including
photocopying, recording, copying or other electronic or
mechanical
methods, without the prior written permission of the
author.
17
Loading...
