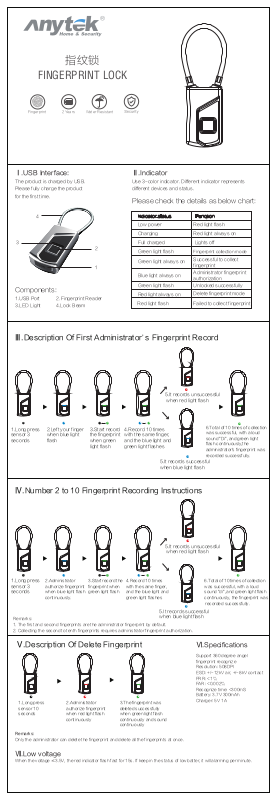

Anytek Fingerprint Lock User Manual
指纹锁
FINGERPRINT LOCK
Fingerprint
Ⅰ.USB Interface:
The product is charged by USB.
Please fully charge the product
for the first time.
4
3
Components:
1.USB Port 2.Fingerprint Reader
3.LED Light 4.Lock Beam
2 Years
Water Resistant
2
1
Ⅱ.Indicator
Use 3-color indicator. Different indicator represents
different devices and status.
Please check the details as below chart:
Indicator status Function
Low power
Charging
Full charged
Green light flash
Green light always on
Blue light always on
Green light flash
Red light always on
Red light flash
Red light flash
Red light always on
Lights off
Fingerprint collection mode
Successful to collect
fingerprint
Administrator fingerprint
authorization
Unlocked successfully
Delete fingerprint mode
Failed to collect fingerprint
Ⅲ.Description Of First Administrator’ s Fingerprint Record
5.It records unsuccessful
when red light flash
1.Long press
sensor 3
seconds
2.Left your finger
when blue light
flash
3.Start record
the fingerprint
when green
light flash
4.Record 10 times
with the same finger,
and the blue light and
green light flashes
5.It records successful
when blue light flash
6.Total of 10 times of collection
was successful, with a loud
sound "Di" ,and green light
flash continuously,the
administrator's fingerprint was
recorded successfully.
Ⅳ.Number 2 to 10 Fingerprint Recording Instructions
5.It records unsuccessful
when red light flash
1.Long press
sensor 3
seconds
Remarks:
1. The first and second fingerprints are the administrator fingerprint by default.
2. Collecting the second to tenth fingerprints requires administrator fingerprint authorization.
2.Administrator
authorize fingerprint
when blue light flash
continuously.
3.Start record the
fingerprint when
green light flash
Ⅴ.Description Of Delete Fingerprint
1.Long press
sensor 10
seconds
Remarks:
Only the administrator can delete the fingerprint and delete all the fingerprints at once.
Ⅶ.Low voltage
When the voltage ≤3.5V, the red indicator flash fast for 15s. If keep in the status of low batter, it will alarming per minute.
2.Administrator
authorize fingerprint
when red light flash
continuously
4.Record 10 times
with the same finger,
and the blue light and
green light flashes
5.It records successful
when blue light flash
3.The fingerprint was
deleted successfully
when green light flash
continuously and sound
continuously
6.Total of 10 times of collection
was successful, with a loud
sound "di" ,and green light flash
continuously, the fingerprint was
recorded successfully.
Ⅵ.Specifications
Support 360 degree angel
fingerprint recognize
Resolution: 508DPI
ESD: +/-12kV air, +/-8kV contact
FRR: <1%
FAR: <0.002%
Recognize time: <300mS
Battery: 3.7V 300mAh
Charger: 5V 1A
一、USB接口：
设备通过数据线连接USB进行充电。
（首次使用请先给设备充满电。）
4
3
2
1
部件识别：
1.USB接口 2.指纹采集器
3.LED指示灯 4.锁梁
三、首次（管理员）指纹录入说明
二、指示灯
采用3色指示灯，指示灯不同颜色，不同状态代表设备不同
状态。详情见下表：
状态
电量低
充电中
充满电
绿灯闪烁
绿灯长亮
蓝灯长亮
绿灯闪烁
红灯长亮
红灯闪烁
5. 红灯亮，采集失败。
指示灯状态
红灯闪烁
红灯长亮
灯灭
指纹采集模式
指纹采集成功
管理员指纹授权
解锁成功
清除所有指纹模式
指纹采集失败
1. 长按3秒。 2. 蓝灯亮，
松开手指。
3. 绿灯闪烁,
开始采集指纹。
4. 同一手指采集10次,
不同角度，不同方向
采集，期间蓝绿灯闪烁。
5. 蓝灯亮，采集成功。
四、第二个到第十个指纹录入说明
5. 红灯亮，采集失败
1. 长按3秒。 2. 蓝灯长亮，
备注：
1. 默认第一第二枚指纹为管理员指纹。
2. 采集第二到第十枚指纹需要管理员指纹授权。
管理员指纹
录入授权。
五、删除指纹说明
1. 长按10秒。
2. 红灯长亮，
管理员指纹授权。
3. 绿灯闪烁,
开始采集指纹。
4.
同一手指采集10次,
不同角度，不同方向
采集，期间蓝绿灯闪烁。
3. 绿灯长亮并长响，
指纹删除成功。
5. 蓝灯亮，采集成功。
六、规格参数
支持360°任意方向按压式指纹识别；
分辨率508DPI；
ESD：+/-12kV空气，+/-8kV接触；
FRR：<1%；
FAR：<0.002%；
识别时间：<300mS；
电池容量：3.7V 300mAh
充电电压：5V 1A
备注：
只有管理员才能删除指纹，并且是一次性删除全部指纹。
七、低压
当电压等于或低于 3.5V 时红色指示灯会快闪 15 秒；如一直处于低电状态，每隔一分钟，就报警一次。
6. 累计10次成功采集，
“嘀”一声长响，绿灯长亮，
管理员指纹采集成功。
6. 累计10次成功采集，
“嘀”一声长响，绿灯长亮，
当前指纹采集成功。
