OCSL
Mini Type Crane Scale
User’s Guide
1 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide
2 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide
TABLE OF CONTENTS
1. Introduction 3
2. Specifications 3
Features 3
Specifications 4
Capacities & Resolution 4
Schematic Diagram 5
Dimensions 5
3. Operation Guide 6
Power On 6
Power Off 6
Tare 6
Hold 7
Unit Switch 7
Zero 7
Settings 8
4. Troubleshooting 9
5. Calibration 10
3 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide
1. Introduction
Note: Before using the scale, please read this guide and keep this for future
reference.
For good performance and precise measurement on daily operation, observe
the following safety guides and maintenance recommendations:
o Do NOT overload the scale. This may damage the load cell and will void
the warranty.
o Do NOT leave the load hanged on the scale for too long. This will
decrease scale’s accuracy and shorten the load cell’s life span.
o Inspect the shackle and hook before using. Check clips, pins and screws
properly fitted and installed.
o Check battery frequently. When scale drained its battery, charge the
battery with its dedicated charger or replace it with a new one
o Avoid rotating the scale, this may damage the load cell
o Do NOT use scale under thunder or rain.
o Do NOT attempt to repair the scale by yourself. Contact your local
dealer or to the Technical Support.
2. Specifications
FEATURES
This scale is a combination of sound and proven mechanical design, with
nowadays’ most advanced electronics to provide a superb feature sets. It is
versatile, reliable, accurate and easy to operate.
o Superb Quality. Strictly in accordance with OIML R76, Chinese
GB/T11883‐2000 certified quality system.
o Great Safety. Quality stainless steel load receptor and
Aluminum‐casting case to provide high safety level.
o
Newest. 20mm LCD, visual distance can go to more than 10m
o Design. Demountable hook
o Leading Technology. SMT technology, quality integrated circuit and
dedicated weighing load cell and ensures long time stability.
o Smart Power Saving. 3*AA battery with low power consumption
design
o
Portable. Different color options. Easy to carry.
4 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide
SPECIFICATIONS
Accuracy Class
Chinese GB/T 11883‐2002 Class III
Equivalent to OIML R76
Tare Range
100% F.S.
Auto Zero
±
50%
F.S.
Manual Zero
±
2%
F.S.
Zero Tracking
0.5e/s
Reading Stable
Time
≤10 seconds
Auto‐sleep
When stable and no activities within 3 sec.
Auto‐off
When stable and no activities within 3 min.
Overload
100% F.S. + 9e
Max. Safety Load
120% F.S.
Ultimate Load
300% F.S.
Battery Life
>150 hours
Temp. (Op.)
‐ 10
℃
~ + 40
℃
Humidity (Op.)
≤90% at 20
℃
Display
0.7 inch (17.78mm) numerical
Net Weight
620g
CAPACITIES & RESOLUTION
model
max. cap.
(kg/lb)
min. cap.
(kg/lb)
resolution
OCS‐003‐L
30/60
0.01/0.02
3,000
OCS‐005‐L
50/100
0.02/0.05
2,000
OCS‐006‐L
60/120
0.02/0.05
3,000
OCS‐01‐L
100/200
0.05/0.1
2,000
OCS‐012‐L
120/240
0.05/0.1
2,400
OCS‐015‐L
150/300
0.05/0.1
3,000
OCS‐02‐L
200/400
0.1/0.2
3,000
OCS‐03‐L
300/600
0.1/0.2
3,000
5 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide
SCHEMATIC DIAGRAM
DIMENSIONS
6 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide
3. Operation Guide
POWER ON
Press for 1 second to initialize boot up
and battery test.
o Screen will show detection message
while detecting its load and processing
auto‐zero.
POWER OFF
Press for 1 second to power off the scale.
o Display will show
power‐off message.
TARE
Press to store the weight as tare.
o “TARE” will appear and weight reading
will turn to zero.
o
If weight is greater than
100%F.S. or
lesser than 0, taring is not allowed.
o If weight reading is not stable or been held, taring is not
allowed.
o Taring will reduce the scale’s apparent overloading range.
For example, if a 10kg container is tared to a 50kg maximum
capacity scale, the new overload weight shall be at 40.18kg
(5000 – 1000 + 9 divisions).
7 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide

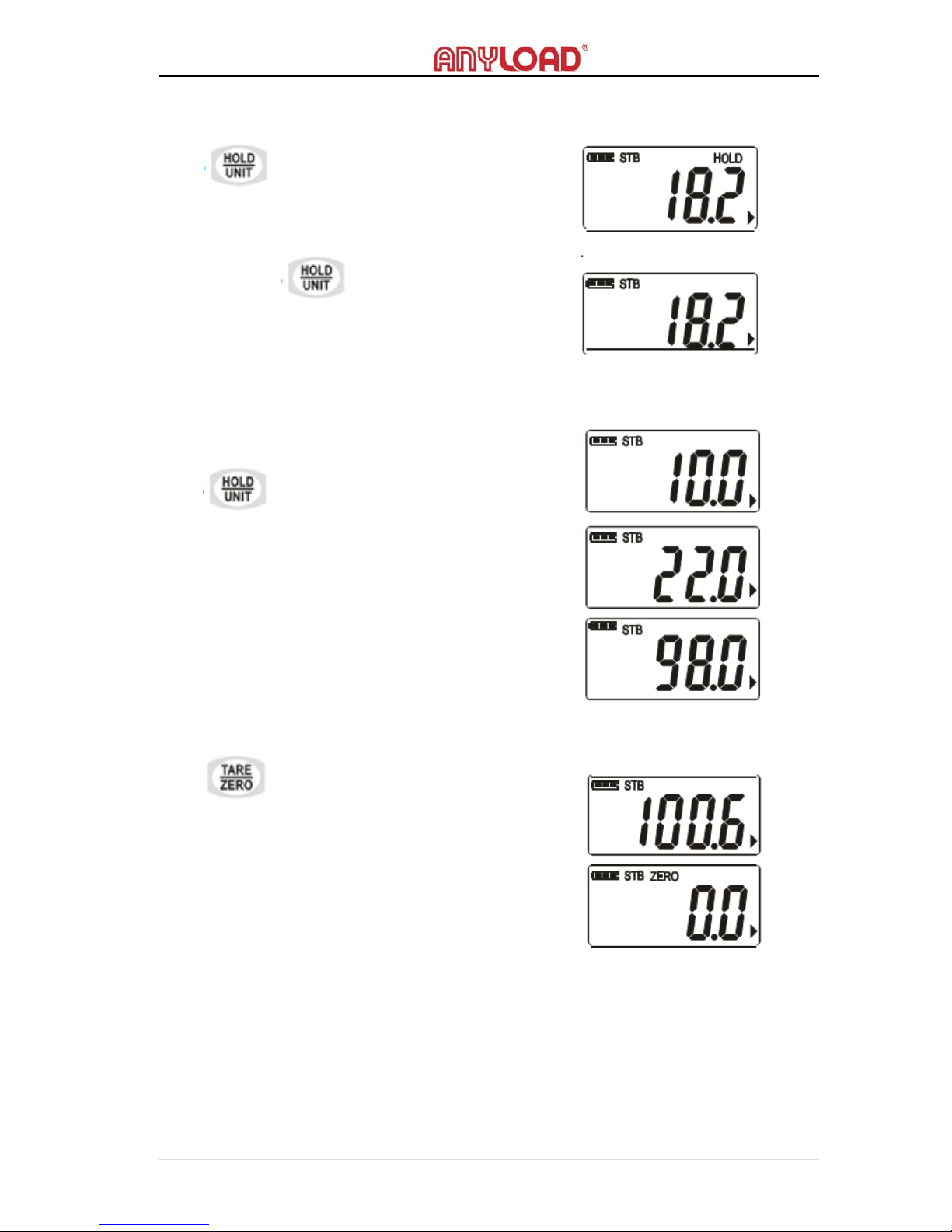

HOLD
Press to lock the weight reading.
o “HOLD” will appear
and reading in the
display will be frozen.
o
Press again to unlock and scale
will read the actual load.
o “HOLD” will hide and weight
reading will resume.
UNIT SWITCH
Press for 1 second to switch measuring
unit between kg, lb and N.
o If scale is in tare or in hold, unit
switching is not
allowed.
ZERO
Press for 1 second to zero the scale.
o “ZERO” will appear and weight reading
will turn to zero.
o
If scale is in tare or load is not stable or
in hold, zeroing is not allowed.
o If the weight exceeds the Manual‐Zero
range, zeroing is not allowed.
8 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide

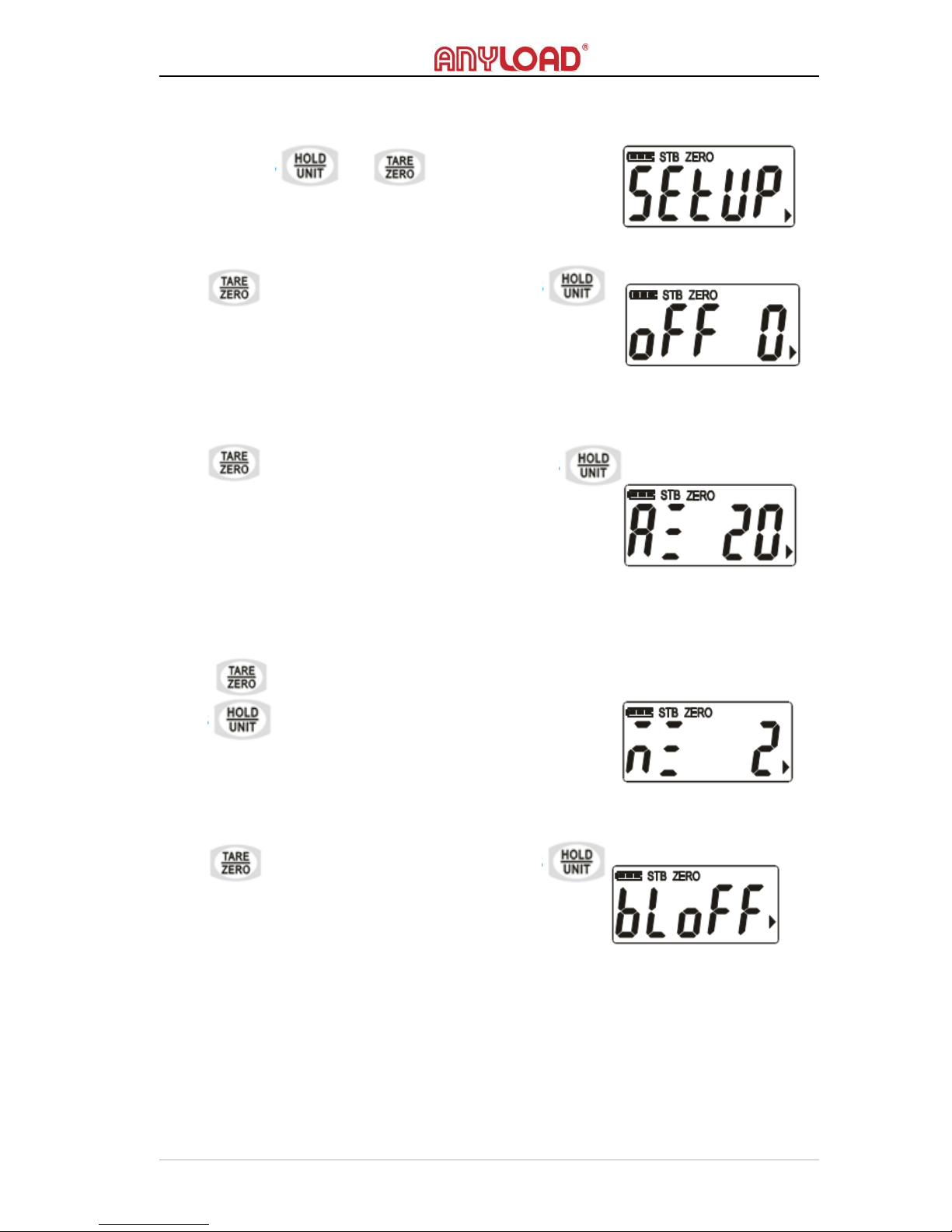

SETTINGS
Hold and press and keys simultaneously
for 1 second to enter Settings Mode. SETUP should
appear in the display.
Press to enter Auto-off options and press
to select Auto-off option.
o
Auto‐Off can be set to 0 (disabled), 5 (5min),
15 (15min), 30 (30min) and 60 (60min).
Press to enter Auto-Zero options and press
to select Auto-Zero option.
o Auto‐Zero can be set to 0 (disabled), 2
(2%F.S.), 4 (4%F.S.), 10 (10%F.S.), 20 (20%F.S.),
50 (50%F.S.).
Press to enter Manual-Zero options and
press to select Manual Zero option.
o Manual‐Zero can also be set to 0 (disabled),
2 (2%F.S.), 4 (4%F.S.), 10 (10%F.S.), 20
(20%F.S.), 50 (50%F.S.)
Press to enter Backlight options and press
to select Backlight option.
o Backlight can be set to off (disabled), 5
(5sec), 15 (15sec), 30 (30sec), 60 (60sec) and on (never).
o When Backlight is set to 5, 15, 30, or 60, the scale will turn off the
backlight if the scale is stable and no activities within the set
parameters (enumerated above).
o When Backlight is set to off, the backlight is disabled and will never
turn on.
9 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide
o When Backlight is set to on, the scale’s backlight will never turn off
even if it is stable and no activities on it.
o Press to exit the Settings mode
4. Troubleshooting
Symptoms
Possible Causes
Solutions
blank display when
On/Off is pressed
discharged battery
replace battery
defective battery
defective ON/OFF key
press ON/OFF key
for longer period
no action
taken after
TARE or
HOLD is
pressed
defective TARE or HOLD
key
clean TARE or HOLD
key
unstable readings
scale in motion
stabilize the load and
scale
scale is damped
dry the scale
dust on PCB board
clean PCB board
reading is not in zero
without load
unstable system power
longer warm‐up time
load‐cell was
stressed too much
or too
long
hang the scale
in storage
large error in weight
reading
scale is not zeroed
before loading
keep the scale
unloaded and reboot
re‐calibration needed
re‐calibrate the scale
wrong unit
switch to correct unit
10 | ANYLOAD OCSL Mini Type Crane Scale User’s Guide

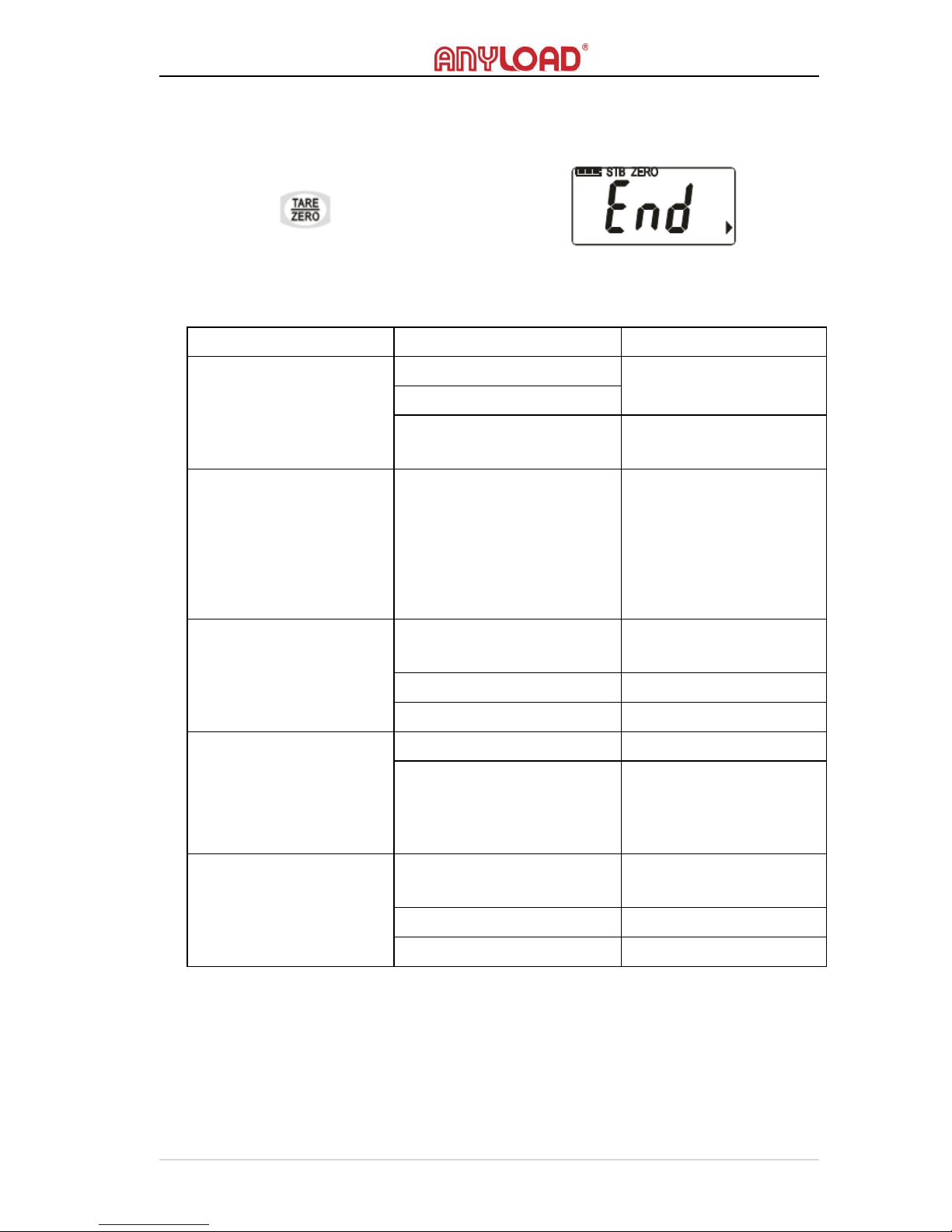

5. Calibration
Options
Display
Operations
Notes
Enter
Calibration
Mode
Hold and press [HOLD] and
[TARE] simultaneously, keep
pressing until SETUP
displays.
Enter Setup Mode
(At this stage set the unit of
measurement you are going to
calibrate, hold & press
the[HOLD/UNIT] to switch unit)
SETUP
Press [ON/OFF], [HOLD] and
[TARE] simultaneously, keep
pressing until SCALE
displays.
Enter Calibration
Mode
SCALE
Press [TARE].
Full Scale
_XXXX
Press [HOLD] to change
Full Scale and press [TARE]
to save setting.
For example, if you set
the unit at kg and setting
the parameter here to
600 then the full scale
should be 600kg else if it
was set to lb then the full
scale shall be equivalent
to 600lb.
Resolution
E X
Press [HOLD] to change
Resolution and press
[TARE] to save setting.
1/2/5
Decimal
Point
Pt X
Press [HOLD] to change
Decimal Point and press
[TARE] to save setting.
0: XXXXX
1: XXXX.X
2: XXX.XX
3: XX.XXX
Zero
Calibration
LoAd0
Press [TARE] to start zero
calibration.
Set the scale to no load
status and must be at stable
state.
-----
Load1
Calibration
_XXXX
Press [HOLD] to change 1st
Calibration Weight value.
Load the actual weight then
press [TARE] to start span
calibration.
If using test weight
equivalent to full scale
(FULL), the calibration shall
be finished at this stage.
-----
Load2
Calibration
_FULL
Load the 2nd test weight
then press [TARE] to finish
the calibration.
If 2nd test weight is not
needed, you can skip this
stage by pressing the
[ON/OFF] to finish and exit
the Calibration.
-----
_End_
