AnyDATA ACT233 User Manual

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

APRIL, 2013 ACT233L, V1.0

AnyDATA

AnyTime AnyPlace Any Wireless Data Solutions™

4G Vehicle Tracker with Hotspot

Users Manual

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

Any part of this document may not be distributed, communicated, reproduced or transmitted in any form or by any means, electronic or mechanical or otherwise, for any purpose, without the permission of AnyDATA Corp.

This document can be subjected to revision without further notice.

Contact Address

Headquarter AnyData Corporation

5 Oldfield, Irvine, CA 92618, http://www.anydata.net e-mail: [email protected] Rep:1-949-833-0011 Fax: 1-949-833-0022

AnyData(China)

489 Song Tao Road, Sector B, 1st Fl. Pudong ZhanJiang HiTech Park, Shanghai, 201203, P.R.China http://www.anydata.net.cn e-mail: [email protected] Rep:+86-21-5080-4828 Fax:+86-21-5080-3828

AnyData.Net Inc.(Korea)

DaeGo Bldg, 8th., 1591-10 Kwanyang-dong, Dongan_gu, Anyang City, Kyunggi-do Korea. http://www.anydata.co.kr e-mail: [email protected] Rep:+82-31-380-7100 Fax:+82-31-476-6021

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

Contents

Figures

Contents 3

Figures 3

Tables 4

1 Introduction 5

1.1 Purpose ......................................................................................................................... 5

1.2 Technical Detail ...................................................................................................... 5

1.3 Revision History ...................................................................................................... 5

2 Physical Contents 6

3 Description: 4G Vehicle Tracker with Hotspot 7

3.1 The Latest Vehicle Tracker in GPS Technology ............................................ 7

3.2 Alerts & Messages .................................................................................................... 7

3.3 Tracking Reports ...................................................................................................... 7

3.4 Vehicle Door Lock/Unlock with remote control ............................................ 7

3.5 Vehicle Door Look/Unlock with remote control from cloud server ...... 8

3.6 Vehicle Door Lock/Unlock with remote control through Bluetooth ...... 9

4 handing the 4G Vehicle Tracker with Hotspot 10

4.1 Set-up ......................................................................................................................... 10

4.2 Power supply from vehicle (typical 13.5V) ................................................ 10

5 Powering On/Off the 4G Vehicle Tracker with Hotspot 11

5.1 Powering On/OFF ...................................................................................................... 11

6 4G Vehicle Tracker with Hotspot Specifications 12

6.1 Form Factor .............................................................................................................. 12

6.2 Hardware Specifications ..................................................................................... 12

6.3 Software Specifications ..................................................................................... 12

6.4 External INTERFACE ................................................................................................ 13

6.5 Environmental .......................................................................................................... 13

7 Limitations of Liability 13

Figure 2.1: Package Contents ............................................................................................... 6

Figure 3.1: External Interface .......................................................................................... 8

Figure 4.1: Installation of ACT233L in vehicle ....................................................... 10

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

Tables

RF Exposure Warning:

The radiated output power of this device is below the FCC radio

frequency exposure limits. Nevertheless, the device should be

used in such a manner that the potential for human contact

during normal operation is minimized. In order to avoid the

possibility of exceeding the FCC radio frequency exposure

limit, human proximity to the antenna should not be less than

20 cm.

Information to user (FCC Part 15.21):

Changes or modifications not expressively approved by the party

responsible for compliance could void the user's authority to

operate the equipment.

Information to user (Industry Canada license-exempt RSS

standards)

This device complies with Industry Canada license-exempt RSS

standard(s). Operation is subject to the following two

conditions: (1) this device may not cause interference, and (2)

this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Table 1.1: Revision History .............................................................................................. 5

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

1 INTRODUCTION

Version

Date

Description

V 1.0

APR 2013

Initial Release – ACT233L

1.1 PURPOSE

This manual discusses the purpose and usage of the 4G Vehicle Tracker with

Hotspot(ACT233L).

1.2 TECHNICAL DETAIL

Please refer to Operation Description.pdf for a more detailed description

of the ACT233L.

1.3 REVISION HISTORY

The revision history for this manual is shown in Table 1.1.

Table 1.1: Revision History

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

2 PHYSICAL CONTENTS

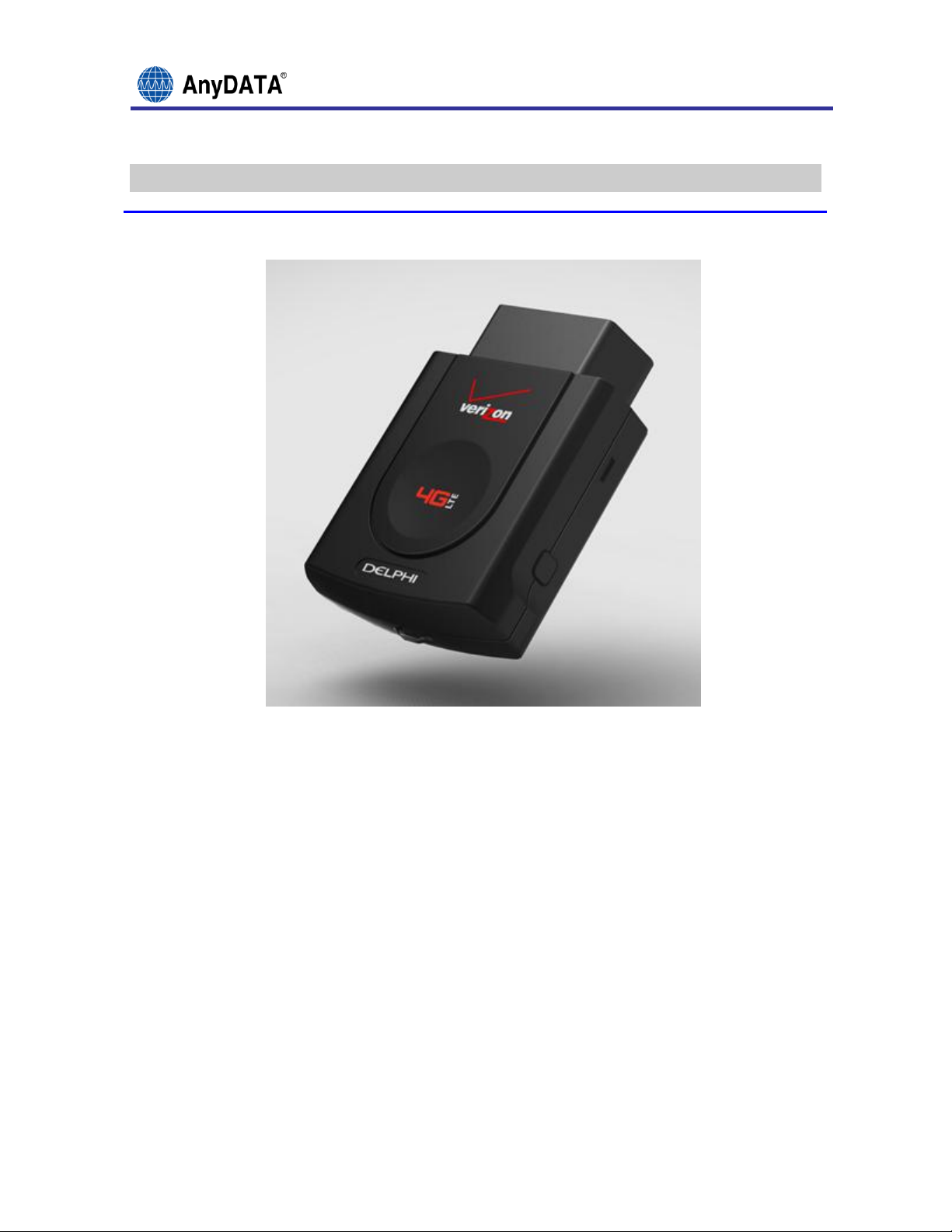

Figure 2.1: Package Contents

The box should contain:

 One ACT233L 4G Vehicle Tracker with Hotspot  One User Guide

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

3 DESCRIPTION: 4G VEHICLE TRACKER WITH HOTSPOT

3.1 THE LATEST VEHICLE TRACKER IN GPS TECHNOLOGY

Utilizing both assisted and standalone GPS, ACT233L is able to determine

your location via a combination of cell triangulation and the greatest

number of GPS satellites available.

3.2 ALERTS & MESSAGES

ACT233L has no button for user-set alert functions; the LBS (Location based

server) can only know the device location and alerts including the vehicle

information.

3.3 TRACKING REPORTS

The ACT233L can be configured to report its location on a sw scenario based

chronological interval. The interval is remotely configurable and can be

set via appropriate web and mobile software platforms. In addition to

interval tracking, the ACT233L is capable of servicing single location

requests on demand via one-time-fix requests made through the web/mobile

platforms.

3.4 VEHICLE DOOR LOCK/UNLOCK WITH REMOTE CONTROL

The ACT233L has the door lock or unlock function, which is controlled by

several methods; a cellular data radio, a Bluetooth radio for short-range

communications, a UHF radio with short-range vehicle-based receivers. This

device adapted the BT4.0+LE function to detect the Smartphone

presence/identification and RKE (Remote Keyless Entry) function to access

the UHF receiver of vehicle.

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

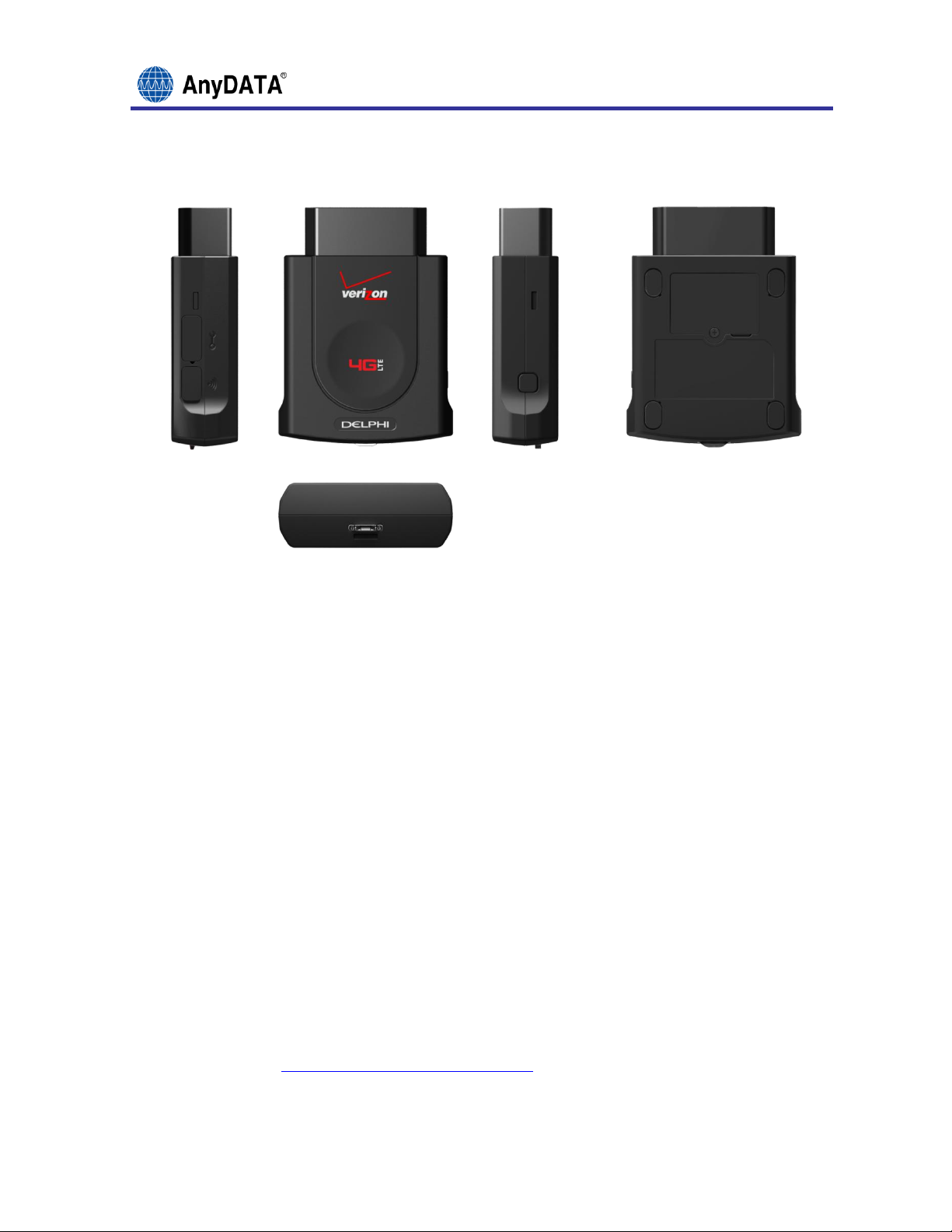

Figure 3.1: External Interface

3.5 VEHICLE DOOR LOOK/UNLOCK WITH REMOTE CONTROL FROM CLOUD SERVER

The ACT233L equipped a replacement remote for original equipment and

aftermarket automotive keyless entry systems (RKE). The features and

functions associated with each of the six channels of the RKE are dependent

on the year, make and model of the vehicle. Such functions include remote

control operation of the vehicle’s lock, unlock, horn, trunk, dome light,

rear hatch, remote start and power side door functions. The functions are

activated by command on the remote control from the cloud server. Selection

from a variety of appropriately controlled command which correspond to the

features of the vehicle shall be used for function identification. The

remote control may be configured to operate more than one receiver. A user

may toggle between receivers as often as necessary.

Please visit to http://www.keylessride.com/ for more details on RKE.

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

3.6 VEHICLE DOOR LOCK/UNLOCK WITH REMOTE CONTROL THROUGH BLUETOOTH

Bluetooth can be used for vehicle door lock/unlock control. Bluetooth

available smart phone can be paired to the device. Once paired user can

lock/unlock the vehicle using the application one the smart phone. Please

visit to http://delphi.com/ for more details on Bluetooth use cases.

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

4 HANDING THE 4G VEHICLE TRACKER WITH HOTSPOT

4.1 SET-UP

1. Most of vehicle has an OBD-II (On Board Diagnostics) connector, which

is located within 2 feet of the steering wheel.

2. The installation is very easy, just put the ACT233L to the OBD-II

connector in user vehicle.

3. The ACT233L will power on automatically from vehicle battery and

start initiation for CDMA or LTE network access.

4. After install of device to vehicle, all services are served by server.

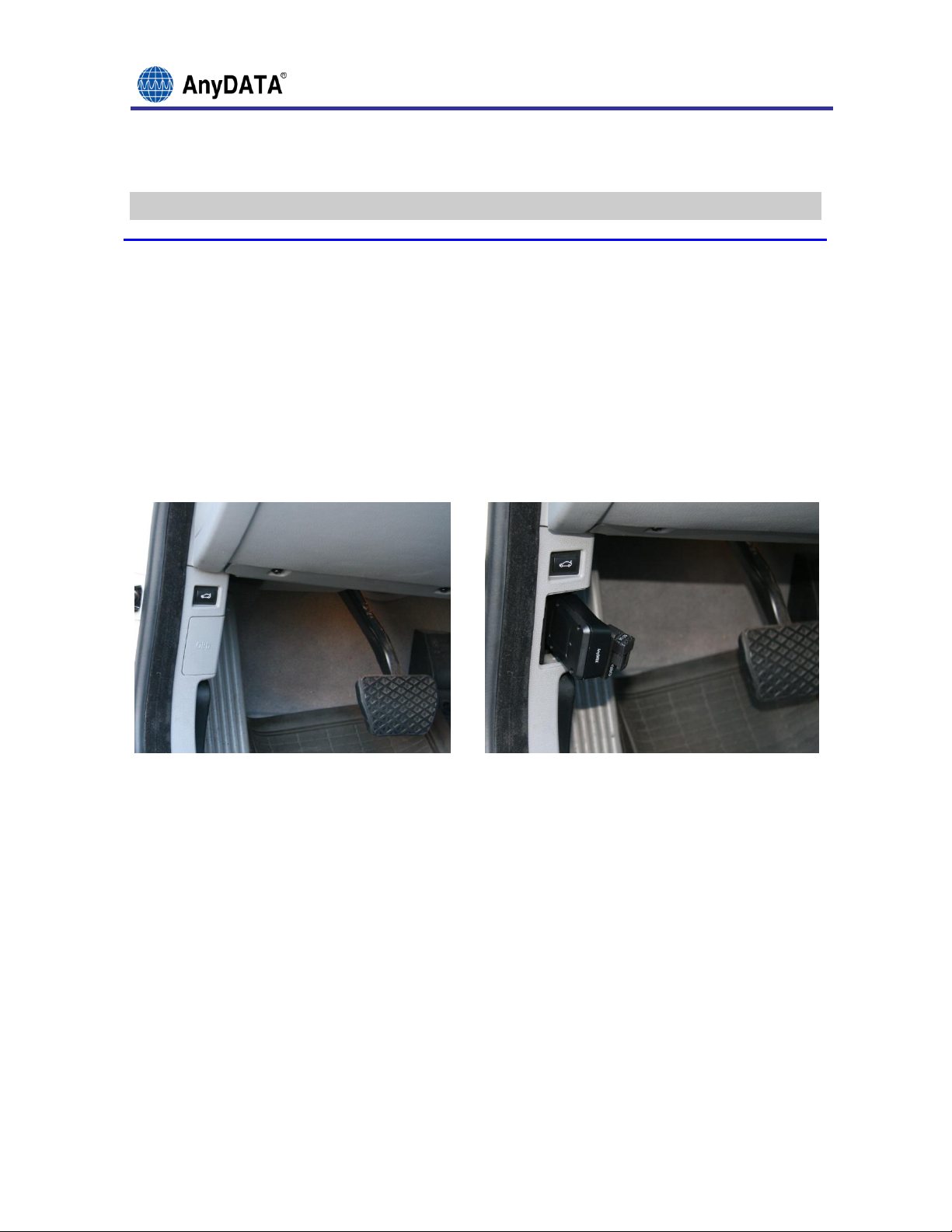

Figure 4.1: Installation of ACT233L in vehicle

4.2 POWER SUPPLY FROM VEHICLE (TYPICAL 13.5V)

1. After insertion of ACT233L to OBD-II connector, the device has

automatically power-on with the car battery, typically 9~18V.

2. If the engine has off, then the device decide to power off the OBD

interface circuit, and run the CDMA/LTE RF with GPS for the

unauthorized movement function.

3. If the engine has on, then the device work on the OBD interface

circuit, which is charge of gathering the vehicle information such

as fuel gauge, speed, engine RMP, and so on to report it to LBS

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

5 POWERING ON/OFF THE 4G VEHICLE TRACKER WITH HOTSPOT

server via the CDMA or LTE network.

5.1 POWERING ON/OFF

To Power ON:

1. Insert the device to OBD-II connector.

2. Then, the device has automatically powered on according to vehicle

condition.

3. There is no visual way to confirm whether device has power-on or not.

4. But, user can make sure the location from web-server, or application.

To Power OFF:

1. If the device is needed for totally power-off, then just remove it

from the OBD-II connector.

2. In case of the car has engine off with ACT233L, and passed several

days, the device has automatically power-off to protect the battery

drain fully.

3. The device will stay power-off until the car ignition-on again.

4. If the device detects the battery level over 13.5V, then start the

powering on.

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

6 4G VEHICLE TRACKER WITH HOTSPOT SPECIFICATIONS

6.1 FORM FACTOR

 Dimensions : 80 x 55 mm, 22mm in Height  Weight 78.4g

6.2 HARDWARE SPECIFICATIONS

 Full TIA/EIA/IS-98D/3GPP R8 LTE Compliance Assisted & Standalone GPS  Operating Voltage 9 ~ 18V, (internally 3.5V for CDMA RF)  Max Output Power 0.3W  Light Sleep Mode (4mA @ 13.5V)  Deep Sleep Mode (2mA @ 13.5V)  Sensitivity Less than -104dBm for CDMA, -97dBm for LTE B4, -94dBm for

LTE B13(10MHz BW for LTE).

 Receive Frequency 869.04 ~ 893.97MHz for BC0, 1931.25 ~ 1988.75MHz

for BC1, 746 ~ 756MHz for B13, 2110 ~ 2155MHz for B4.

 Transmit Frequency 824.04 ~848.97MHz for BC0, 1851.25 ~ 1908.75MHz

for BC1, 777 ~ 787MHz for B13, 1710 ~ 1755MHz for B4.

 Wi-Fi/Bluetooth (4.0+LE) : 2402MHz ~ 2480MHz  RKE (Remote Keyless Entry) : 300MHz, 319MHz, and 433.92MHz

6.3 SOFTWARE SPECIFICATIONS

 CDMA2000: CDMA2000 protocol IS-707-A.5: Packet Data Service for

Mobile and Base Station

 CDMA2000 1x EVDO r0, rA: EVDO protocol IS-856  IS-95A/B: CDMA protocol TIA/EIA-637: Short Message Service for Mobile

and Base Station

 IS-801 & TIA-801-A: Position determination Built-in TCP/IP service

standard for Dual-Mode spread spectrum systems

 LTE: LTE protocol TS36.521, 3GPP R8 Cat3

4G Vehicle Tracker with Hotspot user Manual (ACT233L)

6.4 EXTERNAL INTERFACE

 OBD-II  Micro USB (Type B)

6.5 ENVIRONMENTAL

 Operating Temperature : -20 ~ +70C  Storage Temperature : -40 ~ +85C  Humidity (Operating) 5% ~ 95% non-condensing, (50C)

7 LIMITATIONS OF LIABILITY

AnyDATA expressly assumes no responsibility for any error, omission,

interruption, deletion, defect, delay in operation or transmission,

communications failure, theft or destruction or unauthorized access to, or

alteration of, any use of the AnyDATA Locating Service through the Internet

or other communication services.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL

TRIPTRAK OR ITS SUPPLIERS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT,

PUNITIVE OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, BUT NOT LIMITED TO,

DAMAGES FOR: LOSS OF PROFITS OR REVENUES, LOSS OF CONFIDENTIAL OR OTHER

INFORMATION, BUSINESS INTERRUPTION, VEHICLE INJURY, DEATH, LOSS OF PRIVACY,

CORRUPTION OR LOSS OF DATA, FAILURES TO TRANSMIT OR RECEIVE DATA OR ANY

OTHER PECUNIARY LOSS WHATSOEVER ARISING OUT OF OR IN ANY WAY RELATED TO THE

USE OF OR INABILITY TO USE THE DEVICE, TRIPTRAK LOCATING SERVICE, OR THE

SUPPORT SERVICES OR OTHERWISE IN CONNECTION WITH ANY PROVISION OF THIS

AGREEMENT, EVEN IF COMPANY OR ANY SUPPLIER HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.
