Instruction Manual
TYPHOON SPEEDNET WIRELESS ACCESS POINT
Art: 70062C
08/2002
HTTP://WWW.TYPHOONLINE.COM
Typhoon Speednet Wireless Access Point
DECLARATION OF CONFORMITY
We, the manufacturer / importer
Anubis Electronic GmbH
Am Langfeld 38
66130 Saarbrücken
Germany
Declare that the product
Type of product : Wireless Access Point
Type designation : Typhoon Speednet Wireless Access Point
Is herewith confirmed to comply with the requirements set in the
Council Directive on the Approximation of the Laws of the Member
States relating to
Electro Magnetic Compatibility Directive :
IEC60 950: 1991+A1: 1992+A2: 1993+A3: 1995+A4: 1996
EN60 950: 1992+A1:1993:A2:1993+A3:1995+A11:1997
EN300826:
-M easurement Stand:
EN300328-2: 2000
ETS 300826:1997
-Measurement Procedure:
EN300328-1: 2000
EN50081-1: 1992
EN50082-1: 1997
EN55022: 1994
EN61000-4-2: 1995
EN61000-4-3: 1995
EN61000-4-4: 1995
EN61000-4-5: 1995
EN61000-4-6: 1996
EN61000-4-11: 1994
EN600826:
-Measurement Stand:
ETSI EN300328-2:2000
-Me asurement Procedure:
EN300328-1:2000
1
Typhoon Speednet Wireless Access Point
Copyright
Copyright 2001 by ANUBIS International Comp. Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language or computer
language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of
ANUBIS International Comp. Ltd.
ANUBIS International Comp. Ltd. makes no representations or warranties,
either expressed or implied, with respect to the contents hereof and
specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Any software described in this manual is sold or licensed
"as is". Should the programs prove defective following their purchase, the
buyer (and not ANUBIS International Comp. Ltd., its distributor, or its dealer)
assumes the entire cost of all necessary servicing, repair, and any incidental
or consequential damages resulting from any defect in the software. Further,
ANUBIS International Comp. Ltd. reserves the right to revise this publication
and to make changes from time to time in the contents hereof without
obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered
trademarks of their respective holders.
2
Typhoon Speednet Wireless Access Point
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
This equipment must be installed and operated in accordance with provided
instructions and a minimum 20 cm spacing must be provided between
computer mounted antenna and person’s body (excluding extremities of
hands, wrist and feet) during wireless modes of operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an
uncontrolled environment. In order to avoid the possibility of exceeding the
FCC radio frequency exposure limits, human proximity to the antenna shall
not be less than 20cm (8 inches) during normal operation.
3
Typhoon Speednet Wireless Access Point
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/CE
OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on
radio equipment and telecommunication terminal Equipment and the mutual
recognition of their conformity (R&TTE)
The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications Terminal Equipment and Satellite Earth Station
Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who
install and use it. However, special attention must be paid to the dangers of
electric shock and static electricity when working with electrical equipment. All
guidelines of this and of the computer manufacture must therefore be allowed
at all times to ensure the safe use of the equipment.
EU Countries Not Intended for Use
The ETSI version of this device is intended for home and office use in Austria
Belgium, Denmark, Finland, France, (with Frequency channel restrictions)
Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal,
Spain, Sweden, and the United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member
states: Iceland, Liechtenstein, Norway, and Switzerland.
EU Countries Not intended for use
None.
Potential restrictive use
France: Only channels 10,11,12, and 13
4
Typhoon Speednet Wireless Access Point
Manual Contents
Chapter 1 Introduction …………………………………………….………….……………….… .… .6
Chapter 2 Installation Procedure ……………………………………………………..………….7
Chapter 3 Device & Network Management ………………………….………………………..9
Device Manager … .…………………………………………………………………………..…10
Network Management … .…………………………………………………………………………..…12
AP Device Manager … .…………………………………………………………………………..…13
Chapter 4 Uninstall Hardware & Software ………………………….……...………………..16
Chapter 5 Technical Specifications……………………………………………..……………..17
Chapter 6 Troubleshooting……………………………………………..…………..……………..18
5
Typhoon Speednet Wireless Access Point
Chapter
1
Introduction
This chapter is your starting point for the rest of this manual.
Package Contents
Before you begin the installation, please check the items of your package. The package
should include the following items:
l One Wireless Access Point
l One Power Adaptor
l One USB Cable
l One CD-Based Software (Including Wireless Access Point driver & utility and user
manual.)
l One Quick Guide
If any of the above items is missing, contact your supplier as soon as possible.
Minimum System Requirements
Before you begin the installation, please check the following requirements with your
equipment.
l Pentium Based (above) IBM-compatible PC system with an USB support
l CD-ROM driver
l One Available USB Connector
l One Available Ethernet port
l Windows 98/2000/ME/XP Operating System
l At least 500Kbytes of free disk space for utility and driver installation
Safety Precaution
Only use the accessories and connection cables attached with the device package.
Otherwise, the device may not function. If you accidentally miss or damage the accessories
and connection cables, please contact with your local dealer.
6
Typhoon Speednet Wireless Access Point
Chapter
2
Installation Procedure
This chapter will walk you through the hardware and Device Manager
Installing the Hardware
Perform the following steps to install the Wireless Access Point (AP).
1. If applicable, insert the Ethernet cable into the RJ45 connector (labeled "WAN") on the
AP to connect to a hub, router, cable or DSL modem.
2. Next, apply power to the AP by plugging in the power adapter supplied with the
evaluation kit. This completes the hardware portion of the installation.
3. The next step is to add the AP into the wireless network. There are three configuration
options of the AP:
l "Enroll" the AP in the network (Multimedia Mode only). Using the Network Management
application on a wireless active PC node to enroll the AP into the network.
l The AP provides an SNMPv1 agent and the support for the standard IEEE 802.11 MIB and
proprietary extensions (MIB files are included in the evaluation CD). These objects can be
read and configured via a standard SNMP MIB Browser.
l Alternatively, read the below "Installing the AP Manager" to manually configure the AP
Access.

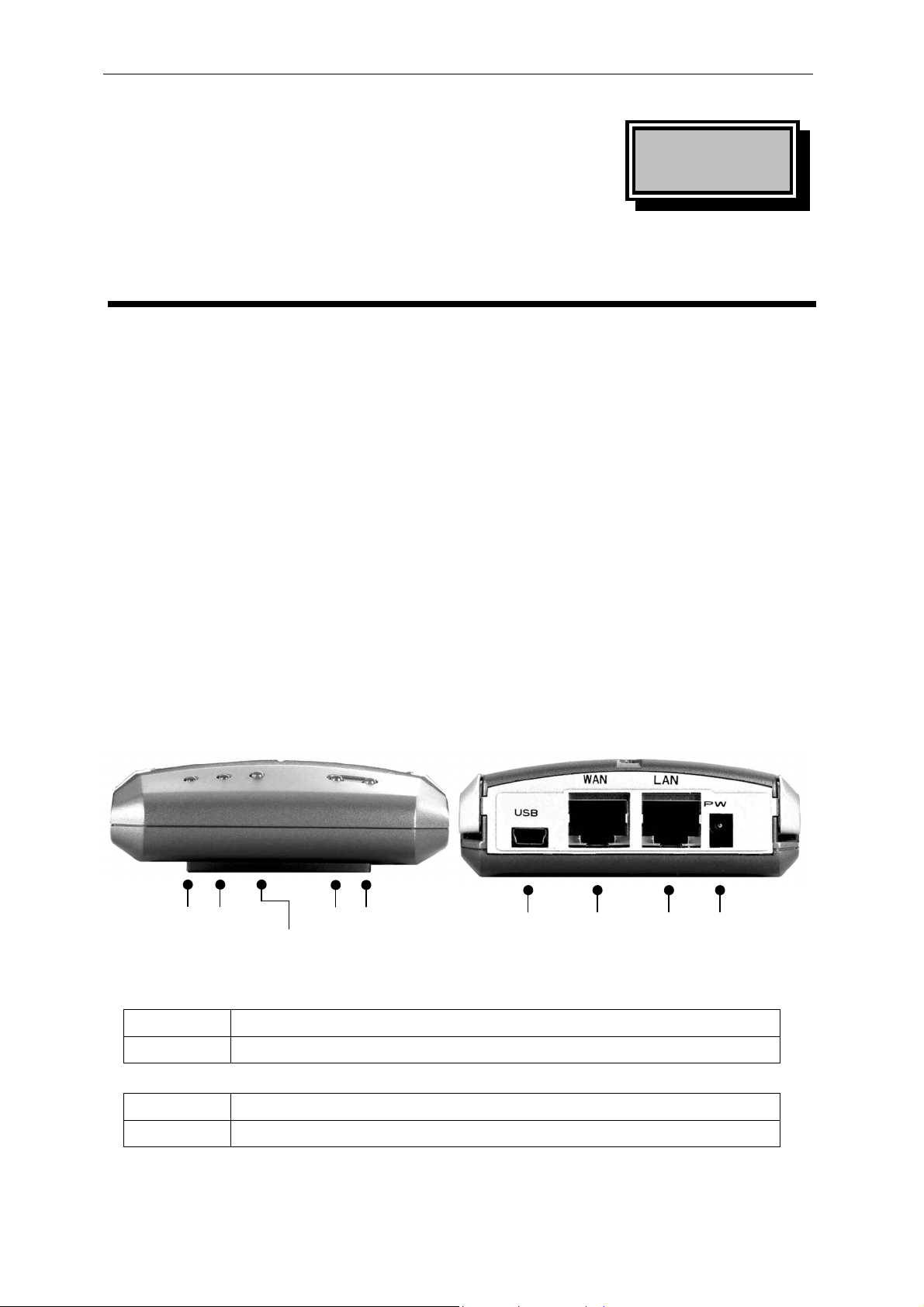

Power Radio Activity LAN WAN
Wi-Fi compliant or Multimedia
l WAN / LAN Port Application
USB WAN LAN Power
WAN Port + RJ45 Cross Over Cable + ADSL or Cable Modem
LAN Port + RJ45 Normal Cable + HUB
Or
WAN Port + RJ45 Normal Cable + HUB (uplink port) or PC
LAN Port + RJ45 Normal Cable + ADSL or Cable Modem or Intranet
Note: When the correct cables are connected to the "LAN" or "WAN" ports, the "LAN" or
"WAN" LED indicators should be on. If you find the LED indicators still lightless, please
check if the cables are loose or out of order.
7
Typhoon Speednet Wireless Access Point
Installing the AP Manager
The Access Point (AP) can be manually configured using the "AP Manager". Follow the
below instructions to install this software.
1. Connect the AP to a computer using the included USB cable. The computer does not
have to be a node in the network (any network or non-network PC can be used to run the
AP Manager software).
2. Windows will notify you with a "New Hardware Found" dialog box. Following this, the
Windows installation wizard will detect the AP.
3. Insert the installation CD into your CDROM drive and click "Next".
l Windows 98
- Select "Search for the best driver for your device", and click "Next". Specify to search
the CD Rom drives (check the box) and click "Next".
l Windows ME/2000
- Select the "Automatic Search" option and click "Next".
4. Windows will find the drivers located on the CD and begin to install them. This may take
several minutes.
5. When completed click "Finish". You will next be asked to reboot the computer. Click
"Yes".
Note: If the system does not shut down (or restart) within 2 minutes, manually power down the
computer and then power it back up.
6. After the restart, the software installation will continue aut omatically. Follow the
instructions on the screen to install the software. You will be asked some basic questions
including:
l Agreement to the (blank) license agreement
l Your name and company name
l SSID (This will be the SSID or network name immediately after installation, note that you
can always change this after the installation).
7. After the software installation you may be asked to reboot once more, after which the
installation is complete.
Important: On most systems it is necessary that you reset the AP after installation of the
software. At this time, reset the AP using the reset button or by "power-cycling" the
AP. You can now use the AP Device Manager.
8
Typhoon Speednet Wireless Access Point
Chapter
3
Device & Network Management

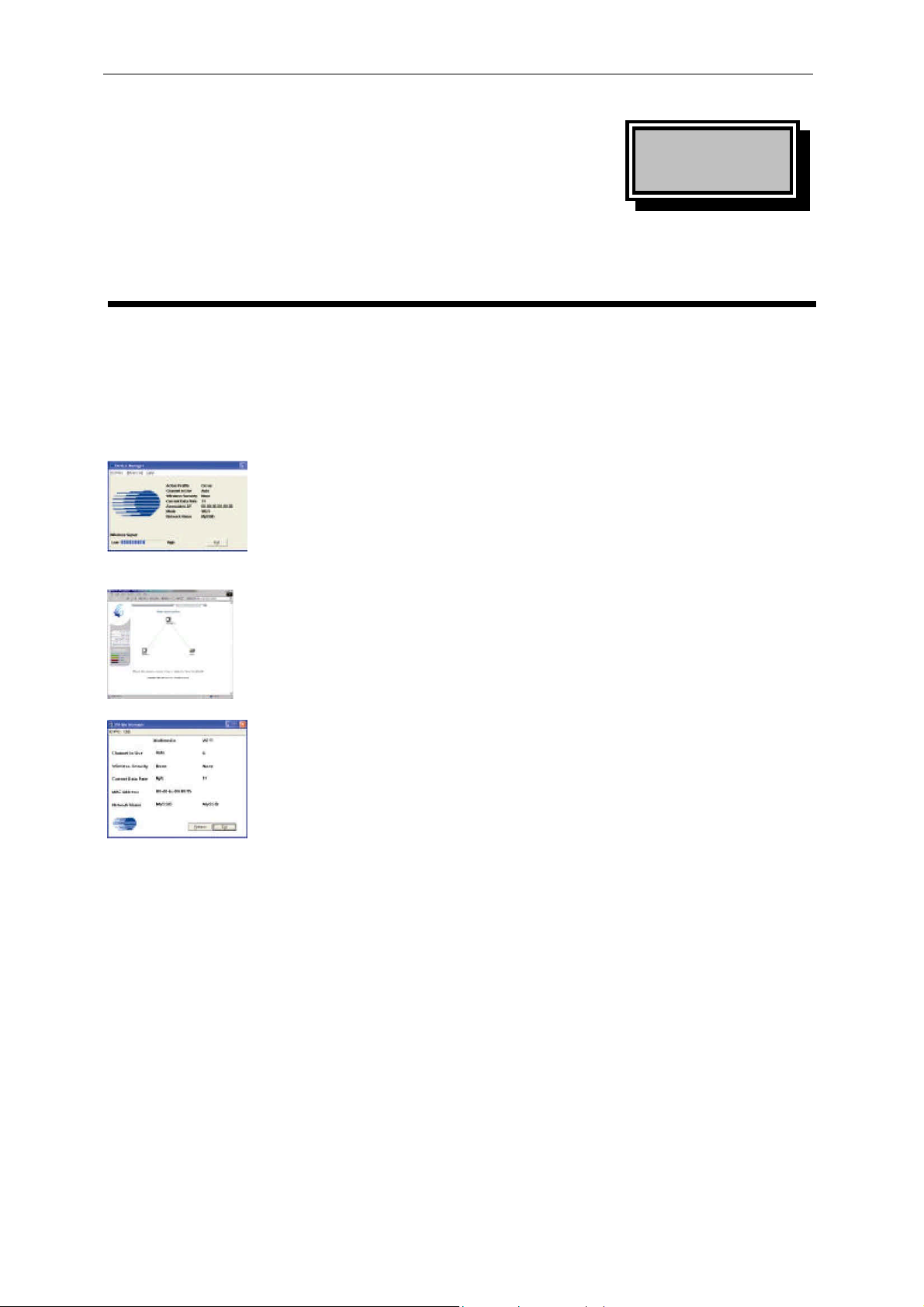

This chapter will help you understand the device management, network management and
device management applications.
To manage the various devices on the network and the network itself, three software
applications are provided. Following is a short description of each application and its main
purpose.
l Device Manager
- The Device Manager configures any client device located on the
computer (i.e. PCMCIA).
The following sections describe these applications and their operation in greater detail.
l Network Manager
- Network Management provides network information and statistics
regarding all devices on the network. This application is only
available when the network is operating in Multimedia mode.
l AP Device Manager
- The AP Device Manager allows for configuring the AP through the
USB cable.
9
Device Manager

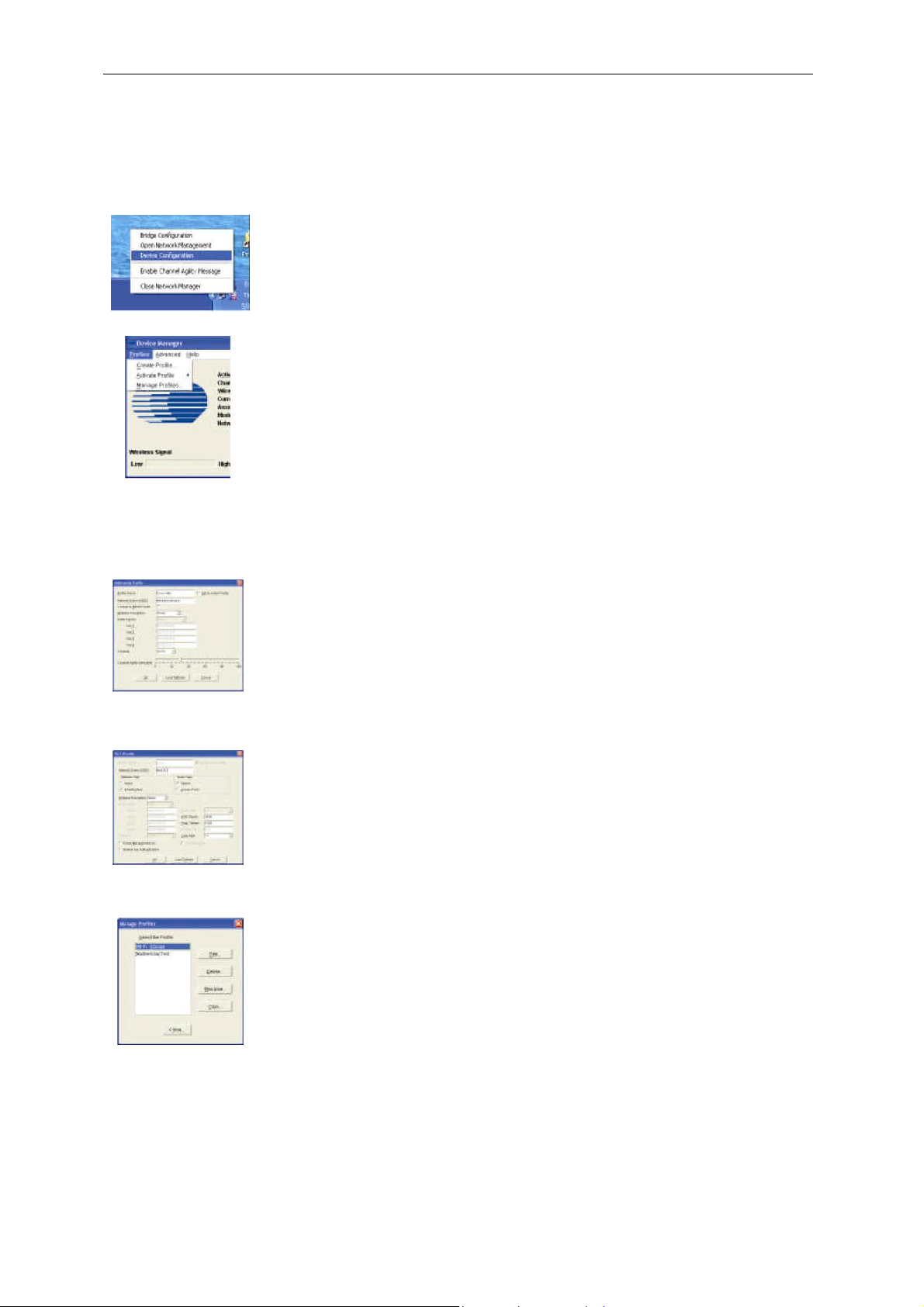

Start the Device Manager by right-clicking the icon on the system tray
and selecting ”Device Configuration”.
The Device Manager uses the concept of “profiles.“ Profiles allow a
user to store specific settings for a particul ar situation or environment.
For example, a user may have an “Office” profile in which the node
operates in Wi-Fi mode and a "Home" profile for Multimedia mode.
Profiles will help the user manage the appropriate settings including
network IDs, WEP, and operating mode.
Profiles can be created, managed (for editing) and activated from the
Device Manager application by selecting the Profiles menu.
Typhoon Speednet Wireless Access Point
When creating a new profile from this menu, the software will ask the
user to select either a Wi-Fi based or a Mul timedia-based profile.
The screen (at left) displays the creation of a new Multimedia profile.
Profile name, encryption settings, etc. can be set here. Settings that
are unique to a Multimedia profile include the “Auto” setting for the
channel selection and the “Channel Agility sensitivity” setting (both
unique to the Channel Agility feature). Another Multimedia-only setting
is the “Change to Master Node” option, which forces a particular node
to be the network coordinator. A complete overview of all parameters
is included at the end of this section.
The screen (at left) shows the WiFi profile “create” screen. The WiFiunique options that can be set on this screen are the Network and
Node type settings in addition to Data Rate and Power Management
settings.
Once two or more profiles are created, the user can switch between
these profiles using the Profiles menu in the main device manager
screen.
Previously created profiles can be edited, deleted, renamed and
copied in the Manage Profiles screen. The Copy command is useful in
creating multiple profiles that are similar without having to reset all
options manually.
10
Typhoon Speednet Wireless Access Point

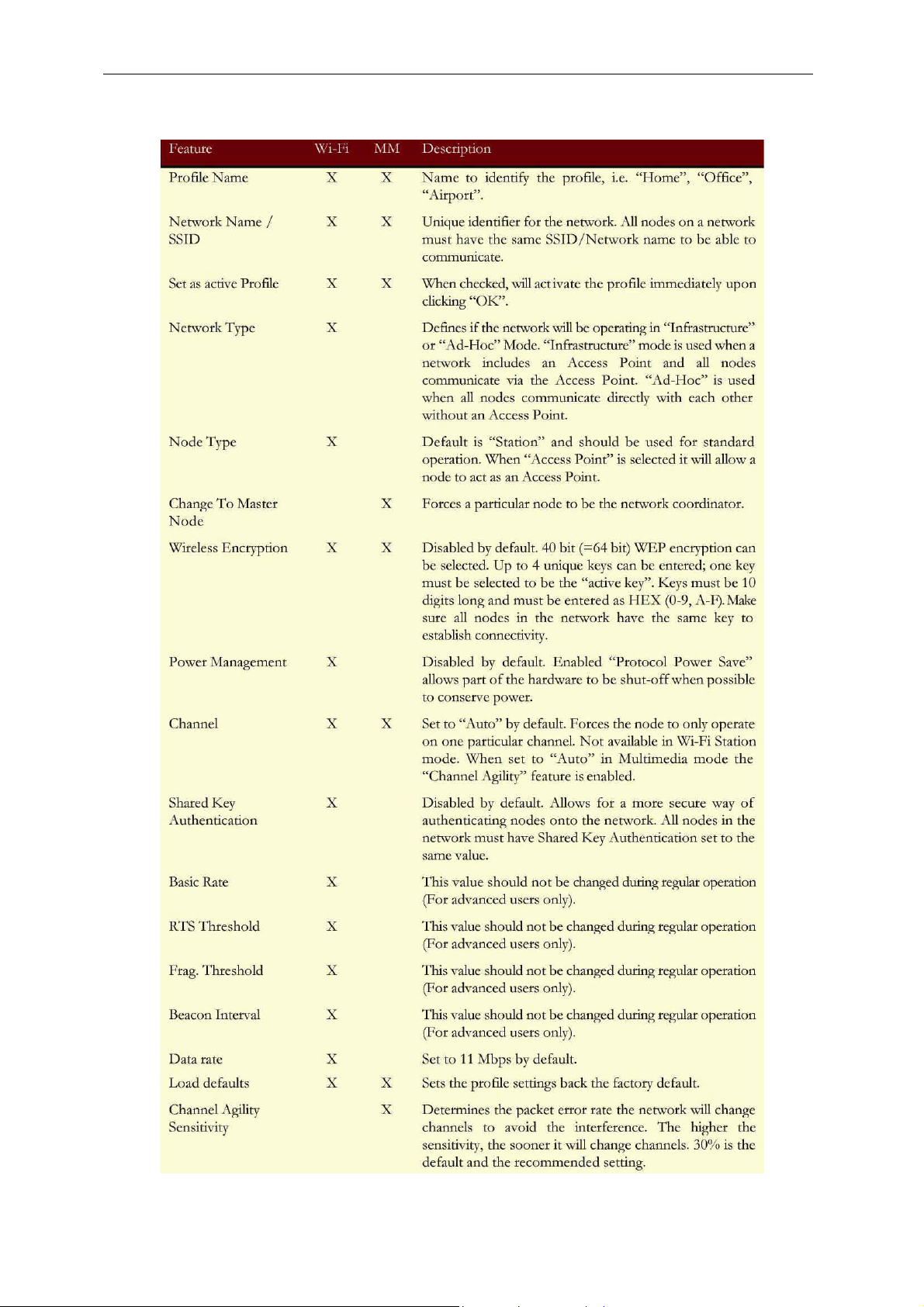

The list below defines all user-configurable settings within a profile.
11
Typhoon Speednet Wireless Access Point
will be automatically enrolled into the
To add (or enroll) this AP into the network, click on the "Add" button.
Network Management
Double-click on the system tray icon to start Network Management (or right-click and select
"Open Network Management").
Note: The Network Management Application is ONLY available when the Network is in
Multimedia mode.

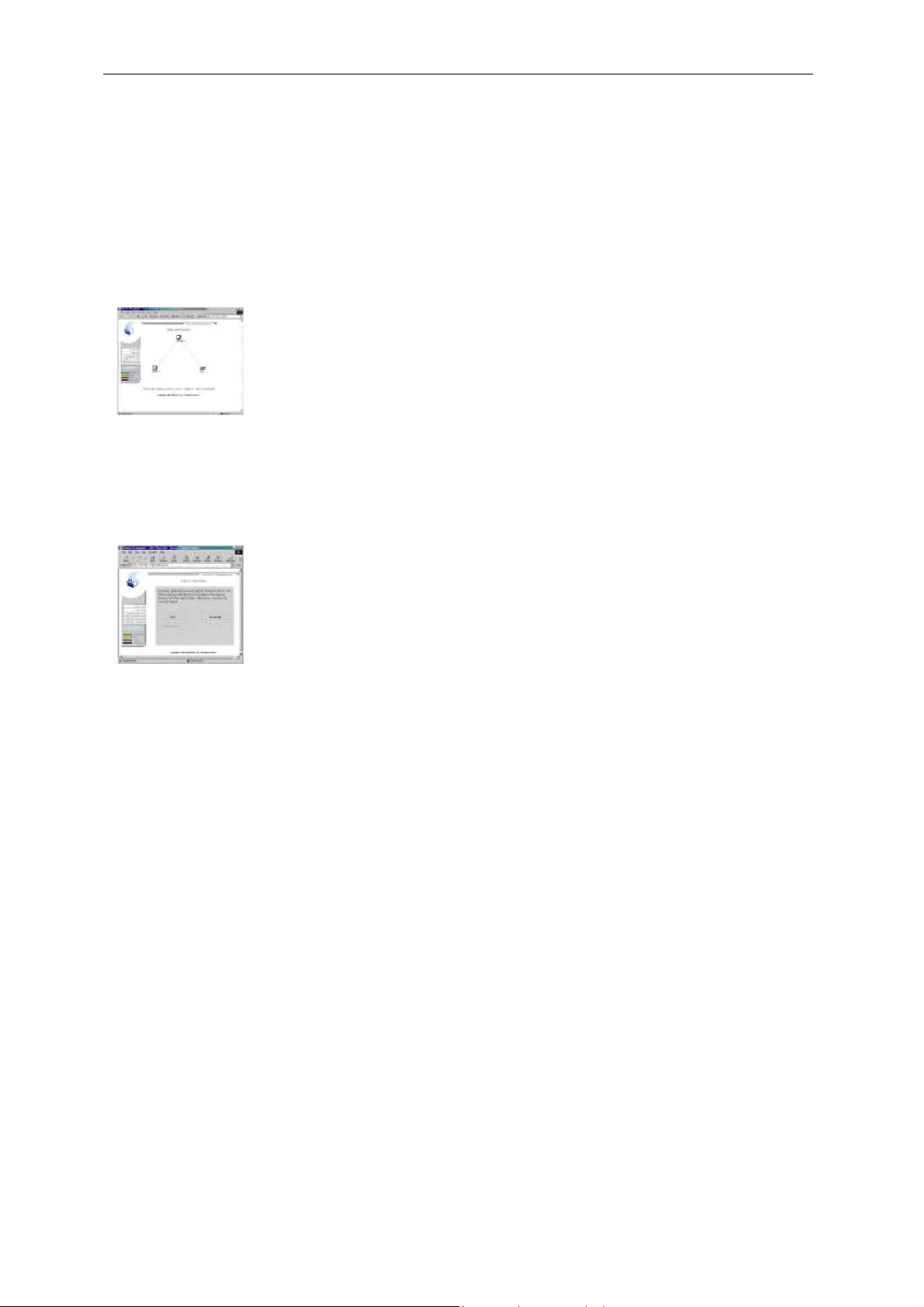

The "Node Information" page in network management utility displays a
diagram of the active Multimedia network. Additional information is
also available by clicking on buttons to the left side of the page.
The Color legend on the lower left designates the quality of the
connection and is indicated by the color of the lines between any two
nodes.
The information on this page is obtained from the Master node for all
nodes on the network. If the Master node is a non-functional node, this
HTML page will not be avai lable on the client nodes and a "trouble
shooting page" will be displayed instead.
Refer to the below section on the "AP Device Manager" for instructions on how to manually
configure the AP. Manual configuration will give you more control over the AP settings
including network names, SSID and WEP settings.
l Adding nodes to the network (Multimedia mode only)
- To add the AP node to the network, the designated Master node
must allow the AP to be "enrolled" into its secured network group.
This group is based on the network identification (or "Network ID")
entered during installation. If the Network ID of a node matches the
Master’s Network ID, the node
group.
- To add a wireless AP to the network or add a new node which is
configured to be in an open enrollment mode, click on the "Add A
New Node" button in the Network Management page from any node
in the system. The Master node will search for nodes that have not
been added to the group. (those which are determined to be in open
enrollment mode)
The Master node will forward its Network ID to the AP node which
as been detected to be in open enrollment mode.
12
Typhoon Speednet Wireless Access Point
Fi
or modified. Note that the separate
AP Device Manager
When the USB cable is connected, the AP will enter configuration mode. Double-clicking the
icon on the desktop will start the AP Device Manager.
Note: While the AP is in "configuration mode" (when the USB cable is inserted), the AP will not
function in the network. Upon removal of the USB cable, the AP will resume its normal
operation.
After the application starts, it will display a general information screen which provides
information for the current Multimedia and Wi-Fi settings.
l Setting up profiles
- To edit these settings, select either the "Multimedia profile" or "Wiprofile" from the Profile menu. All relevant settings for both Wi-Fi
and Multimedia mode can be set
profiles allow for unique settings (i.e. different SSID or network
names) in each mode.

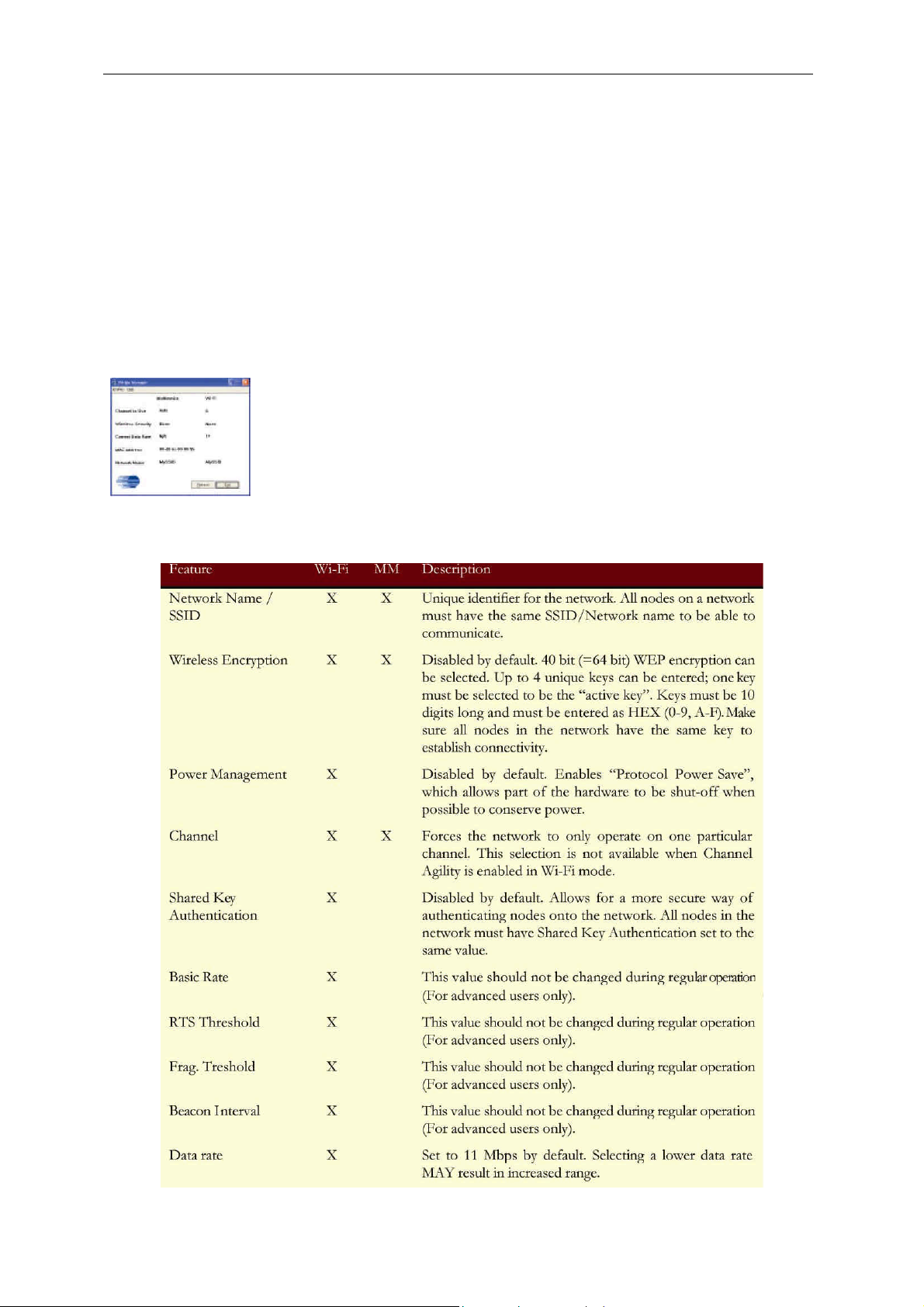

The list below outlines all user-configurable AP settings.
13
Typhoon Speednet Wireless Access Point
l Setting up IP/SNMP settings
- When operating in Wi-Fi mode, the AP runs an IP stack. The IP
settings can be modified by se lecting the "IP/SNMP" settings in the
Profiles menu of the AP manager. The following parameters can be
modified:
u DHCP Enabled
- When enabled, the AP will attempt to obtain an IP address through
DHCP.
u IP Address
- Allows for manually assigning an IP address.
u Default Gateway
- Allows for manually assigning a Gateway (enter Gateway’s IP address).
u Subnet Mask
- Allows for manually entering a subnet mask.
- The AP provides an SNMPv1 agent and provides support for the
standard IEEE 802.11 MIB and proprietary extensions. These objects
can be read and configured via a standard SNMP MIB Browser. The
following parameters can be set on the AP by selecting the "IP/SNMP
Settings" from the Profiles menu in the AP Manager:
u Community Name – GET
- The read password to monitor AP/Access Point statistics and
configuration parameters. Default password is "public".
u Community Name – SET
- The read / write password to monitor AP statistics and edit
configuration parameters. Default password is "private".
u Community Name – TRAP
- The password included in trap messages sent to the SNMP
management tool. This password can be used to filter unwanted
messages. Default password is "public".
u Trap Target
- The IP address of the SNMP management station that will collect
SNMP trap messages. Default address is "192.168.0.1".
14
Typhoon Speednet Wireless Access Point
Switches and Connectors
Nodes with a Cirrus wireless adapter installed can be switched from Wi-Fi to Multimedia
mode (and vice versa) using the device manager software. As the Access Point (AP) does
not have a user interface that can be used to switch between multimedia and Wi-Fi, it
employs a manual mode switch. This switch can be found on the AP and is labeled
accordingly.
Depending on the configuration of your evaluation kit you may have received one of three
Access Points (AP). All APs offer similar functionality but vary in appearance. The below
installation instructions apply to all available APs.
l Mode Switch
- Used to switch between Multimedia (WhiteCap) and Wi-Fi mode.
l Factory Default Reset
- Used to reset all parameters (i.e. SSID, WEP etc) to the factory default.
l Reset
- Used to reset the AP. (similar to power cycling)
l Power
- Connects to (included) power adapter.
l WAN Port
- Connects to HUB, router, cable/DSL modem for LAN / Internet connectivity.
l LAN Port (not available on all APs)
- Can be used to connect a wired client node to the network.
l USB Port
- Connects to connector, use for configuration only. (AP Manager software required)
15
Typhoon Speednet Wireless Access Point
Chapter
4
Uninstall Hardware & Software
This chapter will help with the Hardware & Software uninstall process.
1. To completely uninstall the wireless network adapter from your Windows operating
system, use the Windows Add/Remove Programs Properties feature located in the Start
/Settings/Control Panel menu.
2. Select the Wireless Network Adapter and click on the “Add/Remove…” button.
3. Follow the on-screen instructions to uninstall the software.
4. After the software uninstall, use the Windows Device Manager to uninstall/remove the
wireless adapter.
l Windows 98/ME
- Right -click on the “My Computer”, select “properties”, select the ‘Wireless Networking
Adapter’ and click uninstall/remove.
l Windows 2000/XP
- Right -click on the “My Computer”, select “hardware”, select “device manager”, select the
“Wireless Networking Adapter” and click uninstall/remove.
5. After uninstalling the device in the device manager, shut down the computer
and remove the hardware.
16
Typhoon Speednet Wireless Access Point
Technical Specification
l Standard: Wi-Fi (IEEE 802.11b) and MM/QoS (IEEE 802.11e-type)
l Signal Type: DSSS (Direct Sequence Spread Spectrum)
l F requency Band: 2.400 GHz ~2.4835GHz
l Modulation: QPSK / BPSK / CCK
l Ports Two RJ 45, One USB
Chapter
5
l Ethernet Interface: IEEE 802.3; 10BaseT
l Antenna: Two External Dipole Antenna
l Channel: 11 Channels (US, Canada), 13 Channels (Europe), 14 Channels (Japan)
l Data Rate: Up to 11 Mbps (with automatic Fall Back)
l Transmit Power Output: Typically 20 dBm
l Receive Sensitively: Typically –83 dBm
l Compatibility: Windows 98/ME/2000/XP
l LED Indicators: LED1: Power, LED2: Radio Activity, LED3: Wi-Fi compliant or Multimedia,
LED4: LAN, LED5: WAN
l Power Supply: Input: AC 100-240, 47-63Hz, 0.3A, Output: DC 5 V / 2A
l Certification: FCC, R&TTE
l Dimensions: 142x88x28mm
l Weight: 128g
17
Typhoon Speednet Wireless Access Point
Chapter
6
Troubleshooting
This section provides solutions to problems usually encountered during the installation and
operation of this Wireless USB Adaptor. Read the description below to solve your problems.
ü What is the IEEE 802.11b standard？
The IEEE 802.11b Wireless LAN standard subcommittee which formulates the
standard for the industry. The objective is to enable wireless LAN hardware from
different manufactures to communicate.
ü What does IEEE 802.11 feature support？
The product supports the following IEEE 802.11 functions:
l CSMA/CA plus Acknowledge Protocol
l Multi-Channel Roaming
l Automatic Rate Selection
l RTS/CTS Feature
l Fragmentation
l Power Management
ü What is Ad-hoc？
An Ad-hoc integrated wireless LAN is a group of computers, each has a Wireless LAN
adapter, Connected as an independent wireless LAN. Ad hoc wireless LAN is
applicable at a departmental scale for a branch or SOHO operation.
ü What is Infrastructure？
An integrated wireless and wireless and wired LAN is called an Infrastructure
configuration. Infrastructure is applicable to enterprise scale for wireless access to
central database, or wireless application for mobile workers.
ü What is BSS ID？
A specific Ad hoc LAN is called a Basic Service Set (BSS). Computers in a BSS must
be configured with the same BSS ID.
ü What is WEP？
WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40 bit shared
key algorithm, as described in the IEEE 802 .11 standard.
ü Can Wireless products support printer sharing？
Wireless products perform the same function as LAN products. Therefore, Wireless
products can work with Netware, Windows NT/2000, or other LAN operating systems to
support printer or file sharing.
ü Would the information be intercepted while transmitting on air？
WLAN features two-fold protection in security. On the hardware side, as with Direct
Sequence Spread Spectrum technology, it has the inherent security feature of
scrambling. On the software side, WLAN series offer the encryption function (WEP) to
enhance security and Access Control. Users can set it up depending upon their needs.
18
Typhoon Speednet Wireless Access Point
ü What is DSSS？What is FHSS？And what are their differences？
Frequency-hopping spread-spectrum (FHSS) uses a narrowband carrier that changes
frequency in a pattern that is known to both transmitter and receiver. Properly
synchronized, the net effect is to maintain a single logical channel. To an unintended
receiver, FHSS appears to be short-duration impulse noise. Direct-sequence spreadspectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This
bit pattern is called a chip (or chipping code). The longer the chip is, the greater the
probability that the original data can be recovered. Even if one or more bits in the chip
are damaged during transmission, statistical techniques embedded in the radio can
recover the original data without-the need for retransmission. To an unintended
receiver, DSSS appears as low power wideband noise and is rejected (ignored) by
most narrowband receivers.
ü What is Spread Spectrum？
Spread Spectrum technology is a wideband radio frequency technique developed by
the military for use in reliable, secure, mission-critical communication systems. It is
designed to trade off bandwidth efficiency for reliability, integrity, and security. In other
words, more bandwidth is consumed than in the case of narrowband transmission, but
the trade off produces a signal that is, in effect, louder and thus easier to detect,
provided that the receiver knows the parameters of the spread-spectrum signal being
broadcast. If a receiver is not tuned to the right frequency, a spread –spectrum signal
looks like background noise. There are two main alternatives, Direct Sequence Spread
Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).
ü Hotline and Service Information
Land Hotline Number email
Deutschland 01805/8974666 Service_DE@anubisline.com
France 0033/387859602 Service_FR@anubisline.com
Italia 0039/067231 669 Service_IT@anubisline.com
19
Loading...
