Precautions and Notices

 For your own safety, do not operate the controls of the product while driving.
 Use this product prudently. The product is intended for use solely as a

navigation aid. It is not for precise measurement of direction, distance,
location or topography.

 The calculated route is for reference only. It is the user’s responsibility to

follow the traffic signs and local regulations along the roads.

 When you get out of the car, do not leave your device on the dashboard

subjected to direct sunlight. Overheating of the battery can cause malfunction
and/or danger.

 GPS is operated by the United States government, which is solely responsible

for the performance of GPS. Any change to the GPS system can affect the
accuracy of all GPS equipments.

 GPS satellite signals cannot pass through solid materials (except glass). When

you are inside a tunnel or building, GPS positioning is not available.

 A minimum of 4 GPS satellite signals is needed to determine current GPS

position. Signal reception can be affected by situations such as bad weather or
dense overhead obstacles (e.g. trees and tall buildings).

 Other wireless devices in the vehicle might interfere with the reception of

satellite signals and cause the reception to be unstable.

iii

 A car holder is needed when using the device in a car. Be sure that you place

the device in an appropriate place, so as not to obstruct the driver’s view, or
deployment of airbags.

Do not mount where the driver’s
field of vision is blocked.

Do not place unsecured
on the dashboard.

Do not mount in front of
airbag panels.

Do not mount in front of an
airbag field of deployment.

iv

1 Getting Started

This chapter tells you step by step how to perform the initial startup and introduces
the components of your device.

1.1 Performing the Initial Start Up

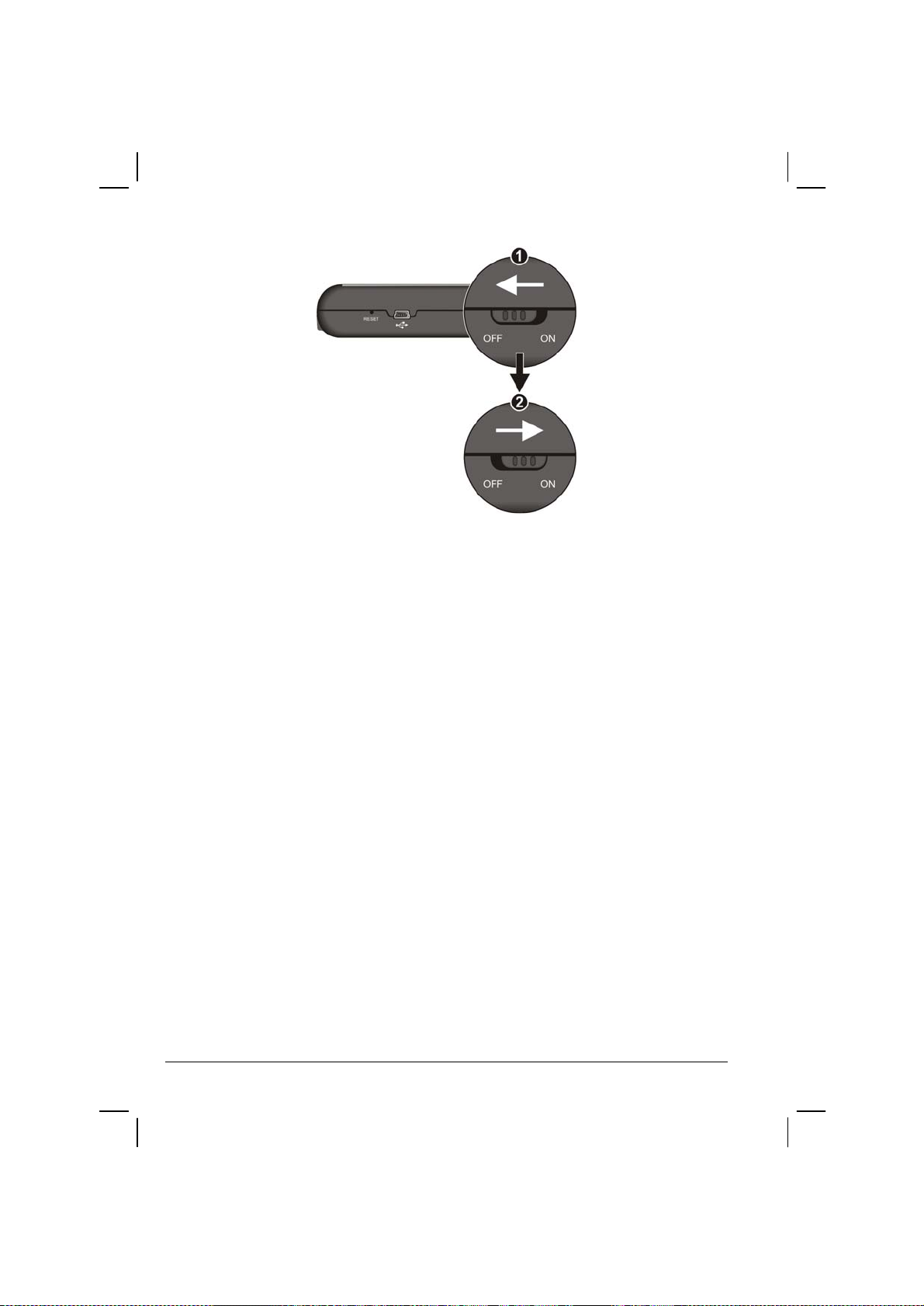

1. Slide the ON/OFF switch to the ON (right) position.

CAUTION: Always leave the ON/OFF switch in the ON position for normal operation.

2. Your device turns on and displays the “Change Language” screen. Tap the
desired language.

NOTE: You can change the language later on by tapping Setting  Change Language.
(See section 3.6 for details.)

1

3. The “Date & Time” screen appears. Tap the appropriate arrow button to select
the time zone, date, and time. Then tap

to continue.

NOTE: You can change the time zone, date, and time later on by tapping Setting 
Date&Time. (See section 3.5 for details.)

4. The Home screen appears as shown below. You can now use your device.

2

Converter

1.2 Connecting to AC Power and Charging the Battery

NOTE:

When charging the battery for the very first time, you should charge it for at least 8 hours.
When you connect the AC adapter to charge the battery after the battery power has been

fully depleted, wait for at least one minute if you need to turn on the device.

Depending on your region of purchase, the connector converter may not look exactly the

same as the picture shown.

Your device uses a small amount of battery power to maintain its state when you switch it

off. If you don’t charge it for a prolonged period of time then you will lose this state and your
device will re-start. Your settings will however, be maintained. You can tell it’s time to
charge your device when the battery indicator turns orange.

We recommend that you fully charge your device the first time that you plug it in.
Fully charging the battery will take around 8 hours.

1. Slide and click the connector converter onto the AC adapter.

2. Connect the adapter cable to the bottom of your device.

3. Plug the AC adapter into a wall outlet.

The charge indicator glows amber when charging is in progress. Do not disconnect
your device from AC power until the battery is fully charged, the charge indicator
will turn green. This will take a couple of hours.

3

1.3 Using Your Device in a Vehicle

Using the Car Holder

CAUTION:

When placing the car holder, make sure that the device does not obstruct the driver’s view,

or interfere with the operation of vehicle airbags and safety devices.

If the car’s windshield is tinted with a reflective coating, an external antenna (optional) may

be needed to route the antenna to the top of the car through a window. When closing the
car window, be careful not to pinch the antenna cable. (Cars with an anti-jam window
design may automatically leave adequate space as needed.)

The car holder consists of a bracket and a flexible window mount. Use the car
holder to fix your device in a vehicle. (See the document supplied with the car
holder for the installation instruction.)

4

Connecting the Car Charger

The car charger supplies power to your device when you are using the device in a
car.

CAUTION: To protect your device against sudden surges in current, connect the car charger
only after the car engine has been started.

1. Connect one end of the car charger to the power connector of your device.

2. Connect the other end to the cigarette lighter in the car to power and charge
your device. The indicator on the car charger lights green to show that power is
being supplied to your device.

To Cigarette Lighter

5

1.4 Understanding Hardware Features

NOTE: Depending upon the specific model purchased, the color of your device may not exactly
match the device shown in this manual.

Front Components

Ref





Component Description See Also

Charge Indicator Glows bright amber to indicate that the

battery is charging, and turns green when the
battery is fully charged.

Touch Screen Displays the output of your device. Tap the

screen with the stylus to select menu
commands or enter information.

Section 1.2

6

Back Components

Ref Component Description See Also

Stylus Tap the touch screen to make selections and enter



External



Antenna
Connector

Speaker For music, sounds and voice prompts.



information. Pull the stylus out of its slot to use it,
and store it in the slot when not in use.

This connector (under rubber dust cover) allows
use of an optional external antenna with magnetic
mount, which may be positioned on top of the car
for better signal reception in areas with poor
reception.

Section 2.2

7

Left-Side Components

Ref Component Description See Also



Headphone
Connector

Connects to stereo headphones.

Right-Side Components

Ref Component Description See Also

Power Button Turns the device on and off. Section 2.1



8
