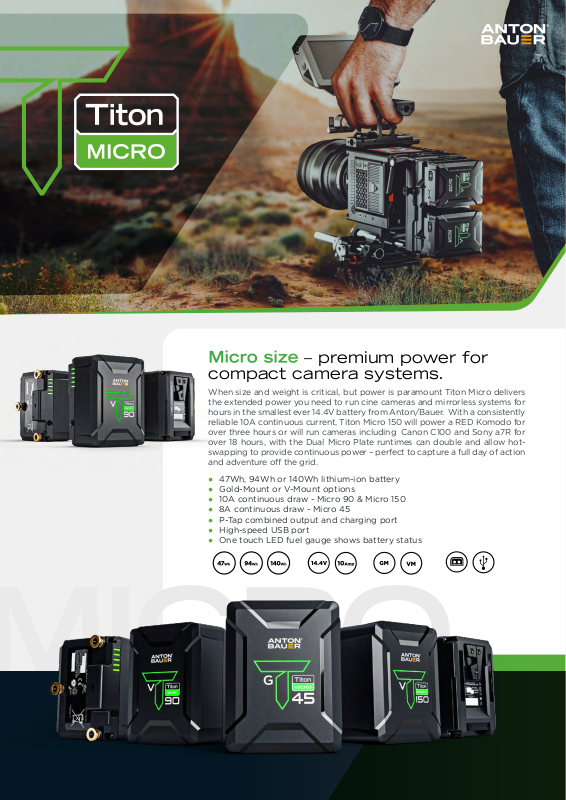

Micro size – premium power for
compact camera systems.
When size and weight is critical, but power is paramount Titon Micro delivers
the extended power you need to run cine cameras and mirrorless systems for
hours in the smallest ever 14.4V battery from Anton/Bauer. With a consistently
reliable 10A continuous current, Titon Micro 150 will power a RED Komodo for
over three hours or will run cameras including Canon C100 and Sony a7R for
over 18 hours, with the Dual Micro Plate runtimes can double and allow hotswapping to provide continuous power – perfect to capture a full day of action
and adventure o the grid.
● 47Wh, 94Wh or 140Wh lithium-ion battery
● Gold-Mount or V-Mount options
● 10A continuous draw - Micro 90 & Micro 150
● 8A continuous draw - Micro 45
● P-Tap combined output and charging port
● High-speed USB port
● One touch LED fuel gauge shows battery status
Page 2
Ultra-compact, lightweight battery.
Run cameras, monitors, lights and more
Power the widest range of production gear with one versatile Micro battery. Available in
Gold-Mount or V-Mount options, the compact micro shape takes up les room in your case
and perfectly complements cameras such as the Canon C100 or Sony Alpha mirrorless
range. The P-Tap port and a USB port – with integrated Apple ID for rapid charging -
provide power for camera accessories including monitors, LED light panels, transmitters,
follow-focus or a welcome boost for your phone or tablet at the end of a long day.
Intelligent 5-step LED fuel gauge.
Battery status confirmed at the touch of a button.
Plan shooting down to the minute with no sudden
shutdowns. Titon Micro displays battery status
with a simple button tap on the built-in intelligent
5-step LED fuel gauge and compatible cameras
can show the remaining runtime in minutes in the
viewfinder leaving camera operators free to focus
on the action in front of the camera.
SKU
Capacity
Height
Depth
Width
Weight
Operating temperature range - Discharge
Depth
Output Voltage
Dual battery micro plate.
Double your runtime in half the size.
Continuous hot swap shooting. Create up to
300Wh of power in the same space as one regularsized 14V battery with the optional dual battery
micro plate. Two powerful Titon Micro batteries can
be mounted together and hot swapped to provide
continuous shooting all day with no need to power
down to change a battery.
Titon MICRO 45 Titon MICRO 90 Titon MICRO 150
GM: 8675-0163 | VM: 8675-0166 GM: 8675-0164 | VM: 8675-0167 GM: 8675-0165 | VM: 8675-0168
47Wh 94Wh 140Wh
3.9” / 10cm 3.9” / 10cm 3.9” / 10cm
1.4” / 3.6cm 2.1” / 5.2cm 2.9” / 6.8cm
2.9” / 7.5cm 2.9” / 7.5cm 2.9” / 7.5cm
0.88lbs. / 0.4kg 1.2lbs. / 0.6kg 1.76lbs. / 0.8kg
-4°F to 140°F (-20°C to +60°C) -4°F to 140°F (-20°C to +60°C)
8A 10A 10A
Nominal 14.2V Operating 10.0V - 16.3V Nominal 14.4V Operating 10.0V - 16.8V Nominal 14.4V Operating 10.0V - 16.8V
antonbauer.com
