QR-SDH
®
A
Approved Copy
Installation Instructions
Camera / Camcorder
B
M2.6 x 5mm
Thumb screw
Europe, B.V. Eurode Business Center, Eurode-Park 1-2, 6461 KB Kerkrade, The Netherlands • (+31) 45 5639220 • Fax (+31) 45 5639222 • [email protected]
Anton/Bauer Inc., 14 Progress Drive, Shelton, Connecticut 06484 USA • (203) 929-1100 • Fax (203) 925-4988 • [email protected]
Singapore Office - Anton/Bauer, 6 New Industrial Road, # 02-02 Hoe Huat Ind. Bld., Singapore 536199 • (+65) 62975784 • Fax (+65) 62825235

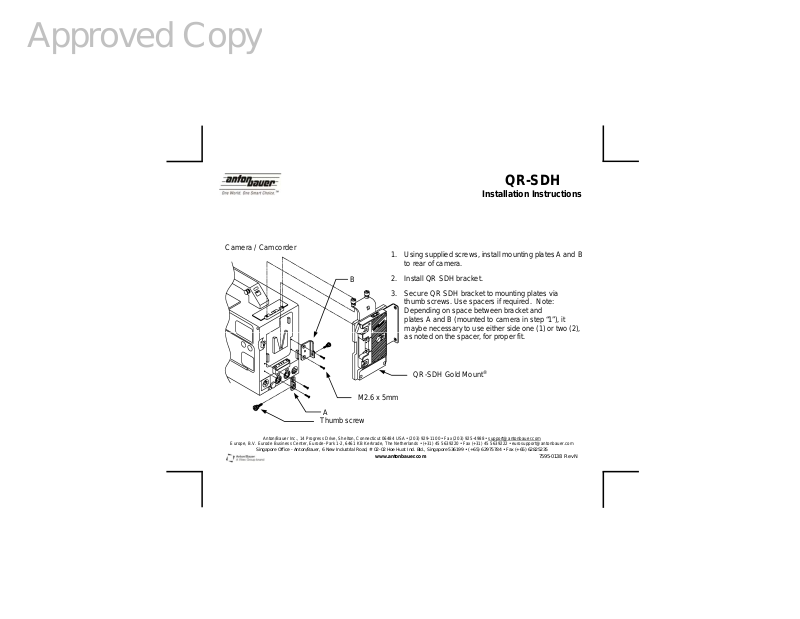

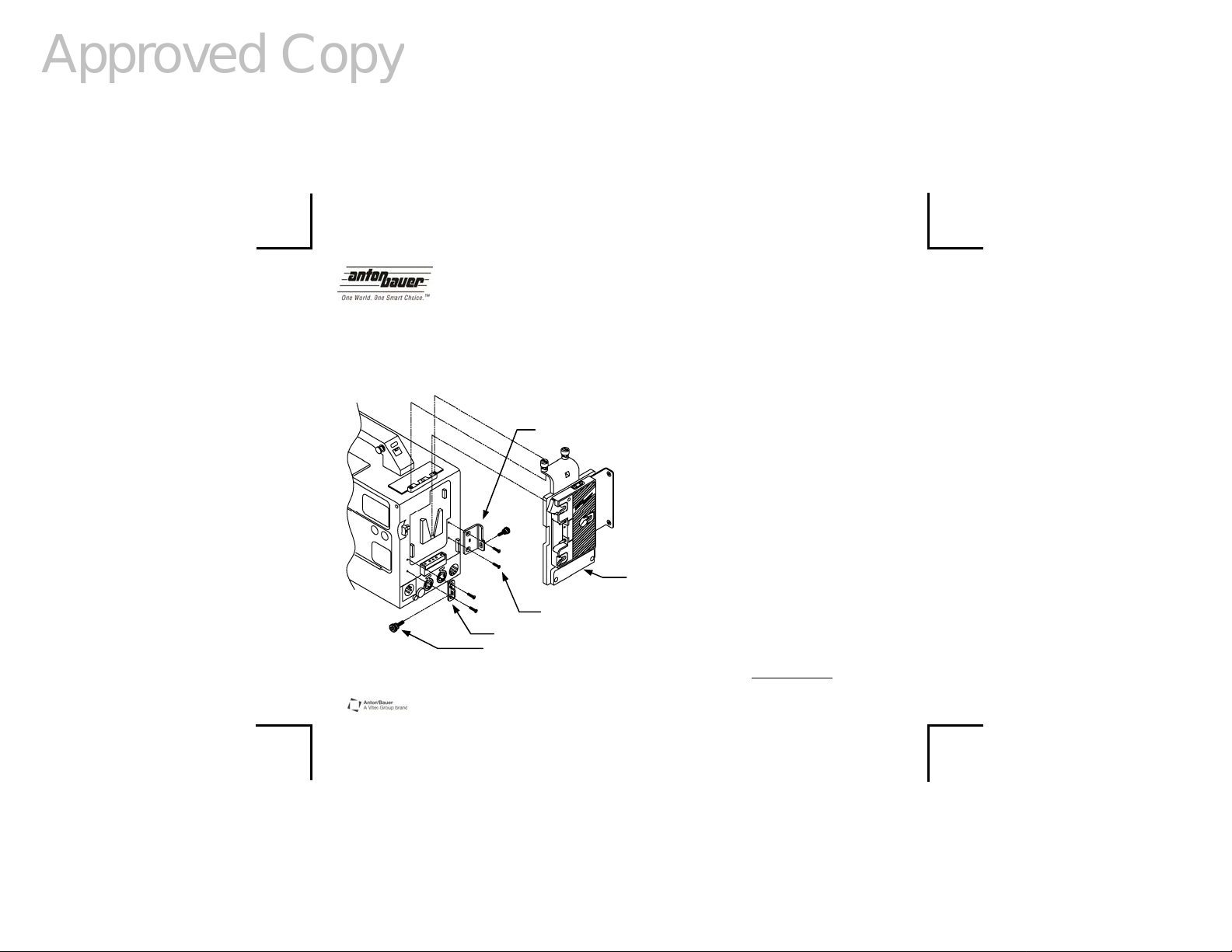

1. Using supplied screws, install mounting plates A and B
to rear of camera.
2. Install QR SDH bracket.
3. Secure QR SDH bracket to mounting plates via
thumb screws. Use spacers if required. Note:
Depending on space between bracket and
plates A and B (mounted to camera in step “1”), it
maybe necessary to use either side one (1) or two (2),
as noted on the spacer, for proper fit.
QR-SDH Gold Mount
www.antonbauer.com 7595-0138 Rev N
Page 2
Approved Copy

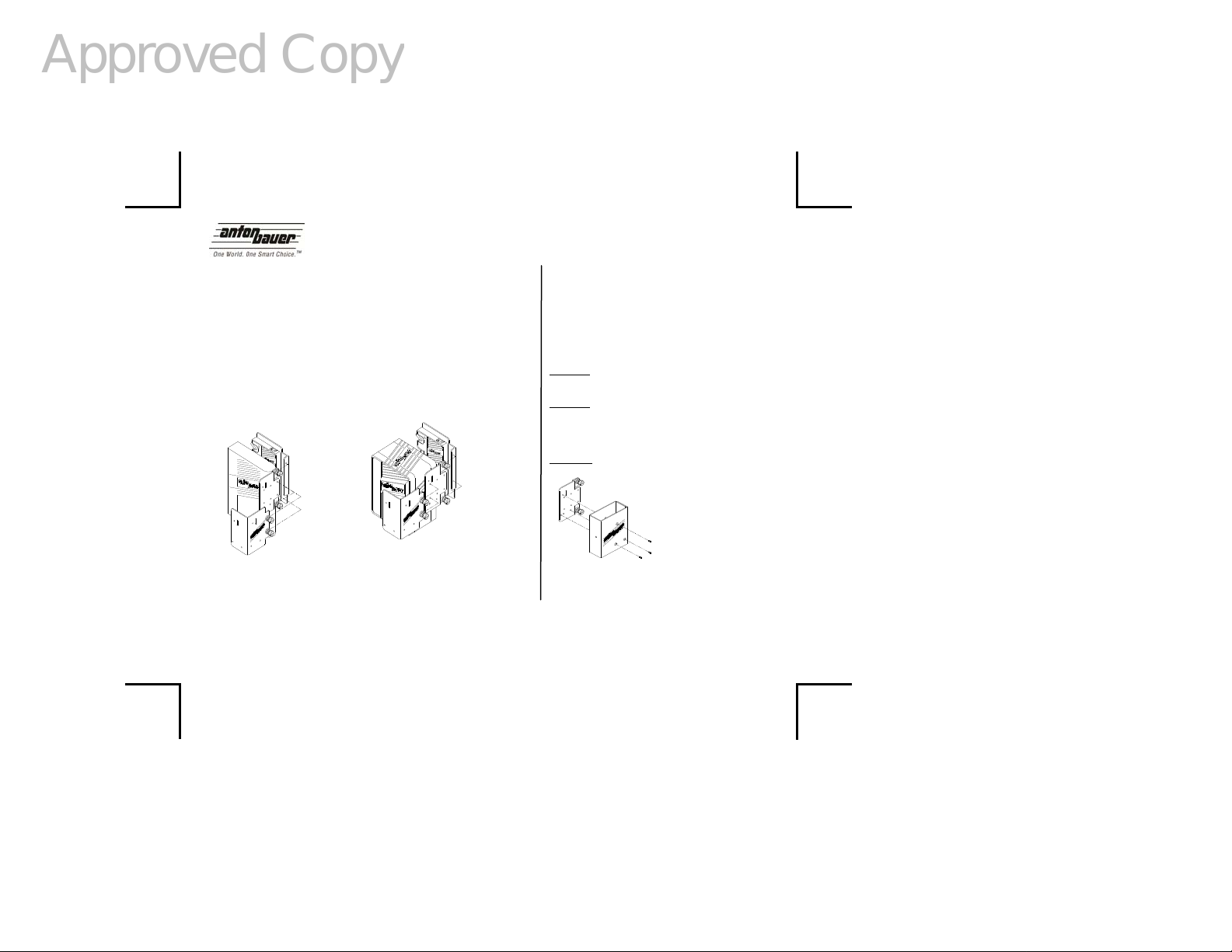

Available Separately
Universal Mounting Plate for Wirel ess Re ceiv ers
ABWMK-KIT
• Allows user to use the same Wireless Receiver Plate for ALL Anton/Bauer®
Batteries.
• Allows a Receiver to be m o un te d on ei th er t h e s i de o f t he Battery, behind the
Battery, or both.
• Will accomodate WRB - 18 5/W RB -2 00 /W RB- 2 01 W ir el e ss R ec eive r
Compartments.
Use of unauthorized equipment in conjunction with Anton/Bauer products constitutes misuse under our warranties and may limit or void those
warranties. Anton/Bauer does not authorize, condone, recommend, or otherwise assume any liability or responsibility resulting from the use of
any battery, charger o r ac c es so ry made by Anton/Bauer m a nu fac tu re w it h a ny battery, charger or accessory not manufa ct u re d, p r od uc ed o r so l d
by Anton/Bauer. Anton/Bauer only authorizes the use of original Anton/Bauer product with this product. Use only original Anton/Bauer
equipment with this product .
WRB-185/WRB-200/WRB-201
For Lectrosonics Style Re ce iv ers
• Attaches directly to any Anto n/Ba uerWireless
Receiver Plate.
• Able to “Piggy-Back ” m ul t ip le C om pa rtm e n ts .
WRB-185
: Fits CR-175, CR-185, CR-187 and
UCR-190 style Receivers
WRB-200
: Fits UCR-195, UCR-195D, UCR-20 0D,
UCR-205D, UCR-210D, UCR-211,
UCR-411 and AJA Model HD10A and
HD-10MD3 style Receivers
WRB-201:
Fits UCR-201/401 style receivers
