Anton Bauer 8475-0141 User guide

USER GUIDE

GM2 / VM2
GM4 / VM4

8475-0141 - GM2 Dual Charger Gold-Mount
8475-0143 - VM2 Dual Charger V-Mount
8475-0144 - GM4 4-Position Charger Gold-Mount
8475-0145 - VM4 4-Position Charger V-Mount

Dual Charger

4 - Position Micro Battery Charger

Original Instructions:

English

All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied
or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior
agreement and permission in writing of the Vitec Group.

Disclaimer

The information contained in this manual is believed to be correct at the time of printing. Vitec Production Solutions Ltd.
reserves the right to make the changes to the information or specifications without obligation to notify any person of such
revisions or changes. Changes will be incorporated in new versions of the publication.

We are making every eort to ensure that our manuals are updated on a regular basis to reflect changes to the product
Specifications and features. Should this manual not contain information on the core functionality of your product, please let
us know. You may be able to access the latest revision of this manual from our website.
Vitec Production Solutions Ltd. reserves the right to make changes to product design and functionality without notification.

Trademarks

All product trademarks and registered trademarks are the property of Vitec Production Solutions.
All other trademarks and registered trademarks are the property of the respective companies.

Published by:

Vitec Production Solutions Ltd.
Email: [email protected]

Copyright © 202 1

Vitec Production Solutions Ltd.

All rights reser ved

3

Warning Symbols Used in these Instructions ... .... .... .... .... .... .... 4

Intended Use... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... 4

Safety... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... 4

About this user guide. .... .... .... .... .... .... .... .... .... .... .... .... .... 6

Battery Compatibility . .... .... .... .... .... .... .... .... .... .... .... .... .... 6

Components and Connections ... .... .... .... .... .... .... .... .... .... .... 7

Operation Features .... .... .... .... .... .... .... .... .... .... .... .... .... .... 9

Technical Specications .. .... .... .... .... .... .... .... .... .... .... .... .... 10

After Sales Support.... .... .... .... .... .... .... .... .... .... .... .... .... .... 11

General Notices .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... 12

Warranty.... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... 13

SAFETY

4

Important information on the safe installation and operation of this
product. Read this information before operating the product. For
your personal safety, read these instructions. Do not operate the
product if you do not understand how to use it safely. Save these
instructions for future reference.

Warning Symbols Used in these Instructions

Safety cautions are included in these instructions. These safety
instructions must be followed to avoid possible personal injury and
avoid possible damage to the product.

WARNING! Where there is a risk of personal injury
or injury to others, comments appear supported by
the warning triangle symbol. Where there is a risk of
damage to the product, associated equipment, process
or surroundings, comments appear supported by the
word ‘Caution’.

ELECTRIC SHOCK Where there is a risk of electric
shock, comments appear supported by the hazardous
voltage warning triangle.

Intended Use

GM2 / VM2 battery charger can simultaneously charge two V-Mount

or Gold-Mount batteries while powering your camera accessories.
Lithium-ion batteries, like the Anton/Bauer GO 90 charge in
approximately 3 hours.

VM4 / GM4 battery charger can simultaneously charge up to four
Micro or two standard V-Mount or Gold-Mount batteries while also
powering your camera accessories. Lithium-ion batteries, like the
Anton/Bauer Titon MICRO 90 charge in approximately 3 hours (1
battery), 6 hours (2 batteries).

Electrical Connection

WARNING! Risk of electric shock. Do not remove cover,

no user serviceable parts inside the product.

WARNING! Risk of electric shock. Always check cables
for signs of damage. Damaged cables can cause personal
injury and/or damage the equipment.

WARNING! It is the responsibility of the local organization
to ensure that the product is periodically checked for
electrical safety in accordance with local regulations.

CAUTION! This product must be connected to a
power supply of the same voltage (V) and current (A)
as indicated on the product. Refer to the technical
specifications for the product.

CAUTION! AC Mains plug or appliance coupler is to be
used as a power disconnect device; make sure it is readily
accessible.

CAUTION! All data connections to other devices must be
made using shielded cables.

CAUTION! Using alternative power sources will invalidate
the system EMC liability.

CAUTION! Do not exceed the current output limit of the
product when powering auxiliary devices.

.

5

SAFETY

CAUTION! When powering the charger using a

generator, the generator must produce a sine wave or
modified sine wave output, other wise, the charger may
be damaged.

WARNING! RISK OF ELECTRICAL SHOCK: Refer
servicing to qualified service personnel.

Basic Electrical Insulation (Class 1 Equipment)

WARNING! This product is Class 1 equipment. For

safe operation this equipment must be connected to
a power supply that has a protective earth connection
(US: ground).

Operation

WARNING! Special precautions and handling

instructions are contained in this user guide and should
be strictly adhered to for safe and reliable operation.

WARNING! Never use flammable or combustible
materials and solvents around batteries or chargers.

CAUTION! The product should not be used outside
the operating temperature limits. Refer to the product
technical specifications for the operating limits for the
product.

CAUTION! Slots and openings are intended for
ventilation purposes to ensure reliable operation of the
product and protect it from overheating. Do not block or
cover any slots and openings.

WARNING! Protect the product from water, moisture
and dust. The presence of electricity near water can be
dangerous.

WARNING! Charger must not to be exposed to
dripping or splashing and not to be used near objects
filled with liquids.

WARNING! When cleaning the product, use a soft
damp cloth only. Do not wet the exposed metal parts
of the charging unit. Do not use solvents, detergents or
scouring agents.

Maintenance

WARNING! The fitting of non-approved parts or

accessories, or the carrying out of non-approved
alterations or servicing can be dangerous and could
affect the safety of the product. It may also invalidate
the terms and conditions of the product warranty.

RISK OF ELECTRICAL SHOCK: Refer servicing to
qualified service personnel.

Weekly, or as needed - Clean the device, associated components,
and accessories as needed with a damp, non-saturated cloth or
paper towel. Do not wet the exposed metal part of the battery charge
terminals. Do not use solvents or scouring agents. Examples of
approved solvents are Cidex® and Windex®. Consult Anton/Bauer
Customer Support Group for approved list of cleaning agents.

Periodic cleaning of both the charger terminals and battery terminals
will ensure continued reliable operation. Clean the terminals
occasionally with a pencil eraser or lightly scrape the surface with a
blunt instrument to help reduce the likely hood of build up causing
poor communication or charging.

Contact Contact vitecsupport.com with additional inquires as to
maintenance.

About this user guide

Introduction

GM2 Dual Gold-Mount Battery Charger / VM2 Dual V-Mount Battery Charger / GM4 4-Position Micro Charger (Gold-Mount) / VM4 4-Position Micro
Charger (V-Mount).

GM2 / VM2 battery charger can simultaneously charge two Gold-Mount or V-Mount batteries simultaneously while powering your camera accessories.

VM4 / GM4 battery charger can simultaneously charge up to four micro or two standard V-Mount or Gold-Mount batteries.

6

Lithium-ion batteries, like the Anton/Bauer GO 90 charge in approximately
3 hours.

Advanced safety monitoring.

Protection for your batteries and devices.

GM2 / VM2 / GM4 / VM4 chargers are designed to protect your batteries
and any powered devices from damage. Intelligent safety technology
constantly monitors all devices and will automatically stop charging if a
fault is detected or any attached battery reaches an over-voltage condition.
A built-in fan ensures that the charger can be relied on for peak
performance.

Important

Special precautions and handling instructions are contained in this user
guide and should be strictly adhered to for safe and reliable operation.

Battery Compatibility

Battery

Type

Dionic XT 90

Dionic XT 150

Titon 90

Titon 150

Titon 240

Titon SL90

Titon SL150

Titon Micro 45

Titon Micro 90

Titon Micro 150

GO 90

GM2/VM2 GM4/VM4

Total Batteries Total Batteries

Fits

x 2

x 2 x 2

x 2 x 2

x 2 x 2

x 2 x 2

x 2 x 2

x 2 x 2

x 2 x 4

x 2 x 4

x 2 x 4

x 2 x 2

Fits

x 2

7

GM2 VM2

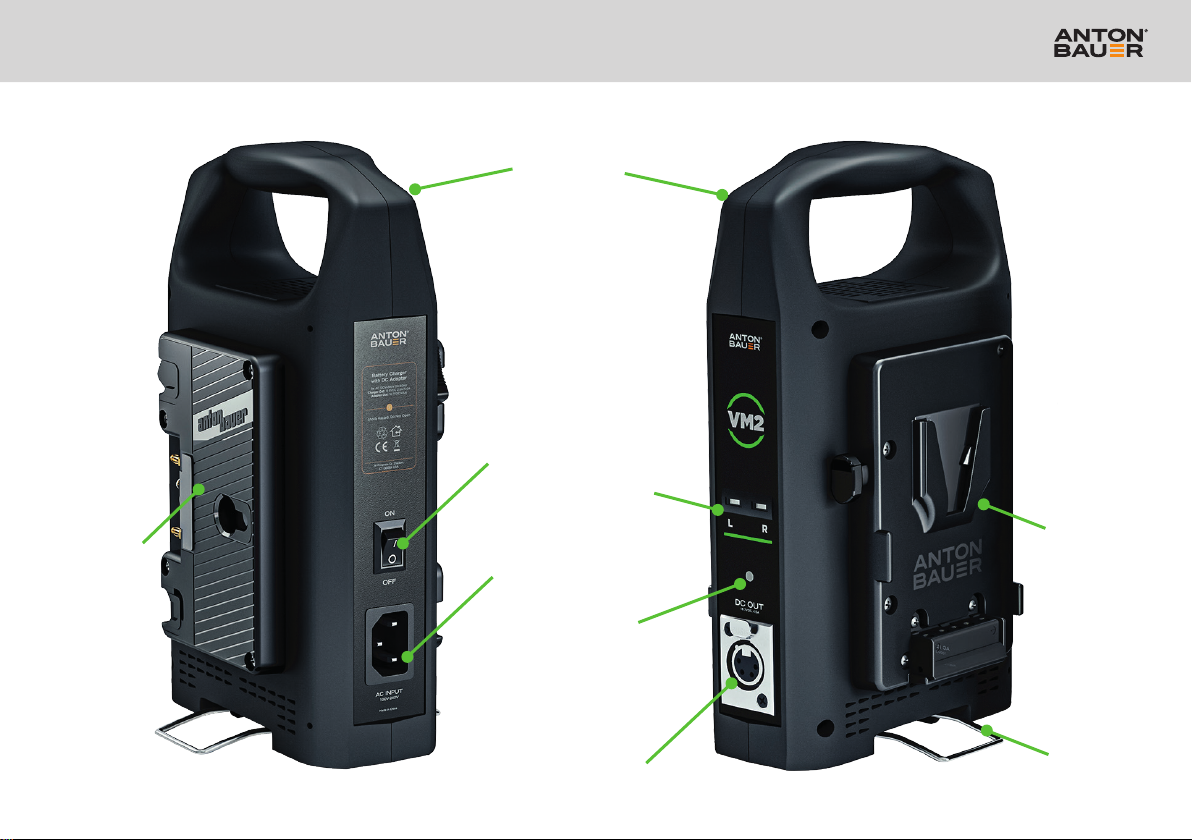

Components and Connections

Carry Handle

Power Switch

(All Models)

LED Battery

Charging Status

Battery Mount

(2 X Gold-Mount

Batteries)

AC Input

100 / 240 VAC,

50 / 60 Hz

(All Models)

Power Indicator

XLR4 16.7VDC / 4.5A
(battery) power output

Battery Mount

(2 X V-Mount

Batteries)

Integrated Stand

2 X Legs

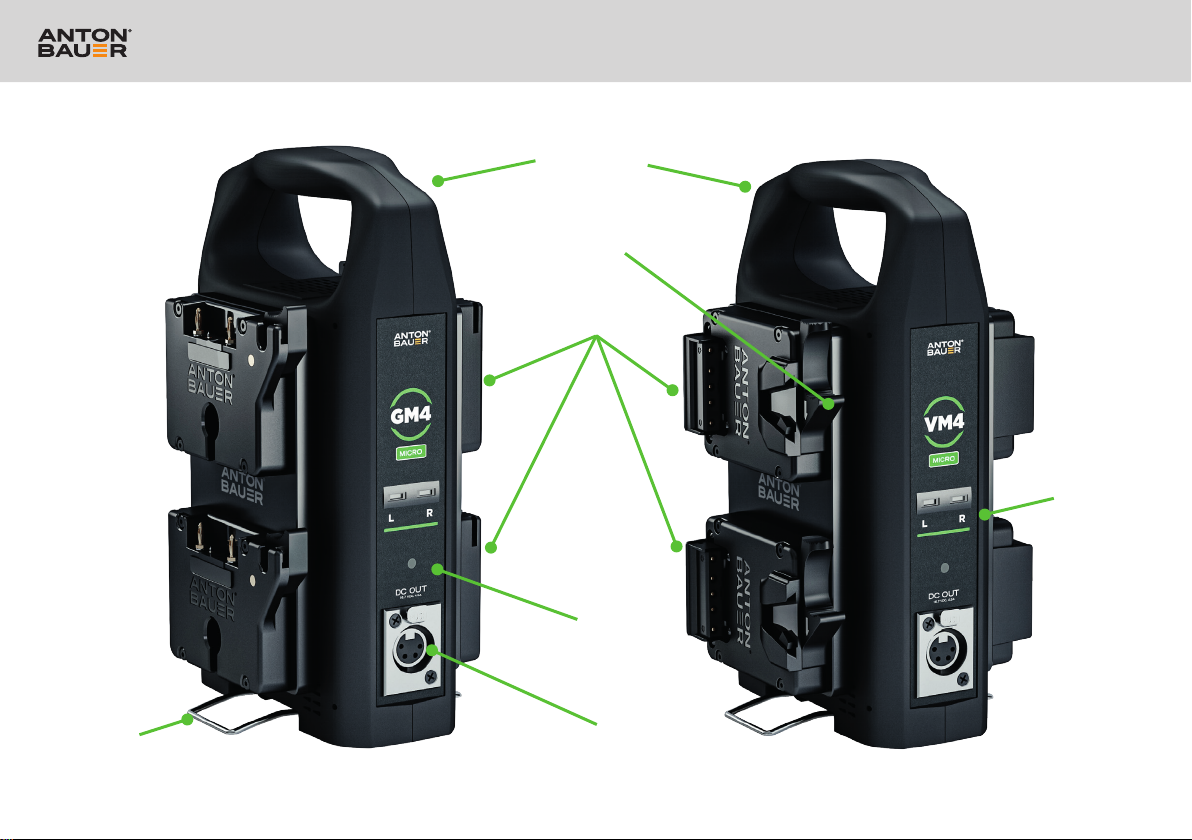

Components and Connections

GM4 VM4

Carry Handle

Battery Release

Latch

Battery Mount

(4 X Micro batteries or 2 x

Regular sized batteries)

8

LED Battery

Charging Status

Integrated Stand

2 X Legs

Power Indicator

XLR4 16.7VDC / 4.5A
(battery) power output

9

• The XLR4 output converts AC to DC power when charging or can be used to deliver battery power to devices that only have an XLR input.

• Use the XLR4 output at the same time as charging (GM2 / VM2 Only).

• Supplied with a 4 Pin XLR Cable (Length ~10 ft. / 3 meters).

• Supplied with AC Power Cable.

LED Status Meaning

OFF Charger is turned O󰀨 with no batteries connected

Charger is turned On with no batteries connected

Green

RED

Battery Capacity Single Battery Dual Battery 4 Battery (GM4 / VM4) Charging Order

45Wh 2 Hours 2 Hours 4 Hours Simultaneous

90Wh

150Wh 4.5 Hours 4.5 Hours 9 Hours Simultaneous

240Wh 7 Hours 7 Hours 14 Hours Simultaneous

Battery is fully charged or battery capacity is above 95%.
If 2 x batteries are attached: If only 1 has fully charged it remains red while other battery is charged up.

Battery connected with low or no power

Battery is Charging

3.5 Hours 3.5 Hours 7 Hours

Operation Features

Simultaneous

Technical Specications

10

Physical Data

Height 9.28 in (235.68 mm) 9.28 in (235.68 mm)

Depth 5.67 in (144.04 mm) 5.67 in (144.04 mm)

Width 4.53 in (114.96 mm)

Weight

Mount Type / Bays GM2 VM2 GM4 VM4

Mount Type Gold-Mount V-Mount Gold-Mount V-Mount

Battery Bays 2 2 4 Micro 4 Micro

Electrical Data: GM2 / GM4 VM2 / VM4

Output Connector 4-Pin XLR Female 4-Pin XLR Female

AC Input 100 - 240 VAC 50 / 60 Hz @1.5 A 100 - 240 VAC 50 / 60 Hz @1.5 A

Output Voltage (via AC power) 16.7 VDC at 4.5 A (4-Pin XLR Female) 16.7 VDC at 4.5 A (4-Pin XLR Female)

Max. Wattage 75 W 75 W

GM2 / GM4 VM2 / VM4

VM2: 4.53 in (114.96 mm)
VM4: 5.10 in (129.48 mm)

GM2: 2.30 lbs. (1.04 kg)
GM4: 3.45 lbs. (1.57 kg)

VM2: 2.30 lbs. (1.04 kg)
VM4: 3.45 lbs. (1.57 kg)

Operating Temperature

Range

GM2 / GM4 VM2 / VM4

32 to 113°F / 0 to 45°C

11

At Vitec Production Solutions we take great pride in the quality of our products and we also recognize that your experience with our products
will be even more positive and productive with strong, effective support to back them up.

Vitec Production Solutions Service Centers are there to provide technical support for customers and partners, via telephone or email. For more
information, including complete contact details, please go to: vitecsupport.com

After Sales Support

General Notices

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful inter ference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at their own expense. This equipment has been approved by one or more agencies. All changes and/or modications not expressly

approved by Anton/Bauer could void the users’ warranty and authority to operate this equipment.

There are no serviceable parts in this equipment.

12

13

Warranty

This warranty for the product specied in this document (“Product ”) is
given by Vitec Production Solutions (“Anton/Bauer”), 14 Progress Drive,

Shelton, Connecticut 06484. If you (the purchaser of the Product from
Anton/Bauer, or the person for whom the Product was purchased, if it
was a gift) have any questions regarding Product applications, Product

specication, or to obtain warranty service on this or any Anton/Bauer

product, contact the company at the address above.

This product must be registered with Anton/Bauer within 30 days of
purchase to assure warranty coverage. Register online at:

www.antonbauer.com

Warranty registration, including the serial numbers of
Anton/Bauer chargers used with this battery, must be supplied to
Anton/Bauer. Anton/Bauer will warranty the Product only against
defects in material and workmanship for the period as follows from
the date of purchase, in accordance with the terms set for th below,
and then, only if the Product is used exclusively in conjunction
with compatible Anton/Bauer chargers. If this battery or product
is returned to Anton/Bauer for warranty service it will be required
that you provide model names and serial numbers of compatible
Anton/Bauer chargers with which this product was used.

Warranty 12 months: Anton/Bauer will repair or replace the Product at
Anton/Bauer’s option and cost.

This warranty shall be e󰀨ective only if Anton/Bauer receives notice of such

defects in materials or workmanship during the period of the warranty.
The liability of Anton/Bauer hereunder is expressly limited to a claim for
repair or replacement of the Product or as other wise stated herein at
Anton/Bauer’s sole discretion. Notice of any claim under this warranty
shall be delivered to Anton/Bauer during the period of the warranty

and the Product shall be returned with its packaging promptly, at your
expense, to an Anton/Bauer Customer Support Centre or to the address
above. Upon receipt of the Product and a record of your compliance with
the conditions of this warranty, Anton/Bauer will repair or replace the
Product and return it to you, or issue a credit, as applicable. You are
responsible for all shipping and handling charges to and from authorized
faci lit y.

This warranty does not apply to and is void in the case of defects or
damage resulting from accidents, disaster, neglect, misuse, improper
installation, improper or unauthorized service or maintenance,
unauthorized replacement par ts or attachments; or dysfunction or
malfunction of, or caused by, any other product or device.

Misuse includes any use of the Product in other than its intended
application, including the use of this Product with any charging device

or accessory not manufactured by and/or specied by Anton/Bauer. This

warranty does not cover, and Anton/Bauer assumes no responsibility for,
any equipment or devices used in conjunction with the Product.

Anton/Bauer disclaims any liability for incidental or consequential
damages for breach of any written or implied warranty of the product.
Under no circumstances will Anton/Bauer be responsible for any special,
incidental or consequential
Damages.

This Warranty is to be construed and enforced in accordance with the
law of the State of Connecticut, including the provisions of the Uniform
Commercial Code as adopted and from time to time amended in the
State of Connecticut, and not the Convention for the International Sale
of Goods. This choice of Connecticut law is exclusive of any Connecticut
law that would require reliance on any law foreign to Connecticut.

Should any action of law or in equity be brought by any person under
this Warranty, such action shall be brought only in the United States
District Court for the District of Connecticut, or in any Superior
Court in Fairfield County, Connecticut, USA . Some states do not
allow limitations on how long a warranty lasts, so the time period
limitation herein may not apply to you. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you. This warranty
gives you specific legal rights and you may have other legal rights
which may vary from state to state. Use of unauthorized equipment
in conjunction with Anton/Bauer products constitutes misuse under
our warranties and may limit or void those warranties. Anton/Bauer
does not authorize, condone, recommend, or otherwise assume
any liability or responsibility resulting from the use of any batter y,
charger, or accessory made by Anton/Bauer with any battery, charger
or accessory not manufactured, produced or sold by Anton/Bauer.
Anton/Bauer only authorizes the use of original Anton/Bauer products
with this Product. Use only original Anton/Bauer equipment with this
Product.

Warranty

Publication 7595-0481 V0.3
