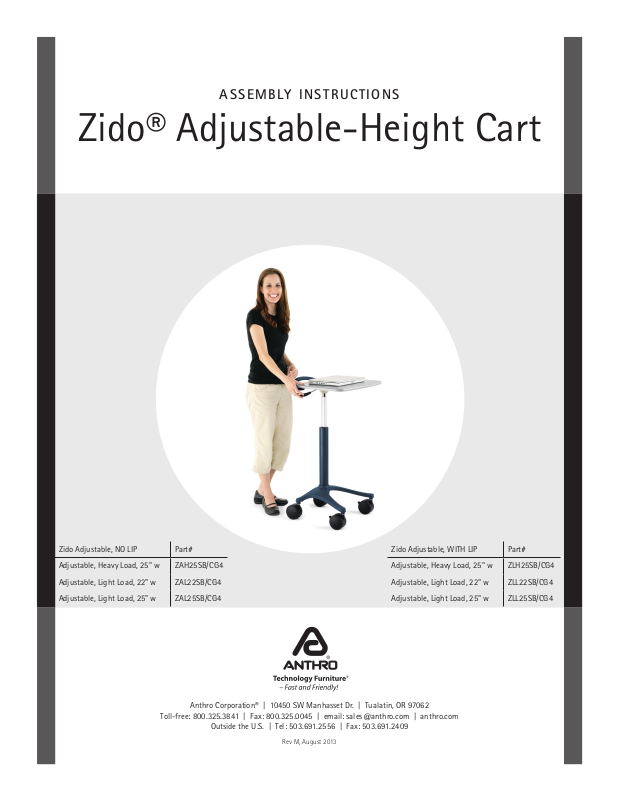

Anthro Zido Adjustable-Height Cart Assembly Instructions

ASSEMBLY INSTRUCTIONS

Zido® Adjustable-Height Cart

Zido Adjustable, NO LIP Part#

Adjustable, Heavy Load, 25" w ZAH25SB/CG4

Adjustable, Light Load, 22" w ZAL22SB/CG4

Adjustable, Light Load, 25" w ZAL25SB/CG4

Anthro Corporation® | 10450 SW Manhasset Dr. | Tualatin, OR 97062

Toll-free: 800.325.3841 | Fax: [phone] | email: [e-mail] | anthro.com

Outside the U.S. | Tel: [phone] | Fax: [phone]

Zido Adjustable, WITH LIP Part#

Adjustable, Heavy Load, 25" w ZLH25SB/CG4

Adjustable, Light Load, 22" w ZLL22SB/CG4

Adjustable, Light Load, 25" w ZLL25SB/CG4

Rev M, August 2013

01

06

03

02

09

07

08

04

11

10

05

WELCOME

Thank you for purchasing this Zido
Height-adjustable cart!

If you have any questions or if we
can help you in any way, please
contact us at 800.325.3841.

2

PARTS LIST

Before beginning assembly of your Zido Height-adjustable
Cart, please review the parts list to verify that your shipment
is complete.

Product Quantity Part Number

01 Cap Shelf 1

For small cart, no lip 101-1025-06-50
For small cart, with lip 101-1072-03-50
For large cart, no lip 101-1026-06-50
For large cart, with lip 101-1073-03-50

02 Cap Shelf Bracket 1 225-2620-51

03 Base

For Small Cart 1 250-5064-52
For Large Cart 1 250-5065-52

04 Column

For Light Load Cart 1 835-5290-00
For Heavy Load Cart 1 835-5291-00

05 4" Non-locking Caster 2 150-5010-03

06 4" Locking Caster 2 150-5011-03

07 Release Lever and Paddle 1 835-5393-00

08 Lock Nut 4 325-5263-00

09 1" Cap Screws 4 325-5537-00

10 3/4" Flat-head Patch Screws 2 325-5466-00

11 3/4" Wood Screws 8 325-5575-000

12 3/16" Hex Key (not shown) 1 375-5028-00

13 5/32" Hex Driver (not shown) 1 375-5000-00

ASSEMBLY SEQUENCE

Plan out the assembly sequence to make your installation easier.

1. Pre-drill the top for accessories (Mouse Holder, Side Bin, Gel Cup/Probe Holder, Extension Tube).

2. Assemble the cart.

3. Base Storage Shelf.

4. Drawer, Keyboard Drawer, Handle.

5. SideRacks, Additional Shelves, Equipment Shelves, Metal Bin, SideRack.

6. Cable Bin, Glove Box Holder, Tank Holder.

7. Mouse Holder, Side Bin, Gel Cup & Probe Holder, Extension Tube.

8. Pole Cart Handle, 8" Handle, Flat Panel Mounts.

STEP 1A

Connect the Base with the Tube

¡ Holding the column from the center (don't push from

the top) slide the tube into the base so that the tube
goes all the way to the bottom of the base.

¡Align the upper hole on the base with a threaded

hole in the column. (For the large cart, you'll use
the top hole; for the small cart, you'll use the second
hole.) Loosely attach the column to the base with
two 3/4" Flat-head Screw.

3/4" Flat Hd Screw

325-5466-00

STEP 1B

Insert the Casters

¡ Place Zido on its side. Add the locking casters

(the ones with the brakes) to the front of the
base assembly. Add the non-locking casters
to the back of the base assembly.

Zido Height-adjustable Carts Assembly Instructions

3

STEP 2

ood Screw

Install the Lever and the Top Plate

¡ Align the lever with the top of the trunk

assembly as shown.

¡ Locate the bracket. The bottom of the bracket is flat

and has no sticker. The top of the bracket has a sticker
that says "TOP" and has bumps with threads inside.
The bumps on the top of the bracket will nest inside
the holes on the cap shelf.

¡ Align the cap shelf bracket with the trunk assembly so the bracket's tabs are at

the back and the "TOP" label is on top.

¡ Using the 3/16 hex key, insert four 1" Socket-head Cap screws through the

holes on the top of the Top Plate and capture with four lock nuts inserted in to
the holes in the top of the columns.

¡ Pull up on the lever to move the column up and down. Repeat a few times to

make sure the column moves smoothly. If the lever was installed upside down,
the column won’t move. If that happens, remove the top plate, invert the lever,
and try it again.

1” Button-head Screw

325-5537-00

Nylock Nut 5/16-18

325-5189-00

1" Cap Screws

Lock Nuts

STEP 3

Install the Cap Shelf

¡ Align the indentations on the bottom of the cap shelf with the screw heads and

bumps on the top of the top plate.

¡ Secure the cap shelf to the cart with eight 3/4" wood screws.

¡Tighten the 3/4" flat-head screws that connect the column to the base.

¡ Pull the paddle up and move the column up and down a few times to loosen the

mechanism. Be sure to operate the column from the back of the cart so you
have plenty of leverage.

3/4" (#10-9) W

325-5575-00

CONGRATULATIONS!
YOUR ZIDO ADJUSTABLE CART ASSEMBLY IS COMPLETE!

Anthro Corporation® | 10450 SW Manhasset Dr. | Tualatin, OR 97062

Toll-free: 800.325.3841 | Fax: [phone] | email: [e-mail] | anthro.com

Outside the U.S. | Tel: [phone] | Fax: [phone]

*300-5418-00*

300-5418-00

Zido carts have a Lifetime Warranty; the cylinder has a five-year warranty.

Technology Furniture and Zido are trademarks of Anthro Corporation. Anthro reserves the right to modify the design and specifications without prior notice.
