R

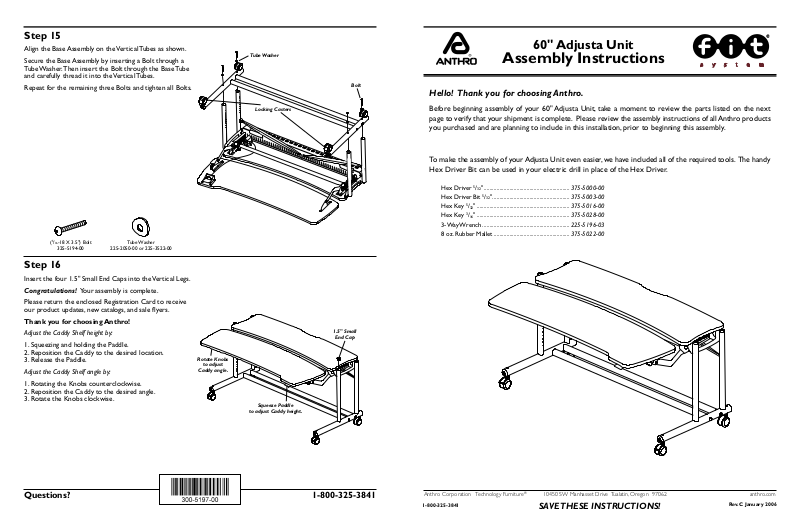

Step 15
Align the Base Assembly on the Vertical Tubes as shown.
Secure the Base Assembly by inserting a Bolt through a
Tube Washer. Then insert the Bolt through the Base Tube
and carefully thread it into the Vertical Tubes.
Repeat for the remaining three Bolts and tighten all Bolts.
60" Adjusta Unit
Tube Washer
Assembly Instructions
Bolt
Hello! Thank you for choosing Anthro.
(5/16-18 X 3.5") Bolt
325-5194-00
Tube Washer
225-2050-00 or 225-3522-00
Step 16
Insert the four 1.5" Small End Caps into the Vertical Legs.
Congratulations! Your assembly is complete.
Locking Casters
Before beginning assembly of your 60" Adjusta Unit, take a moment to review the parts listed on the next
page to verify that your shipment is complete. Please review the assembly instructions of all Anthro products
you purchased and are planning to include in this installation, prior to beginning this assembly.
To make the assembly of your Adjusta Unit even easier, we have included all of the required tools. The handy
Hex Driver Bit can be used in your electric drill in place of the Hex Driver.
Hex Driver 5/32" ............................................................ 375-5000-00
Hex Driver Bit 5/32" ...................................................... 375-5003-00
Hex Key 5/32" ................................................................. 375-5016-00
Hex Key 3/16" ................................................................. 375-5028-00
3-Way Wrench .............................................................225-5196-03
8 oz. Rubber Mallet ..................................................... 375-5022-00
Please return the enclosed Registration Card to receive
our product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
Adjust the Caddy Shelf height by:
1.5" Small
End Cap
1. Squeezing and holding the Paddle.
2. Reposition the Caddy to the desired location.
3. Release the Paddle.
Adjust the Caddy Shelf angle by:
Rotate Knobs
to adjust
Caddy angle.
1. Rotating the Knobs counterclockwise.
2. Reposition the Caddy to the desired angle.
3. Rotate the Knobs clockwise.
Squeeze Paddle
to adjust Caddy height.
Questions? 1-800-325-3841
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
1-800-325-3841
SAVE THESE INSTRUCTIONS!
Rev. C January 2006
Page 2
Component list for part #’ FAJ60zz/xx3
02
03
06
05
04
01
21
19
20
18
17
16
23
22
15
Step 12 (requires Worksurface to be 12" from floor)
Rotate the Caddy Worksurface so the predrilled holes
face upward.
Slide the Caddy under the Mechanism and align the three
holes located on each end of the Caddy and Mechanism.
Secure the Caddy using a total of six Wood Screws. Then,
secure the Paddle to the Caddy using four Wood Screws.
NOTE: Make certain the Cable for the Paddle is positioned
underneath the Adjusta Bar.
3
/4" Wood Screw
325-5106-00
Step 13
Install two Caster Inserts into each Base Tube and
secure with one Insert Screw per Insert.
Insert one Locking and one Non-Locking Caster into
each Insert of a Base Tube as shown.
(12" high surface shown shaded)
Adjusta Bar
Cable
Wood Screw
Paddle
Leave these two side holes open
07
09
NOTE: Detailed views of all Hardware are provided with each Assembly Step.
01– 60" Wide Fixed Worksurface .. Qty. 1 ...................100-6457-00
02– 60" Wide Caddy Worksurface .Qty. 1 ...................100-6461-00
03– 60" Wide Adjusta Mechanism ...... Qty. 1 ...................225-5548-00
(The Adjusta Mechanism is packaged separately & requires assembly)
04– Small Support Bracket X ............Qty. 1 ...................225-2014-00
05– 24.875" Adjusta Vertical Legs ........Qty. 4 ...................125-5230-00
06– Adjusta Base Tubes ...................... Qty. 2 ..................125-5276-00
07– Cross Tubes .................................... Qty. 2 ...................125-5221-00
08– Insert Screws ................................. Qty. 4 ...................325-5052-00
09– 2.0" Large End Caps ...................Qty. 4 ...................175-5157-00
10– Caster Inserts ...............................Qty. 4 ...................525-5032-00
11– 3" Locking Casters ......................Qty. 2 ...................150-5053-00
12– 5/16-18 Bolts .................................... Qty. 8 ...................325-5194-00
13– Tube Washers ................................ Qty. 8 ..225-2050-00 or 225-3522-00
08
13
10
12
14
11
14– 3" Non-Locking Casters ...........Qty. 2 ...................150-5052-00
15–1/4-20 Button Head Screws ....... Qty. 8 ...................325-5003-00
16– Cross Ends ..................................... Qty. 2 ...................225-5334-00
17– 1/4-20 Keps Nuts ...........................Qty. 4 ...................325-5130-03
18– 3/4" Wood Screws ......................... Qty. 42 ................325-5106-00
19– Support Screws ............................ Qty. 12 ................325-5010-00
20– Small Support Bracket Y ...........Qty. 1 ...................225-2015-00
21– 60" Wide Buttress ......................Qty. 2 ...................225-5549-00
22– 60" Wide Back Trough .............. Qty. 1 ...................225-2293-00
23– 1.5" Small Caps .............................Qty. 4 ...................175-5156-00
All Fastener quantities listed here are the minimum needed
for your Adjusta Unit assembly. There may be a few extra
Fasteners included, which are not counted in the Parts List.
Insert two End Caps into the ends of each Base Tube.
Caster Inserts placed
into the large holes
Insert Screw
(with pink threads)
325-5052-00
Step 14
Attach a Cross Tube to a Base Tube by inserting a Bolt
through a Tube Washer, then insert the Bolt through the
Base Tube and carefully thread into the Cross Tube.
Repeat this procedure for other Cross Tube.
Then tighten all Bolts.
(5/16-18 X 3.5") Bolt
325-5194-00
Tube Washer
225-2050-00 or 225-3522-00
Non-Locking
Caster
Locking
Caster
Base Assembly
Tube Washer
Cross Tube
Bolt
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 1-800-325-3841
anthro.com
Page 3
FAJ60zz/xx3

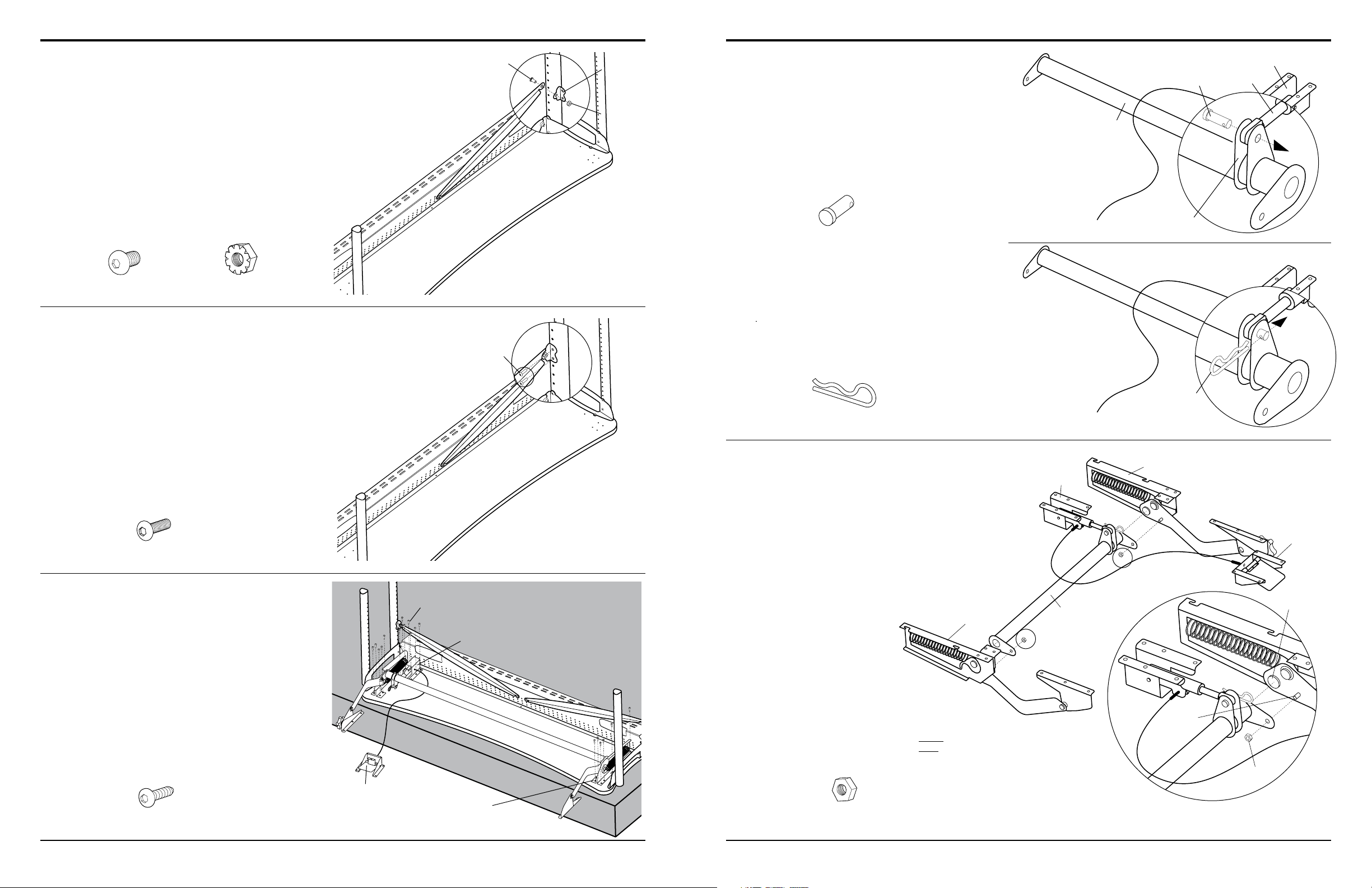

Step 9
Position a Cross End on the opposite end of the Buttress
installed during Step 8.
Insert a Button Head Screw from the rear of the Buttress,
through the Cross End and capture on the opposite side
using a Keps Nut.
NOTE: Just hand tighten the Keps Nut for now.
(1/4-20 X .50") Button Head Screw
325-5003-00
(1/4-20) Keps Nut
325-5130-03
Step 10 (requires the 3-Way Wrench)
Rotate the Buttress and Cross End upward to align the
holes on the Cross End with two corresponding holes
on a Vertical Leg.
Button Head Screw
Support Screws
Cross End
Keps Nut
Step 1a
Your Adjusta Mechanism comes un-assembled and is
boxed separately inside the Adjusta Unit package.
Begin to assemble the Mechanism by first locating the Adjusta
Crossbar and Brake/Paddle Assembly, position it as shown at
right. Depress the Paddle once to free the Brake Shaft.
Place the Brake Shaft between the two center Crossbar
Flanges. Insert the Post through both center Crossbar
Flanges and Brake Shaft.
Post
(included with 225-5548-00)
Step 1b
Install the Cotter Pin through the single opening of the
Post to secure into place.
NOTE: included with Adjusta Mechanism is a small bag of
Hardware containing the (1) Post, (1) Cotter Pin, (2) Hex Nuts,
(2) Wood Screws, & (2) Cable Mounts.
Crossbar
Center Crossbar Flanges
Brake/Paddle Assembly
Brake Shaft
Post
Secure the Cross End to the Leg using two Support Screws.
Repeat Steps 8, 9 & 10 for the remaining Buttress and
Cross End on the opposite side. Then, tighten all Screws &
Keps Nuts.
Support Screw
325-5010-00
Step 11 (requires Worksurface to be 12" from floor)
Place the Mechanism onto the Worksurface Assembly.
Align the Mechanism Flanges with the predrilled holes
on the Worksurface underside.
Secure the Mechanism to the Worksurface using a total of
twelve Wood Screws.
Align the six holes of the Brake Assembly with those
on the Worksurface. It may be necessary to depress the
Paddle while manipulating the Brake over the predrilled
Worksurface holes.
Secure the Brake Assembly using a total of six Wood Screws.
3
/4" Wood Screw
325-5106-00
Paddle
Wood Screw
Mechanism Flanges
(12" high surface shown in shaded)
Brake
Cotter Pin
(included with 225-5548-00)
Step 2 (uses the 3-Way Wrench)
Unpack the remaining Adjusta Mechanism components
and arrange them as shown at right.
Place one Crossbar end onto the lower Crossbar
“Button” and Threaded Bolt (located on each of the Arm
Mechanisms). Secure the Crossbar to the Arm Mechanism
using one 5/16" Hex Nut onto the Threaded Bolt.
Repeat for remaining Crossbar end and Arm Mechanism.
Arm Mechanism
NOTE: it is very important that you attach the Crossbar
ONLY to the Lower Crossbar Button.
5
/16" Hex Nut
(included with 225-5548-00)
Brake/Paddle
Assembly
Crossbar
Cotter Pin
Arm Mechanism
Threaded
Bolts
DETAIL VIEW
Lower Crossbar
5
/16" Hex
Nut
Paddle
‘Button’
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 1-800-325-3841
anthro.com
Page 4

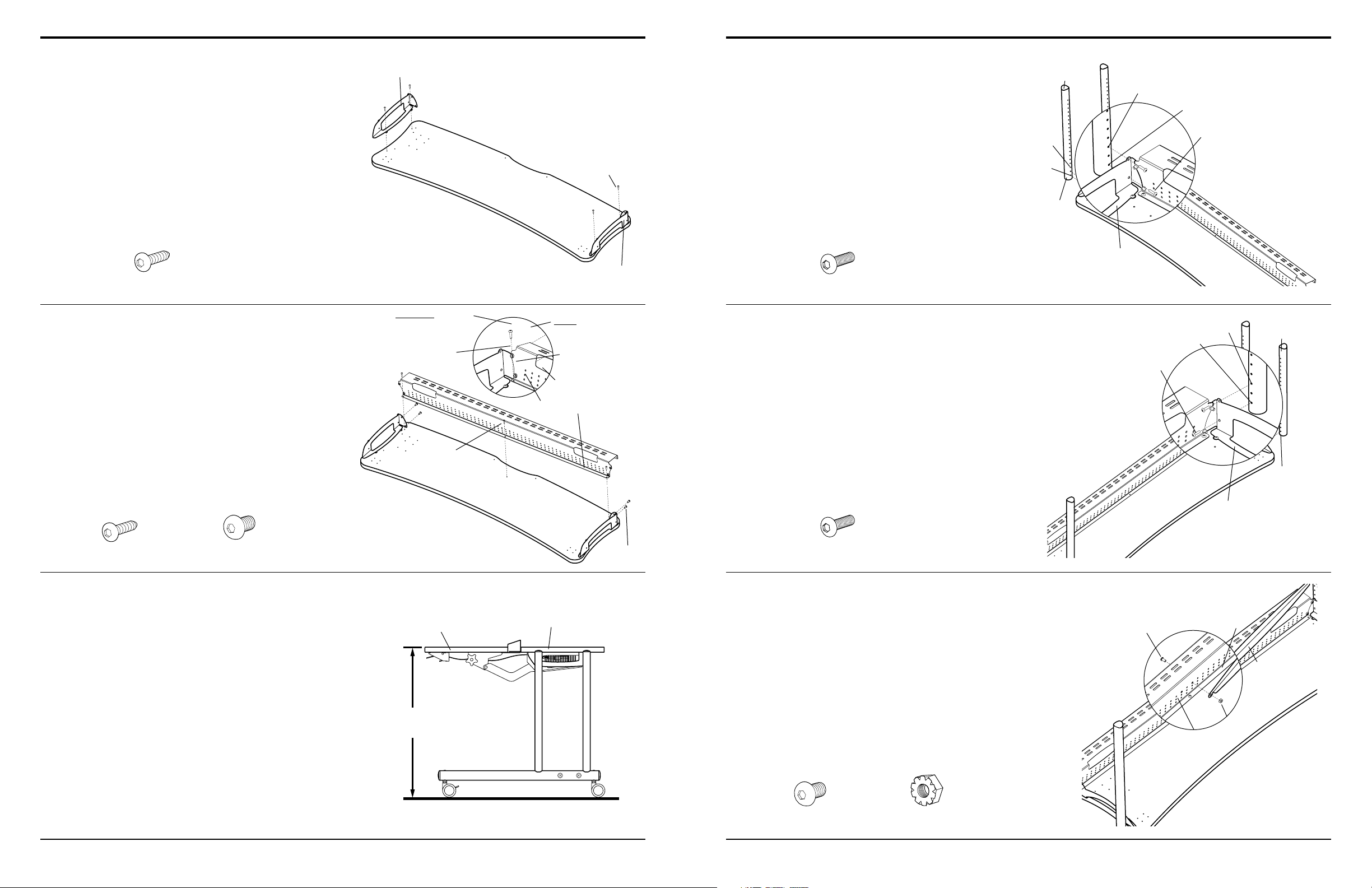

FAJ60zz/xx3
300-5197-00
Step 3
Place your Fixed Worksurface onto the floor with the
predrilled holes facing upward.
Position the Small Support Brackets onto the Fixed
Worksurface and align two of the holes on each Support
with the predrilled holes on the Worksurface. Loosely
secure each Small Support to the Worksurface using
two Wood Screws per Support.
3
/4" Wood Screw
325-5106-00
Step 4
Place the Back Trough onto the Fixed Worksurface,
between the installed Support Brackets (from Step 3).
Align the two Threaded holes on each end of the Back
Trough with those on both Support Brackets. Carefully,
thread one Button Head Screw through the Support
Bracket, into the Back Trough. Repeat for remaining
three Button Head Screws.
Small Support
Bracket Y
SECOND: Install
the Wood Screws
NOTE: Make certain to install
the Back Trough in front of
the Support Brackets
Wood Screw
Small Support
Bracket X
FIRST: Install the
Button Head Screws
Threaded holes
Back Trough
Back Trough Flange
Step 6
Attach a rear Vertical Leg by installing two Support Screws
through the Small Support Bracket Y into holes 1 & 3 from
the top (non-coped end).
Attach a front Vertical Leg to Holes 1 & 3 using the
same procedure.
Support Screw
325-5010-00
Step 7
Attach the remaining Vertical Legs to the Small Support
Bracket X using the same procedure used in Step 6.
NOTE: Make certain to install the Vertical Legs into the same
holes used in Step 6.
Hole 3
Hole 1
front Leg
(non-coped)
Bottom
(coped)
end
Top
end
Hole 3
rear Leg
Small Support
Bracket Y
Support Screw
Hole 1=31" Final
Worksurface Height
Support Screw
Hole 3
Hole 1
Bottom
(coped)
end
Insert three Wood Screws through the three remaining
holes on the Back Trough flange (which should be aligned
with two predrilled holes on the Worksurface) and tighten
into place.
3
/4" Wood Screw
325-5106-00
(1/4-20 X .50") Button Head Screw
325-5003-00
Step 5
Determine the best height for your Fixed Worksurface.
These instructions will place your Fixed Worksurface
31" from the floor using the standard 3" Casters.
For a final Fixed Worksurface height that is lower
than 31", adjust one hole down for each inch of
variance desired.
Your Adjusta Unit is heavy! A second person will make
this assembly procedure much easier.
NOTE: Your Fixed Worksurface location may be changed
after your Adjusta Unit has been completely assembled by
repeating Steps 6 through 10.
Wood Screw
Adjusta Caddy has
approximately 11"
of travel
31"
Adjusta Fixed
Worksurface
Button
Head Screw
Support Screw
325-5010-00
Step 8
Position one Buttress against the Back Trough, aligning the
holes on both Buttress and Back Trough.
Insert a Button Head Screw from the rear of the Back
Trough, and capture on the opposite side using a Keps Nut.
NOTE: Just hand tighten the Keps Nut for now.
Button Head Screw
Back Trough
Top
(non-coped)
end
Small Support
Bracket X
Buttress Flange
faces towards
the Front
Buttress
Keps
Nut
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 1-800-325-3841
(1/4-20 X .50") Button Head Screw
325-5003-00
(1/4-20) Keps Nut
325-5130-03
anthro.com
Loading...
