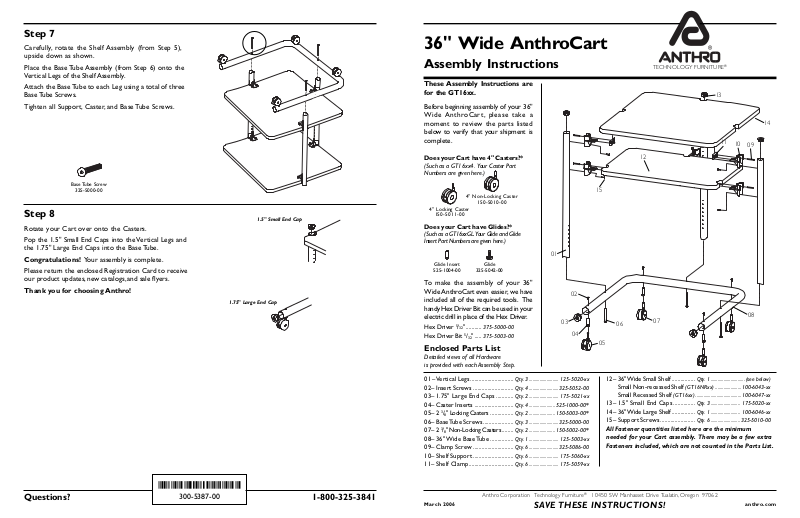

Anthro Small AnthroCarts 36W Assembly Instructions

Step 7

Carefully, rotate the Shelf Assembly (from Step 5),
upside down as shown.

Place the Base Tube Assembly (from Step 6) onto the
Vertical Legs of the Shelf Assembly.

Attach the Base Tube to each Leg using a total of three
Base Tube Screws.

Tighten all Support, Caster, and Base Tube Screws.

Base Tube Screw

325-5000-00

Step 8

Rotate your Cart over onto the Casters.

Pop the 1.5" Small End Caps into the Vertical Legs and
the 1.75" Large End Caps into the Base Tube.

Congratulations! Your assembly is complete.

Please return the enclosed Registration Card to receive
our product updates, new catalogs, and sale flyers.

Thank you for choosing Anthro!

1.5" Small End Cap

1.75" Large End Cap

36" Wide AnthroCart

Assembly Instructions

These Assembly Instructions are
for the GT16xx.

Before beginning assembly of your 36"
Wide AnthroCart, please take a
moment to review the parts listed
below to verify that your shipment is
complete.

Does your Cart have 4" Casters?*

(Such as a GT16xx4. Your Caster Part
Numbers are given here.)

4" Non-Locking Caster

4" Locking Caster

150-5011-00

Does your Cart have Glides?*

(Such as a GT16xxGL. Your Glide and Glide
Insert Part Numbers are given here.)

Glide Insert

525-1004-00

150-5010-00

Glide

325-5042-00

To make the assembly of your 36"
Wide AnthroCart

even easier, we have
included all of the required tools. The
handy Hex Driver Bit can be used in your
electric drill in place of the Hex Driver.

Hex Driver 5/32" ........... 375-5000-00

Hex Driver Bit 5/32" ..... 375-5003-00

Enclosed Parts List

Detailed views of all Hardware
is provided with each Assembly Step.

01

02

03

04

15

05

06

TECHNOLOGY FURNITURE

12

07

®

13

14

11

10

09

08

*300-5387-00*

Questions? 1-800-325-3841

300-5387-00

01 – Vertical Legs .............................. Qty. 3 ......................... 125-5020-xx

02– Insert Screws ............................ Qty. 4 .........................325-5052-00

03– 1.75" Large End Caps ............ Qty. 2 ......................... 175-5021-xx

04– Caster Inserts ........................... Qty. 4 ......................525-1000-00*

05– 2 3/8" Locking Casters ................ Qty. 2 ...................... 150-5003-00*

06– Base Tube Screws ..................... Qty. 3 ......................... 325-5000-00

07– 2 3/8" Non-Locking Casters ........ Qty. 2 ...................... 150-5002-00*

08– 36" Wide Base Tube ................ Qty. 1 ......................... 125-5003-xx

09– Clamp Screw ............................ Qty. 6 .........................325-5086-00

10– Shelf Support ............................ Qty. 6 ......................... 175-5060-xx

11– Shelf Clamp ............................... Qty. 6 ......................... 175-5059-xx

Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062

March 2006

SAVE THESE INSTRUCTIONS!

12– 36" Wide Small Shelf ................ Qty. 1 ............................. (see below)

Small Non-recessed Shelf (GT16NRxx) ...................... 100-6043-xx

Small Recessed Shelf (GT16xx) ....................................... 100-6047-xx

13– 1.5" Small End Caps ............... Qty. 3 ......................... 175-5020-xx

14– 36" Wide Large Shelf ................ Qty. 1 ......................... 100-6046-xx

15– Support Screws ........................ Qty. 6 .........................325-5010-00

All Fastener quantities listed here are the minimum
needed for your Cart assembly. There may be a few extra
Fasteners included, which are not counted in the Parts List.

anthro.com

36" Wide AnthroCart

Assembly Instructions

Questions? 1-800-325-3841

Step 4

Loosely attach the Small Shelf to the bottom hole on
the Vertical Leg Assembly (from Step 3) using one
Support Screw.

Step 1

Before proceeding, please review the Assembly Instructions of all Anthro Products you purchased and are
planning to include in this installation.

Decide on the shelf configuration that works best for you. Generally, customers place the large shelf at the top of the
legs and the small shelf at the bottom of the legs, and that’s how these instructions are organized. This configuration
leaves 18" clearance between the shelves.

Shelves can be installed at any height (in 1" increments), so find the best configuration for you. If you need help
configuring your cart, just give us a call!

Step 2

Attach three Shelf Supports to each Shelf. Begin by first
installing a Shelf Clamp into the Shelf notch. Be sure
the pointed barbs face towards the outer Shelf edge.

Next, slide a Shelf Support into the recesses of the
Shelf Clamp and Shelf. Push in as far as possible.

Finally, secure with a Clamp Screw.

First

Barbs

NOTE: Handle the Shelf Assembly carefully until the
Cart if fully assembled.

Support Screw

325-5010-00

Step 5

Loosely attach the 2nd and 3rd Vertical Legs to the
Shelf Assembly (from Step 4) using one Support
Screw per Shelf Support.

Clamp Screw

325-5086-00

Step 3

Loosely attach the Large Shelf to Hole 2 from the top
of one Vertical Leg using one Support Screw.

NOTE: This will place your Large Shelf 28" from the
floor using the standard 2

3

/8" Casters.

Next

Finally

Insert one Support Screw

through each Shelf Support

Bottom (coped) end

Support Screw

325-5010-00

Step 6

Install all four Caster Inserts into the Base Tube and
secure with one Caster Screw per Insert.

Push the Casters, (locking ones in front) into the
Caster Inserts. This is a friction fit and will require
some effort. You may find it helpful to tap the bottom
of the caster with the rubber mallet provided.

Locking
Casters

Support Screw

325-5010-00

Anthro Corporation Technology Furniture® 1 0450 SW Manhasset Drive Tualatin, Oregon 97062

Bottom (coped) end

Caster Screw

(small pink patch on end)

325-5052-00

GLIDES ONLY

Thread each Glide

into the Glide Inserts
