Step 8
Place the Metal Base Assembly onto the legs. Check the
orientation of the Base Assembly. Casters with the Green
Brake Pedals should face either the left or the right. Also,
the slots on the metal base (used for installing the Back Panel)
should align with the Panel Hangers on the wood shelf.
Align Vertical Legs with corner holes in the Base Assembly.
Insert a Funnel Head Screw through the Base and carefully
thread into the Leg.
Repeat for other three corners and tighten all screws.
Funnel Head Screw
325-5245-00
Step 9
Rotate your Cart upright.
Facing the rear of the Cart, orient the Back Panel so the
tabs are towards the bottom.
Carefully insert the two small tabs at the bottom of the
Back Panel into the slots on the Metal base. Tilt the top of
the Back Panel towards the Cart to meet the Panel Hangers. Secure using two Panel Screws.
Base Assembly
Back Panel
Funnel Head
Screw
Panel Screw
Tabs
(Green Brake Pedal)

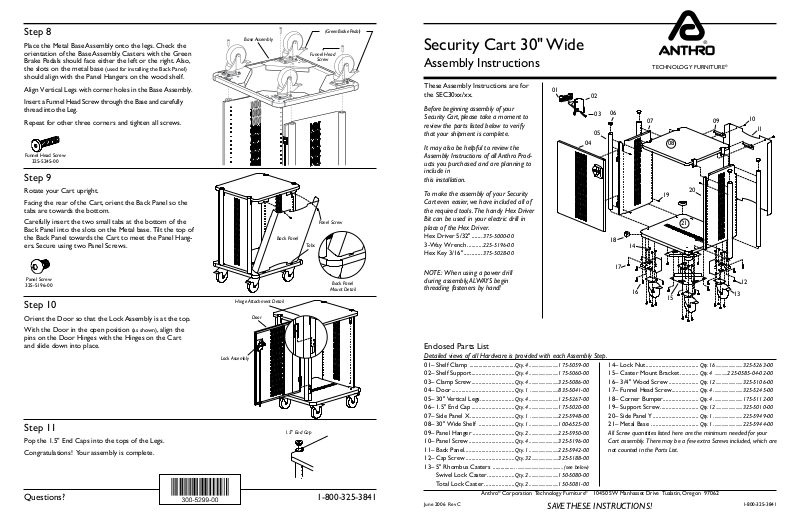

Security Cart 30" Wide
Assembly Instructions
These Assembly Instructions are for
the SEC30xx/xx.
Before beginning assembly of your
Security Cart, please take a moment to
review the parts listed below to verify
that your shipment is complete.
It may also be helpful to review the
Assembly Instructions of all Anthro Products you purchased and are planning to
include in
this installation.
To make the assembly of your Security
Cart even easier, we have included all of
the required tools. The handy Hex Driver
Bit can be used in your electric drill in
place of the Hex Driver.
Hex Driver 5/32" ....... 375-5000-00
3-Way Wrench ...........225-5196-00
Hex Key 3/16" ............375-5028-00
01
04
02
03
05
06
18
14
TECHNOLOGY FURNITURE
07
08
20
19
21
09
®
10
11
Panel Screw
325-5196-00
Step 10
Orient the Door so that the Lock Assembly is at the top.
Hinge Attachment Detail
Door
Back Panel
Mount Detail
With the Door in the open position (as shown), align the
pins on the Door Hinges with the Hinges on the Cart
and slide down into place.
Lock Assembly
Step 11
1.5" End Cap
Pop the 1.5" End Caps into the tops of the Legs.
Congratulations! Your assembly is complete.
Questions? 1-800-325-3841
NOTE: When using a power drill
during assembly, ALWAYS begin
threading fasteners by hand!
Enclosed Parts List
Detailed views of all Hardware is provided with each Assembly Step.
01– Shelf Clamp ...................................Qty. 4 .........................175-5059-00
02– Shelf Support.............................. Qty. 4 .........................175-5060-00
03– Clamp Screw .............................. Qty. 4 .........................325-5086-00
04– Door ............................................ Qty. 1 ........................835-5041-00
05– 30" Vertical Legs ........................ Qty. 4 .........................125-5267-00
06– 1.5" End Cap .............................. Qty. 4 .........................175-5020-00
07– Side Panel X ............................... Qty. 1 ........................225-5948-00
08– 30" Wide Shelf ......................... Qty. 1 .........................100-6525-00
09– Panel Hanger ............................. Qty. 2 .........................225-5950-00
10– Panel Screw ................................ Qty. 4 .........................325-5196-00
11– Back Panel ................................... Qty. 1 .........................225-5942-00
12– Cap Screw .................................. Qty. 32 .......................325-5188-00
13– 5" Rhombus Casters ................. ........................................ (see below)
Swivel Lock Caster ................... Qty. 2 .........................150-5080-00
Total Lock Caster .....................Qty. 2 .........................150-5081-00
Anthro® Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062
June 2006 Rev C
SAVE THESE INSTRUCTIONS!
17
12
16
15
13
14– Lock Nut ..................................... Qty. 16 .......................325-5263-00
15– Caster Mount Bracket ............. Qty. 4 ...........225-0585-04-02-00
16– 3/4" Wood Screw .....................Qty. 12 .......................325-5106-00
17– Funnel Head Screw ................... Qty. 4 .........................325-5245-00
18– Corner Bumper ......................... Qty. 4 .........................175-5112-00
19– Support Screw ........................... Qty. 12 .......................325-5010-00
20– Side Panel Y ................................ Qty. 1 .........................225-5949-00
21– Metal Base ................................. Qty. 1 .........................225-5944-00
All Screw quantities listed here are the minimum needed for your
Cart assembly. There may be a few extra Screws included, which are
not counted in the Parts List.
