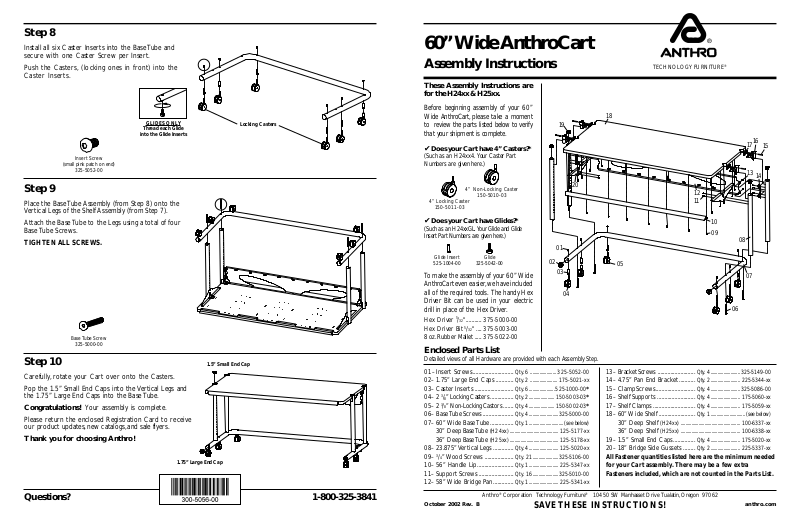

Anthro Large AnthroCarts 60W Assembly Instructions

Step 8

Install all six Caster Inserts into the Base Tube and
secure with one Caster Screw per Insert.

Push the Casters, (locking ones in front) into the
Caster Inserts.

GLIDES ONLY

Thread each Glide

into the Glide Inserts

Insert Screw

(small pink patch on end)

325-5052-00

Step 9

Place the Base Tube Assembly (from Step 8) onto the
Vertical Legs of the Shelf Assembly (from Step 7).

Attach the Base Tube to the Legs using a total of four
Base T ube Screws.

TIGHTEN ALL SCREWS.

Base T ube Screw

325-5000-00

Step 10

Carefully, rotate your Cart over onto the Casters.
Pop the 1.5” Small End Caps into the Vertical Legs and

the 1.75” Large End Caps into the Base Tube.
Congratulations! Your assembly is complete.
Please return the enclosed Registration Card to receive

our product updates, new catalogs, and sale flyers.

Thank you for choosing Anthro!

1.75” Large End Cap

Locking Casters

1.5” Small End Cap

60” Wide AnthroCart

Assembly Instructions

These Assembly Instructions are
for the H24xx & H25xx.

Before beginning assembly of your 60”
Wide AnthroCart, please take a moment
to review the parts listed below to verify
that your shipment is complete.

✔Does your Cart have 4” Casters?*

(Such as an H24xx4. Your Caster Part
Numbers are given here.)

4” Non-Locking Caster

4” Locking Caster

150-5011-03

150-5010-03

✔Does your Cart have Glides?*

(Such as an H24xxGL. Your Glide and Glide
Insert Part Numbers are given here.)

Glide Insert

525-1004-00

Glide

325-5042-00

To make the assembly of your 60” Wide
AnthroCart

even easier, we have included
all of the required tools. The handy Hex
Driver Bit can be used in your electric
drill in place of the Hex Driver.

Hex Driver 5/32"........... 375-5000-00

Hex Driver Bit 5/32" ....375-5003-00

8 oz. Rubber Mallet..... 375-5022-00

Enclosed Parts List

Detailed views of all Hardware are provided with each Assembly Step.

01– Insert Screws............................ Qty. 6 ...................... 325-5052-00

02– 1.75” Large End Caps ............ Q ty. 2 ....................... 175-5021-xx

03– Caster Inserts ........................... Qty. 6......................525-1000-00*

04–2 3/8” Locking Casters ................ Qty. 2...................... 150-5003-03*

05–2 3/8” Non-Locking Castors ....... Qty. 4...................... 150-5002-03*

06– Base T ube Screws..................... Qty. 4.........................325-5000-00

07– 60” Wide Base T ube................ Qty. 1.............................(see below)

30” Deep Base Tube (H24xx) ......................................... 125-5177-xx

36” Deep Base Tube (H25xx) ......................................... 125-5178-xx

08– 23.875” V ertical Legs .............. Qty. 4......................... 125-5020-xx

09–3/4” W ood Screws .................... Qty. 21......................325-5106-00

10 – 56” Handle Lip......................... Qty. 1......................... 225-5347-xx

11– Support Screws........................ Qty. 16......................325-5010-00

12– 58” Wide Bridge Pan.............. Qty. 1......................... 225-5341-xx

19

20

01

02

03

04

10

09

®

16

17

15

13

14

08

07

06

TECHNOLOGY FURNITURE

18

12
11

05

13– Bracket Screws .......................... Qty. 4.........................325-5149-00

14– 4.75” Pan End Bracket........... Qty. 2......................... 225-5344-xx

15– Clamp Screws........................... Qty. 4.........................325-5086-00

16– Shelf Supports .......................... Qty. 4......................... 175-5060-xx

17– Shelf Clamps ............................. Qty. 4......................... 175-5059-xx

18– 60” Wide Shelf ......................... Qty. 1.............................(see below)

30” Deep Shelf (H24xx) .................................................. 100-6337-xx

36” Deep Shelf (H25xx) .................................................. 100-6338-xx

19– 1.5” Small End Caps ............... Qty. 4......................... 175-5020-xx

20– 18” Bridge Side Gussets ........ Qty. 2......................... 225-5337-xx

All Fastener quantities listed here are the minimum needed
for your Cart assembly. There may be a few extra
Fasteners included, which are not counted in the P arts List.

Questions? 1-800-325-3841

October 2002 Rev. B

Anthro® Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062

SAVE THESE INSTRUCTIONS!

anthro.com

60” Wide AnthroCart

Assembly Instructions

Step 1

Questions? 1-800-325-3841

28” High Shelf

Step 4

Position both Bridge Side Gussets onto the Shelf
underside as shown. Align the predrilled holes on the
underside of the Shelf with those on the Gussets and
secure into place using a total of four Wood Screws per
Gusset.

NOT E: Make certain the Bridge Side
Gussets are oriented so the flanges
face tow ard the inside of the Cart.

18” Side Gusset

These Instructions will cover both the H24xx & H25xx
60” Wide AnthroCar t assembly. Before proceeding,
please review the Assembly Instructions of all Anthro
Products you purchased and are planning to include in
this installation.

These instructions will place your Shelf 28” from the
floor using the standard 2

3

/8” Casters.

Step 2

Determine the best height for your Shelf.
Generally, a 28” high work surface works well for
most people and equipment.

For a final Shelf height that is higher or lower than 28”,
refer to the illustration shown at right to determine
which holes to attach your Shelf.

Your Shelf locations may be changed after your Cart
has been completely assembled by repeating Steps 5
& 6.

H24xx & H25xx

60”Wide AnthroCart shown with 2 3/8” Casters

Add 1” to overall height for 4” Casters

Subtract 3” from the overall height for Glides

28”

H24xx with 2 3/8” Casters

29”

H24xx4 with 4” Casters

Hole 2=28”
Hole 3=27” (measured from the non-coped end)
Hole 4=26”

Coped end

Hole 2=29”
Hole 3=28”
Hole 4=27”

Hole 2=25”

25”

H24xxGL with Glides

Hole 3=24”
Hole 4=22”

Next, place the 56” Lip onto the front of the Shelf, aligning
the predrilled Holes of the Lip with those on the front of
the Shelf. Secure the Lip using a total of eight Wood Screws.

3

/4” Wood Screw

325-5106-00

Step 5

Attach the front Vertical Legs by loosely installing one
Support Screw through a front Shelf Support into Hole
2 from the top (non-coped end) of a Leg.

Next, loosely install two Support Screws through a Side
Gusset into a corresponding Leg.

Repeat for remaining front Vertical Leg and Side Gusset.

Support Screw

325-5010-00

Step 6

Attach the rear Vertical Legs by loosely installing one
Support Screw through the rear Shelf Supports into
Hole 2 of each Leg.

Next, position a Pan End Bracket against a rear Ver tical
Leg. Secure into place by loosely installing four Support
Screws through the Bracket into Holes 3, 4, 6 & 7 from
the top of a rear Leg. Repeat for remaining Pan End
Bracket.

56” Handle Lip

Top

(non-coped)

end

Predrilled holes

Hole 2=28” using the 2 3/8” Casters
Hole 2=29” using the 4” Casters
Hole 2=25” using the Glides

Hole 2

Front Shelf Support

NOTE: make certain the Pan End Brackets
are oriented so the PEM Nuts are facing
the front of the Cart & both Brackets are
LOOSELY installed.

Hole 2

Bottom
(coped)

end

LOOSELY install

the rear Legs

Step 3

Attach all four Shelf Supports to the Shelf.
Begin by first installing a Shelf Clamp into the Shelf

notch. Be sure the pointed Barbs face towards the
outer Shelf edge.

Next, slide a Shelf Support into the recesses of the
Shelf Clamp and Shelf. Push in as far as possible.

Finally, secure with a Clamp Screw .

Clamp Screw

325-5086-00

Anthro® Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062

First

Barbs

Next

Finally

Support Screw

325-5010-00

Step 7

Place the Bridge Pan onto the Shelf between the
rear Vertical Legs. Secure the Pan to the Shelf by
first installing five Wood Screws through the Pan
flange into the Shelf.

Next, insert a Bracket Screw from the rear of the Cart
through the Pan and carefully thread into a Pan End
Bracket. Finally, repeat for the remaining Bracket
Screws and Pan End Brack et.

3

/4” Wood Screw

325-5106-00

1

/4-20 X .375” Bracket Screw

325-5149-00

anthro.com

Rear

Shelf Support

Bracket Screw

Bridge Pan

Pan Flange

Wood Screw

NOTE: tighten all Wood and Bracket Screws after
they have ALL have been successfully installed.
