Step 8
Install all four Castor Inserts into the Base Tube and
secure with one Castor Screw per Insert.
Push the Castors, (locking ones in front) into the
Castor Inserts.
GLIDES ONLY
Thread each Glide
into the Glide Inserts
Castor Screw
(small pink patch on end)
325-5052-00
Step 9
Place the Base Tube Assembly (from Step 8) onto the
Vertical Legs of the Shelf Assembly (from Step 7).
Attach the Base Tube to the Legs using a total of four
Base Tube Screws.
TIGHTEN ALL SCREWS.
Locking Castors

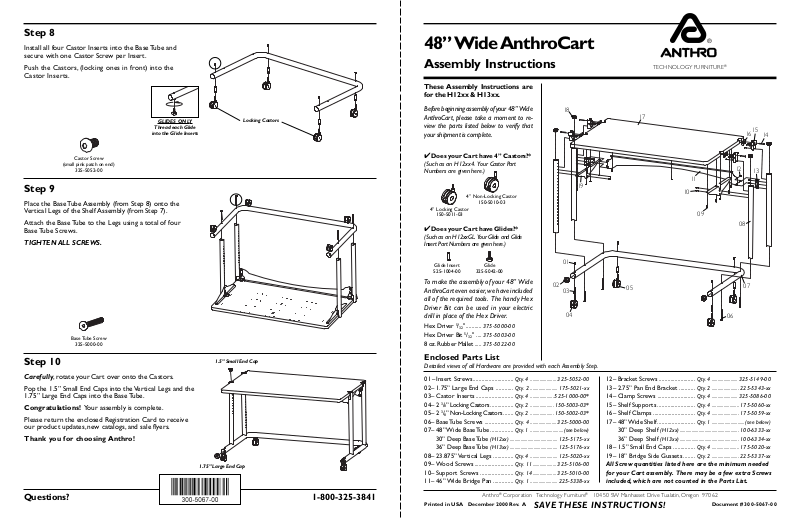

48” Wide AnthroCart
Assembly Instructions
These Assembly Instructions are
for the H12xx & H13xx.
Before beginning assembly of your 48” Wide
AnthroCart, please take a moment to review the parts listed below to verify that
your shipment is complete.
4
Does your Cart have 4” Castors?*
(Such as an H12xx4. Your Castor Part
Numbers are given here.)
4” Non-Locking Castor
4” Locking Castor
150-5011-03
4
Does your Cart have Glides?*
(Such as an H12xxGL. Your Glide and Glide
Insert Part Numbers are given here.)
150-5010-03
18
19
TECHNOLOGY FURNITURE
17
11
10
09
®
15
16
14
12
13
08
Base Tube Screw
325-5000-00
Step 10
Carefully, rotate your Cart over onto the Castors.
Pop the 1.5” Small End Caps into the Vertical Legs and the
1.75” Large End Caps into the Base Tube.
Congratulations! Your assembly is complete.
Please return the enclosed Registration Card to receive
our product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
1.5” Small End Cap
1.75” Large End Cap
Glide Insert
525-1004-00
Glide
325-5042-00
To make the assembly of your 48” Wide
AnthroCart
even easier, we have included
01
02
03
all of the required tools. The handy Hex
Driver Bit can be used in your electric
drill in place of the Hex Driver.
Hex Driver 5/32"........... 375-5000-00
Hex Driver Bit 5/32" .... 375-5003-00
8 oz. Rubber Mallet ..... 375-5022-00
04
Enclosed Parts List
Detailed views of all Hardware are provided with each Assembly Step.
01– Insert Screws............................ Qty. 4 ...................... 325-5052-00
02– 1.75” Large End Caps ............ Qty. 2 ....................... 175-5021-xx
03– Castor Inserts .......................... Qty. 4 ....................525-1000-00 *
04– 2 3/8” Locking Castors ................ Qty. 2 .................... 150-5003-03*
05– 2 3/8” Non-Locking Castors ....... Qty. 2 .................... 150-5002-03*
06– Base Tube Screws .................... Qty. 4 ...................... 325-5000-00
07– 48” Wide Base Tube ................ Qty. 1 ............................ (see below)
30” Deep Base Tube (H12xx) ........................................ 125-5175-xx
36” Deep Base Tube (H13xx) ........................................ 125-5176-xx
08– 23.875” Vertical Legs .............. Qty. 4 ....................... 125-5020-xx
09– Wood Screws ........................... Qty. 11 .................... 325-5106-00
10– Support Screws ....................... Qty. 14.................... 325-5010-00
11– 46” Wide Bridge Pan .............. Qty. 1 ....................... 225-5338-xx
05
12– Bracket Screws ......................... Qty. 4 ...................... 325-5149-00
13– 2.75” Pan End Bracket ........... Qty. 2 ....................... 225-5343-xx
14– Clamp Screws .......................... Qty. 4 ...................... 325-5086-00
15– Shelf Supports .......................... Qty. 4 ....................... 175-5060-xx
16– Shelf Clamps ............................. Qty. 4 ....................... 175-5059-xx
17– 48” Wide Shelf.......................... Qty. 1 ............................(see below)
30” Deep Shelf (H12xx) .................................................. 100-6333-xx
36” Deep Shelf (H13xx) .................................................. 100-6334-xx
18– 1.5” Small End Caps ............... Qty. 4 ....................... 175-5020-xx
19– 18” Bridge Side Gussets ........ Qty. 2 ....................... 225-5337-xx
All Screw quantities listed here are the minimum needed
for your Cart assembly. There may be a few extra Screws
included, which are not counted in the Parts List.
07
06
Questions? 1-800-325-3841
Anthro® Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062
Printed in USA December 2000 Rev. A
SAVE THESE INSTRUCTIONS!
Document # 300-5067-00
48” Wide AnthroCart
Step 4
Assembly Instructions
Step 1
These Instructions will cover both the H12xx & H13xx
48” Wide AnthroCart assembly. Before proceeding,
please review the Assembly Instructions of all Anthro
Products you purchased and are planning to include
in this installation.
These instructions will place your Shelf 28” from the
floor using the standard 2
The approximate time to complete the assembly of your
48” Wide AnthroCart is 45 minutes.
Step 2
Determine the best height for your Shelf. Generally,
a 28” high work surface works well for most people
and equipment.
For a final Shelf height that is higher or lower than 28”,
refer to the illustration shown at right to determine
which holes to attach your Shelf.
Your Shelf locations may be changed after your
Cart has been completely assembled by repeating
Steps 5 & 6.
3
/8” Castors.
Questions? 1-800-325-3841
28” High Shelf
H12xx & H13xx
48”Wide AnthroCart shown with 2 3/8” Castors
Add 1” to overall height for 4” Castors
Subtract 3” from the overall height for Glides
Hole 2=28”
Hole 3=27” (measured from the non-coped end)
28”
H12xx with 2 3/8” Castors
29”
H12xx4 with 4” Castors
Hole 4=26”
Coped end
Hole 2=29”
Hole 3=28”
Hole 4=27”
25”
Hole 2=25”
Hole 3=24”
Hole 4=22”
Position both Bridge Side Gussets onto the Shelf
underside as shown.
Align the predrilled holes on the underside of the Shelf
with those on the Gussets and secure into place using
a total of four Wood Screws per Gusset.
NOTE: Make certain the Bridge Side Gussets are oriented
so the “flanges” face toward the inside of the Cart.
Wood Screw
325-5106-00
Step 5
Attach the “front” Vertical Legs by loosely installing one
Support Screw through a “front” Shelf Support into Hole
2 from the top (non-coped end) of a Leg.
Next, loosely install two Support Screws through a Side
Gusset into a corresponding Leg.
Repeat for remaining “front” Vertical Leg and Side Gusset.
Support Screw
325-5010-00
Hole 2
Step 6
Loosely attach the “rear” Vertical Legs using the same
procedure described in Step 5.
Next, position a Pan End Bracket against a “rear” Vertical
Leg. Secure into place by loosely installing three Support
Screws through the Bracket into Holes 3, 4 & 5 from the
top of a ‘rear” Leg.
Both Bridge Side Gusset
“flanges” face toward the
inside of the Cart.
Predrilled holes
Bottom
(coped)
end
“Front”
Shelf Support
Top (non-coped) end
NOTE: make certain the Pan End Brackets are oriented
so the “PEM” Nut is facing the “front” of the Cart.
Step 3
Attach all four Shelf Supports to the Shelf.
Begin by first installing a Shelf Clamp into the Shelf
notch. Be sure the pointed “Barbs” face towards the
outer Shelf edge.
Next, slide a Shelf Support into the recesses of the
Shelf Clamp and Shelf. Push in as far as possible.
Finally, secure with a Clamp Screw.
Clamp Screw
325-5086-00
Anthro® Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062
First
“Barbs”
H12xxGL with Glides
Next
Finally
Repeat for remaining “rear” Vertical Leg and Pan End Bracket.
Support Screw
325-5010-00
Step 7
Place the Bridge Pan onto the Shelf between the
“rear” Vertical Legs. Secure the Pan to the Shelf by
first installing three Wood Screws through the Pan
“flange” into the Shelf.
Next, insert a Bracket Screw from the “rear” of the
Cart through the Pan and carefully thread into a Pan
End Bracket. Finally, repeat for the remaining Bracket
Screws and Pan End Bracket.
1
Wood Screw
325-5106-00
/4-20 X .375” Bracket Screw
325-5149-00
www.anthro.com
Hole 2
“Rear”
Shelf Support
Wood Screw
Bracket Screw
Bridge Pan
Pan “Flange”
NOTE: tighten all Wood and Bracket Screws after
they have ALL have been successfully installed.
