Antelope Trinity Master Clock User Manual

SAFETY NOTES
To reduce the risk of electrical shocks, fire, and related hazards:
Do not remove screws, cover, or cabinet. There are no user serviceable parts inside. Refer servicing to qualified service personnel.
Do not expose this device to rain, moisture or spillover of liquid of any kind.
Should any form of liquid or a foreign object enter the device, do not use it. Switch off the device and then unplug it from the power source. Do not operate the device again until the foreign object is removed or the liquid has completely dried and its residues fully cleaned up. If in doubt, please consult authorized repair .
an centre
Do not handle the power with wet hands!
Make sure the device is switched off when plugging/unplugging it to/from the power source.
When unplugging from the wall outlet always pull the plug, not the power .
Make sure ventilation outlets are not obstructed: putting things on the cabinet or using the device in a narrow and poorly ventilated place may result in the temperature rising which could affect its operation or the operation of other closely located components.
If anything goes wrong, turn off the device first and then unplug the power . Do not attempt to repair the device yourself: onsult authorized service personnel or your dealer.
IMPORTANT
About the 12V DC power supply option, please note the following:
Improper application of the 12V DC power supply may damage the device. When connecting 12V DC power to the power source, make sure to comply with the circuit diagram given in this manual so that the correct polarity is applied. If in doubt consult a competent electronics technician.
a cable
,
cables
cable
C
on page 13
cables
1
CONTENTS
Front and Rear Panel layout reference ....................................................
Introduction ..............................................................................................
Getting Started .........................................................................................
Front Panel functions explained ...............................................................
Rear Panel explained................................................................................

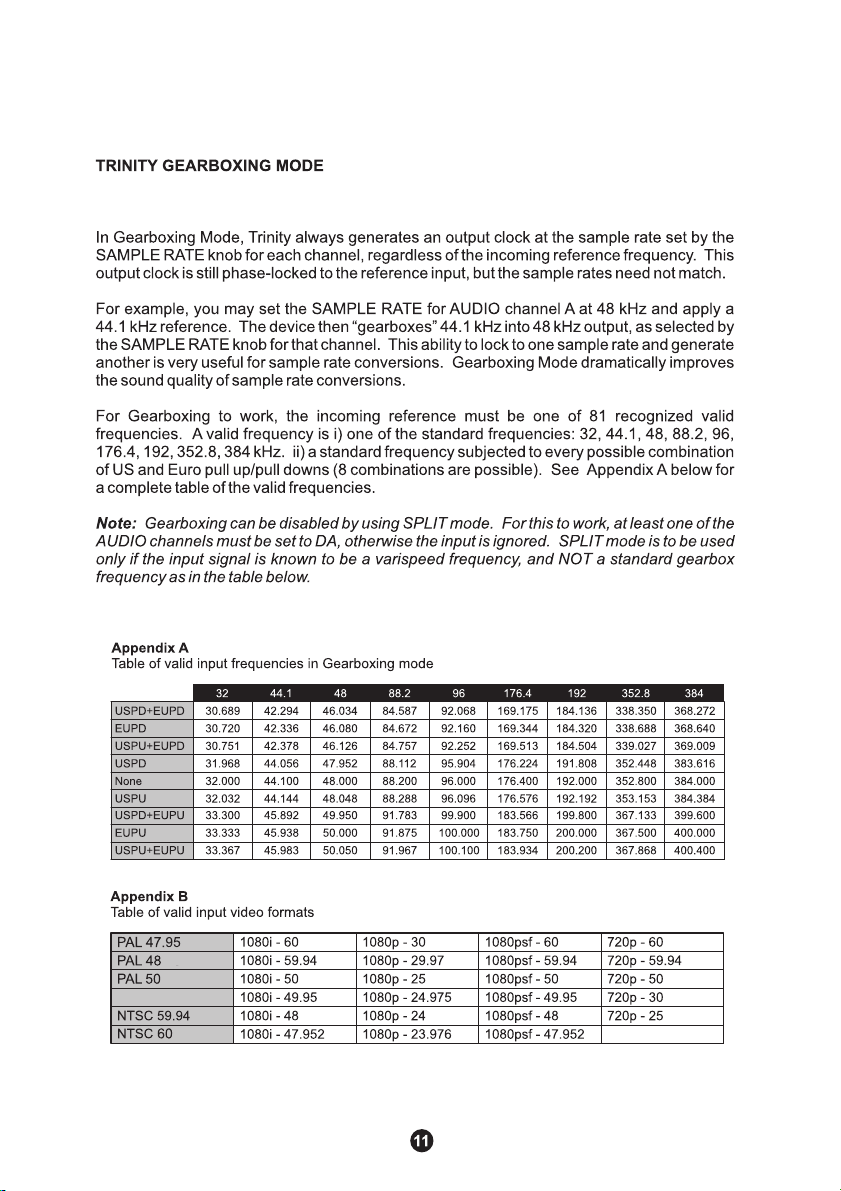

Gearboxing in detail .................................................................................
Appendix B: Table of valid input video formats .........................................
Appendix C: Error Messages ...................................................................
Installation and connection .......................................................................
Calibration .................................................................................................
Technical specifications ............................................................................
Notes .........................................................................................................
3 4 5 6-8 9-10 11 11 12 13 14 15-16 17
2
INTRODUCTION
Congratulations! You are now the proud owner of the latest generation of master clock from the world's favourite clocking company. Based on years of research, Trinity is a brand new design that is the most flexible, best sounding, moststable, and easiest to use master clock available.
In one box, Trinity will save you time. Imagine! One pass with multiple frequencies and formats of virtually any choice, all running in perfect synchronization. Well, imagine no longer,because it's trulypossible with Trinity.
Based onAntelope's Oven Controlled Crystal Technology,Trinity has many new features including 3 Independent Audio Generators up to 384kHz, with Varispeed control. 3 Independent SD Generators,simultaneously offering PAL and NTSC. 3 Independent HD Generators, presenting a choice of 16 formats, and the latest revision of Antelope's Acoustically Focused Clocking(AFC), now in it's 4 generation and employing 64 bit DSP.
th
So, that's a mind blowing 9 Independent and Simultaneous Audio/Video Generators, all perfectly locked.
USB allowsfull remote control via PC and Mac. Firmware updates can
also be appliedvia USB if updatesare available.
The triple display shows the frequencies of the audio generators, varispeed values, source information, pull-ups/pull-downs,and useful messages.
Temporarily lose sync from your source?... Trinity will seamlessly free-wheel until the signal returns, andthen re-lock using thelatest Antelope `Gentle LockTechnology`.
Trinity also maintains featuresfrom the OCX-V, but in abrand new design such
; Features as the Antelope Jitter Management Module, Black Burst Generator, Atomic Input for connection to the 10M Rubidium Atomic Clock,and full Audio and VideoGearboxing with simultaneous 0.1% and4% pull-ups/pull-downs.
So, please take some time toread through this manual, and familiarize yourself
reference
with the functionalitythat Trinity has to offer.
Above all, we hope you enjoyyour new Antelope as much aswe enjoyed designing
Trinity
it for you.
All the best,
The Antelope Team
4
GETTING STARTED
It only takes a few moments to harness the benefits of the Isochrone Trinity.
1.
2.
3.
Connect Trinity to an AC or DC power source via rear panel connectors or
19
.
Power on using front panel power button (1).
To use Trinity's internal clock, set SOURCE knob (3) to OVEN, and press to
1
3
18
confirm. If slaving to an external source, connect the master sync device to an input on the rear panel, and select the corresponding position with the SOURCE knob (3). Press to confirm.
Note:
If using internal OVEN, there is a warm up period when the unit is first powered on.
3
Pressing the INFO button just after powering on when SOURCE is set to OVEN will show the OVEN heating up. Correct operating temperature is reached when the OVEN light is lit
14
solid.
4.
Set sample rate: Press AUDIO A button (6) to allow the sample rate to be
6
changed on Audio channel A. Select desired sample rate with SAMPLE RATE knob (4) , and press to confirm.
4
5.
Trinity is now providingyour chosen clock samplerate to Audio outputs A. Youcan also use Audio channelsB and C inthe same way. It is also possible toedit all
udio channels togetherso that one frequencyis sent to all outputs on allchannels.
a
Some devices will automatically sync to clock coming from Trinity. Some will require that you set them to external clock manually. Other devices may require additional configuration to be able to sync to the incoming clock. Please consult the operating manual(s)of your device(s) regardingexternal clocking.
When making initial connections, it is advised to do so with the studio volume
Note:
turned down. Some devices may emit an unpleasant sound until properly configured to accept incoming clock.
5
FRONT PANEL
1. Power on/off button
2. AC/DC power indicators
Indicators to show whether AC or DC power is in use.
3. SOURCE Encoder Knob
The source knob selects the input from which Trinity receives a timing reference. Select OVEN to use the internal oven controlled crystal oscillator, or if Trinity is connected to the 10M Atomic Clock via the rear panel Atomic Input. The other five source knob positions correspond to the remaining physical inputs on the back panel input section.
If a SOURCE light flashes, the SOURCE is in a state of edit, and needs to be confirmed by pressing the SOURCE button. If not confirmed within 10 seconds, SOURCE will revertto previously saved position.
4. SAMPLE RATE Encoder Knob
The sample rate encoder is used to select standard frequencies, DA mode, adjust varispeed, and confirm settings. It is used in conjunction with AUDIO buttons (6) ,VARISPEED button , and pullup/pull down buttons & .
6
DA Mode
In DA mode Trinity takes the incoming audio clock selected by the SOURCE knob (3) , andputs it through theJitter Management Module to regenerate a clean,
3
de-jittered signal that is distributed to the outputs on anychannel that is in DAmode. In DA mode, the outgoing sample rate willalways match the incomingreference.
DA mode will not workif the SOURCE knob (3) is set to VIDEO or OVEN,as there is no audio reference to distribute. In this case the display will scroll the message “Cannot DA chosen source”. Note that in DA mode Trinity can work with non-standard sample rates, and any sample rate in the range 27.340 kHz 449.433 kHz is acceptable.
To select DA mode for any channel, press the desired AUDIO button(s) (6), turn SAMPLE RATE knob (4) fully clockwise , and then press the SAMPLE RATE to confirm. If not confirmed within a fewseconds the audio channel(s)
knob
4
will revert totheir last saved settings.
1310
12
3
6
5. EDIT indicator
Flashes when inedit mode, but notfor HD mode.
Note: Trinity will exit edit mode without saving if there is no user input for 10 seconds.
6
6
. AUDIO Channel Edit Select Buttons
These three buttons are used to select the audio channels for editing, and can be edited individually or all at the same time which, if editing all can give you a big single channel master clock utilizing all rear panel outputs. If pressed once from standard mode the current state of the channel(s) will be visible, including varispeed and pull ups/pull downs.
13
Note:
In edit mode, pull ups/downs are not only shown with lights & , but are also shown
12
with dashes after the frequency on the main display. So, If 0.1% & 4% pull ups are selected, the middle and top line of the last digit on the display are lit. If 0.1% & 4% pull downs are selected, the middle and bottom line of the last digit in the display are lit.
7. TripleDisplay
Displays information foreverything except HD.
8
. DIMMER Knob
Adjusts the brightnessof the triple display.
9
. HD Select Encoders
Use these knobs to select HD rates for the three HD channels. Press to confirm a change. HD1, HD2, HD3 signals are sent to the corresponding rear panel output BNC connections .
10
. VARISPEED Select Button
35
Press this button when editing an audio channel allowing varispeed adjustment via the SAMPLE RATE encoder knob (4). The VARISPEED button toggles between adjustment options of cents and percent, where a 'c' on the display signifies cents mode, and a'p' on the displaysignifies percent mode. Press SAMPLERATE
4
knob
to confirm varispeedsetting.
Once any channel has been saved with a varispeed setting, the varispeed indicator will always light when NOT in edit mode to show that one or more channels is usingvarispeed.
11. SPLIT Mode This is an advanced function, and to be used only if receiving a varispeed signal on the input. Using SPLIT will likely cause synchronization errors if used when the input a standard gearboxing frequency. SPLIT mode disables gearboxing for any channels that are set to DA while in SPLIT mode.
The reasoning behind this function is to avoid TRINITY mis-locking to an input frequency that is non-standard, but very close to a standard gearboxing frequency. (See standard gearboxing frequencies in Appendix A). If you know that your input frequency is a non-standard, non-gearbox frequency, then use SPLIT mode to allow DAof this non-standard input.
4
IS
For this function to have any effect, at least one audio channel must be in DA mode. If no audio channels are in DA mode, and SPLIT is activated, the input will be ignored. When SPLIT is activated, the audio channel(s) that is/are set to DA will lock to the SOURCE signal. All channels not in DA mode will
NOT
continue to generate the frequency displayed for the respective channel(s), and will be running on internal oven or external Atomic.
Note:
The SPLIT button has no function when SOURCE is set to VIDEO or OVEN.
7
12. USA pull up/pull down (+/-0.1%)
When in edit mode, this button toggles +/- 0.1% pull up/pull down for the channel(s) being edited. To confirm an edit press the SAMPLE RATE knob (4). On the triple
4
display for the given channel(s), the top line of the digit to the far right is lit for a pull up, and thebottom line is litfor a pull down.
Notes:
If 0.1% & 4% pull ups are selected, the middle and top line of the lastdigit on the display are lit. If 0.1% & 4% pull downs are selected, the middle and bottom line of the last digit in the display are lit.
13. European pull up/pull down (+/- 4%)
When in edit mode, this button toggles +/- 4% pull up/pull down for the channel(s) being edited. To confirm an edit press the SAMPLE RATE knob (4). On the triple
4
display for the given channel(s), the top line of the digit to the far right is lit for a pull up, and thebottom line is litfor a pull down.
Notes:
If 0.1% & 4% pull ups are selected, the middle and top line of the lastdigit on the display are lit. If 0.1% & 4% pull downs are selected, the middle and bottom line of the last digit in the display are lit.
14. Status LEDs
When lit, indicates that Trinity is locked to a valid incoming reference.
LOCK
The light will flash if there is no input, or a frequency present at the input is not one of the recognized valid gearboxing frequencies as in Appendix A .
ATOMIC
Will be lit if SOURCE is set to OVEN, and a valid signal is present at the
on page 11
rear panel atomicinput.
Flashes when Trinity is first turned on, and will light solid when the oven
OVEN
reaches its operating temperature.
Note:
In normal operation OVEN and LOCK or ATOMIC and LOCK will not be lit at the same
time. However,when using the advanced SPLIT mode this is possible.
15. INFO Button
Press to display further information on the SOURCE. Press again, or wait ten seconds to return.
16. HD Pull Down Select Buttons
Toggles -0.1% pull down On or Off for each HD channel. Press HD button for the given channel(s) toconfirm edit(s).
17. SD VideoSelect Button
Use this button to select the format that will be present at rear panel outputs SD 3 &
4. This is an instant changethat doesn't require confirmation
8
REAR PANEL
18. AC Power Socket
19. DC Power Connection
20. Word Clock Inputs1&2
21. AES/EBU Input
22. S/PDIF Input
23. Video Input
24. Atomic Input
Note: User functionality of Trinity is unaffected by the presence of an Atomic device.
25. Audio Channel A - WordClock Outputs 1 to 6
The IES AC Connection supports an input range of -2 0VAC. This enables the device to automaticallyaccommodate mains voltages inany country.
Speakon NL4FX socket for 12VDC Watt power supply.
BNC connections used to accept word clock reference.
The AES/EBU input is a female XLR connection that accepts AES/EBU clock or audio.
The S/PDIF input is an RCA connection that accepts S/PDIF clock or audio.
The video input is a BNC connection that accepts video reference. See appendix
on page 11
B for supported formats.
The BNC Atomic Input connection allows Trinity to receive a 10MHz reference from an atomic clock device, such as the Antelope 10M. When locked to Atomic, the internal oven on Trinity is automatically bypassed, the front panel ATOMIC LED lights, andthe atomic device becomes the primary timing reference. This effectively provides 8 day sample accuracy, which means even more detailed sound and greater stability.
The sample rate on these outputs always matches the sample rate indicated by the frequency display forchannelAon the front panel.
15
90 5
26. Audio Channel A - AES/EBU Outputs 1 & 2 (male)
27. Audio Channel A - S/PDIF Outputs 1 & 2
28. Audio Channel A 256x Word Clock Outputs 1 & 2
These two outputs provide AES/EBU clock at the sample rate shown on the front panel frequency displayfor Channel A.
These two outputs provide S/PDIF clock at the sample rate shown on the front panel frequency displayfor Channel A.
These two outputs provide 256x Word Clock, a protocol used in some older Digidesign components.
9
Appendix C
Error Messages
Display says: Read:
Reason:
Solution 1
Continue in DAmode bychanging SOURCE knob to aposition corresponding to a valid rearpanel input.
Solution 2
Leave DA mode, selecting an internalsample rate.
Display says: Read:
Reason:
Solution 1
Continue in DA mode by applying a valid rear panel input that corresponds to the front panel SOURCE knob.
Solution 2
Continue in DAmode bychanging SOURCE knob to aposition where there is a validrear panel input.
Solution 3
Leave DA mode, selecting a standardsample rate.
Display says: Read
Reason:
as in Appendix A , and is likely a varispeed input frequency.on page 11
Solution 1
Continue with theoff-rate input,and select SPLIT mode. The audiochannel must also be inDA mode.
Solution 2
Change SOURCE knobto OVEN and run on internalclock.
CANNOt dA CHOSEN SOUГCE
Cannot DA Chosen Source
The Audio channel is set to DA,and SOURCE is set to either OVEN or VIDEO.
NO IПPUt
No Input
The Audio channel is set to DA,but there is no input on the chosen SOURCE.
SOURCE OFF-ГAtE
: Source Off-Rate
Input is a non-standard frequency that is not one of the recognized gearboxing frequencies
12
INSTALLATION AND CONNECTION
1. Before placingthe device into its operating location, considerthe following:
To minimize frequency instabilities, the device should not be placed near equipment generating strong magneticfields, such as generators,transformers, etc.
To prevent possible interference, observe a minimum distance of 5 centimetres (2 inches) between thecables of this deviceand any non-coaxial audio cables.
It is to use the device unmounted (i.e. not in a rack) as long as the above
all right
conditions are met.There is no requirement forthe device to be levelled horizontally
2. If theDC Power Connection is tobe used, make surethe power is wired
19
cable properly,because reversed polarity may damagethe device. Refer to the illustration below for information on how to make the connection. Ifin doubt consult a competent technician.
mark on the
If the
Speakon NL4FX plug is…
1+
2
-
-
1
Connect to the following mark on the
power supply unit circuit board / terminal:
+12 V
Ground
Earth
(optional, use it if available o
supply unit)
n the power
3. Mount thedevice on its operating place in therack and secure itwith screws.
4. Connect theAC PowerConnection and/or the DC PowerConnection tothe
18
19
respective power outlet(s).
Note: When connecting devices, do so with the studio volume turned down as some devices may emit an unpleasant sound until properly configured to accept incoming clock.
13
CALIBRATION MODE:
Trinity can be calibrated periodically by connecting it to the 10M Atomic Clock. This is not something that necessarilyneeds to be donevery often, but if desiredhere's how todo it...
Connect 10M toTrinity asnormal.
Power on bothdevices, and wait for10M device to reach operating temperature.
Set Trinity SOURCE knob to OVEN, andbe sure that theATOMIC LED is lit.
3
14
Wait for 1 minuteto allow the unitsto stabilize.
Press Display button , and then Varispeed button . Trinity is now in calibration
15
10
mode.
Note: The middle line of the display is the only thing you need to look at when in CAL mode. If this is stable at +/- 0.5 ppm or greater then it is worthwhile to proceed with calibration. If the display is not stable, please wait for a minute or two until it stabilizes before deciding whether calibration is needed or not.
To proceed with calibration, press the SAMPLE RATE knob (4). Trinity is now
4
calibrated to better than+/- 0.001 ppm accuracy.
Exit calibration modeby pressing the INFObutton .
15
14
S/PDIF: 4 RCA @ 75 Ohms
WC Basics
32.0 kHz 32.0 kHz - - - -
44.1 kHz 44.1 kHz 88.2 kHz 176.4 kHz - -
48.0 kHz 48.0 kHz 96.0 kHz 192.0 kHz - -
Power Supply:
Operating Temperature:
Weight:
Dimensions:
AC, universal input 90 - 250VAC, 15W DC, 12VDC +/- 1VDC, 15W 0-50 C, 32-122 F
kg, . lb
488
482mm (W) x 89mm (H) x 203mm (D) 19” (W) x 3.5” (H) x 8” (D)
Word clock outputs except Audio A 256x
x1 x2 x4 x8 x256
Audio A 256x
16
NOTES
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
...................................................................................................................................................
Loading...
