Ansmann Racing Deuce nitro User Manual

Betrieb

510 mm 3100mm 345mm AR-21 RS 3.5ccm

Art.-Nr.: 114000011 RTR / 112000011 KIT

Nitro

Betrieb / Operation / D'exploitation

Die benötigten Schrauben sind den jeweiligen Bauteilen in kleinen Tüten beigefügt. Schrauben, die für den weiteren Zusammenbau nicht mehr benötigt werden, bitte wieder zurück in den Beutel legen, aus dem sie genommen wurden. Somit entsteht beim Zusammenbau weiterer Komponenten kein Durcheinander!

The required screws are attached to the respective components in small bags. Screws for the further assembly are no longer needed, please put back into the bag was taken out of them. This gives rise in the assembly of other components no mess!

Les vis requis sont joints aux composantes respectives dans des petits sacs. Vis de la poursuite de l'assemblage ne sont plus nécessaires, s'il vous plaît remettre dans le sac a été mis hors d'eux. Cela donne lieu à l'Assemblée des autres composants sans dégâts!

!

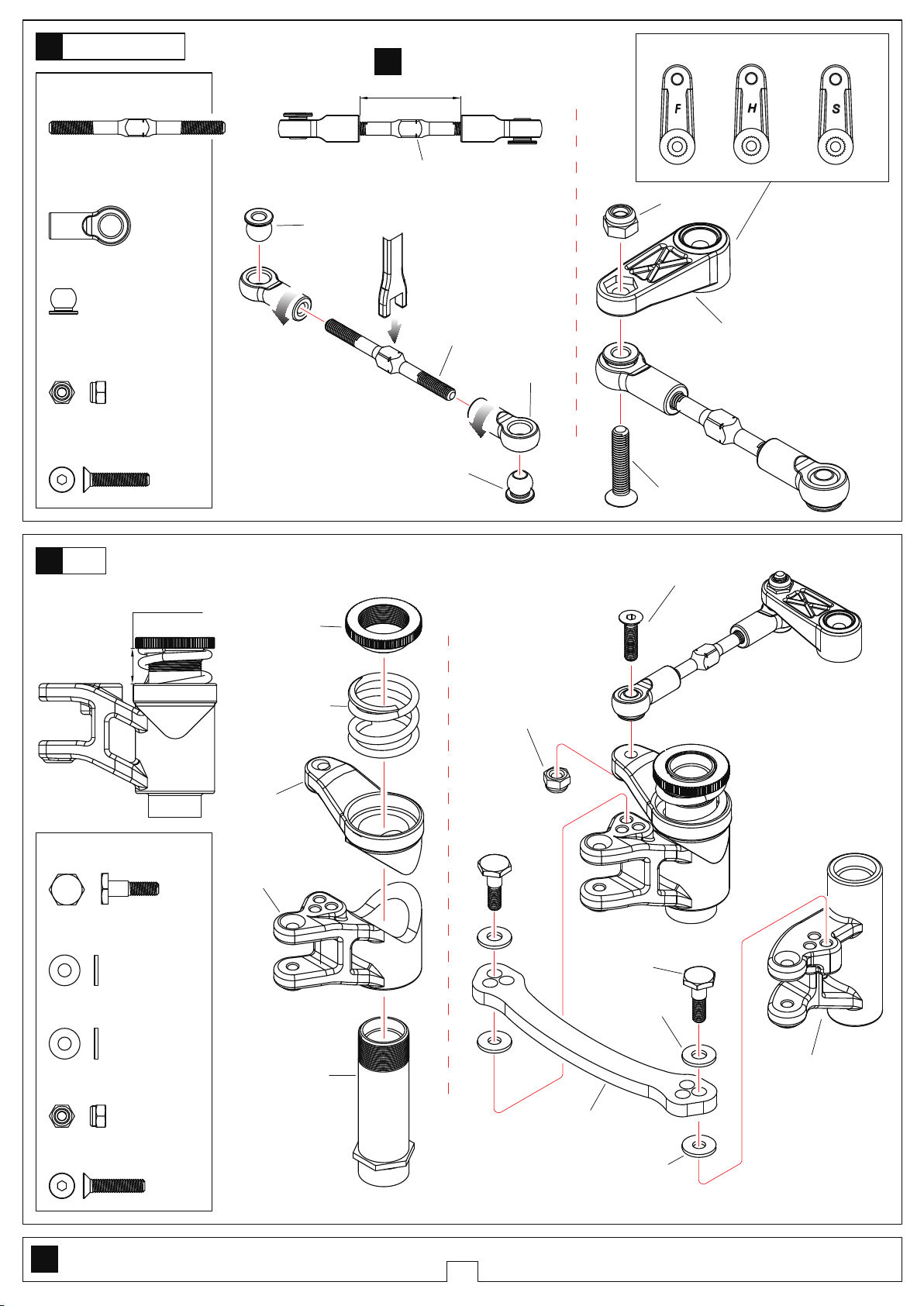

Servo Saver Turnbuckle

1

115000741 3x40 Turnbuckle

…………1

115000706 5.8 Ball End

…………2

115000706 5.8 Ball stud

……………………2

115000762 M3 Nylon Nut

…………………1

115000769 M3x15 Screw

………1

115000706

5.8 Ball stud

1:1

Approx.23mm

▲Projection.Note direction

4mm

115000741

3x40 Turnbuckle

115000706

5.8 Ball End

115000706

5.8 Ball stud

Select the servo horn matching the servo being used.

Futaba-25T Hitec-24T Sanwa/JR/KO-23T

115000762 M3

115000720

Steering Servo Horn-F

115000769 M3x15

Buffer

2

Approx.8mm

115000852 Buffer Screw

………2

115000852 3.6x7x0.8 Washer

…………………2

115000747

Servo Saver Nut

115000747

Servo Saver Spring

115000709

Servo Saver-Top

115000709

Servo Saver-Bottom

115000762 M3

115000769 M3x14

115000852

Buffer Screw

115000775 3x7x0.8 Washer

…………………2

115000762 M3 Nylon Nut

…………………1

115000769 M3x14 Screw

………1

Ture-to -scale diagram

1:1

115000747

Servo Saver Body

1

115000852 3.6x7x0.8

115000852

Steering Rack

115000852 3x7x0.8

115000709

Servo Saver-Left

Servo Saver Post/Side Plate

3

115000710

Side Plate-Right

115000769 M3x10

Screw

Cement

115000747

Servo Saver Post

115000769 M4x10

Screw

Cement

115000769 M3x10

115000742

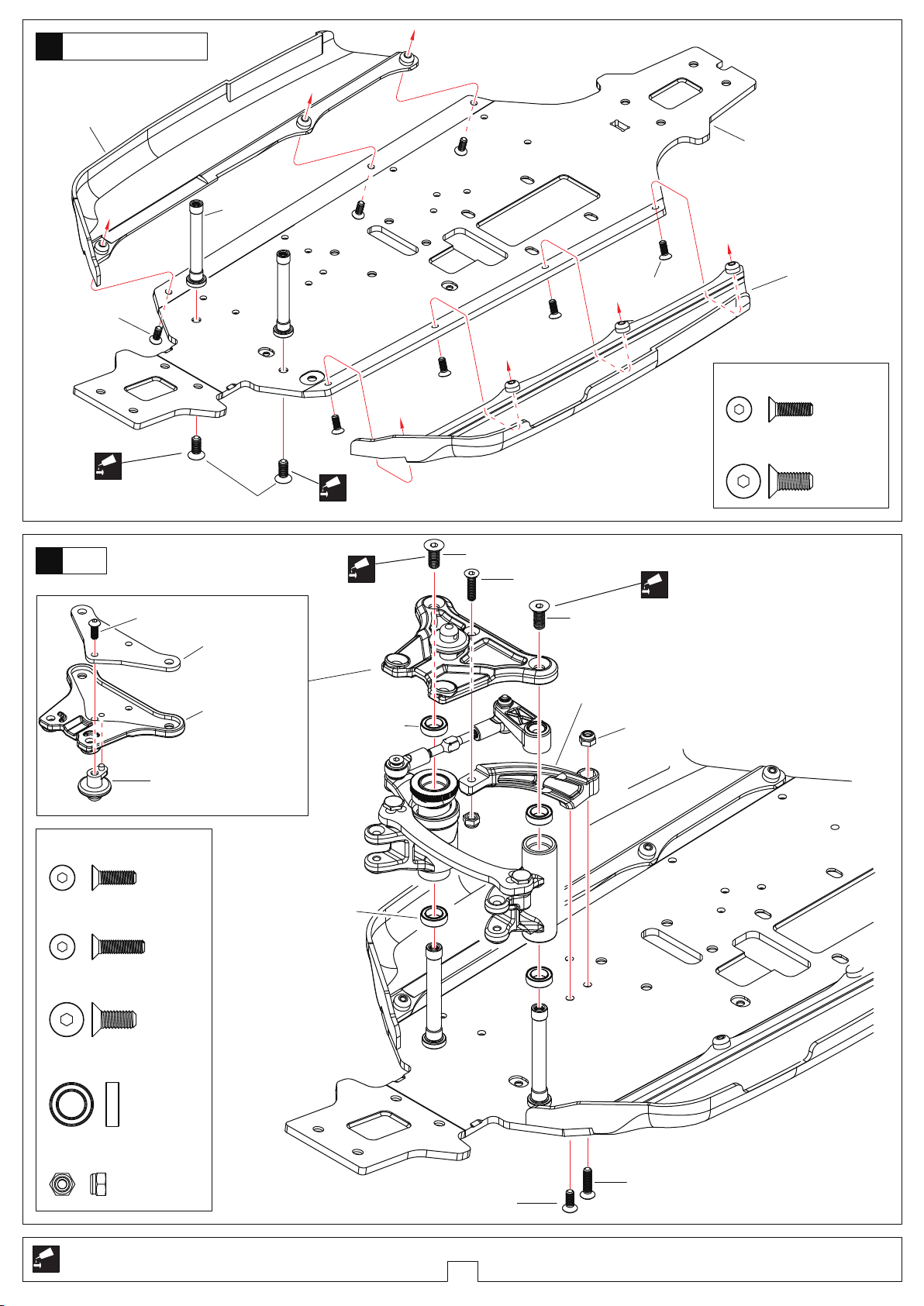

Chassis

115000710

Side Plate-Left

115000769 M3x10 Screw

…………7

115000769 M4x10 Screw

…………2

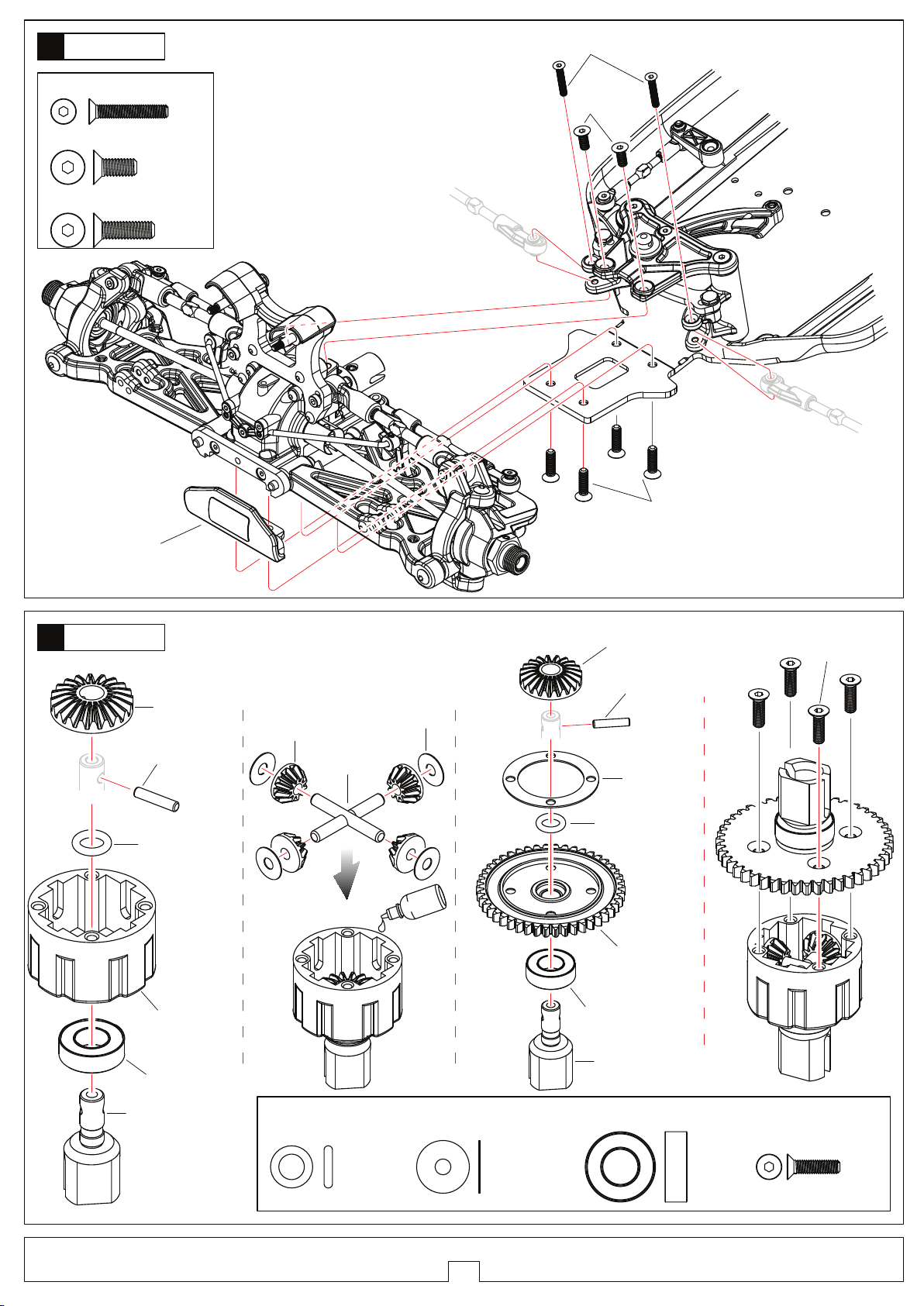

Buffer

4

115000768 M3x10

115000712

Front Body Mount

115000769 M3x10 Screw

…………1

115000769 M3x12 Screw

…………2

115000769 M4x10 Screw

115000874

Buffer Plate-Aluminium

115000709

Buffer Plate-Plastic

115000758 6x10x3

Screw

Cement

115000758 6x10x3

115000769 M4x10

115000769 M3x12

Screw

Cement

115000769 M4x10

115000719

Front Chassis Stiffener

115000762 M3

…………2

115000758 6x10x3 Ball Bearing

………………4

115000762 M3 Nylon Nut

…………………2

Apply threadlocker(screw cement)

Screw Cement

115000769 M3x12

115000769 M3x10

2

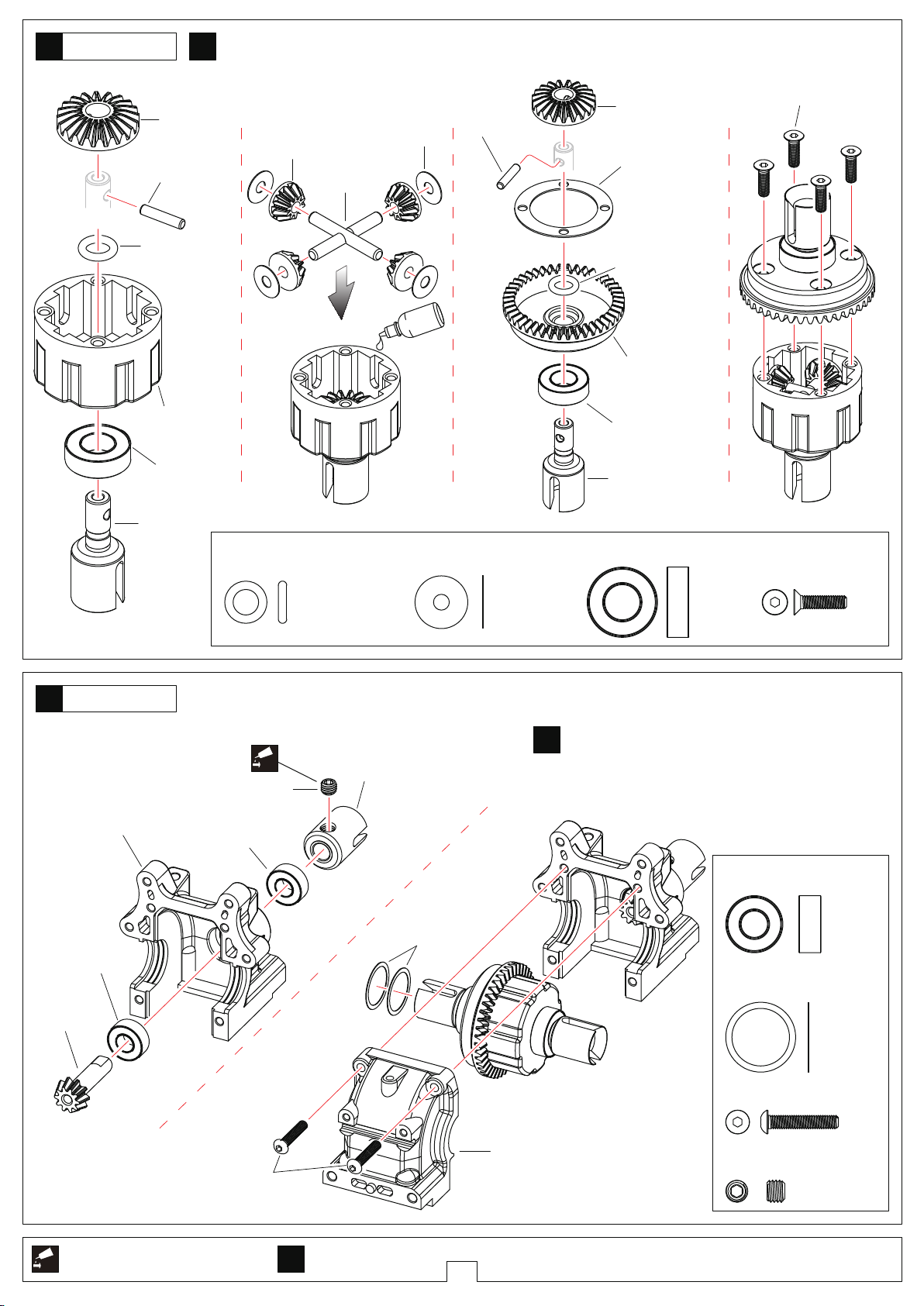

Front/Rear Differential

5

x2

115000732

20T Diff Gear

115000732

2.5x11.5 Pin

115000700 5.8x1.9

115000700

Differential Housing

115000760 8x16x5

115000733

Diff Connecting Cup

115000732

10T Diff Gear

115000732 3.6x12x0.2 115000732

Diff Shaft

油

Oil

115000732

2.5x11.5 Pin

2.5x11.5 ??

115000732

20T Diff Gear

115000700

Differential Pads

115000735 5.8x1.9

115000735

43T Diff Gear

115000760 8x16x5

115000733

Diff Connecting Cup

115000735 M3x12

Front Differential Case

6

115000701

Differential Case

115000759 6x13x5

115000735

10T Gear

115000700/115000735 5.8x1.9 O-Ring

…………………4

Screw

Cement

115000857 M5x4

115000759 6x13x5

115000732 3.6x12x0.2 Washer

115000857

Center Connecting Cup

115000774 13.1x15.9x0.2

……………8

x2

115000760 8x16x5 Ball Bearing

115000735 M3x12 Screw

………4

115000759 6x13x5 Ball Bearing

115000774 13.1x15.9x0.2 Washer

……8

………4

115000768 M3x16

Apply threadlocker(screw cement)

Screw Cement

Assemble as many times as specified

x2

3

115000701

Differential Case

…………4

115000768 M3x16 Screw

……4

115000857 M5x4 Screw

………………2

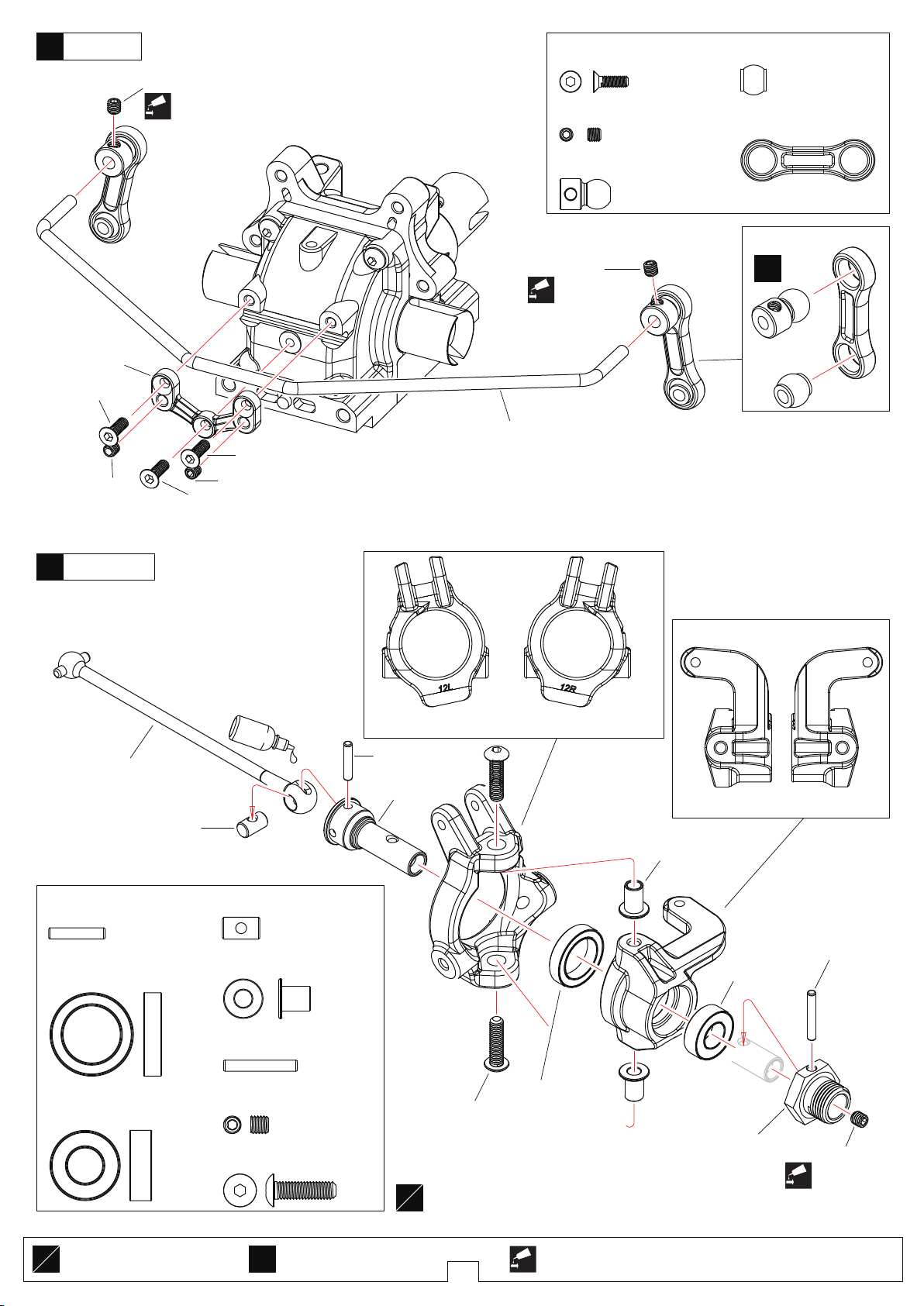

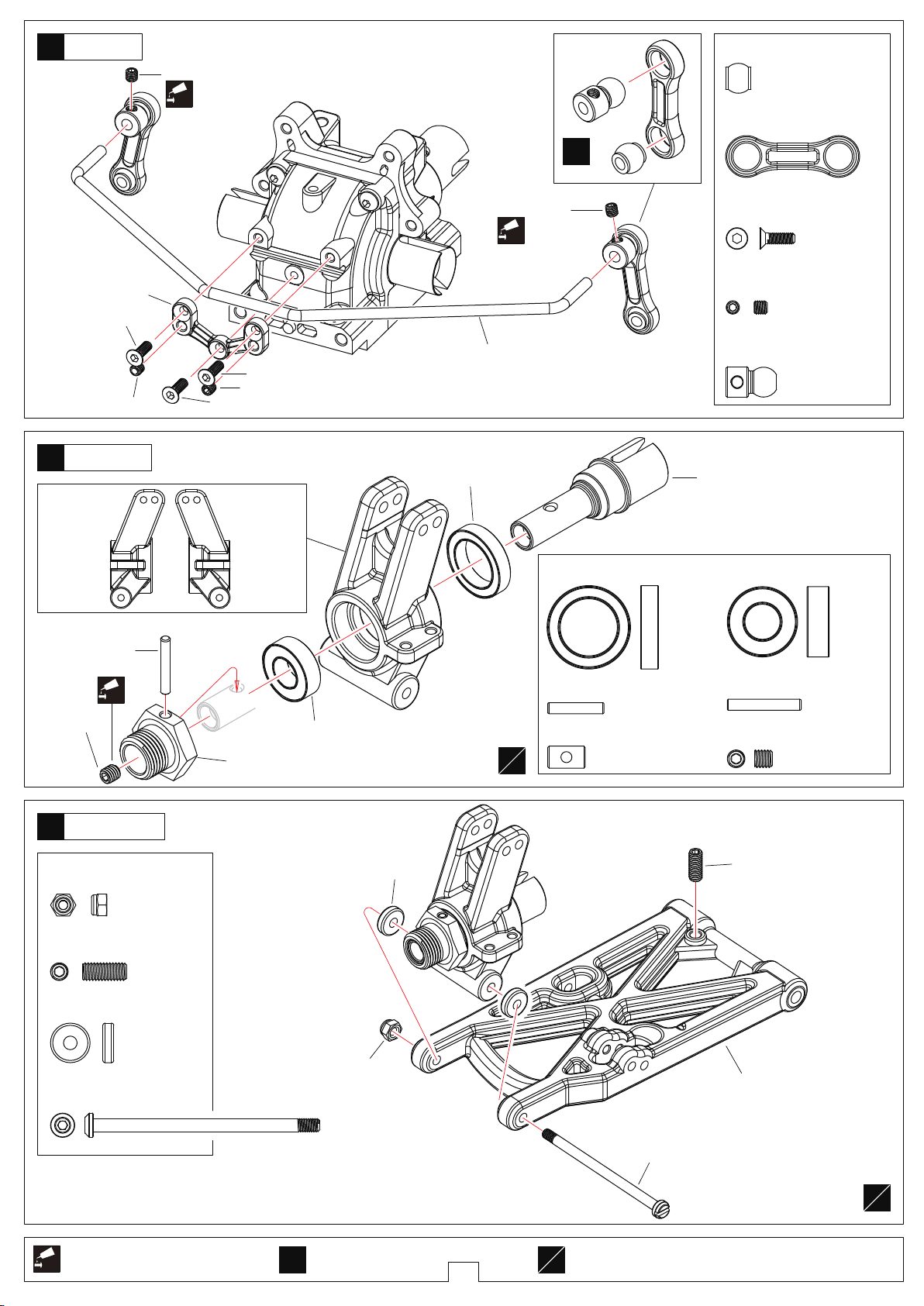

Front Swaybar

7

115000769 M2.5x8 Screw

115000706 6.8 Ball stud

115000701

Swaybar Mount

115000701 M2.5x8

115000701 M3x3

115000706 M3x3

Screw Cement

115000701 M3x3

115000701 M2.5x8

115000701/115000706 M3x3 Screw

115000706 6.8 Ball stud

115000706 M3x3

Screw Cement

115000769

Front Swaybar

………………3

……………………4

…………………2

115000706 6.8 Ball End

………………2

115000706

x2

Front Hub Carrie

8

115000853

95.5mm Front CVD

115000853 5x8.5

115000853 2.5x12.8 Pin

115000853 5x8.5 CVD Shaft

………………2

115000703 Front Hub Carrier Bushing

115000761 13x19x4 Ball Bearing

油

Oil

……………………2

Front Hub Carriers 12 Degree-Left

115000853 2.5x12.8

115000853

………4

115000703

Front Hub Carriers 12 Degree-Right

115000704

Steering Block-Left Steering Block-Right

115000703

Front Hub Carrier Bushing

115000760 8x16x5

T08649 2.5x16.8

………2

115000760 8x16x5 Ball Bearing

………2

Assemble both Left and Right

L

R

115000746 2.5x16.8 Pin

……………2

115000853 M4x4 Screw

…………………2

115000768 M4x14 Screw

……4

Assemble as many times as specified

x2

115000768 M4x14

L

R

4

115000761 13x19x4

Apply threadlocker(screw cement)

Screw Cement

115000746

Wheel Hex Hub

115000853 M4x4

Screw Cement

Front Hub Carrie

9

115000770 M4x10 Screw

……………2

115000707 King Pin Bushing

………4

115000768 M4x16 Screw

……4

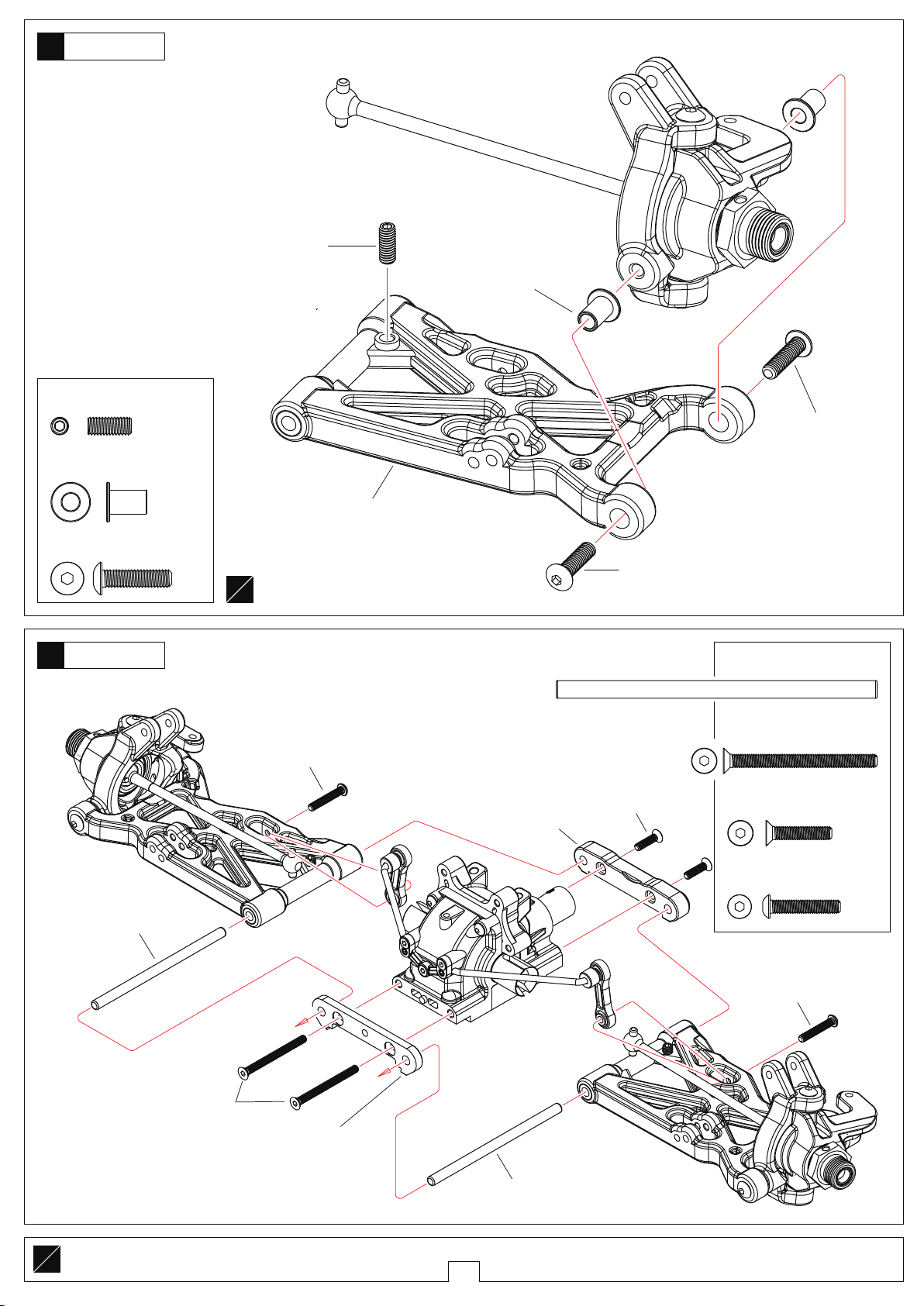

Front Suspension

10

115000770 M4x10

L

R

115000707

Front Lower Arm

115000707

King Pin Bushing

115000768 M4x16

115000743 4x73 Arm Pin

115000743 4x73

115000769 M3x35

115000768 M3x16

115000860

Front Arm Mount-F

115000860

Front Arm Mount-R

115000769 M3x15

……2

115000769 M3x35 Screw

…………2

115000769 M3x15 Screw

………2

115000768 M3x16 Screw

……2

115000768 M3x16

Assemble both Left and Right

L

R

115000743 4x73

5

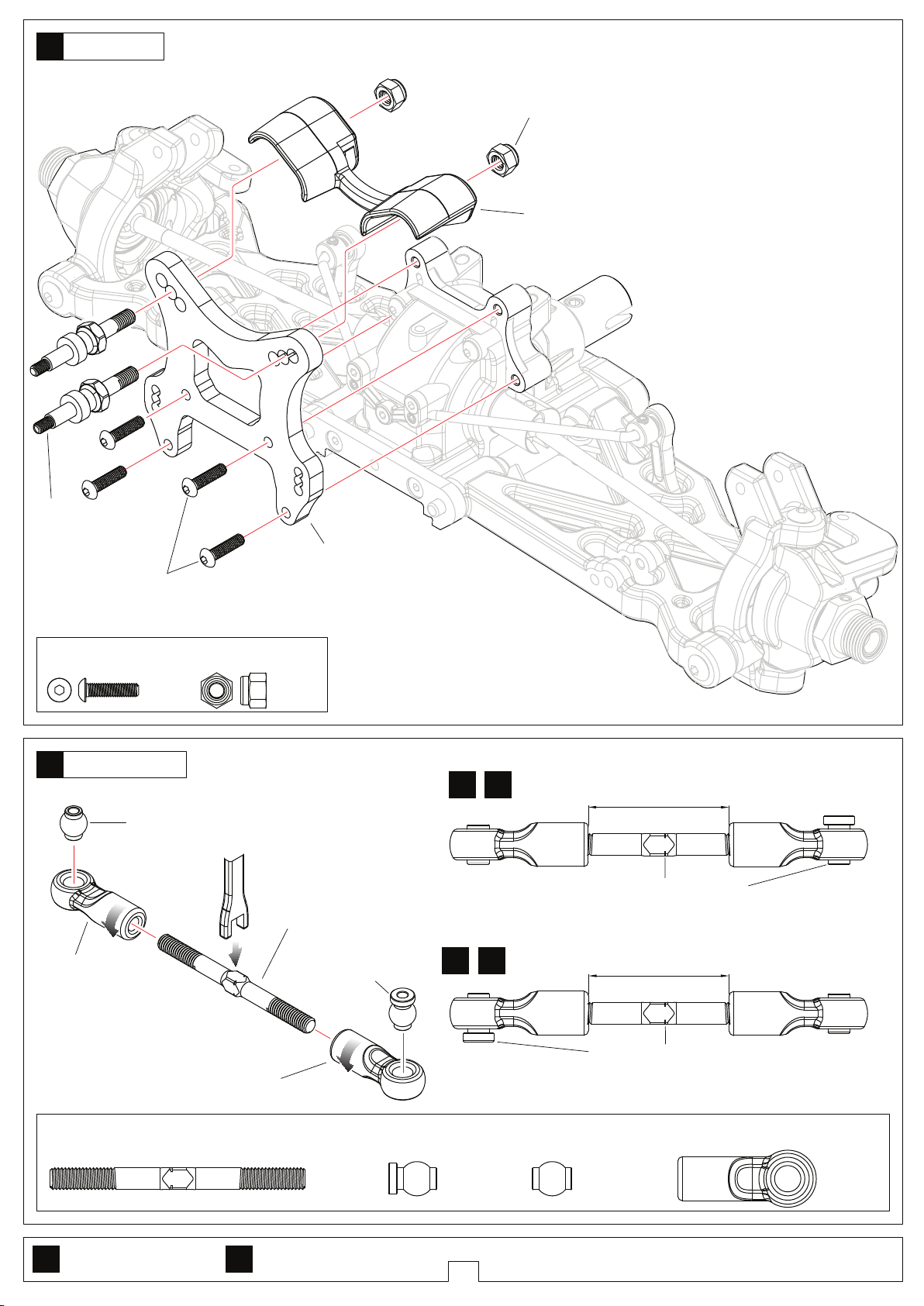

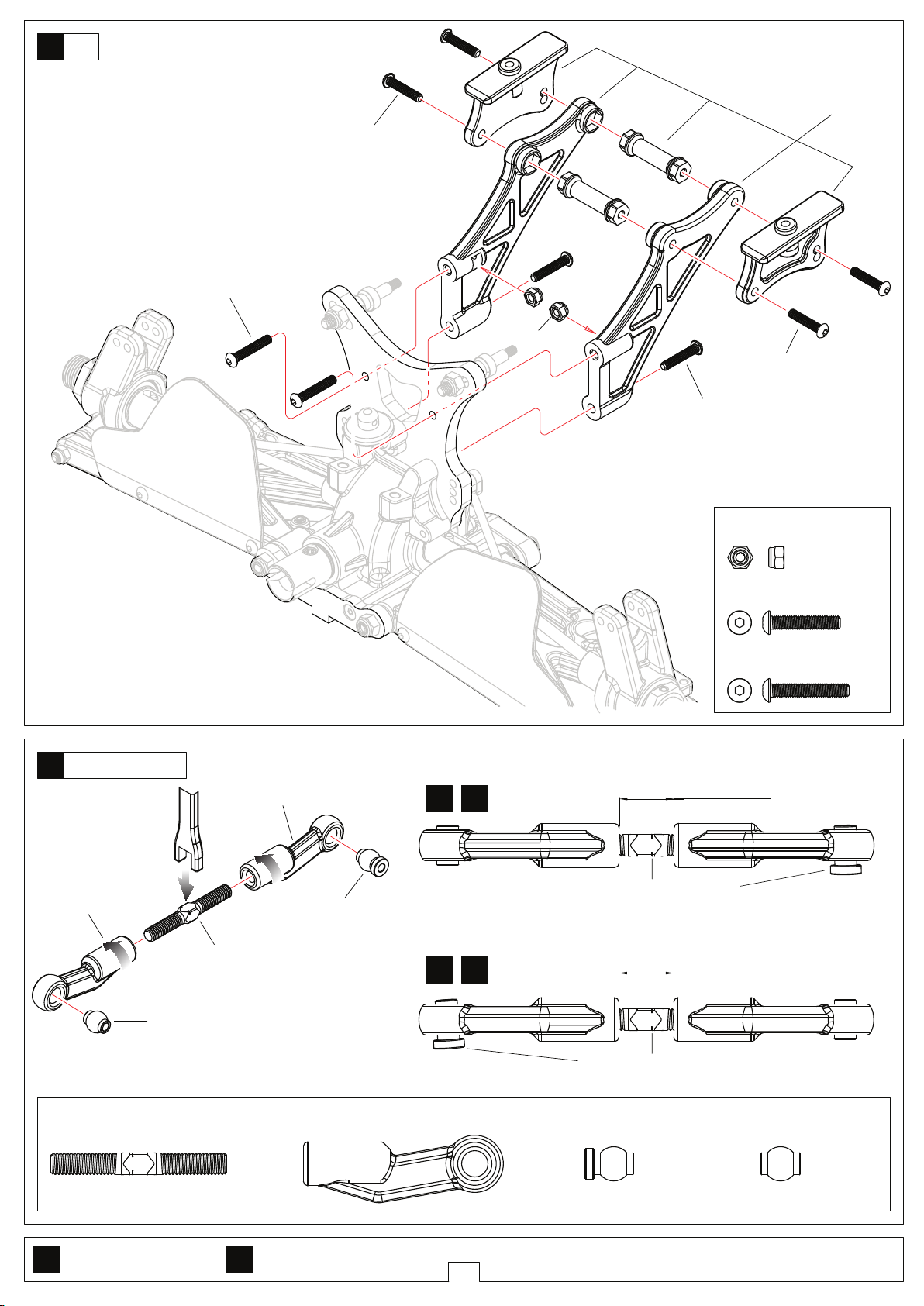

Front Shock Tower

11

115000881 M4

115000871

Cover-Frong Shock

115000879

Shock absorber Mount

115000768 M3x12

115000768 M3x12 Screw

……4

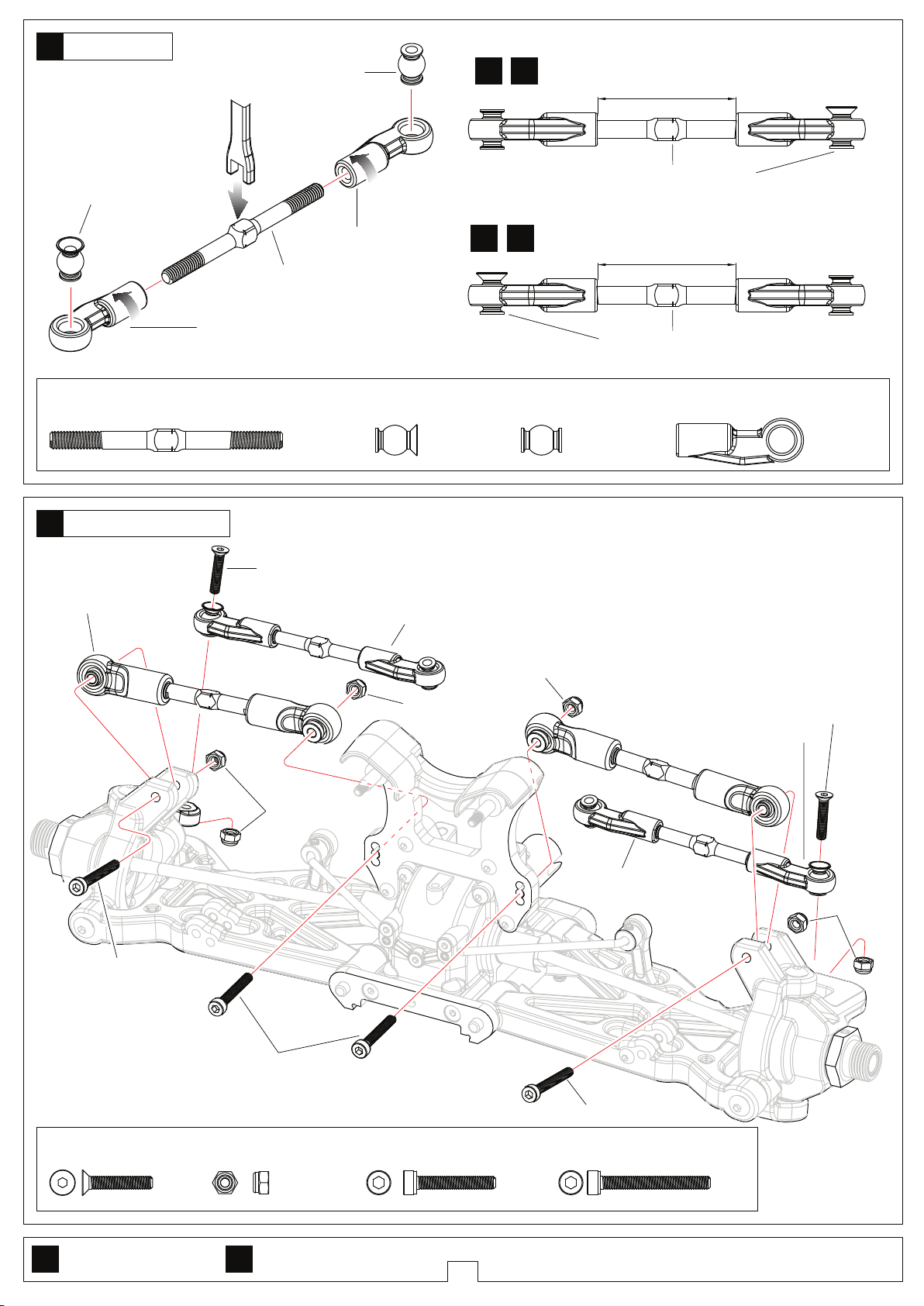

Front Upper Turnbuckle

12

115000706

7.8 Ball stud

115000706

7.8 Ball End-Front Upper

115000881 M4 Nylon Nut

………2

115000741

5mm

5x58 Turnbuckle

115000730

Front Shock Tower

115000706

7.8 Ball stud

1:1 x1

C

Front Upper-Left

Approx.32mm

▲Projection.Note direction

Front Upper-Right

Approx.32mm

115000706

7.8 Ball End-Front Upper

115000741 5x58 Turnbuckle

………2 ……………2 ……………2

Ture-to -scale diagram Assemble as many times as specified

1:1 x1

115000706 7.8 Ball stud

6

▲Projection.Note direction

115000706 7.8 Ball stud

115000706 7.8 Ball End-Front Upper

…………4

Steering Turnbuckle

13

115000706

6.8 Ball stud

1:1 x1

Steering-Left

Approx.31.5mm

115000706

6.8 Ball stud

115000741 4x53 Turnbuckle

Front Upper/Steering Turnbuckle

14

Front Upper Turnbuckle-Right

5mm

115000741

4x53 Turnbuckle

115000706

6.8 Ball End-Steering

115000769 M3x16

▲Projection.Note direction

115000706

6.8 Ball End-Steering

115000706 6.8 Ball stud

………2 ……………2 ……………2

Steering Turnbuckle-Right

1:1 x1

Steering-Right

Approx.31.5mm

▲Projection.Note direction

115000706 6.8 Ball stud

115000706 6.8 Ball End-Steering

……………4

115000771 M3x25

115000762 M3

115000771 M3x18

115000762 M3

115000769 M3x16

Steering Turnbuckle-Left

Front Upper Turnbuckle-Left

115000762 M3

115000771 M3x25

115000769 M3x16 Screw

……2

Ture-to -scale diagram Assemble as many times as specified

1:1 x1

115000762 M3 Nylon Nut

…………6

115000771 M3x18 Screw

7

……2

115000771 M3x25 Screw

……2

Front Suspension

15

115000769 M3x18 Screw

115000769 M3x18

……2

115000769 M4x10 Screw

…………2

115000769 M4x14 Screw

………4

115000711

Front Bumper

115000769 M4x10

115000769 M4x14

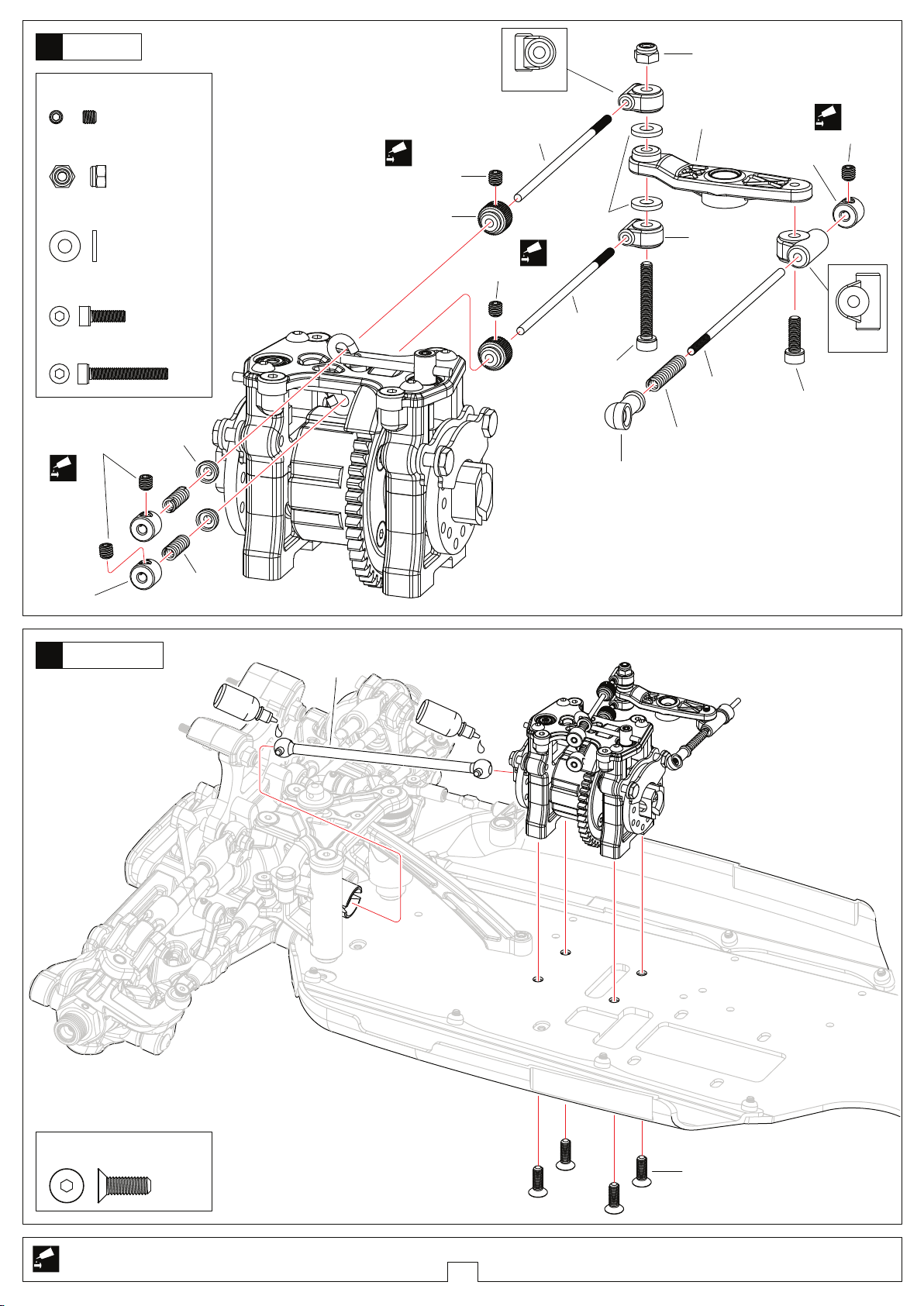

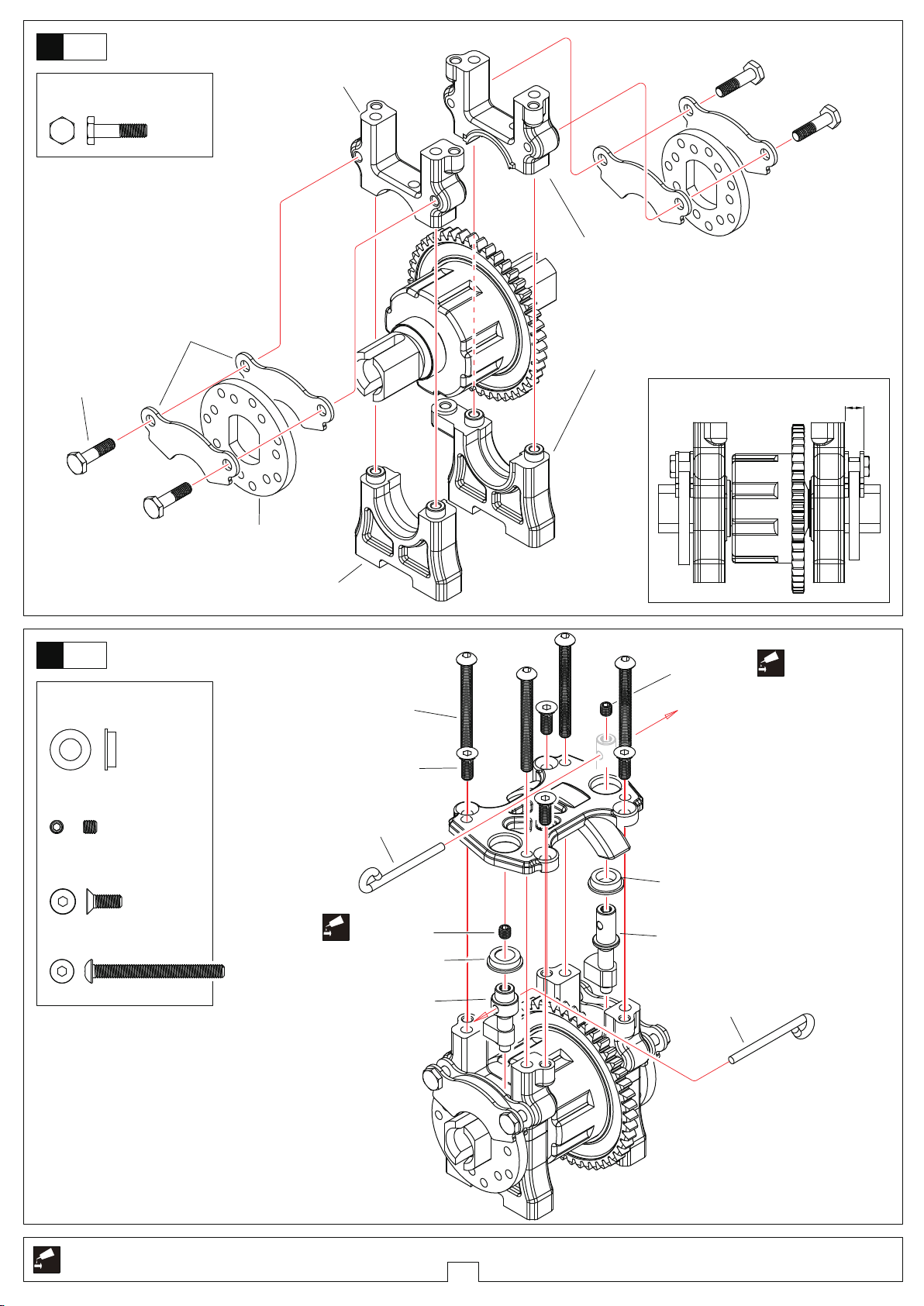

Center Differential

16

115000732

20T Diff Gear

2.5x11.5 Pin

115000773 5.8x1.9

115000773

Differential Housing

115000760 8x16x5

115000732

10T Diff Gear

115000732 3.6x12x0.2

115000732

Diff Shaft

油

Oil

115000732

20T Diff Gear

115000732

2.5x11.5 Pin

115000773

Differential Pads

T08637 5.8x1.9

115000336

44T Center Diff Gear

115000760 8x16x5

115000734

Center Diff Connecting Cup

115000735 M3x12

115000734

Center Diff Connecting Cup

115000773 5.8x1.9 O-Ring

115000732 3.6x12x0.2 Washer

…………2

………………4

8

115000760 8x16x5 Ball Bearing

………2

115000769 M3x12 Screw

……4

Brake

17

115000702 M3x15 Brake Screw

………4

115000749

Disk Brake Plate

115000702

M3x15 Brake Screw

115000702

Center Differential Mount-Front Top

115000702

Center Differential Mount-Rear Top

115000702

Center Differential Mount-Rear Bottom

6

115000702

Center Differential Mount-Front Bottom

Brake

18

115000875 5x8x2.5 Plastic Washer

………………2

115000750 M3x3 Screw

…………………2

115000702 M3x8 Screw

……………4

115000702 M3x30 Screw

115000749

Brake Disk Rotor

115000702 M3x30

115000702 M3x8

115000750

Brake Rod

115000750 M3x3

Screw Cement

115000875 5x8x2.5

115000750 M3x3

115000875 5x8x2.5

115000750

Brake Shaft-Rear

Screw

Cement

……………4

Apply threadlocker(screw cement)

Screw

Cement

115000750

Brake Shaft-Front

9

115000750

Brake Rod

19

Brake/Throttle

115000762 M2.5

115000718 M3x3 Screw

……………………5

115000762 M2.5 Nylon Nut

…………………1

115000762 3.1x7x1 Plastic Washer

…………………2

115000771 M2.5x8 Screw

……………1

115000771 M2.5x18 Screw

……1

115000718 M3x3

Screw Cement

115000718

Screw Cement

115000718 M3x3

115000718

1.8x58 Rod

115000762 3.1x7x1

Screw Cement

115000718 M3x3

115000771 M2.5x18

115000718

1.8x58 Rod

115000718

115000720

Throttle Servo Arm

115000718

1.8x58 Rod

115000718

Throttle Spring

Screw

Cement

115000718 M3x3

115000718

115000771 M2.5x8

115000718

Center Differential

20

115000718

Brake Spring

115000855

86mm Drive Shaft

Oil

115000769 M4x12 Screw

………4

Apply threadlocker(screw cement)

Screw

Cement

115000769 M4x12

10

21

Rear Swaybar

115000706 M3x3

Screw Cement

115000706

x2

115000706 M3x3

Screw

Cement

115000706 6.8 Ball stud

…………………2

115000706 6.8 Ball End

………………2

115000769 M2.5x8 Screw

………………3

115000701

Swaybar Mount

115000701 M2.5x8

115000701 M3x3

Rear Hub Carrie

22

115000705

Rear Hub Carriers-L

115000746 2.5x16.8

Screw

Cement

115000738 M4x4

115000701 M2.5x8

115000701 M3x3

115000701 M2.5x8

115000705

Rear Hub Carriers-R

115000760 8x16x5

115000746

Wheel Hex Hub

115000745

Rear Swaybar

115000761 13x19x4

115000761 13x19x4 Ball Bearing

115000738 2.5x12.8 Pin

115000738 5x8.5 CVD Shaft

L

R

………2

………………2

……………………2

115000701/115000706 M3x3 Screw

……………………4

115000706 6.8 Ball stud

…………………2

115000854

Rear Wheel Shaft

115000760 8x16x5 Ball Bearing

………2

115000746 2.5x16.8 Pin

………………2

115000738 M4x4 Screw

……………………2

Rear Hub Carrie

23

115000762 M3 Nylon Nut

………………2

115000770 M4x10 Screw

……………2

115000705 3.1x9x2.5 Plastic Washer

………………4

115000851 3x51.5 Arm Pin

……………2

Screw

Cement

115000705 3.1x9x2.5

115000762 M3

Assemble as many times as specifiedApply threadlocker(screw cement)

x2

11

115000851 3x51.5

Assemble both Left and Right

L

R

115000770 M4x10

115000708

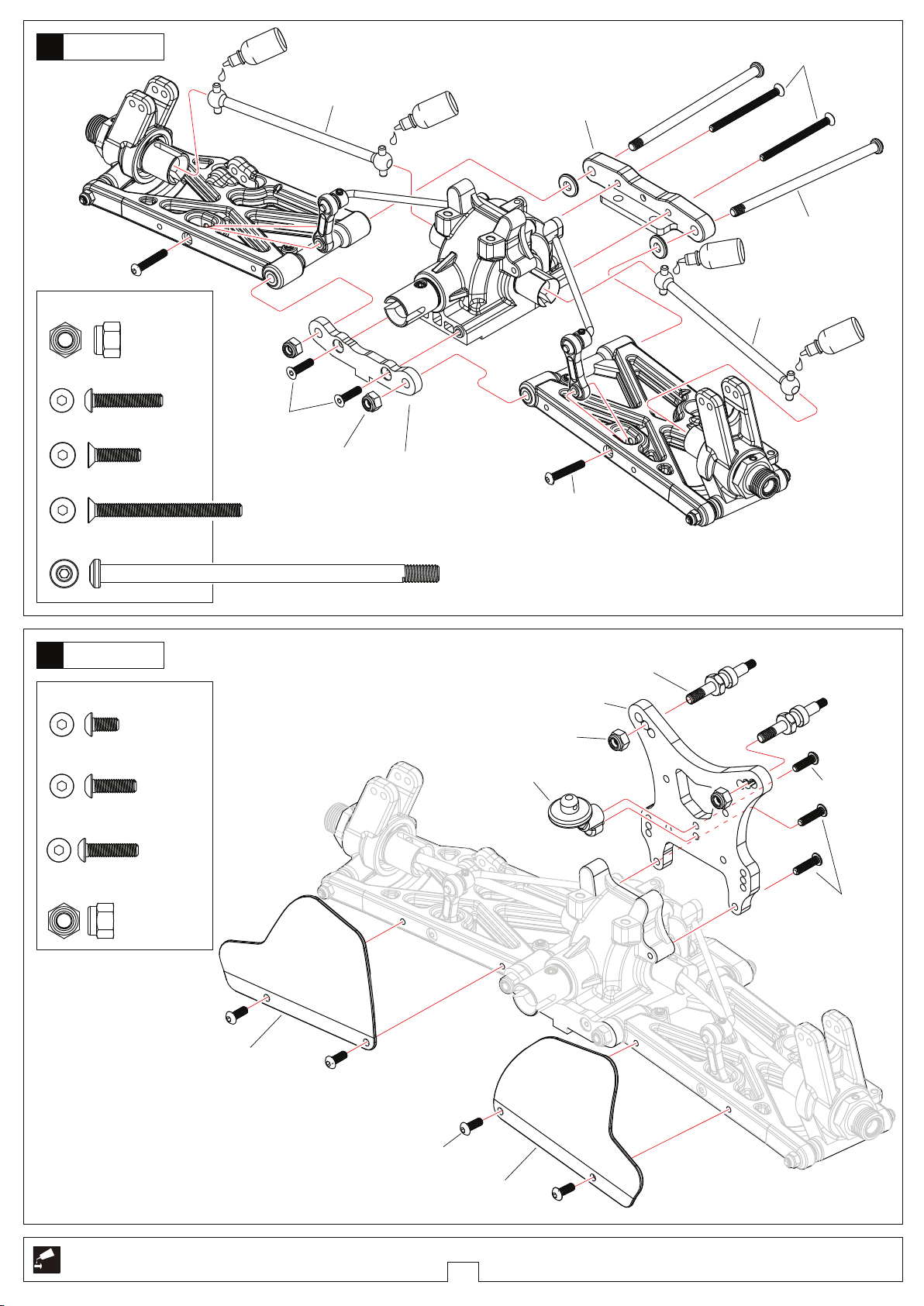

Rear Lower Arm-Left

L

R

Rear Suspension

24

115000762 M4 Nylon Nut

Oil

115000855

86mm Drive Shaft

Oil

115000860

Rear Arm Mount-R

115000769 M3x35

115000851 4x77

Oil

115000855

86mm Drive Shaft

………………2

115000768 M3x16 Screw

115000769 M3x12 Screw

…………2

115000769 M3x35 Screw

115000851 4x77 Arm Pin

……………2

Rear Shock Tower

25

115000768 M3x6 Screw

……………4

115000768 M3x10 Screw

…………1

……2

115000769 M3x12

115000762 M4

115000860

Rear Arm Mount-F

115000768 M3x16

115000712

Rear Shock Tower

115000881 M4

115000712

Rear Body Mount

115000879

Shock absorber Mount

Oil

115000768 M3x10

115000768 M3x12 Screw

…………2

115000881 M4 Nylon Nut

………………2

Apply threadlocker(screw cement)

Screw

Cement

115000711

Dirtcover Rear-Right

115000768 M3x6

115000711

Dirtcover Rear-Left

12

115000768 M3x12

26

Wing

115000768 M3x18

115000768 M3x16

115000762 M3

115000768 M3x16

115000712

Wing Mount

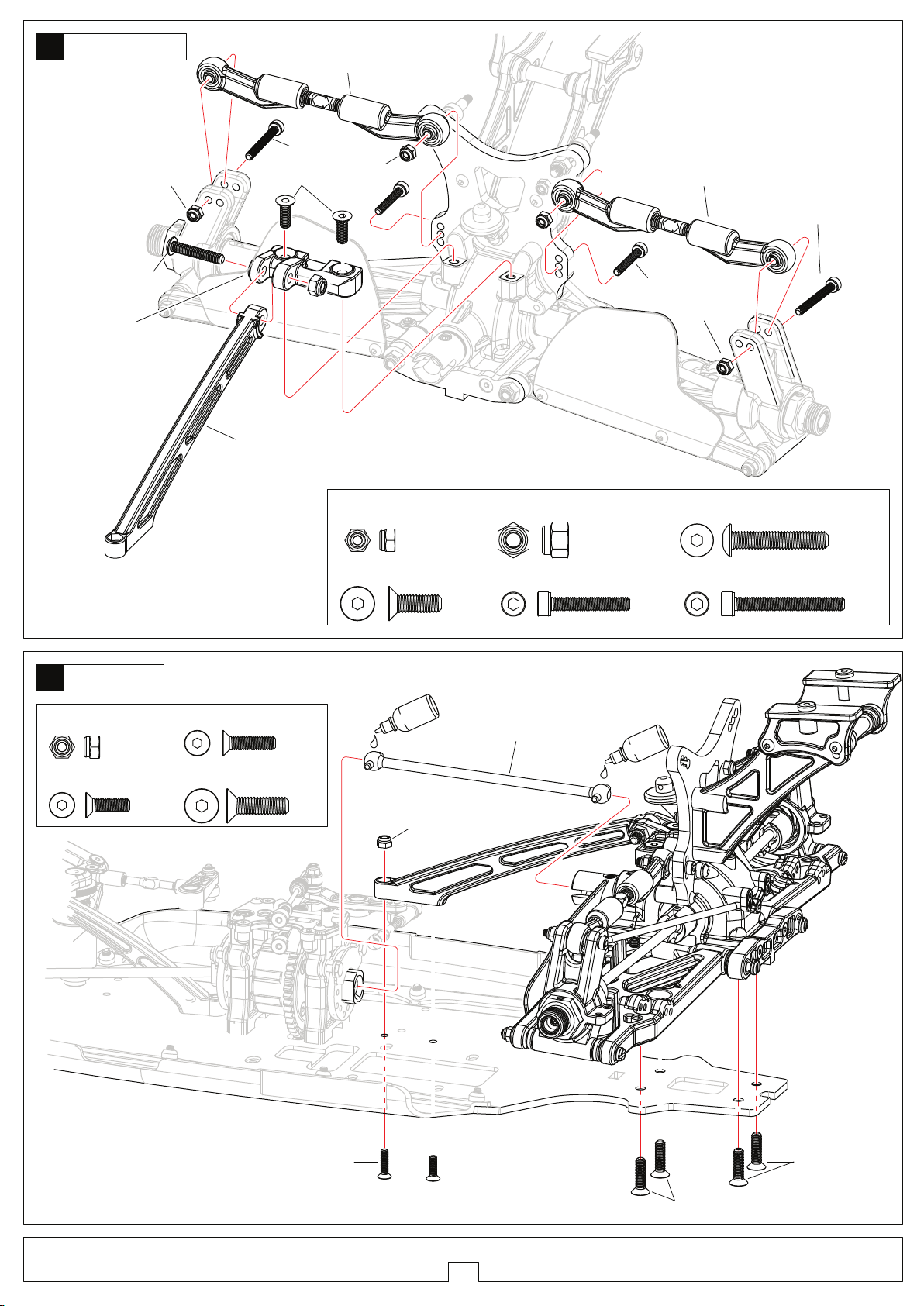

Rear Upper Turnbuckle

27

115000706

7.8 Ball End-Rear Upper

115000706

7.8 Ball End-Rear Upper

5mm

115000741

5x40 Turnbuckle

115000706

7.8 Ball stud

1:1 x1

Rear Upper-Left

▲Projection.Note direction

Rear Upper-Right

115000762 M3 Nylon Nut

…………………2

115000768 M3x16 Screw

……6

115000768 M3x18 Screw

…2

Approx.12.5mm

115000706

7.8 Ball stud

115000741 5x40 Turnbuckle

………2 ………4 ………………2 ……………2

Ture-to -scale diagram Assemble as many times as specified

1:1 x1

115000706 7.8 Ball End-Rear Upper

▲Projection.Note direction

115000706 7.8 Ball stud 115000706 7.8 Ball stud

13

Rear Upper Turnbuckle

28

115000762 M3

Rear Upper Turnbuckle-Right

115000771 M3x25

115000762 M3

115000769 M4x12

Rear Upper Turnbuckle-Left

115000771 M3x25

115000768 M4x22

115000719

Rear Chassis Stiffener Mount

Rear Suspension

29

115000762 M3 Nylon Nut

………1

115000769 M3x10 Screw

115000769 M4x14 Screw

……1

115000719

Rear Chassis Stiffener

115000769 M3x12 Screw

………1

……4

115000762 M3 Nylon Nut

115000769 M4x12 Screw

……2

Oil

115000762 M3

115000771 M3x18

115000762 M3

115000762 M4 Nylon Nut

………………1……………4

115000771 M3x18 Screw 115000771 M3x25 Screw

115000856

113mm Drive Shaft

115000768 M4x22 Screw

……2 ……2

Oil

………1

115000769 M3x12

115000769 M3x10

14

115000769 M4x14

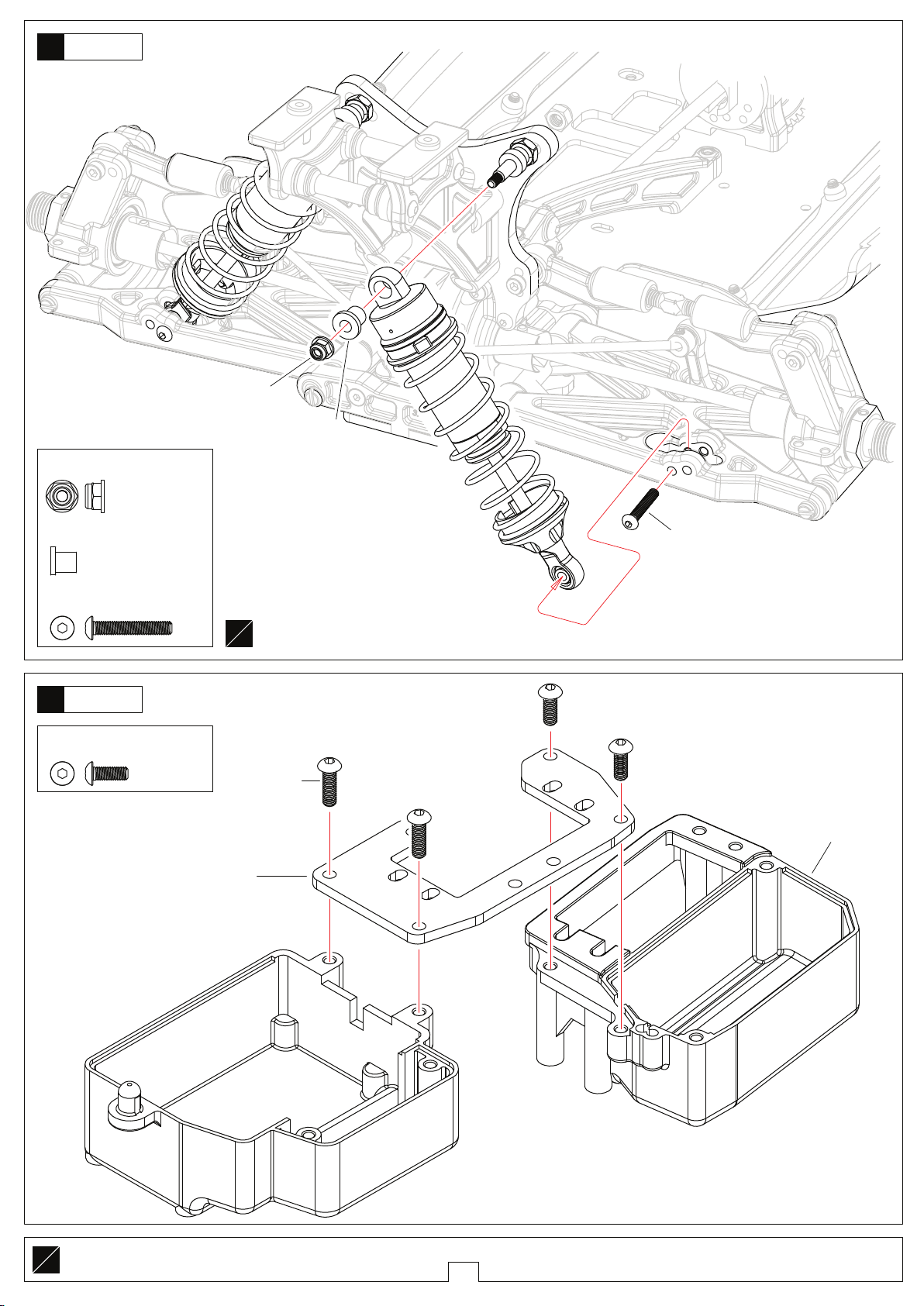

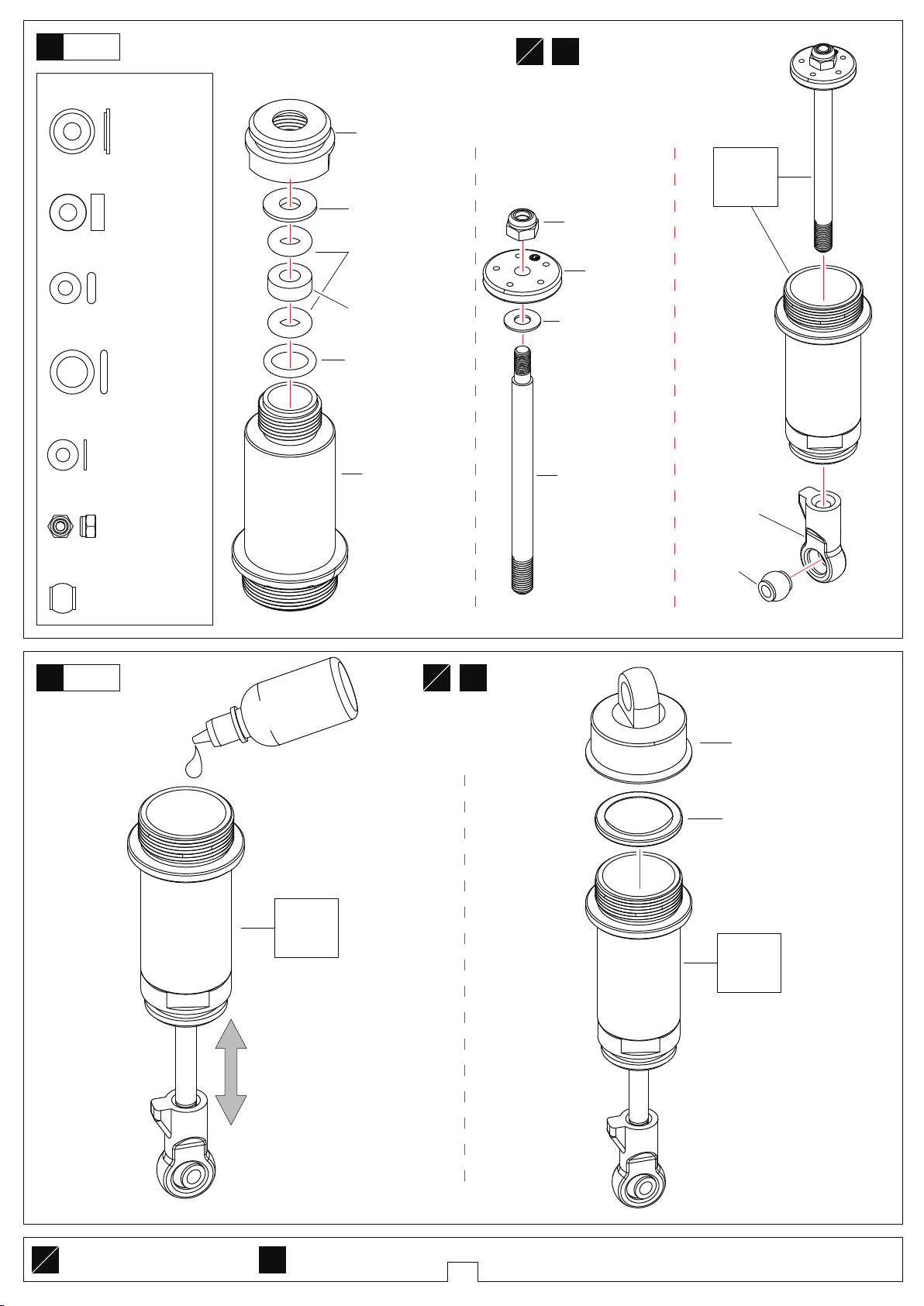

Shock

30

115000882 1.2mm Plastic Washer

F

x2

R

…………………4

115000882 3mm Plastic Washer

…………………4

115000882 3.8x2.3 O-ring

……………………8

115000883 7x1.5 O-ring

…………………4

115000882 3.1x7x0.4 Washer

……………………4

115000882 M3 Nylon Nut

…………………4

115000873 6.8 Ball stud

115000883

Shock Bottom cover

115000882

1.2mm Plastic Washer

115000882

3.8x2.3 O-ring

115000882

3mm Plastic Washer

115000883

7x1.5 O-ring

115000883

Front Shock Body-Short

Rear Shock Body-Long

115000882 M3

115000882

Shock Piston

115000882 3.1x7x0.4

115000882

Front Shock Shaft-Short

Rear Shock Shaft-Long

Front-Short Rear-Long

115000884

Ball End-Short(Front) Ball End-Long(Rear)

115000873

6.8 Ball stud

………………………4

Shock

31

Silicone Oil

Front-Short Rear-Long

F

x2

R

115000883

Shock Top cover

115000882

Diaphragm

Front-Short Rear-Long

Assemble both Front and Rear

F

R

Assemble as many times as specified

x2

15

32

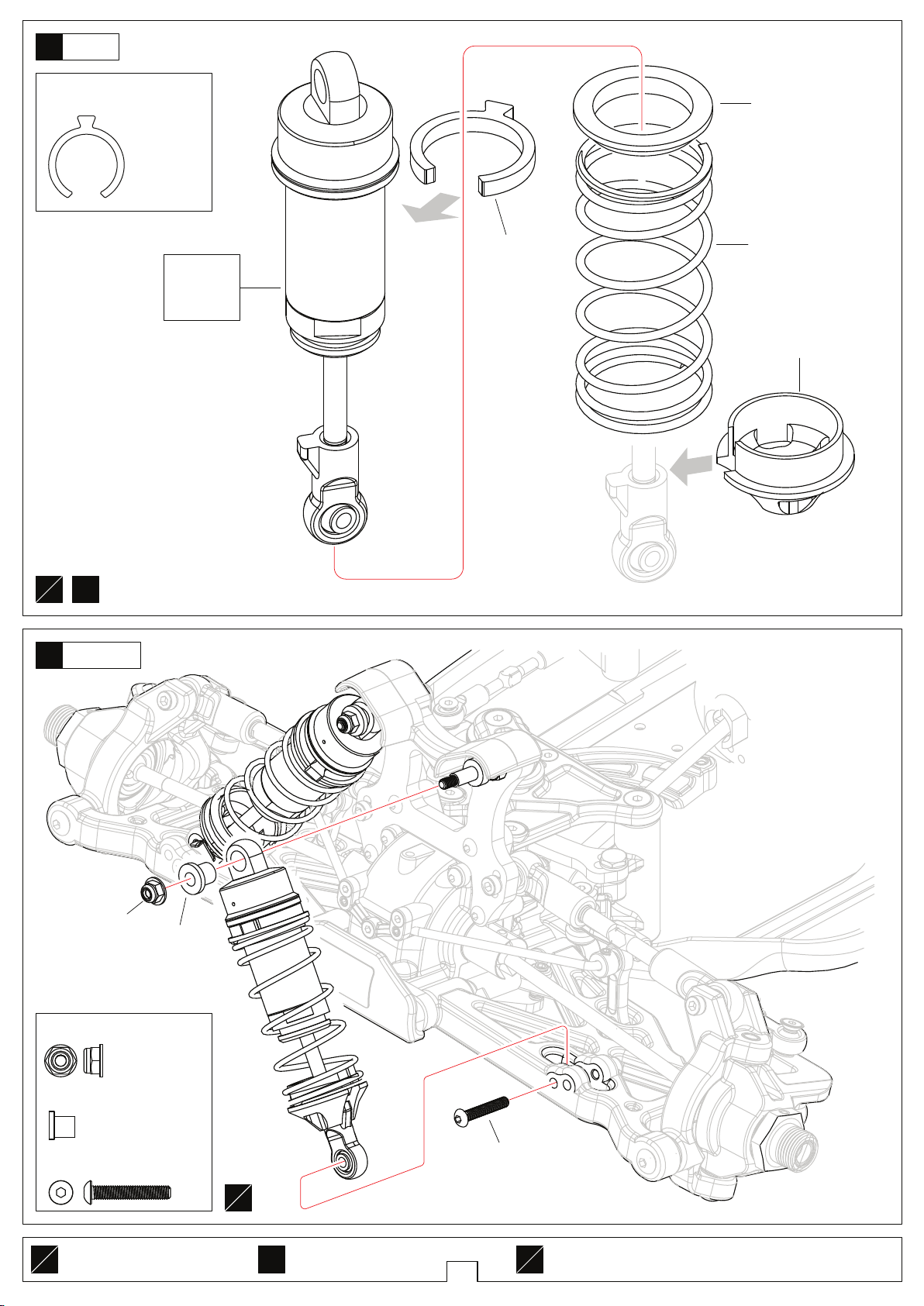

Shock

115000885 Adjust Ring

……………4

Front-Short Rear-Long

115000885

Spring Adjuster

115000884

Top Spring Mount

115000886

Front Shock Spring-Short

Rear Shock Spring-Long

115000884

Below Spring Mount

F

x2

R

Front Shock

33

115000888 M3

115000888 M3 Flanged Nylon Nut

115000888

Plastic Bushing

…………………2

115000888 Plastic Bushing

………………………2

115000768 M3x18 Screw

Assemble both Front and Rear

F

R

……2

115000768 M3x18

L

R

Assemble as many times as specified

x2

16

Assemble both Left and Right

L

R

Rear Shock

34

115000888 M3

115000888 M3 Flanged Nylon Nut

115000888

Plastic Bushing

…………………2

115000888 Plastic Bushing

………………………2

115000768 M3x18 Screw

……2

Radio Plate

35

115000768 M3x8 Screw

……………4

L

R

115000768 M3x8

115000863

Radio Plate

115000768 M3x18

115000714

Receiver Box

115000714

Battery Box

Assemble both Left and Right

L

R

17

36

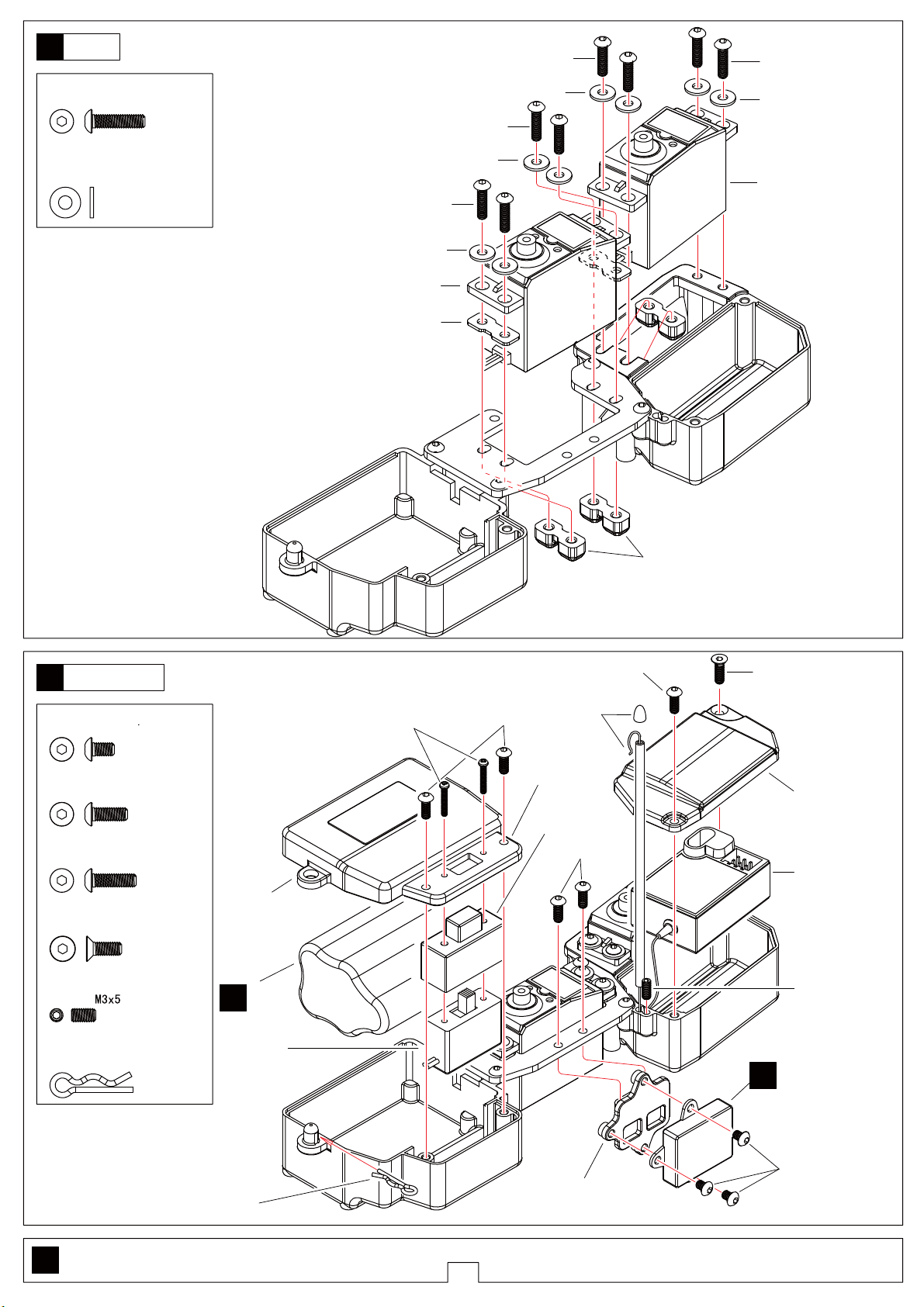

Servo

115000768 M3x12

115000768 M3x12 Screw

…………8

115000755 3x7x0.8 Washer

……………………8

115000768 M3x12

115000755 3x7x0.8

115000768 M3x12

115000755 3x7x0.8

Servo

T08616

1mm Spacer

115000755 3x7x0.8

Servo

Battery/Receiver

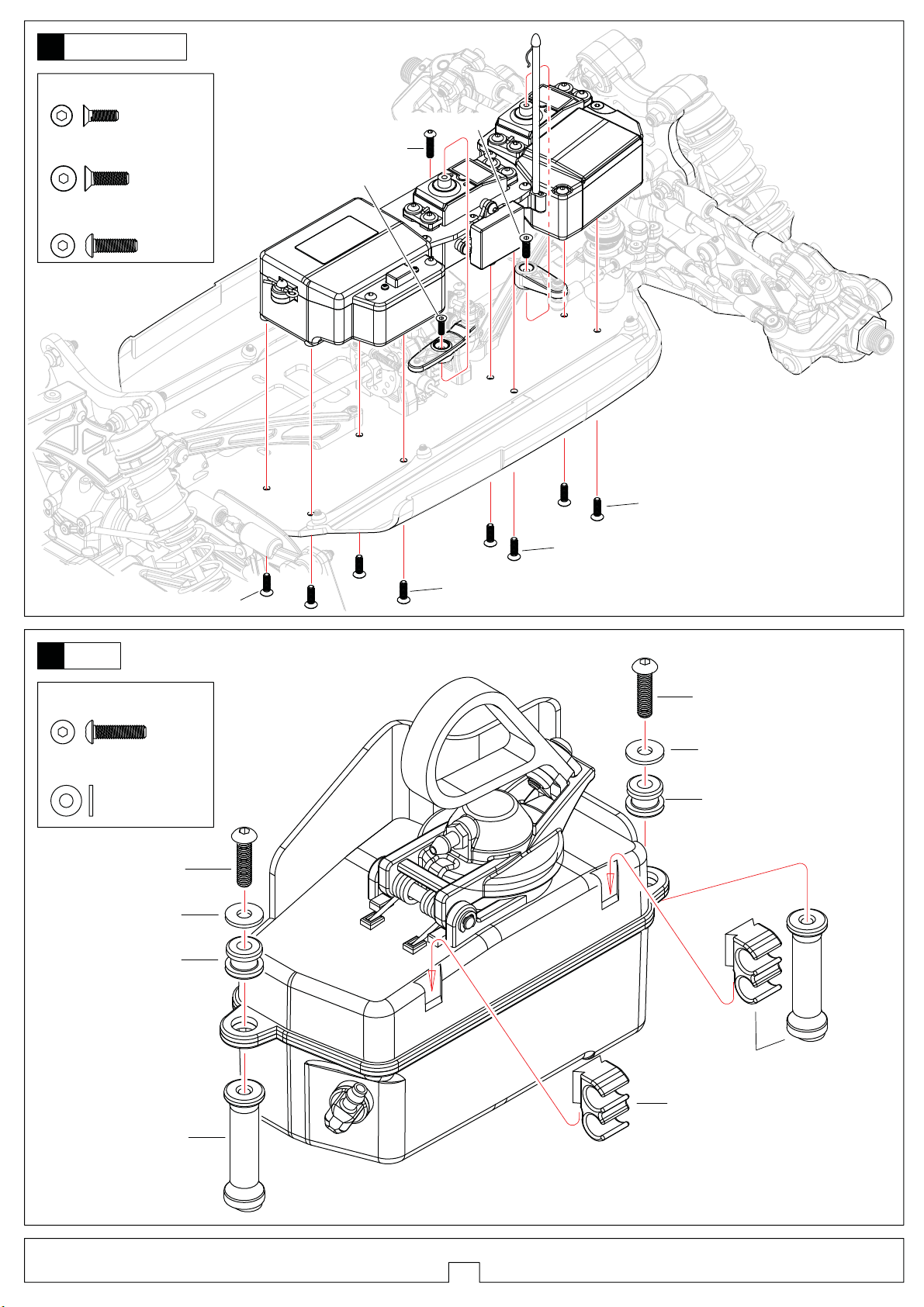

37

115000768 M3x5 Screw

………………3

115000768 M3x8 Screw

……………3

115000768 M3x10 Screw

……………2

115000769 M3x8 Screw

……………1

115000770 M3x5 Screw

…………………1

203000081 Small Clip

……………1

115000714

Battery Cover

Battery

X

Switch

Use the screws included with switch.

115000768 M3x10

115000714

Switch Mount

115000772

Switch Cover

115000768 M3x8

203000001

Antenna Pipe

115000768 M3x8

115000716

Servo Mount

115000769 M3x8

115000714

Receiver Cover

Receiver

115000770 M3x5

Transponder

X

Must be purchased separately

X

203000081

Small Clip

18

115000716

Transponder Mount

115000768 M3x5

Servo/Battery/Receiver

38

115000769 M2.5x8 Screw

………………1

115000769 M3x10 Screw

……………9

115000768 M3x10 Screw

…………1

115000769 M3x10

115000768 M3x10

115000769 M2.5x8

115000769 M3x10

Fueltank

39

115000715 M3x12 Screw

…………2

115000715 3x7x0.8 Washer

……………………2

115000715 M3x12

115000715 3x7x0.8

115000715

115000769 M3x10

115000715 M3x12

115000715 3x7x0.8

115000715

19

40

Fueltank

115000769 M3x10 Screw

…………2

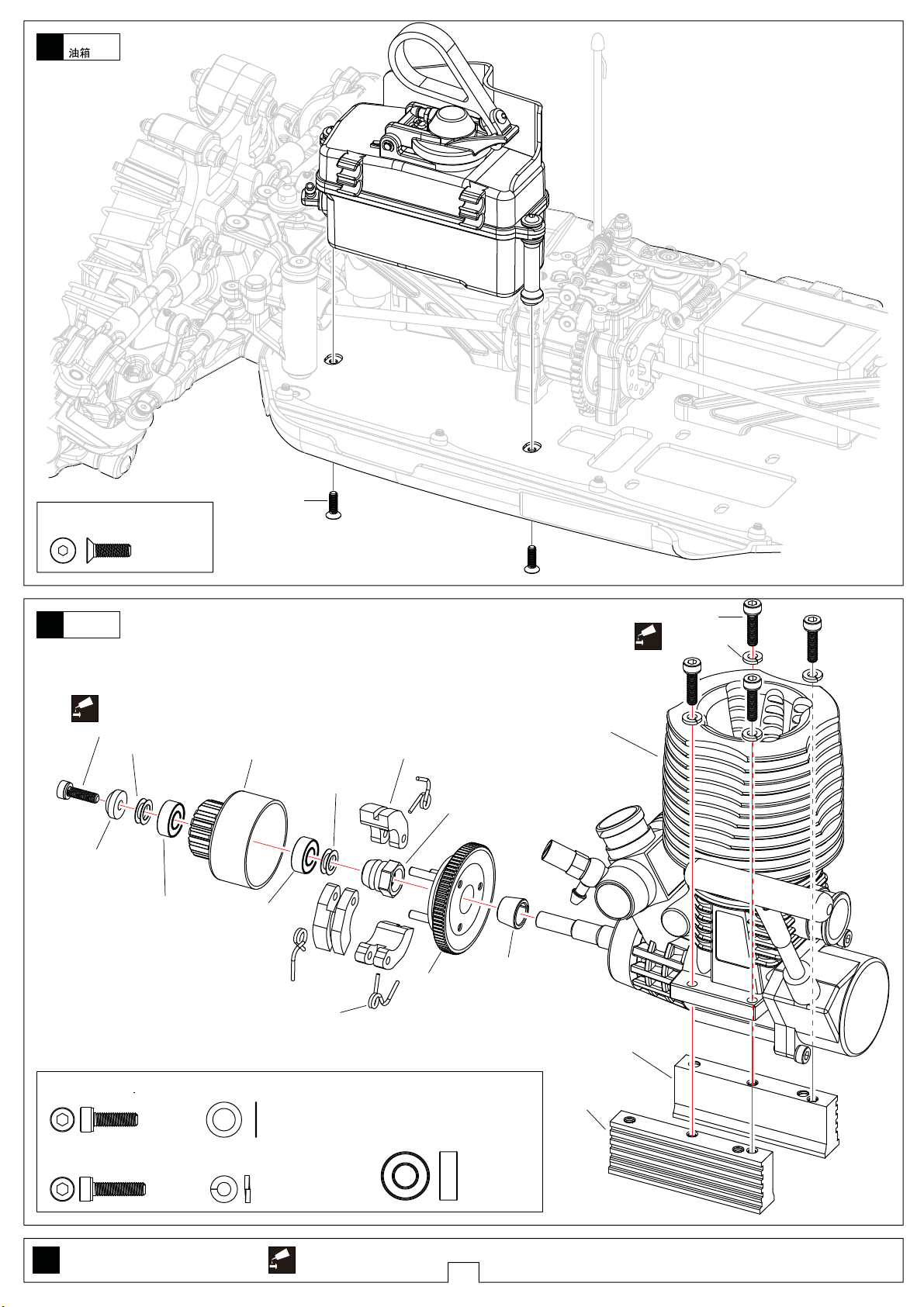

Engine

41

Screw Cement

115000771 M3x10

115000866 5.1x8x0.2

115000866

Screw Washer

115000757 5x10x4

115000769 M3x10

115000866

Clutch Gear 16T

115000866 5.1x8x0.2

115000757 5x10x4

115000754

Clutch Shoe

115000866

Engine Nut

115000771 M3x12

Engine

Screw Cement

115000776

115000771 M3x10 Screw

……1

115000771 M3x12 Screw

……4

Must be purchased separately

X

115000754

Clutch Spring

115000866 5.1x8x0.2 Washer

………………4

115000757 5x10x4 Ball Bearing

115000776 M3 Spring Washer

…………………4

Apply threadlocker(screw cement)

Screw Cement

115000866

Flywheel

……………2

20

115000866

Flywheel Collet

115000865

Engine Mount-Right

115000865

Engine Mount-Left

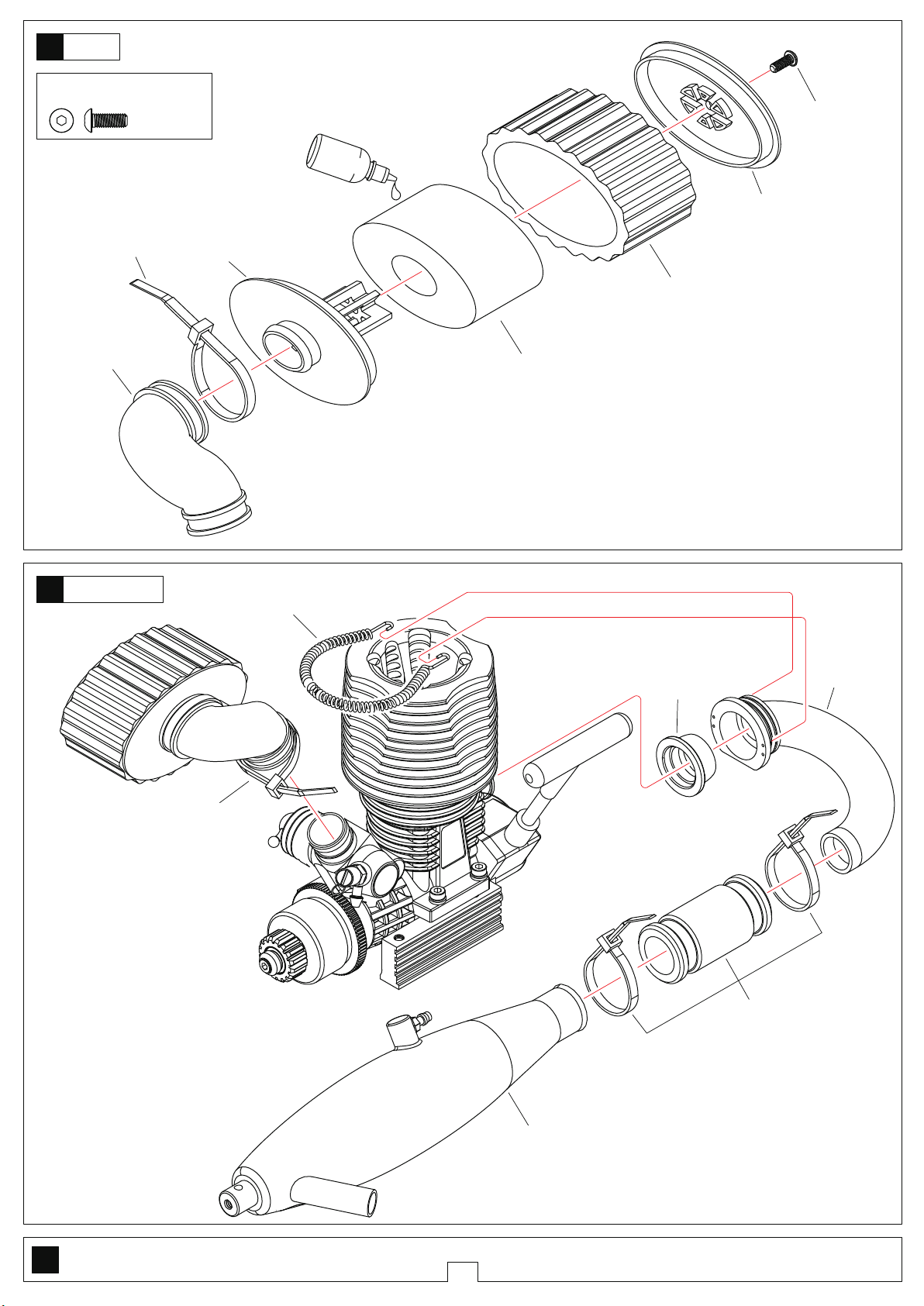

Air Filter

42

115000721 M3x8 Screw

……………1

Air Filter Oil

115000721 M3x8

115000721

Air Filter End Cap

115000721

Air Filter Boot

Air Filter/Tunedpipe

43

115000721

Air Filter Body

115000887

Spring

115000721

Air Filter Sponge-Inner

115000721

Air Filter Sponge-Outer

223000040

Seal Enclose

225000024

Manifold exhaust

Must be purchased separately

X

115000721

201000002

Silicon exhaust coupler

115000889

Tuned pipe

21

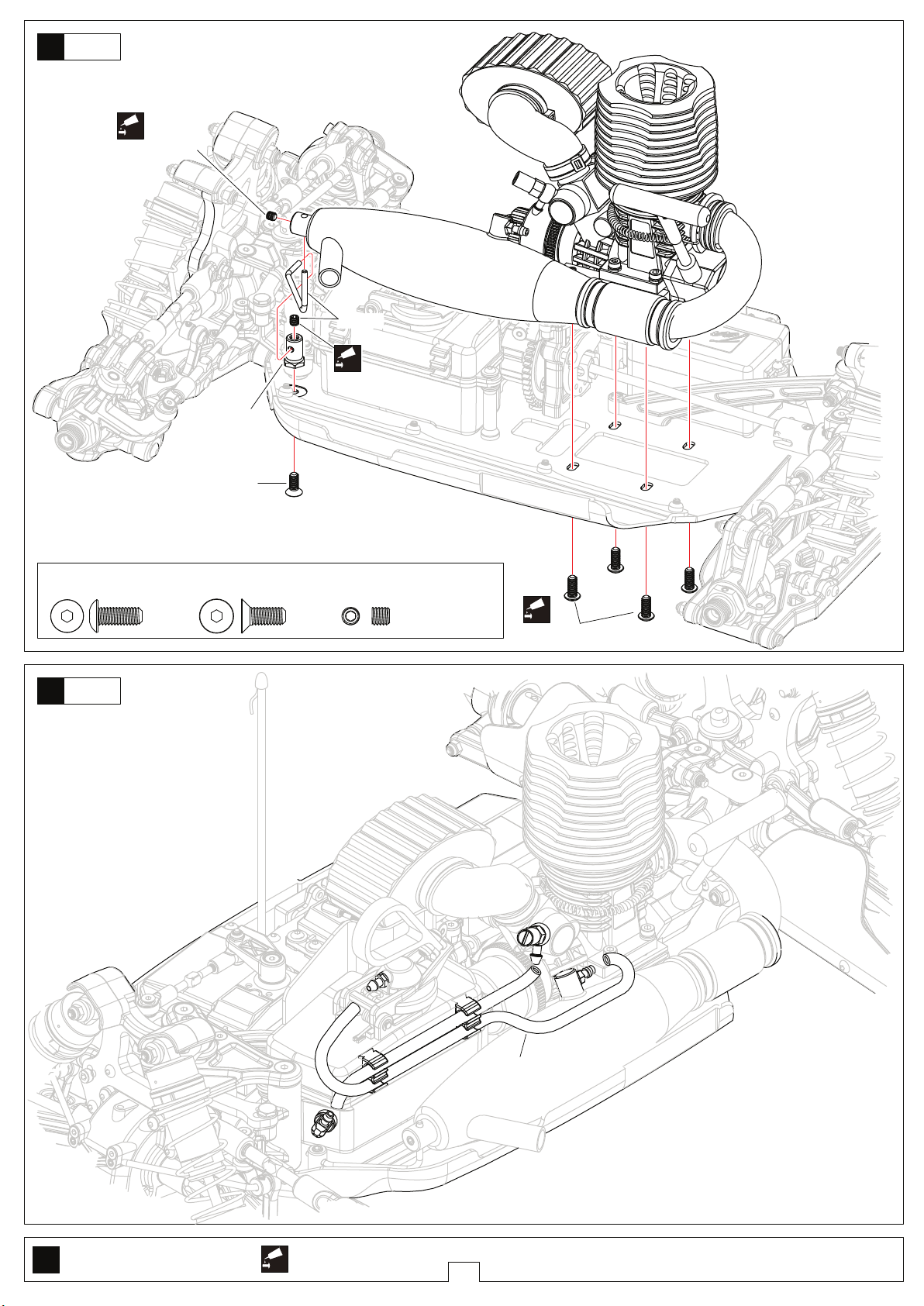

Engine

44

115000751 M4x4

Screw

Cement

115000769 M4x10

115000751

Pipe Mount

115000751

Screw Cement

115000768 M4x10 Screw

……4

Oil Pipe

45

115000769 M4x10 Screw

……1

115000751 M4x4 Screw

…………………2

Screw

Cement

115000768 M4x10

Must be purchased separately

X

Apply threadlocker(screw cement)

Screw

Cement

22

115000767

Oil Pipe

46

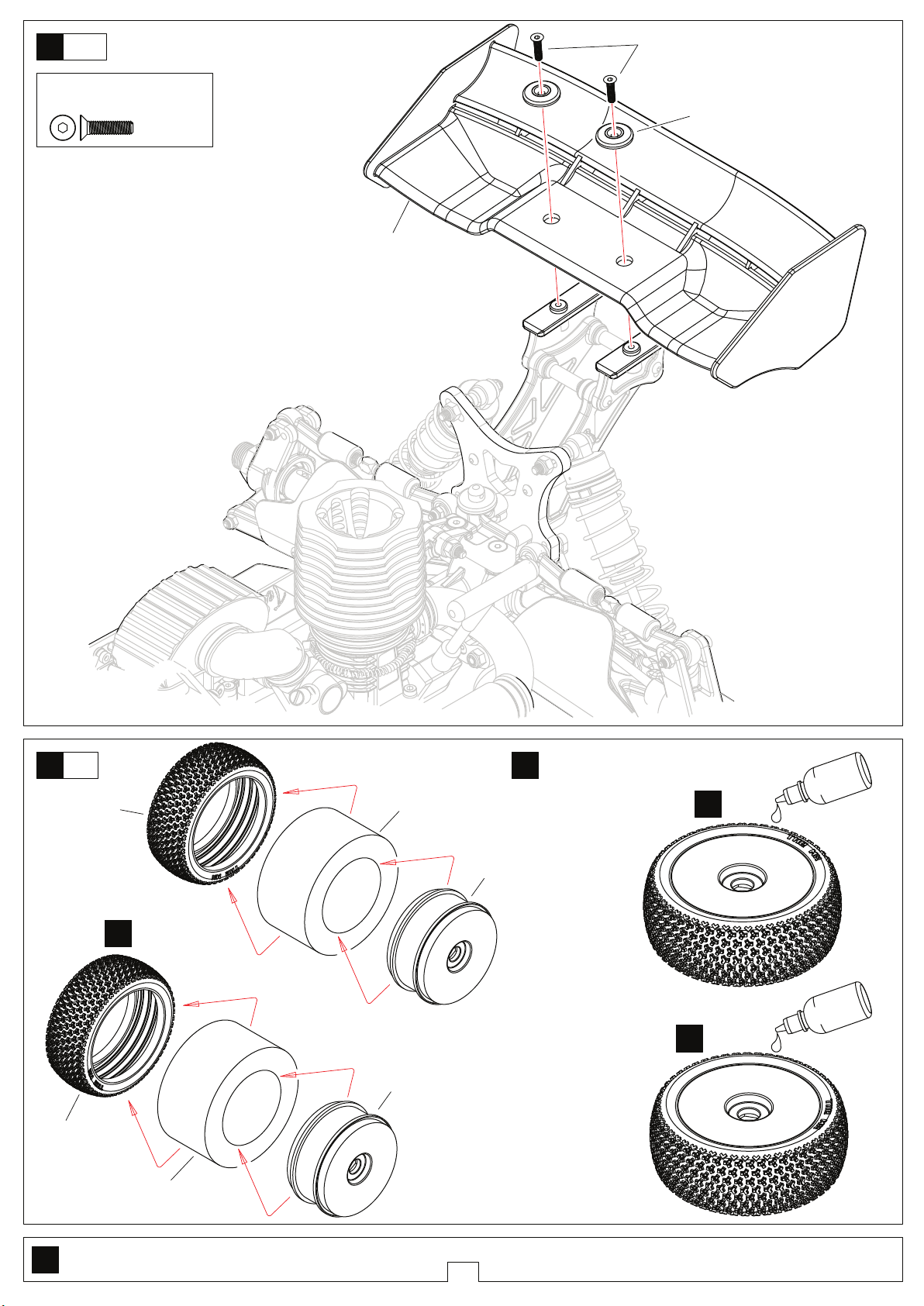

Wing

115000768 M3x12

115000768 M3x12 Screw

……………2

115000767

Wing

115000767

Wing Screw Washer

Tyre

47

115000864

Tyre

<R>

115000864

Tyre

x2

115000864

Tyre Sponge

115000864

Tyre Sponge

115000890

Rim

<L>

115000890

Rim

x2

<L>

<R>

Glue

x2

Glue

x2

Assemble as many times as specified

x2

23

Tyre

48

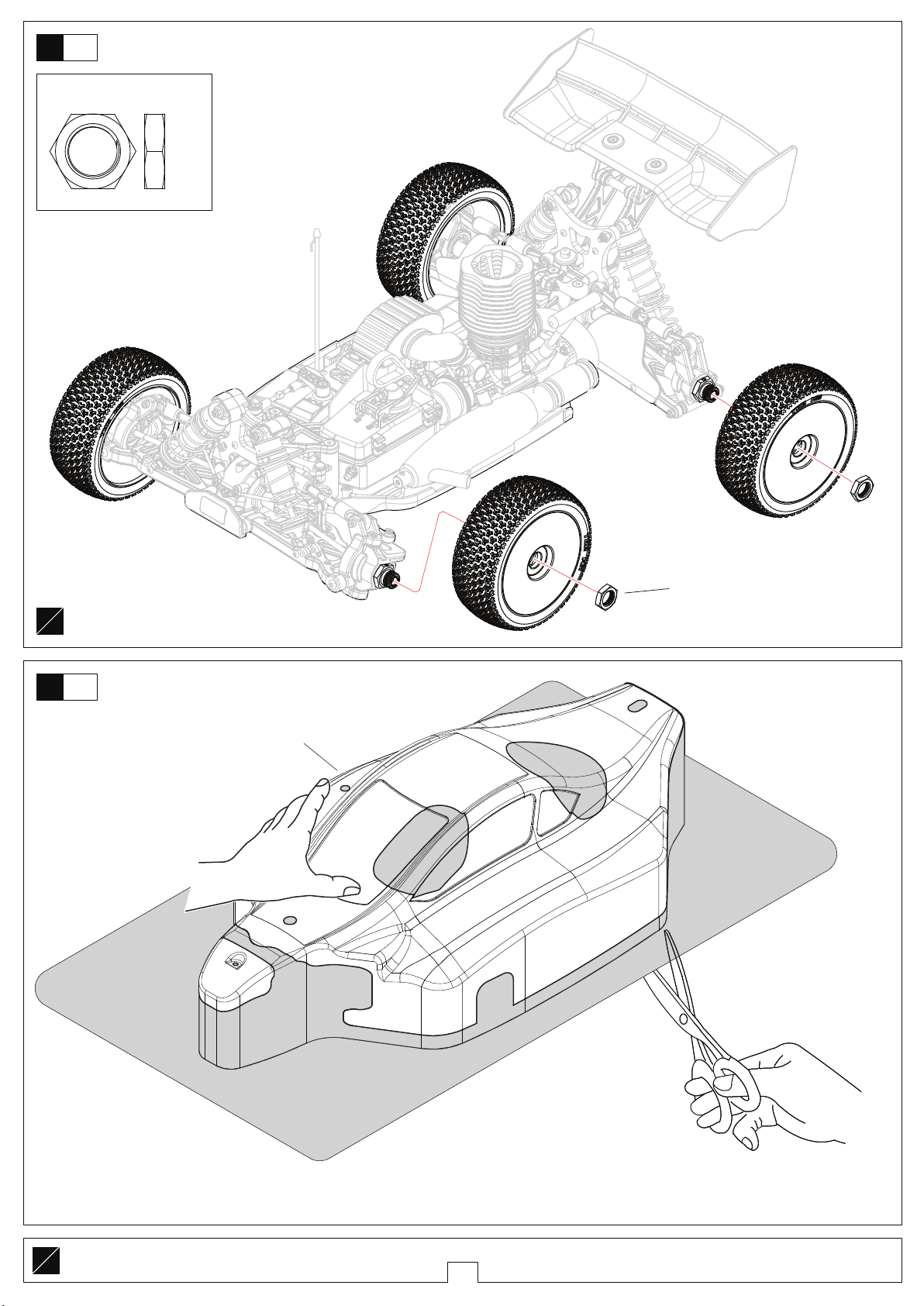

115000746 17mm Hex Nut

……4

L

49

115000746

17mm Hex Nut

R

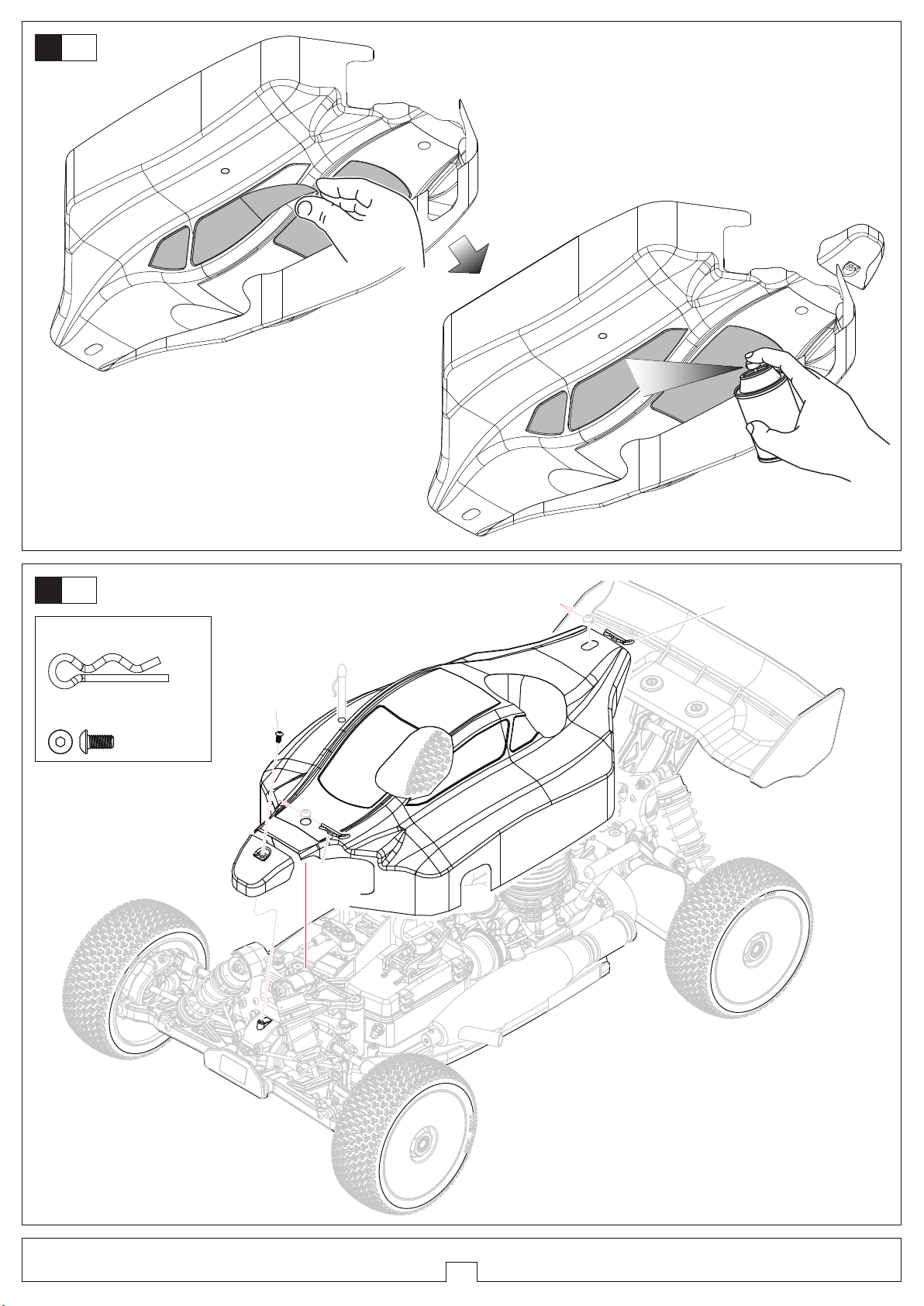

Body

115000870

Body

Assemble both Left and Right

L

R

24

50

Body

Mask the windows from the inside.

Paint the body shell from the inside using spray colors.

Body

51

203000081 Mid Clip

115000768 M3x6 Screw

………………1

115000768 M3x6 Screw

……2

203000081

Mid Clip

25

115000700

115000701

115000702

115000875

115000702

115000703

115000704

115000705

115000706

115000707

115000708

115000709

115000710

T08611

115000871

115000712

115000860

115000714

115000715

115000716

115000863

115000717

115000719

115000720

115000721

115000879

115000731

115000732

115000858

115000859

115000735

115000858

115000700

115000880

115000853

115000854

115000857

115000741

115000850

115000743

115000851

115000745

115000886

115000746

115000747

115000852

115000749

115000750

115000751

115000865

115000887

115000753

115000754

115000866

203000081

115000758

115000759

115000760

115000761

115000760

115000762

115000732

115000762

115000879

115000762

115000768

115000706

115000769

115000768

115000769

115000770

115000771

115000769

115000771

511123

115000770

115000772

115000774

115000775

115000776

26

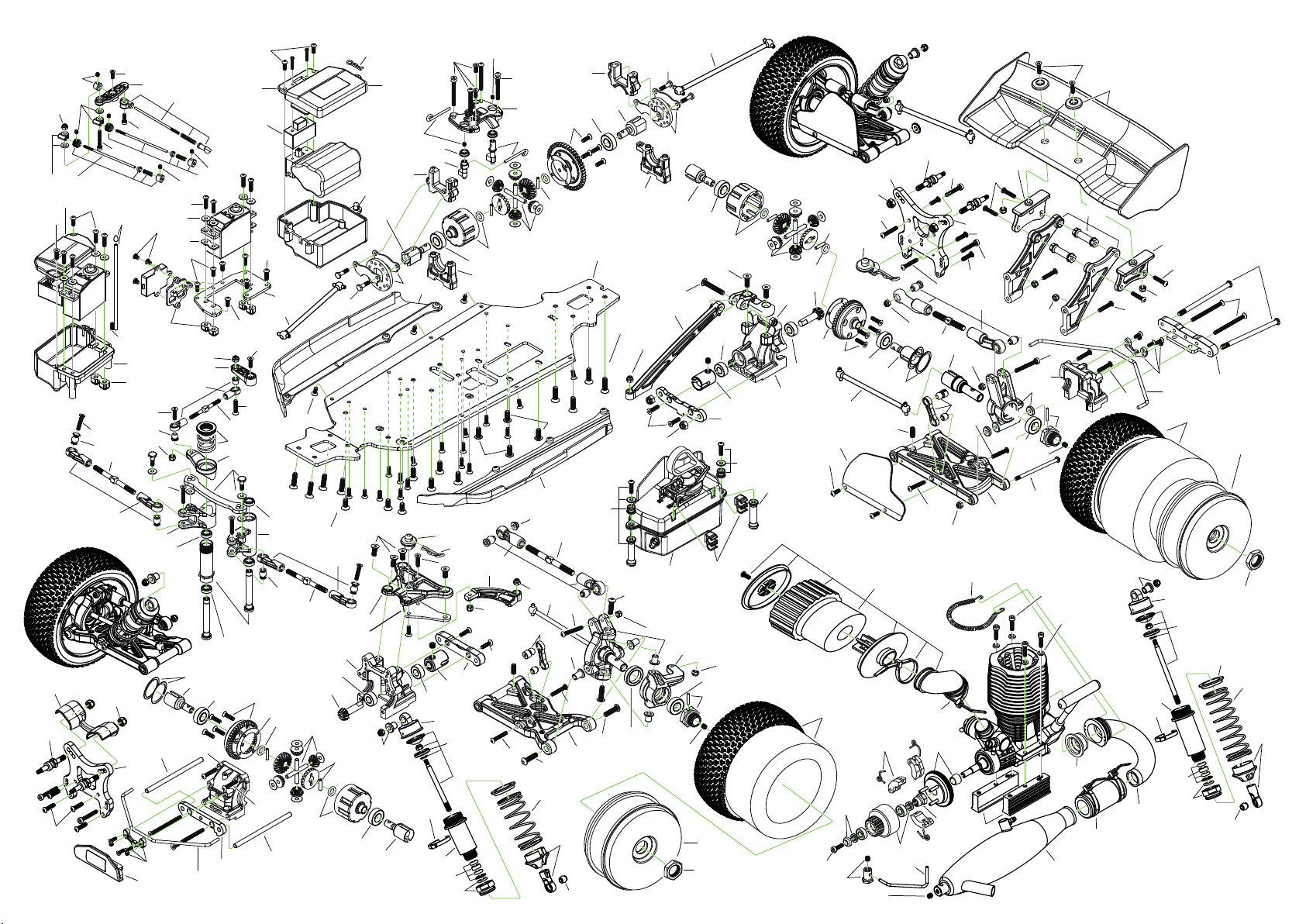

Exploded View

115000715

115000721

115000855

115000856

115000862

115000864

115000873

T08048

115000882

115000884

115000883

115000879

115000885

115000887

115000889

115000874

115000886

115000711

201000002

115000767

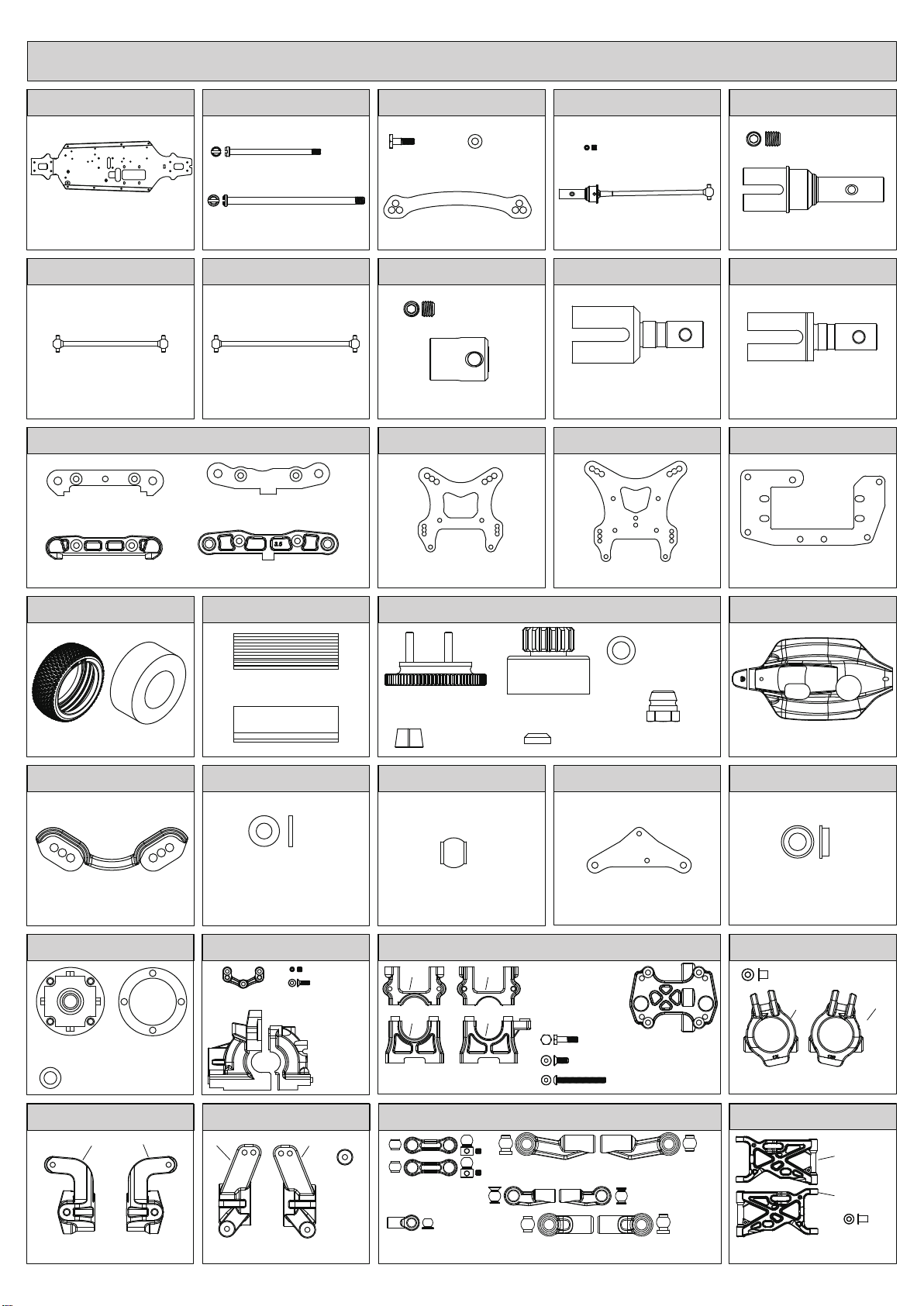

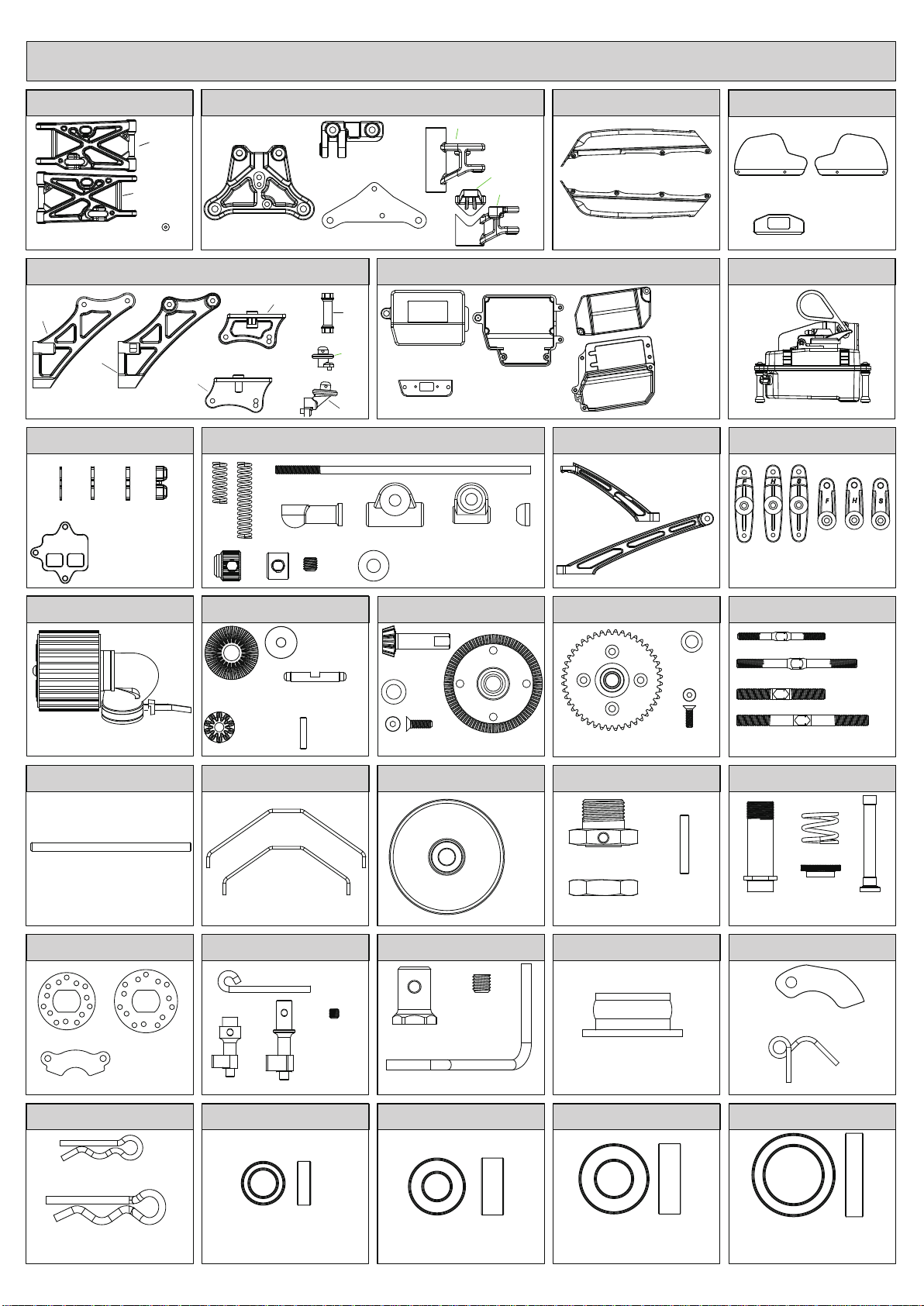

Parts list for

Deuce nitro

115000850 115000851 115000852 115000853

2pcs

Buffer Screw

Steering Rack

115000857 115000858 115000859

M5x4 Screw

Center Connecting Cup

115000861

Chassis

1pcs

115000855

86mm Drive Shaft

3x51.5 Arm Shaft

4x77 Arm Shaft

115000856

113mm Drive Shaft

1pcs

2pcs

1pcs

115000860 115000862

Front Arm Mount-F

1pcs

Rear Arm Mount-F

1pcs

2pcs

3.6x7x0.8 Washer

1pcs

2pcs

M4x4 Screw

95.5mm Front CVD

Front/Rear Diff Connecting Cup

2pcs

115000854

M4x4 Screw

2pcs

Rear Wheel Shaft

2pcs

Center Diff Connecting Cup

2pcs

115000863

Front Arm Mount-R

1pcs

Rear Arm Mount-R

115000864 115000865

Engine Mount-Left

Tyre

2pcs

115000871

1pcs

Cover-Frong Shock

115000773

Differential Housing

1pcs

O-ring

Tyre Sponge

2pcs

Differential Pads

1pcs

Engine Mount-Right

115000872

3.6x7x0.8 Washer 6pcs

115000701

Swaybar Mount

1pcs

M3x3 2pcs M2.5x8 3pcs

Differential Case

1pcs

Front Shock Tower

1pcs

115000866

Flywheel

1pcs

Flywheel Collet

1pcs

115000873

6.8 Ball stud 4pcs

Clutch Gear 16T

Screw Washer

115000874

Rear Shock Tower

1pcs

5.1x8x0.2 Washer 4pcs

1pcs

Engine Nut

1pcs

Buffer Plate-Aluminium

1pcs

Radio Plate

115000868

Body kit

1pcs

115000857

5x8x2.5 Plastic Washer

115000702 115000703

1pcs

Center Differential Mount

1pcs

M3x15 Brake Screw

M3x8 Screw

4pcs

M3x30 Screw

4pcs

Front Hub Carrier Bushing

1pcs

Front Hub Carriers 12 Degree

1pcs

2pcs

4pcs

1pcs

115000704

Left 1pcs

Steering Block

Right 1pcs

115000705 115000706 115000707

Left 1pcs

Rear Hub Carriers

Right 1pcs

Washer

4pcs

6.8 Ball End-Swaybar

5.8 Ball End-Steering Servo

7.8 Ball End-Rear Upper

6.8 Ball End-Steering

7.8 Ball End-Front Upper

Front Lower Arm

Left 1pcs

Right 1pcs

King Pin Bushing

4pcs

Parts list for Deuce nitro

115000708

Rear Lower Arm

115000712

Left 1pcs

Right 1pcs

Wing Mount&Body Mount

115000716

1mm

1.5mm 2pcs

2pcs

Servo Mount

Transponder Mount

Left 1pcs

Right 1pcs

2mm 2pcs

1pcs

2pcs

3pcs

Right 1pcs

115000709 115000710

Left 1pcs

Buffer Plate-Plastic

1pcs

Rear Chassis Stiffener Mount

Buffer Plate-Aluminium

1pcs

Top 1pcs

Bottom 1pcs

Side Plate-Right

1pcs

Side Plate-Left

1pcs

115000711

Dirtcover Rear-Left

1pcs

Front Bumper

115000714 115000715

Left 1pcs

2pcs

Front 1pcs

Rear

1pcs

Battery Cover

1pcs

Switch Mount

Battery Box

1pcs

Receiver Cover

1pcs

Receiver Box

1pcs

Fueltank Set

115000718 115000719 115000720

Front Chassis Stiffener

Rear Chassis Stiffener

1pcs

1pcs 1pcs 1pcs

2pcs

1pcs

3pcs

1pcs

M3x3 5pcs

1pcs

3x7x1

Brake-Throttle Linkage Set

2pcs

Dirtcover Rear-Right

1pcs

1pcs 1pcs 1pcs

Servo Arm

115000721

Air Filter Set

115000732 115000735

20T Diff Gear

10T Diff Gear

4pcs

2pcs

3.6x12x0.2 Washer 4pcs

Diff Shaft

2pcs

2.5x11.5 Pin 2pcs

1pcs

10T Gear

10T ??

O-ring

O?

M3x12 Screw

1pcs

43T Front/Rear Diff Gear

4pcs

1pcs

115000336 115000737

O-ring

1pcs

O?

44T Center Diff Gear

1pcs

M3x12 Screw

4pcs

Turnbuckle Set

115000743 115000745 115000890 115000746 115000747

1pcs

4x73 Arm Shaft

2pcs

Front/Rear Swaybar

115000749 115000750 115000751

1pcs 1pcs

Brake Disk

2pcs

1pcs1pcs

Brake Shaft

2pcs

Pipe Mount

M4x4 Screw

1pcs

Exhaust Hanger Wire

1pcs

Rim

2pcs

Wheel Hex Hub

4pcs

2.5x16.8 Pin

17mm Hex Nut

4pcs

2.5x16.8?子

4pcs

Servo Saver Set

115000753 115000754

1pcs

Seal Enclose

1pcs

Clutch Shoe

Clutch Spring

1pcs

3x40 1pcs

4x53 2pcs 5x40 2pcs

5x58 2pcs

2pcs

3pcs

Small Clip

Mid Clip

8pcs

115000758 115000759 115000760 115000761203000081

6x10x3 Ball Bearing

6pcs 6pcs 6pcs 6pcs

6x13x5 Ball Bearing

8x16x5 Ball Bearing

13x19x4 Ball Bearing

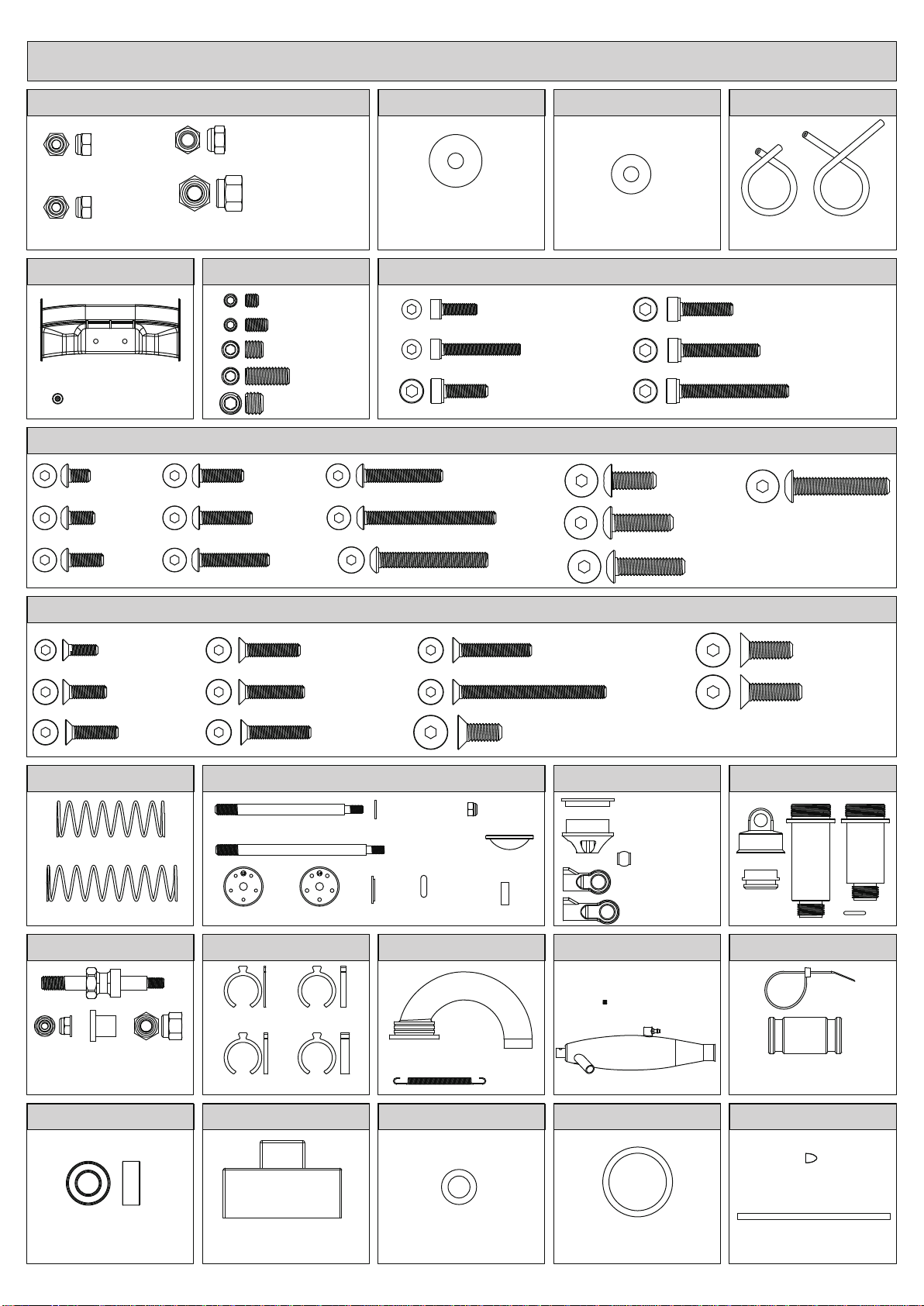

Parts list for Deuce nitro

115000766 115000767115000762 115000763

M2.5 Nylon Nut

6pcs

M3 Nylon Nut

6pcs

242000016

Wing

1pcs

Wing Screw Washer

115000768

M3x5 Screw

8pcs

M3x6 Screw

8pcs

M3x8 Screw

8pcs

2pcs

M3.5 Nylon Nut

M4 Nylon Nut

115000770

6pcs

M3x3 Screw

M3x5 Screw

M4x4 Screw

M5x4 Screw

M3x10 Screw

M3x12 Screw

8pcs

M3x16 Screw

8pcs

6pcs

M4x10 Screw

3.6x12x0.2 Washer

115000771

M3x18 Screw

8pcs8pcs

6pcs

M2.5x8 Screw

M2.5x18 Screw

M3x10 Screw

M3x30 Screw

8pcs

M3.5x25 Screw

8pcs

3.5x9x1.0 Washer

8pcs

M4x10 Screw

6pcs

8pcs

M4x14 Screw

M4x16 Screw

Oil Pipe-Short

M3x12 Screw

8pcs

1pcs

8pcs

M3x18 Screw

M3x25 Screw

M4x22 Screw

Oil Pipe-Long

1pcs

8pcs

115000769

M2.5x8 Screw

M3x10 Screw

M3x12 Screw

Front Shock Spring

Rear Shock Spring

115000888

4pcs

M3 4pcs

4pcs

Shock absorber Mount

2pcs

M4 4pcs

8pcs

M3x18 Screw

M4x10 Screw

8pcs

M3x14 Screw

M3x15 Screw

M3x16 Screw

8pcs

115000882 115000884

M3 Nylon Nut

4pcs

Diaphragm

4pcs

3mm Plastic Washer

1pcs

Spring

1pcs

115000889115000887 201000002

Front Shock Shaft

4pcs

Shock Piston-1.2

115000885

4pcs 4pcs

1mm Adjust Ring

4pcs

2mm Adjust Ring

2pcs

4pcs

Shock Piston-1.4

3mm Adjust Ring

4pcs

5mm Adjust Ring

3.1x7x0.4 Washer

4pcs

Rear Shock Shaft

4pcs

1.2mm Plastic Washer

3.8x2.3 O-ring 8pcs

Manifold exhaust

8pcs

M3x35 Screw

Top Spring Mount

Below Spring Mount

6.8x6.3 Ball stud

Ball End-Short

Ball End-Long

M4x4 1pcs

Tuned pipe

1pcs

8pcs

4pcs

M4x12 Screw

M4x14 Screw

115000883151000727

4pcs

Shock Body

2pcs

Silicon exhaust coupler

8pcs

2pcs

4pcs

1pcs

115000757

5x10x4 Ball Bearing

6pcs

115000772

Switch cover

1pcs

115000773

5.1x8x0.2 Washer

6pcs

115000774

13.1x15.9x0.2 Washer

6pcs

115000765

Antenna Pipe Cap

5pcs

Antenna Pipe

5pcs

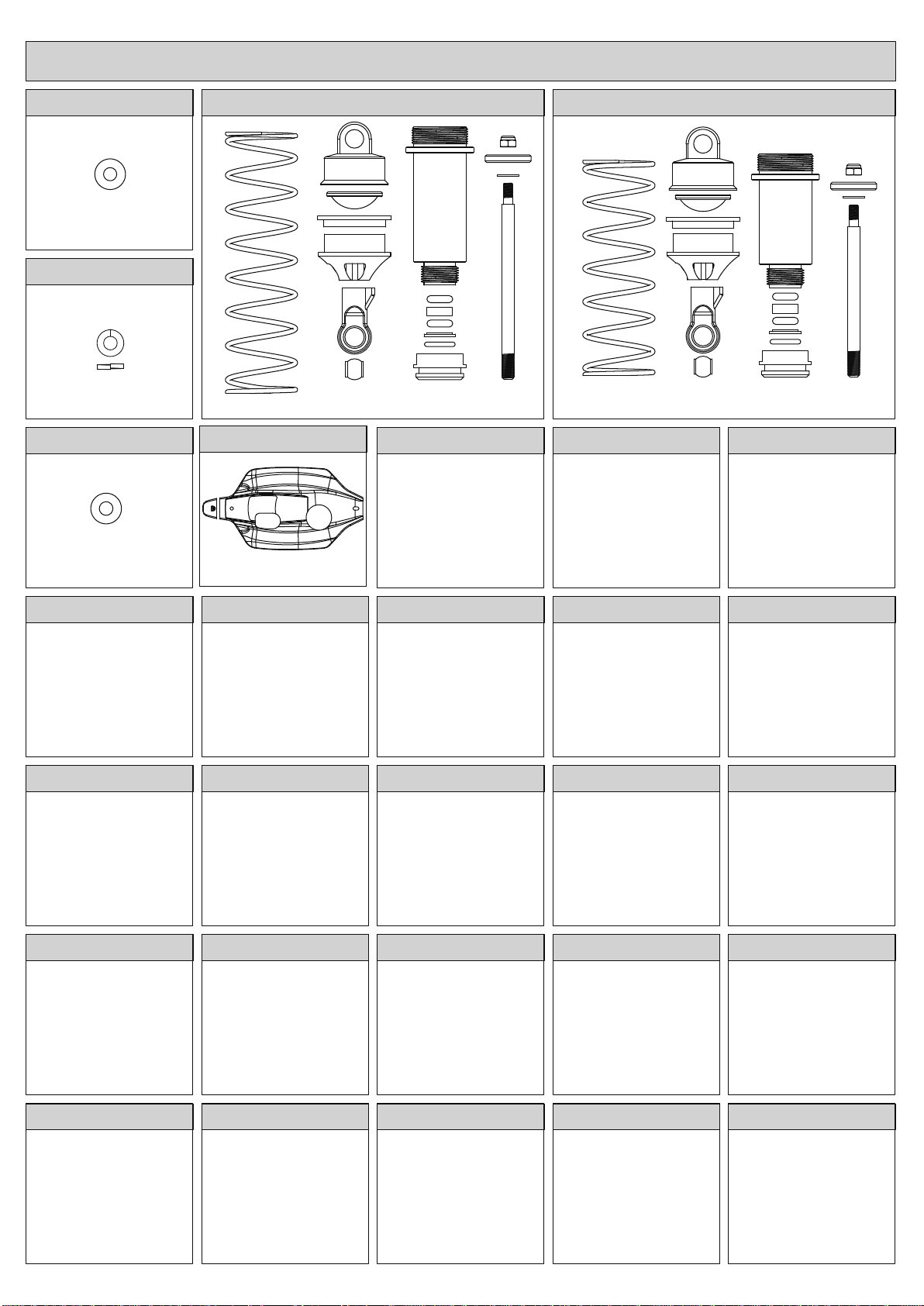

Parts list for Deuce nitro

115000775

3x7x0.8 Washer

115000776

M3 Spring Washer

115000893

3.1x7x0.4 Washer

6pcs

10pcs

115000867

Body rtr

1pcs

Front Shock Absorber

2Set

115000892115000891

Rear Shock Absorber

2Set

Driver Track / City

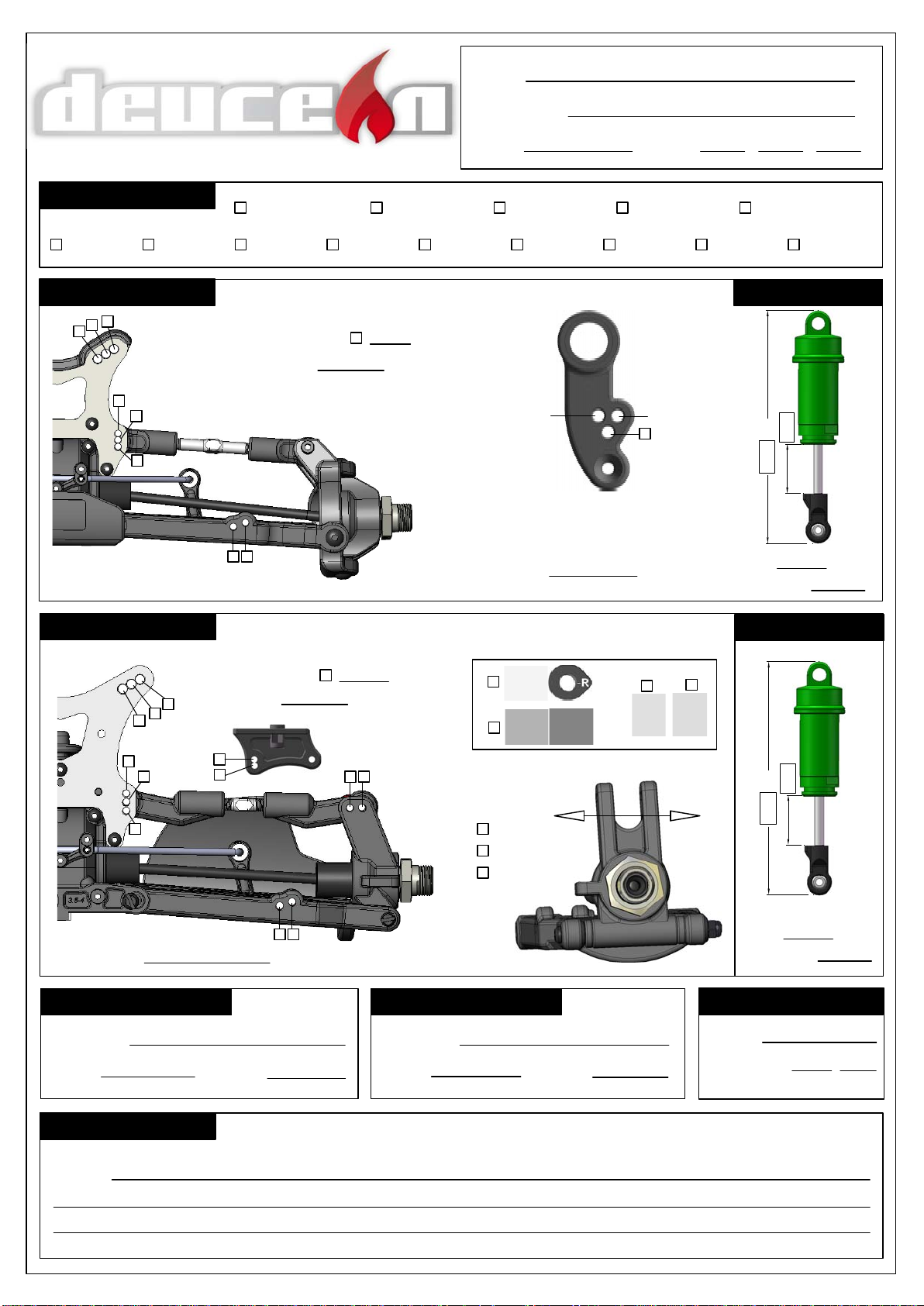

SETUP SHEET

Conditions

Sandy Soft dirt Grass Hard soil Clay

Front Suspension

3

2

1

2

3

Smooth Bumpy Low traction Med traction High traction

Shock Mounting&Camber link

Anti-roll bar:

°

2

1

Camber

mm

Event

Wet Dry Dusty Other

Ride height

3

mm

Date

/

Front Shocks

mm

Oil wt Piston #

Rear Suspension

3

2

1

2

3

1 2

Ride height

Front Tires&Wheels

Front Tires Inserts

Shock Mounting&Camber link

Anti-roll bar:

Camber

2

1

mm

°

2

Rear Tires&Wheels

Rear Tires

Wheels

Inserts

1

2

Wheelbase

Long Medium Short

Wheels

Rear Shocks

2

1

mm

Oil wt Piston #

Other

Engine Pinion/Spur

/

Notes

Service:

ANSMANN AG Division Racing Abt. Service Industriestr. 10 97959 Assamstadt Tel.: +49 (0) 6294-4204-34 Fax.: +49 (0) 6294-4204-47

,

ANSMANN AG DIVISION RACING Thomas-Mann-Str.63 D-90471 Nuernberg Germany Tel.: +49 (0) 911 817 44 0 Fax.: +49 (0) 911 817 44 22 email: [email protected]

Ansmann Racing Deuce nitro User Manual [en, de]
