Page 1
Länge / Length / Longueur: 510 mm
Breite / Width / Largeur: 310 mm
Radstand / Wheelbase / Empattement: 345 mm
Motor / Motor / Moteur: 1.900 KV
Art.-Nr.: / Art.- No.: / Modèle No. 126000006 RTR / 126000008 KIT
Page 2
Page 3
Betrieb / Operation / D'exploitation
Die benötigten Schrauben sind den jeweiligen Bauteilen in
kleinen Tüten beigefügt.
Schrauben, die für den weiteren Zusammenbau nicht mehr
benötigt werden, bitte wieder zurück in den Beutel legen, aus
dem sie genommen wurden.
Somit entsteht beim Zusammenbau weiterer Komponenten
kein Durcheinander!
The required screws are attached to the respective components in small bags.
Screws for the further assembly are no longer needed, please
put back into the bag was taken out of them.
This gives rise in the assembly of other components no mess!
Les vis requis sont joints aux composantes respectives dans
des petits sacs.
Vis de la poursuite de l'assemblage ne sont plus nécessaires,
s'il vous plaît remettre dans le sac a été mis hors d'eux.
Cela donne lieu à l'Assemblée des autres composants sans
dégâts!
!
Page 4
Servo Saver Turnbuckle / Servo Saver Rechts-/Links
1
Gewindestange / Servo Saver Droite-/ Gauche tige filetée
115000741 3x40 Turnbuckle
…………1
115000706 5.8 Ball End
…………2
115000706 5.8 Ball stud
……………………2
115000762 M3 Nylon Nut
…………………1
115000769 M3x15 Screw
………1
115000706
5.8 Ball stud
1:1
Approx.23mm
▲Projection.Note direction
4mm
115000741
3x40 Turnbuckle
115000706
5.8 Ball End
115000706
5.8 Ball stud
Futaba-25T Hitec-24T Sanwa/JR/KO-23T
115000762 M3
115000720
Steering Servo Horn-F
115000769 M3x15
Buffer / Lenkung / Pilotage
2
Approx.8mm
115000852 Buffer Screw
………2
115000852 3.6x7x0.8 Washer
…………………2
115000747
Servo Saver Nut
115000747
Servo Saver Spring
115000709
Servo Saver-Top
115000709
Servo Saver-Bottom
115000762 M3
115000769 M3x14
115000852
Buffer Screw
115000775 3x7x0.8 Washer
…………………2
115000762 M3 Nylon Nut
…………………1
115000769 M3x14 Screw
………1
True-to -scale diagram
1:1
Maßstabsgetreu / l'échelle
115000747
Servo Saver Body
1
115000852 3.6x7x0.8
115000852
Steering Rack
115000852 3x7x0.8
115000709
Servo Saver-Left
Page 5
Side Plate / Seitenschutz / protection de la page
3
115000777
Side Plate-Right
115000769 M3x8
115000877
Servo Saver Post
115000769 M3x8
115000894
Chassis
115000777
Side Plate-Left
115000769 M3x8 Screw
…………8
Screw
Cement
115000769 M4x10
Steering / Lenkung / Pilotage
4
115000768 M3x10
115000712
Front Body Mount
115000769 M3x10 Screw
…………1
115000874
Buffer Plate-Aluminium
115000709
Buffer Plate-Plastic
Screw
Cement
Screw
Cement
115000758 6x10x3
115000769 M4x10
115000769 M3x12
Screw
Cement
115000769 M4x10
115000719
Front Chassis Stiffener
115000762 M3
115000769 M4x10 Screw
…………2
115000769 M3x12 Screw
115000758 6x10x3
…………2
115000769 M4x10 Screw
…………2
115000758 6x10x3
Ball Bearing
………………4
115000762 M3 Nylon Nut
…………………2
Apply threadlocker (screw cement) / Sicherungslack (blau) verwenden
Screw
Cement
Sauvegarde de la peinture en utilisant (bleu)
115000769 M3x12
115000769 M3x10
2
Page 6
Front/Rear Differential / Vorderes/Hinteres
5
Differential / Avant / Arrière différentiel
115000732
20T Diff Gear
115000732
2.5x11.5 Pin
115000732
10T Diff Gear
115000732 3.6x12x0.2
115000732
Diff Shaft
x2
115000732
2.5x11.5 Pin
2.5x11.5
115000732
20T Diff Gear
115000700
Differential Pads
115000735 M3x12
115000700 5.8x1.9
115000700
Differential Housing
115000760 8x16x5
115000733
Diff Connecting Cup
Front Differential Case / Diff. Gehäuse vorne
6
Cas du différentiel avant
115000700/115000735 5.8x1.9 O-Ring
115000732 3.6x12x0.2 Washer
…………………4
……………8
115000735 5.8x1.9
115000735
43T Diff Gear
115000760 8x16x5
115000733
Diff Connecting Cup
115000760 8x16x5 Ball Bearing
115000735 M3x12 Screw
………4
……8
115000701
Differential Case
115000759 6x13x5
115000735
10T Gear
Screw
Cement
115000857 M5x4
115000759 6x13x5
115000768 M3x16
115000857
Center Connecting Cup
115000774
13.1x15.9x0.2
x2
115000701
Differential Case
115000759
6x13x5 Ball Bearing
………4
115000774
13.1x15.9x0.2 Washer
…………4
115000768 M3x16 Screw
……4
115000857 M5x4 Screw
………………2
Apply threadlocker (screw cement) Sicherungslack (blau) verwenden /
Screw
Cement
Sauvegarde de la peinture en utilisant (bleu)
3
Assemble as many times as specified / Anzahl der ben. Teile
x2
Assemblez autant de fois que spécifié
Page 7
Front Swaybar / Stabi vorne /
7
Barre stabilisatrice avant
115000706 M3x3
Screw
Cement
115000769 M2.5x8 Screw
115000706 6.8 Ball stud
………………3
115000701/115000706 M3x3 Screw
……………………4
115000706 6.8 Ball End
115000706 6.8 Ball stud
…………………2
115000701
Swaybar Mount
115000701 M2.5x8
115000701 M3x3
Front Hub Carrie / Achsschenkel vorne /
8
Montants avant
115000701 M2.5x8
115000701 M3x3
115000701 M2.5x8
115000706 M3x3
Screw
Cement
115000769
Front Swaybar
115000703
…………………2
………………2
115000706
x2
115000704
115000853
95.5mm Front CVD
115000853 5x8.5
115000853 2.5x12.8 Pin
115000853 5x8.5 CVD Shaft
………………2
115000703 Front Hub Carrier Bushing
115000761 13x19x4 Ball Bearing
115000746 2.5x16.8 Pin
………2
115000760 8x16x5 Ball Bearing
115000853 M4x4 Screw
115000768 M4x14 Screw
………2
Oil
……………………2
……………2
…………………2
Front Hub Carriers 12 Degree-Left
115000853 2.5x12.8
115000853
………4
115000768 M4x14
……4
L
R
Front Hub Carriers 12 Degree-Right
115000761 13x19x4
Steering Block-Left Steering Block-Right
115000703
Front Hub Carrier Bushing
115000760 8x16x5
115000746
Wheel Hex Hub
115000746 2.5x16.8
115000853 M4x4
Screw
Cement
Assemble both Left and Right
L
R
Beide Seiten gleich montieren
Assemble as many times as specified
x2
Anzahl der. ben Teile
4
Apply threadlocker(screw cement)
Screw
Cement
Sicherungslack (blau) verwenden
Page 8
Front Hub Carrie / Achsschenkel vorne /
9
Montants avant
115000770 M4x10 Screw
……………2
115000707 King Pin Bushing
………4
115000768 M4x16 Screw
……4
Front Suspension / Vorderachse / Avant
10
115000770 M4x10
L
R
115000707
Front Lower Arm
115000707
King Pin Bushing
115000768 M4x16
115000768 M4x16
115000743 4x73 Arm Pin
115000743 4x73
115000769 M3x35
115000768 M3x16
115000860
Front Arm Mount-F
115000860
Front Arm Mount-R
115000769 M3x15
……2
115000769 M3x35 Screw
…………2
115000769 M3x15 Screw
………2
115000768 M3x16 Screw
……2
115000768 M3x16
Assemble both Left and Right / Beide Seiten gleich montieren /
L
R
Les deux côtés de la même monture
115000743 4x73
5
Page 9
Front Shock Tower / Dämpferbrücke vorne /
11
Tour de choc frontal
115000762 M4
115000871
Cover-Front Shock
115000879
Shock absorber Mount
115000768 M3x12
115000768 M3x12 Screw
Front Upper Turnbuckle / Rechts-/Links Gewind.
12
vorne / Supérieur avant Tendeur
115000706
7.8 Ball End-Front Upper
115000762 M4 Nylon Nut
……4
115000706
7.8 Ball stud
5mm
115000730
Front Shock Tower
………2
115000741
5x58 Turnbuckle
115000706
7.8 Ball stud
1:1 x1
1:1 x1
C
Front Upper-Left
Approx.32mm
▲Projection.Note direction
Front Upper-Right
Approx.32mm
115000706
7.8 Ball End-Front Upper
115000741 5x58 Turnbuckle
True-to -scale diagram
1:1
Maßstabsgetreu / pleine Echelle
▲Projection.Note direction
115000706 7.8 Ball stud
………2 ……………2 ……………2
6
115000706 7.8 Ball stud
Assemble as many times as specified
x1
Anzahl der benötigten Teile / Nombre de pièces requises
115000706 7.8 Ball End-Front Upper
…………4
Page 10
Steering Turnbuckle / Gewindestangen /
13
Les tiges filetées
115000706
6.8 Ball stud
1:1 x1
Steering-Left
Approx.31.5mm
115000706
6.8 Ball stud
115000706
6.8 Ball End-Steering
115000741 4x53 Turnbuckle
Front Upper/Steering Turnbuckle / obere vord.
14
Gewindestange / Supérieure avant / Turnbuckle
Front Upper Turnbuckle-Right
5mm
115000706
6.8 Ball End-Steering
115000741
4x53 Turnbuckle
115000706 6.8 Ball stud
………2 ……………2 ……………2
115000769 M3x16
Steering Turnbuckle-Right
1:1 x1
Steering-Right
115000706 6.8 Ball stud
▲Projection.Note direction
Approx.31.5mm
▲Projection.Note direction
115000706 6.8 Ball End-Steering
……………4
115000771 M3x25
115000762 M3
115000771 M3x18
115000762 M3
115000762 M3
115000769 M3x16
Steering Turnbuckle-Left
Front Upper Turnbuckle-Left
115000762
M3
115000771 M3x25
115000769 M3x16 Screw
……2
True-to -scale diagram
1:1
Maßstabsgetreu / pleine Echelle
115000762 M3 Nylon Nut
…………6
115000771 M3x18 Screw
x1
7
115000771 M3x25 Screw
……2
Assemble as many times as specified
Anzahl der ben. Teile / Assemblez autant de fois que spécifié
……2
Page 11
Front Suspension / Aufhängung vorne /
15
suspension avant
115000769 M3x18 Screw
115000769 M3x18
……2
115000769 M4x10 Screw
…………2
115000769 M4x14 Screw
………4
115000711
Front Bumper
115000769 M4x10
115000769 M4x14
Center Differential / Mittel-Differential /
16
Centre différentiel
115000732
20T Diff Gear
2.5x11.5 Pin
115000700 5.8x1.9
115000700
Differential Housing
115000760 8x16x5
115000732
10T Diff Gear
115000732 3.6x12x0.2
115000732
Diff Shaft
Oil
115000732
20T Diff Gear
115000732
2.5x11.5 Pin
115000700
Differential Pads
115000700 5.8x1.9
115000880
44T Center Diff Gear
115000760 8x16x5
115000734
Center Diff Connecting Cup
115000735 M3x12
115000734
Center Diff Connecting Cup
115000700 5.8x1.9 O-Ring
115000732 3.6x12x0.2 Washer
…………2
………………4
8
115000760 8x16x5 Ball Bearing
………2
115000769 M3x12 Screw
……4
Page 12
Center Differential Mount / Einbau Mittel-Diff.
17
Centre Mont différentiel
115000778 M3x10 Screw
…………4
115000778 M3x10
115000778
Center Differential Plate
115000778 M3x10
Screw
Cement
Screw
Cement
115000778 M3x10
115000778 M3x10
Screw
Cement
115000782
Center Differential Mount-Rear
Motor / Motor / Moteur
18
Motor
115000782
Motor Mount
115000768 M3x12 Screw
……2
115000768 3x7x0.8 Washer
115000781 M4x4 Screw
………………2
………1
Tighten the screws with one sheet of
paper inserted between both gears.
Apply threadlocker(screw cement) / Sicherungslack (blau) verwenden /
Screw
Cement
Sauvegarde de la peinture en utilisant (bleu)
115000768 3x7x0.8
9
115000768 M3x12
Screw
Cement
115000781 M4x4
115000781
Page 13
Center Differential / Einbau Mittel-Differential /
19
Différentiel central Installation /
115000855
86mm Drive Shaft
Rear Swaybar / Stabi.
20
hinten
115000706 M3x3
115000769 M4x10
Screw
Cement
115000778
Motor Mount
115000769 M3x8
Oil
115000769 M3x8 Screw
115000706
………2
Oil
115000769 M4x10 Screw
………4
115000706 6.8 Ball stud
………………………2
115000706 6.8 Ball End
115000701
Swaybar Mount
115000701 M2.5x8
115000701 M3x3
Rear Hub Carrie / Achsschenkel hinten /
21
jarret arrière
115000705
Rear Hub Carriers-L
115000701 M2.5x8
115000701 M3x3
115000701 M2.5x8
115000705
Rear Hub Carriers-R
x2
115000706 M3x3
Screw
Cement
115000745
Rear Swaybar
115000761 13x19x4
115000854
Rear Wheel Shaft
115000769 M2.5x8 Screw
………………3
115000701/115000706
M3x3 Screw
……………………4
115000706 6.8 Ball stud
…………………2
115000761 13x19x4
Ball Bearing
………2
115000760 8x16x5
Ball Bearing
…2
115000746 2.5x16.8
Screw
Cement
115000738 M4x4
Apply threadlocker (screw cement)
Screw
Cement
Sicherungslack (blau) verwenden
115000760 8x16x5
115000746
Wheel Hex Hub
Assemble as many times as specified
x2
Anzahl der ben. Teile
10
L
Assemble both Left and Right
L
R
Beide Seiten gleich montieren
115000746 2.5x16.8 Pin
115000738 M4x4 Screw
R
……………………2
………2
………………2
Page 14
Rear Hub Carrie / Einbau Achsschenkel hinten
22
Montage à l'arrière de fusée
115000762 M3 Nylon Nut
………………2
115000770 M4x10 Screw
……………2
115000705 3.1x9x2.5
Plastic Washer
………………4
115000851 3x51.5 Arm Pin
……………2
115000705 3.1x9x2.5
115000762 M3
115000851 3x51.5
115000770 M4x10
115000708
Rear Lower Arm-Left
L
R
Rear Suspension / Aufhängung hinten /
23
Suspension arrière
115000762 M4 Nylon Nut
………………2
115000768 M3x16 Screw
……2
115000769 M3x12 Screw
…………2
115000769 M3x35 Screw
115000851 4x77 Arm Pin
……………2
115000855
Oil
86mm Drive Shaft
115000769 M3x12
115000762 M4
Oil
115000860
Rear Arm Mount-F
115000860
Rear Arm Mount-R
115000768 M3x16
Oil
115000855
86mm Drive Shaft
115000769 M3x35
115000851 4x77
Oil
……………2
Assemble both Left and Right / Beide Seiten gleich montieren
L
R
Assemblez les deux Gauche et Droite /
11
Page 15
Rear Shock Tower / Dämpferbrücke hinten
25
Tour de choc arrière
115000879
Shock absorber Mount
115000768 M3x6 Screw
……………4
115000768 M3x10 Screw
…………1
115000768 M3x12 Screw
…………2
115000762 M4 Nylon Nut
………………2
115000711
Dirtcover Rear-Right
115000862
Rear Shock Tower
115000762 M4
115000712
Rear Body Mount
115000768 M3x10
115000768 M3x12
Wing / Spoiler / Becquet
26
115000768 M3x18
115000768 M3x16
115000768 M3x6
115000711
Dirtcover Rear-Left
115000762 M3
115000768 M3x16
115000768 M3x16
115000712
Wing Mount
12
115000762 M3 Nylon Nut
…………………2
115000768 M3x16 Screw
……6
115000768 M3x18 Screw
…2
Page 16
Rear Upper Turnbuckle / Gewindestange hi./ob.
27
Tige filetée-dessus l'arrière
5mm
1:1 x1
Rear Upper-Left
Approx.12.5mm
115000706
7.8 Ball End-Rear Upper
115000741
5x40 Turnbuckle
115000706
7.8 Ball stud
115000741 5x40 Turnbuckle
Rear Upper Turnbuckle / Gewindestange hi./ob.
28
Tendeur arrière supérieur
▲Projection.Note direction
115000706
7.8 Ball stud
115000706
7.8 Ball End-Rear Upper
115000706 7.8 Ball End-Rear Upper
………2 ………4 ………………2 ……………2
Rear Upper Turnbuckle-Right
1:1 x1
Rear Upper-Right
▲Projection.Note direction
115000706 7.8 Ball stud 115000706
Approx.12.5mm
7.8 Ball stud
115000762 M3
115000768 M4x22
115000719
Rear Chassis Stiffener Mount
115000771 M3x25
115000762 M3
115000769 M4x12
115000719
Rear Chassis Stiffener
115000762 M3 Nylon Nut
115000769 M4x12 Screw
Rear Upper Turnbuckle-Left
115000771 M3x25
115000771 M3x18
115000762 M3
115000762 M4 Nylon Nut
………………1……………4
115000771 M3x18 Screw 115000771 M3x25 Screw
115000768 M4x22 Screw
………1
True-to -scale diagram
1:1
Maßstabsgetreu / pleine Echelle
……2
13
……2 ……2
Assemble as many times as specified / Anzahl der ben. Teile
x1
Nombre de pièces requises
Page 17
Rear Suspension / Aufhängung hinten
28
Suspension arrière
115000762 M3 Nylon Nut
………1
115000769 M3x10 Screw
115000769 M4x14 Screw
……1
115000769 M3x12 Screw
………1
……4
115000769 M3x12
Oil
115000762 M3
115000769 M3x10
115000856
113mm Drive Shaft
Oil
115000769 M4x14
Shock Absorber / Dämpfer / Amortisseur
29
115000882
1.2mm Plastic Washer
…………………4
115000882
3mm Plastic Washer
…………………4
115000882 3.8x2.3 O-ring
……………………8
115000883 7x1.5 O-ring
…………………4
115000882
3.1x7x0.4 Washer
……………………4
115000882 M3 Nylon Nut
…………………4
115000883
Shock Bottom cover
115000882
1.2mm Plastic Washer
115000882
3.8x2.3 O-ring
115000882
3mm Plastic Washer
115000883
7x1.5 O-ring
115000883
Front Shock Body-Short
Rear Shock Body-Long
F
x2
R
115000882 M3
115000882
Shock Piston
115000882 3.1x7x0.4
115000882
Front Shock Shaft-Short
Rear Shock Shaft-Long
115000769 M4x14
Front-Short
Rear-Long
115000884
Ball End-Short
115000871
6.8 Ball stud
115000871 6.8 Ball stud
………………………4
Assemble as many times as specified / Anzahl der ben. Teile
x2
Assemblez autant de fois que spécifié
14
Assemble both Front and Rear / Vorne und hinten ident. montier.
F
R
Assembler avant et arrière
Page 18
Shock Absorber / Dämpfer / Amortisseur
30
F
R
Front-Short
x2
Rear-Long
450
Front-Short
Rear-Long
115000883
Shock Top cover
115000882
Diaphragm
115000884
Top Spring Mount
115000886
Front Shock Spring-Short
Rear Shock Spring-Long
115000884
Below Spring Mount
Front Shock / Dämpfer vorne / Amortisseur avant
31
115000762 M3
115000879
Plastic Bushing
115000885
Spring Adjuster
115000762 M3 Flanged
Nylon Nut
…………………2
115000879 Plastic Bushing
………………………2
115000768 M3x18 Screw
Assemble both Front and Rear
F
R
Vorne und hinten id. montieren
……2
115000768 M3x18
L
R
Assemble as many times as specified
x2
Anzahl der ben. Teile
15
Assemble both Left and Right
L
R
Beide Seiten gleich montieren
Page 19
Rear Shock / Dämpfer hinten / Amortisseur
32
arrière
115000762 M3
115000762 M3 Flanged
Nylon Nut
…………………2
115000762 Plastic Bushing
………………………2
115000768 M3x18 Screw
……2
Receiver/Servo / Empfänger/Servo
33
Récepteur/Servo
115000775 3x7x0.8 Washer
……………………4
115000768 M3x8 Screw
……………1
115000768 M3x12 Screw
…………4
115000879
Plastic Bushing
115000768 M3x18
L
R
115000769 M3x8
11500714
Receiver Cover
115000768 M3x8
203000001
Antenna Pipe
Receiver
115000770 M3x5
115000769 M3x8 Screw
……………1
115000770 M3x5 Screw
115000768 M3x12
115000775 3x7x0.8
…………………1
Servo
Assemble both Left and Right / Beide Seiten gleich montieren
L
R
Assemblez gauche et droit
16
115000714
Receiver Box
115000716
Servo Mount
Page 20
Receiver/Servo / Empfänger/Servo
34
L'alimentation du/récepteur
115000769 M3x10 Screw
……………5
115000769 M3x10
Battery / Batterie / Batterie
35
115000778
Battery Mount
115000769 M3x10
x2
Battery
X
115000778
Velcro Tape
Must be purchased separately / Nicht im Lieferumfang enthalten
X
Non fourni
17
Assemble as many times as specified / Anzahl der ben. Teile
x2
Assemblez autant de fois que spécifié
Page 21
Battery / Batterie / Batterie
36
115000769 M3x8 Screw
……………8
Electronic speed controller / Fahrtenregler
37
Régulateur de vitesse électronique
Electronic speed controller
115000769 M3x8
Double-sided tape
18
Page 22
Wing / Spoiler / Becquet
38
115000768 M3x12 Screw
115000768 M3x12
…………2
242000016
Wing
115000767
Wing Screw Washer
Tyre / Reifen / Mature /
39
<L>
115000864
Tyre
Assemble as many times as specified / Anzahl der ben. Teile
x2
Assemblez autant de fois que spécifié
x2
115000864
Tyre Sponge
19
115000890
Rim
115000864
Tyre
<R>
115000864
Tyre Sponge
x2
115000890
Rim
Page 23
Tyre / Reifen / Matures
40
Glue
Glue
Tyre / Reifen / Matures
41
115000886
17mm Hex Nut
<L>
……4
x2 x2
<R>
L
R
Assemble both Left and Right / Beide Seiten gleich montieren
L
R
Assemblez gauche et droit
20
115000886
17mm Hex Nut
Assemble as many times as specified / Anzahl der ben. Teile
x2
Assemblez autant de fois que spécifié
Page 24
Body / Karosserie / corps
42
Body
Body / Karosserie / corps
43
203000081 Mid Clip
115000768 M3x6 Screw
………………1
Mid Clip
……2
115000768 M3x6
Mid Clip
21
Page 25

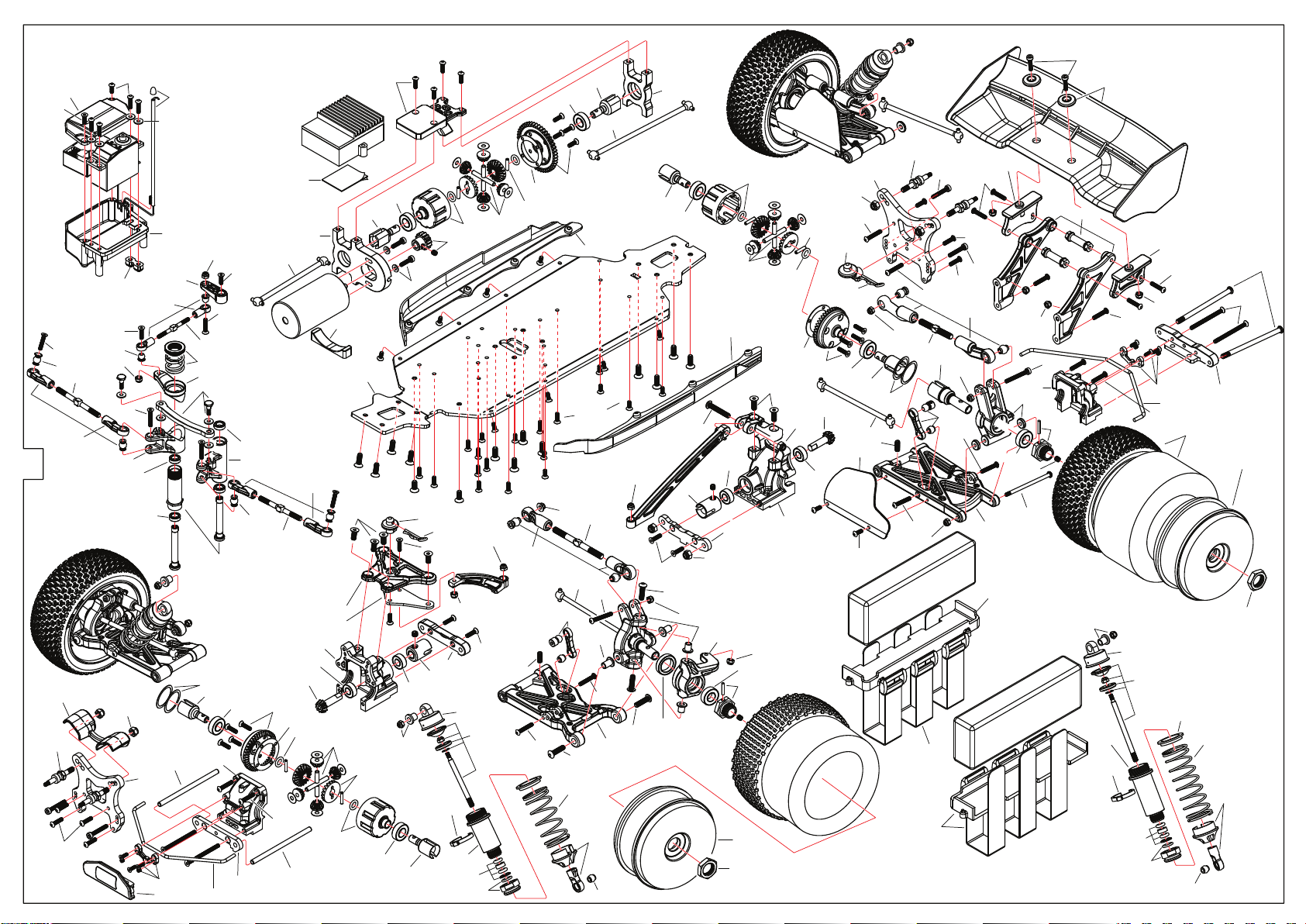

115000700
115000700
115000700
115000700
115000701
115000701
115000701
115000701
115000701
115000701
115000705
115000706
115000706
115000706
115000706
115000706
115000706
115000706
115000708
115000709
115000709
115000709
115000709
115000711
115000711
115000871
115000712
115000712
115000712
115000712
115000712
115000860
115000860
115000860
115000860
115000720
115000861
115000888
115000732
115000732
115000858
115000858
115000735
115000735
115000735
115000735
115000735
115000735
115000858
115000858
115000854
115000854
115000857
115000857
115000337
115000337
115000337
115000337
115000743
115000743
115000851
115000851
115000745
115000745
115000890
115000746
115000746
115000877
115000877
115000852
203000081
203000081
115000758
115000758
115000758
115000759
115000759
115000759
115000759
115000760
115000760
115000760
115000760
115000760
115000762
115000762
115000732
115000732
115000762
115000762
115000888
115000762
115000762
115000762
115000762
115000762
115000762
115000762
115000762
242000016
115000768
115000768
115000768
115000768
115000768
115000768
115000768
115000768
115000768
115000768
115000768
115000768
115000771
115000769
115000769
115000769
115000769
115000769
115000769
115000769
115000769
115000769
115000769
115000769
115000769
115000770
115000771
115000771
115000769
115000771
115000774
115000774
115000855
115000855
115000856
115000862
115000864
115000873
115000873
151000727
151000727
115000882
115000882
115000882
115000882
115000884
115000884
115000884
115000883
115000883
115000883
115000883
115000883
115000883
115000888
115000888
115000888
115000888
115000885
115000885
115000874
115000703
115000704
115000706
115000707
115000707
115000732
115000732
115000700
115000853
115000337
115000890
115000746
115000746
115000761
115000760
115000762
115000762
115000762
115000768
115000768
115000768
115000768
115000768
115000768
115000706
115000770
Explooded View
203000001
115000765
115000778
115000778
115000778
115000782
115000782
115000782
115000781
115000700
115000714
115000714
115000716
115000769
115000768
115000775
115000778
115000778
115000777
115000777
115000769
115000780
22
115000859
115000760
115000706
115000760
115000859
Page 26
Spare Parts List / Ersatzteilliste / Liste des pièces de rechange
3x51.5 Arm Shaft
4x77 Arm Shaft
2pcs
115000856
113mm Drive Shaft
2pcs
1pcs
2pcs
Buffer Screw
Steering Rack
2pcs
3.6x7x0.8 Washer
1pcs
115000857 115000858 115000859 115000861
M5x4 Screw
Center Connecting Cup
2pcs
2pcs
M4x4 Screw
95.5mm Front CVD
Front/Rear Diff Connecting Cup
115000860 115000862
Front Arm Mount-F
Front Arm Mount-R
1pcs
1pcs
Rear Arm Mount-F
Rear Arm Mount-R
1pcs
1pcs
Rear Shock Tower
1pcs
2pcs
2pcs
2pcs
115000854
M4x4 Screw
Rear Wheel Shaft
Center Diff Connecting Cup
2pcs
2pcs
2pcs
115000864
Tyre
2pcs
Tyre Sponge
2pcs
115000855115000851 115000852 115000853
86mm Drive Shaft
Front Shock Tower
1pcs
115000871
1pcs
Cover-Front Shock
1pcs
115000872
3.6x7x0.8 Washer
6pcs
115000894
Chassis
1pcs
115000778
1pcs
36mm
1pcs
Motor Mount
Front Chassis Stiffener
42mm
1pcs
Center Differential Plate
1pcs
M3x10 Screw
115000873
6.8 Ball stud
4pcs
115000782
1pcs
Motor Mount
Battery Mount
4pcs
M3x12 Screw
2pcs
3x7x0.8 Washer
2pcs
2pcs
115000874
Buffer Plate-Aluminium
1pcs
Center Differential Mount
Velcro Tape
1pcs
6pcs
115000877
1pcs
1pcs
1pcs
Servo Saver Set
115000781
15T Pinion Gear
1pcs
2pcs
M4x4 Screw
115000869 / 115000870
Body rtr/kit
115000777
Side Plate-Right
1pcs
Side Plate-Left
115000700 115000701
Differential Housing
1pcs
O-ring
O 1pcs
Differential Pads
1pcs
Swaybar Mount
1pcs
1pcs
1pcs
1pcs
1pcs
M3x3 2pcs
M2.5x8 3pcs
Differential Case
1pcs
115000703
Front Hub Carrier Bushing
Front Hub Carriers 12 Degree
4pcs
1pcs
1pcs
115000704 115000706
Left 1pcs
Steering Block
Right 1pcs
6.8 Ball End-Swaybar
5.8 Ball End-Steering Servo
7.8 Ball End-Rear Upper
6.8 Ball End-Steering
7.8 Ball End-Front Upper
Page 27
Spare Parts List / Ersatzteilliste / Liste des pièces de rechange
115000705
Left 1pcs
Rear Hub Carriers
115000711
Dirtcover Rear-Left
1pcs
115000716
1mm
1.5mm
2pcs
2pcs
Transponder Mount
Right 1pcs
Washer
4pcs
Dirtcover Rear-Right
Front Bumper
1pcs
2mm
2pcs
Servo Mount
1pcs
1pcs
115000707 115000708 115000709
Front Lower Arm
Left 1pcs
Right 1pcs
King Pin Bushing
4pcs
Rear Lower Arm
Left 1pcs
Right 1pcs
2pcs
Buffer Plate-Plastic
1pcs
Rear Chassis Stiffener Mount
Buffer Plate-Aluminium
1pcs
1pcs
115000712 115000714
Left
Left
1pcs
Right
1pcs
Wing Mount&Body Mount
Right
1pcs
1pcs
2pcs
Front
1pcs
Rear
1pcs
Battery Cover
1pcs
Switch Mount
Battery Box
1pcs
115000719 115000720 115000732 115000735
2pcs
3.6x12x0.2 Washer
4pcs
Diff Shaft
2pcs
2.5x11.5 Pin
2pcs
10T Gear
M3x12 Screw
3pcs
Front Chassis Stiffener
Rear Chassis Stiffener
1pcs
1pcs
1pcs 1pcs 1pcs
1pcs 1pcs1pcs
Servo Arm
20T Diff Gear
10T Diff Gear
4pcs
1pcs
4pcs
O-ring
Left 1pcs
43T Front/Rear Diff Gear
1pcs
Top 1pcs
Bottom 1pcs
Receiver Cover
1pcs
Receiver Box
1pcs
1pcs
115000880
O-ring
O
44T Center Diff Gear
1pcs
M3x12 Screw
115000746
Wheel Hex Hub
4pcs
2.5x16.8 Pin
17mm Hex Nut
4pcs
2.5x16.8
4pcs
115000761 242000016
115000741 115000743 115000745 115000890
1pcs
4pcs
Turnbuckle Set
203000081
Mid Clip
8pcs
3x40 1pcs
4x53 2pcs
5x40 2pcs
5x58 2pcs
4x73 Arm Shaft
2pcs
115000758 115000759 115000760
6x10x3 Ball Bearing
6pcs 6pcs 6pcs
1pcs
1pcs
Front/Rear Swaybar
6x13x5 Ball Bearing
115000762 115000763
8x16x5 Ball Bearing
M3.5 Nylon Nut
6pcs
M2.5 Nylon Nut
6pcs
Wing
Wing Screw Washer
13x19x4 Ball Bearing
6pcs
M3 Nylon Nut
6pcs
M4 Nylon Nut
3.0x11x0.5 Washer
6pcs
6pcs
Rim
2pcs
1pcs
2pcs
115000768
M3x5 Screw
8pcs
M3x6 Screw
8pcs
M3x8 Screw
8pcs
M3x10 Screw
M3x12 Screw
8pcs
M3x16 Screw
8pcs
M3x18 Screw
8pcs8pcs
M3x30 Screw
8pcs
M3.5x25 Screw
8pcs
M4x10 Screw
M4x14 Screw
M4x16 Screw
8pcs
8pcs
8pcs
M4x22 Screw
8pcs
Page 28
Spare Parts List / Ersatzteilliste / Liste des pièces de rechange
115000769
M2.5x8 Screw
115000770
M3x3 Screw
M3x5 Screw
M4x4 Screw
M5x4 Screw
Front Shock Shaft
4pcs
Shock Piston-1.2
8pcs
M3x10 Screw
8pcs
M3x12 Screw
8pcs
8pcs
8pcs
M4x10 Screw
8pcs
2pcs
2pcs
4pcs
Shock Piston-1.4
8pcs
115000771
8pcs
3.1x7x0.4 Washer
4pcs
Rear Shock Shaft
4pcs
1.2mm Plastic Washer
4pcs
3.8x2.3 O-ring
8pcs
3mm
Plastic Washer
M3x14 Screw
M3x15 Screw
M3x16 Screw
M2.5x8 Screw
M2.5x18 Screw
M3x10 Screw
M3x12 Screw
M3 Nylon Nut
Diaphragm
4pcs
4pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
Top Spring Mount
Below Spring Mount
Ball End-Short
Ball End-Long
M4x10 Screw
4pcs
4pcs
6.8x6.3 Ball stud
4pcs
4pcs
M3x18 Screw
4pcs
8pcs
M3x35 Screw
8pcs
M3x14 Screw
8pcs
M3x18 Screw
M3x20 Screw
M3x25 Screw
115000883
4pcs
4pcs
Shock Body
2pcs
8pcs
8pcs
8pcs
8pcs
2pcs
4pcs
M4x12 Screw
M4x14 Screw
115000727
Front Shock Spring
Rear Shock Spring
115000879115000882 115000884
4pcs
M3
4pcs
4pcs
Shock absorber Mount
2pcs
2pcs
8pcs
M4
4pcs
8pcs
115000885
4pcs 4pcs
1mm Adjust Ring
4pcs
2mm Adjust Ring
3mm Adjust Ring
4pcs
5mm Adjust Ring
115000774 115000775 115000893
115000765
Antenna cover
1pcs
1pcs
3x7x0.8 Washer
10pcs
3.1x7x0.4 Washer
6pcs
142000240
13.1x15.9x0.2 Washer
6pcs
Double-sided tape
1pcs
Antenna pipe
115000892115000891
Brushless Motor 1900 KV
142000230
127000050
Brushless Controller
Front Shock Absorber
2Set
Rear Shock Absorber
2Set
Page 29
Driver
Track / City
SETUP SHEET
Conditions
Sandy Soft dirt Grass Hard soil Clay
Front Suspension
3
2
1
1
2
3
Smooth Bumpy Low traction Med traction High traction
Shock Mounting&Camber link
Anti-roll bar:
°
2
1
Camber
mm
Event
Wet Dry Dusty Other
1
Ride height
3
mm
Date
2
/
/
Front Shocks
mm
mm
Oil wt
Piston #
Rear Suspension
3
2
1
1
2
3
1
2
Ride height
Front Tires&Wheels
Front Tires
Inserts
Shock Mounting&Camber link
Anti-roll bar:
Camber
2
1
1
mm
°
2
Rear Tires&Wheels
Rear Tires
Wheels
Inserts
1
2
Wheelbase
Long
Medium
Short
Wheels
Rear Shocks
2
1
mm
mm
Oil wt
Piston #
Other
Engine
Pinion/Spur
/
Comments
Notes
Page 30
Service:
ANSMANN AG Division Racing
Abt. Service
Industriestr. 10
97959 Assamstadt
Tel.: +49 (0) 6294-4204-34
Fax.: +49 (0) 6294-4204-47
,
ANSMANN AG
DIVISION RACING
Thomas-Mann-Str.63
D-90471 Nuernberg
Germany
Tel.: +49 (0) 911 817 44 0
Fax.: +49 (0) 911 817 44 22
email: [email protected]
Loading...
