cell type:
Ni-Zn (Nickel-Zinc)
cell size:
AAA; ZR3
Conditions
nominal voltage:
1.65
V
capacity
ta: 20°C; E.V.(Discharge End Voltage)
nominal:
550
mAh
discharge at 0.2C
to E.V. 1.3V
minimum:
505
mAh
discharge at 0.2C
to E.V. 1.3V
475
mAh
discharge at 1C
to E.V. 1.2V
discharge
ta: 0....50°C
max. continuous
discharge current:
1.65A(3C)
discharge end voltage:
1.1
V
charge
charge method:
CC - CV
(Constant Current - Constant Voltage)
recommended charge current
at standard charge:
110mA(0.2C)
at fast charge:
550mA(1C)
max. charge current:
550mA(1C)
charge voltage (standard):
1.9V± 20mV
temperature compensated:
1.9V-(0.003x(T-25°C))V
charging cut off
8hat standard charge
by time:
2.5hat fast charge
by current:
18
mA
internal resistance:
≤ 40
mΩat 1KHz; sine wave
(impedance)
battery fully charged
life expectance
at 0.2C charge /
0.5C discharge:
≥ 300
cycles
(>70% of min. capacity)
self discharge
after 28 days
charge retention:
≥ 70%storage at 20°C
ambient temperature
range:
0...45
°C
charge
-
20...65
°C
discharge
-
20...30
°C
storage max. 1year
-
20...40
°C
storage max. 3months
-
20...50
°C
storage max. 30days
QCT1:
20/480/50
QCT2:
30/450/55
mechanical specifications
cell dimensions
diameter d1:
10.5
- 0.7
mm
diameter d2:
max.
3.8
mm
height h1:
44.5
- 1.5
mm
height h2:
min.
0.8
mm
weight:
11
± 2
g
shrink package dimensions:
42 x 45 x 11
mm
shrink package weight:
45
g
35

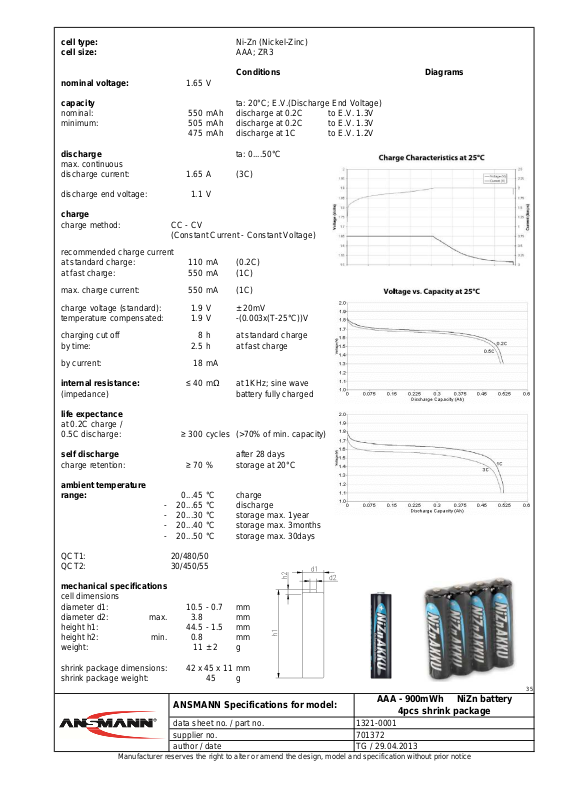

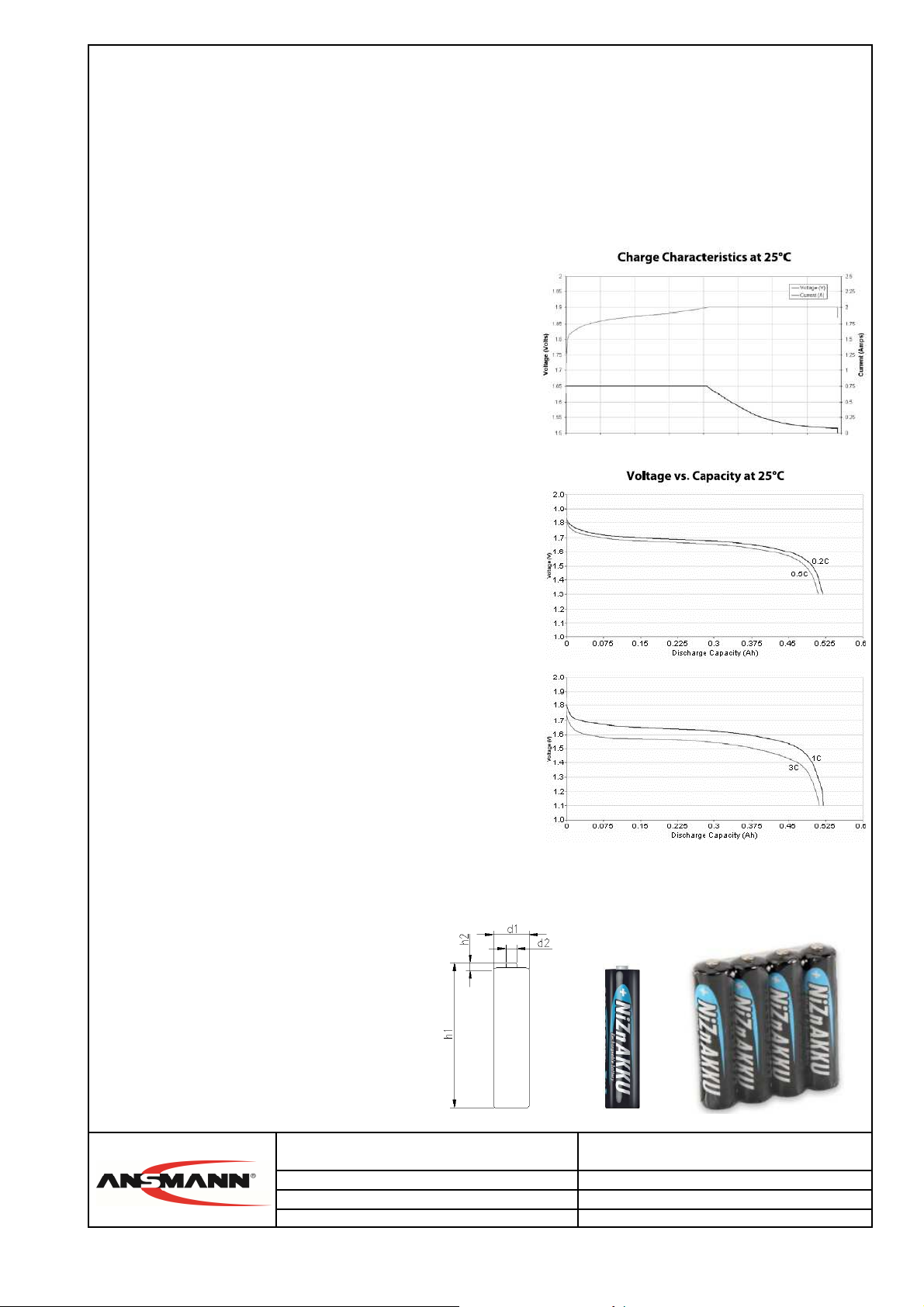

AAA - 900mWh NiZn battery
Diagrams
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
ANSMANN Specifications for model:
data sheet no. / part no.
1321-0001
4pcs shrink package
701372 supplier no.
author / date TG / 29.04.2013
