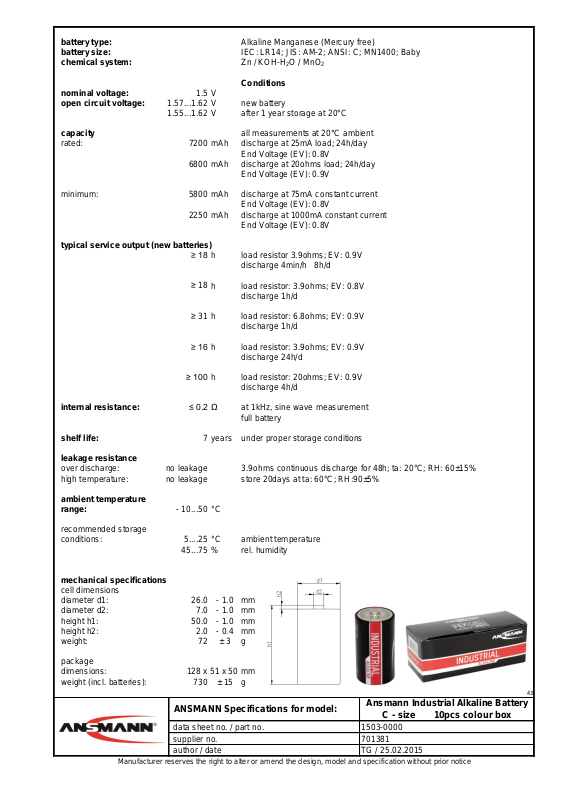

battery type: Alkaline Manganese (Mercury free)
battery size: IEC: LR14; JIS: AM-2; ANSI: C; MN1400; Baby
chemical system: Zn / KOH-H2O / MnO
2
Conditions
nominal voltage: 1.5 V
open circuit voltage: 1.57...1.62 V new battery
1.55...1.62 V after 1 year storage at 20°C
capacity all measurements at 20°C ambient
rated: 7200 mAh discharge at 25mA load; 24h/day
End Voltage (EV): 0.8V
6800 mAh discharge at 20ohms load; 24h/day
End Voltage (EV): 0.9V
minimum: 5800 mAh discharge at 75mA constant current
End Voltage (EV): 0.8V
2250 mAh discharge at 1000mA constant current
End Voltage (EV): 0.8V
typical service output (new batteries)
≥ 18 h load resistor 3.9ohms; EV: 0.9V
discharge 4min/h 8h/d
≥ 18
h load resistor: 3.9ohms; EV: 0.8V
discharge 1h/d
≥ 31
h load resistor: 6.8ohms; EV: 0.9V
discharge 1h/d
≥ 16 h load resistor: 3.9ohms; EV: 0.9V
discharge 24h/d
≥ 100 h load resistor: 20ohms; EV: 0.9V
discharge 4h/d
internal resistance: ≤ 0.2 Ω at 1kHz, sine wave measurement
full battery
shelf life: 7 years under proper storage conditions
leakage resistance
over discharge: no leakage 3.9ohms continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature: no leakage store 20days at ta: 60°C; RH:90±5%
ambient temperature
range: - 10...50 °C
recommended storage
conditions: 5....25 °C ambient temperature
45...75 % rel. humidity
mechanical specifications
cell dimensions
diameter d1: 26.0 - 1.0 mm
diameter d2: 7.0 - 1.0 mm
height h1: 50.0 - 1.0 mm
height h2: 2.0 - 0.4 mm
weight: 72 ± 3 g
package
dimensions: 128 x 51 x 50 mm
weight (incl. batteries): 730 ± 15 g
43
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
author / date
supplier no.
Ansmann Industrial Alkaline Battery
C - size 10pcs colour box
1503-0000
701381
TG / 25.02.2015
ANSMANN Specifications for model:
data sheet no. / part no.
