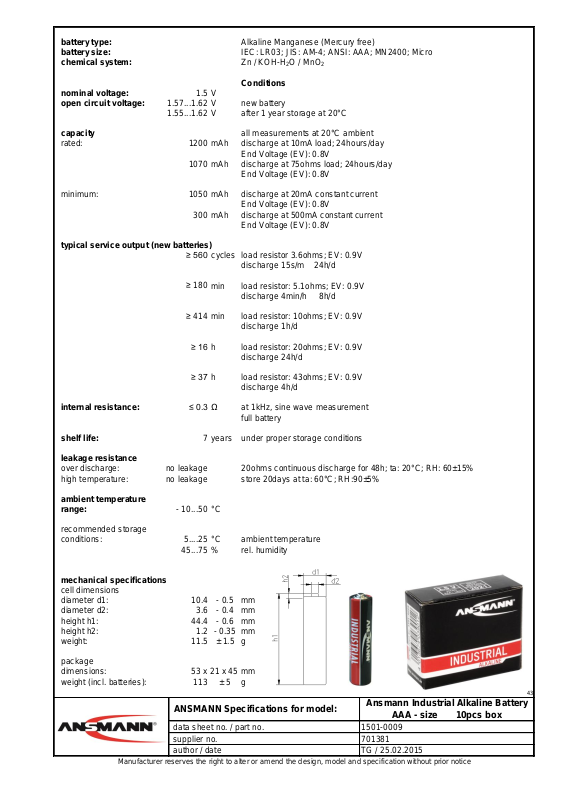

battery type: Alkaline Manganese (Mercury free)
battery size: IEC: LR03; JIS: AM-4; ANSI: AAA; MN2400; Micro
chemical system: Zn / KOH-H2O / MnO
2
Conditions
nominal voltage: 1.5 V
open circuit voltage: 1.57...1.62 V new battery
1.55...1.62 V after 1 year storage at 20°C
capacity all measurements at 20°C ambient
rated: 1200 mAh discharge at 10mA load; 24hours/day
End Voltage (EV): 0.8V
1070 mAh discharge at 75ohms load; 24hours/day
End Voltage (EV): 0.8V
minimum: 1050 mAh discharge at 20mA constant current
End Voltage (EV): 0.8V
300 mAh discharge at 500mA constant current
End Voltage (EV): 0.8V
typical service output (new batteries)
≥ 560 cycles load resistor 3.6ohms; EV: 0.9V
discharge 15s/m 24h/d
≥ 180
min load resistor: 5.1ohms; EV: 0.9V
discharge 4min/h 8h/d
≥ 414
min load resistor: 10ohms; EV: 0.9V
discharge 1h/d
≥ 16 h load resistor: 20ohms; EV: 0.9V
discharge 24h/d
≥ 37 h load resistor: 43ohms; EV: 0.9V
discharge 4h/d
internal resistance: ≤ 0.3 Ω at 1kHz, sine wave measurement
full battery
shelf life: 7 years under proper storage conditions
leakage resistance
over discharge: no leakage 20ohms continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature: no leakage store 20days at ta: 60°C; RH:90±5%
ambient temperature
range: - 10...50 °C
recommended storage
conditions: 5....25 °C ambient temperature
45...75 % rel. humidity
mechanical specifications
cell dimensions
diameter d1: 10.4 - 0.5 mm
diameter d2: 3.6 - 0.4 mm
height h1: 44.4 - 0.6 mm
height h2: 1.2 - 0.35 mm
weight: 11.5 ± 1.5 g
package
dimensions: 53 x 21 x 45 mm
weight (incl. batteries): 113 ± 5 g
43
ANSMANN Specifications for model:
data sheet no. / part no.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
author / date
supplier no.
Ansmann Industrial Alkaline Battery
AAA - size 10pcs box
1501-0009
701381
TG / 25.02.2015
