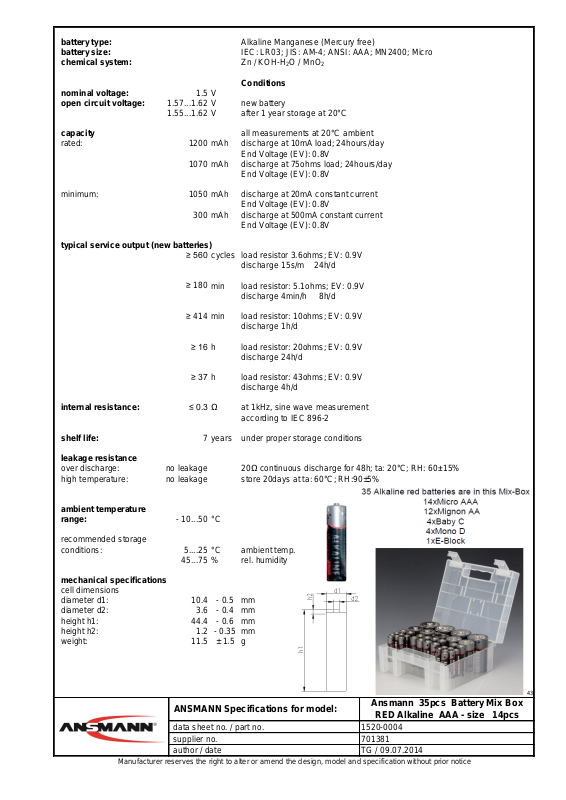

battery type: Alkaline Manganese (Mercury free)
battery size: IEC: LR03; JIS: AM-4; ANSI: AAA; MN2400; Micro
chemical system: Zn / KOH-H2O / MnO
2
Conditions
nominal voltage: 1.5 V
open circuit voltage: 1.57...1.62 V new battery
1.55...1.62 V after 1 year storage at 20°C
capacity all measurements at 20°C ambient
rated: 1200 mAh discharge at 10mA load; 24hours/day
End Voltage (EV): 0.8V
1070 mAh discharge at 75ohms load; 24hours/day
End Voltage (EV): 0.8V
minimum: 1050 mAh discharge at 20mA constant current
End Voltage (EV): 0.8V
300 mAh discharge at 500mA constant current
End Voltage (EV): 0.8V
typical service output (new batteries)
≥ 560 cycles load resistor 3.6ohms; EV: 0.9V
discharge 15s/m 24h/d
≥ 180
min load resistor: 5.1ohms; EV: 0.9V
discharge 4min/h 8h/d
≥ 414
min load resistor: 10ohms; EV: 0.9V
discharge 1h/d
≥ 16 h load resistor: 20ohms; EV: 0.9V
discharge 24h/d
≥ 37 h load resistor: 43ohms; EV: 0.9V
discharge 4h/d
internal resistance: ≤ 0.3 Ω at 1kHz, sine wave measurement
according to IEC 896-2
shelf life: 7 years under proper storage conditions
leakage resistance
over discharge: no leakage
20Ω continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature: no leakage store 20days at ta: 60°C; RH:90±5%
ambient temperature
range: - 10...50 °C
recommended storage
conditions: 5....25 °C ambient temp.
45...75 % rel. humidity
mechanical specifications
cell dimensions
diameter d1: 10.4 - 0.5 mm
diameter d2: 3.6 - 0.4 mm
height h1: 44.4 - 0.6 mm
height h2: 1.2 - 0.35 mm
weight: 11.5 ± 1.5 g
43
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
author / date
supplier no.
Ansmann 35pcs Battery Mix Box
RED Alkaline AAA - size 14pcs
1520-0004
701381
TG / 09.07.2014
ANSMANN Specifications for model:
data sheet no. / part no.

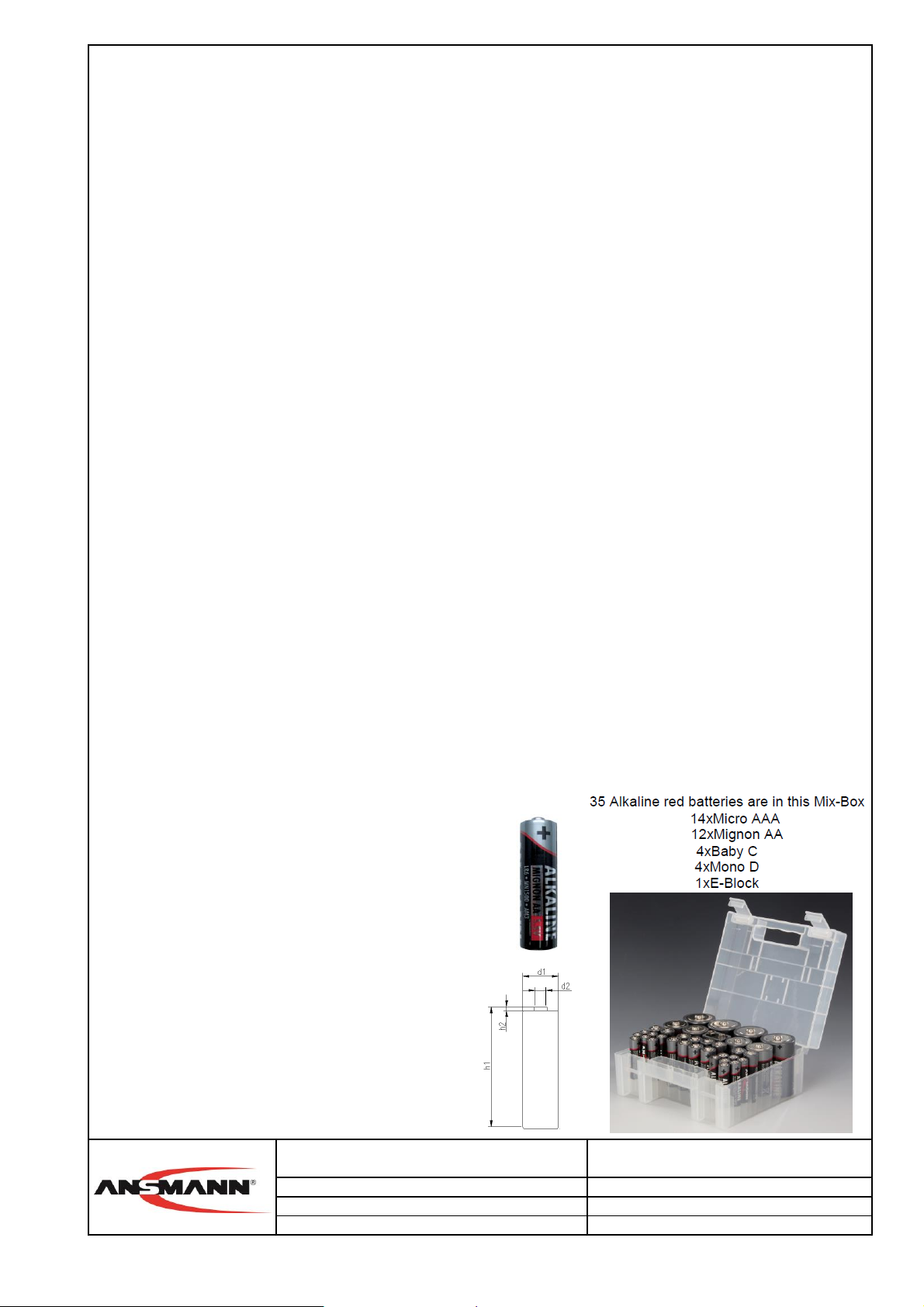

battery type: Alkaline Manganese (Mercury free)
battery size: IEC: LR6; JIS: AM-3; ANSI: AA; MN1500; Mignon
chemical system: Zn / KOH-H2O / MnO
2
Conditions
nominal voltage: 1.5 V
open circuit voltage: 1.57...1.62 V new battery
1.55...1.62 V after 1 year storage at 20°C
capacity all measurements at 20°C ambient
rated: 2700 mAh discharge at 10mA load; 24hours/day
End Voltage (EV): 0.8V
2400 mAh discharge at 75ohms load; 24hours/day
End Voltage (EV): 0.8V
minimum: 2200 mAh discharge at 35mA constant current
End Voltage (EV): 0.8V
700 mAh discharge at 1000mA constant current
End Voltage (EV): 0.8V
typical service output (new batteries)
≥ 330 cycles discharge at 1000mA; EV: 0.9V
discharge 10s/m 1h/d
≥ 79
h load resistor: 43ohms; EV: 0.9V
discharge 4h/d
≥ 38
min discharge at 1000mA; EV: 0.9V
discharge 24h/d
≥ 17.5 h load resistor: 10ohms; EV: 0.9V
discharge 24h/d
≥ 6.2 h discharge at 250mA; EV: 0.9V
discharge 1h/d
internal resistance: ≤ 0.25 Ω at 1kHz, sine wave measurement
according to IEC 896-2
shelf life: 7 years under proper storage conditions
leakage resistance
over discharge: no leakage
10Ω continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature: no leakage store 20days at ta: 60°C; RH:90±5%
ambient temperature
range: - 10...50 °C
recommended storage
conditions: 5....25 °C ambient temp.
45...75 % rel. humidity
mechanical specifications
cell dimensions
diameter d1: 14.4 - 0.5 mm
diameter d2: 5.4 - 0.5 mm
height h1: 50.4 - 0.5 mm
height h2: 1.7 - 0.5 mm
weight: 23 ± 2 g
43
ANSMANN Specifications for model:
Ansmann 35pcs Battery Mix Box
RED Alkaline AA - size 12pcs
data sheet no. / part no.
1520-0004
supplier no.
701381
author / date
TG / 09.07.2014
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
battery type: Alkaline Manganese (Mercury free)
battery size: IEC: LR14; JIS: AM-2; ANSI: C; MN1400; Baby
chemical system: Zn / KOH-H2O / MnO
2
Conditions
nominal voltage: 1.5 V
open circuit voltage: 1.57...1.62 V new battery
1.55...1.62 V after 1 year storage at 20°C
capacity all measurements at 20°C ambient
rated: 7200 mAh discharge at 25mA load; 24h/day
End Voltage (EV): 0.8V
6800 mAh discharge at 20ohms load; 24h/day
End Voltage (EV): 0.9V
minimum: 5800 mAh discharge at 75mA constant current
End Voltage (EV): 0.8V
2250 mAh discharge at 1000mA constant current
End Voltage (EV): 0.8V
typical service output (new batteries)
≥ 18 h load resistor 3.9ohms; EV: 0.9V
discharge 4min/h 8h/d
≥ 18
h load resistor: 3.9ohms; EV: 0.8V
discharge 1h/d
≥ 31
h load resistor: 6.8ohms; EV: 0.9V
discharge 1h/d
≥ 16 h load resistor: 3.9ohms; EV: 0.9V
discharge 24h/d
≥ 100 h load resistor: 20ohms; EV: 0.9V
discharge 4h/d
internal resistance: ≤ 0.2 Ω at 1kHz, sine wave measurement
according to IEC 896-2
shelf life: 7 years under proper storage conditions
leakage resistance
over discharge: no leakage 3.9ohms continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature: no leakage store 20days at ta: 60°C; RH:90±5%
ambient temperature
range: - 10...50 °C
recommended storage
conditions: 5....25 °C ambient temp.
45...75 % rel. humidity
mechanical specifications
cell dimensions
diameter d1: 26.0 - 1.0 mm
diameter d2: 7.0 - 1.0 mm
height h1: 50.0 - 1.0 mm
height h2: 2.0 - 0.4 mm
weight: 72 ± 3 g
43
supplier no.
701381
author / date
TG / 09.07.2014
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
ANSMANN Specifications for model:
Ansmann 35pcs Battery Mix Box
RED Alkaline C - size 4pcs
data sheet no. / part no.
1520-0004
battery type: Alkaline Manganese (Mercury free)
battery size: IEC: LR20; JIS: AM-1; ANSI: D; MN1300; Mono
chemical system: Zn / KOH-H2O / MnO
2
Conditions
nominal voltage: 1.5 V
open circuit voltage: 1.57...1.62 V new battery
1.55...1.62 V after 1 year storage at 20°C
capacity all measurements at 20°C ambient
rated: 16000 mAh discharge at 25mA load; 24h/day
End Voltage (EV): 0.8V
13500 mAh discharge at 10ohms load; 24h/day
End Voltage (EV): 0.9V
minimum: 11500 mAh discharge at 100mA constant current
End Voltage (EV): 0.8V
4500 mAh discharge at 1000mA constant current
End Voltage (EV): 0.8V
typical service output (new batteries)
≥ 18.5 h load resistor 2.2ohms; EV: 0.9V
discharge 4min/h 8h/d
≥ 35
h load resistor: 3.9ohms; EV: 0.9V
discharge 1h/d
≥ 20.5
h load resistor: 2.2ohms; EV: 0.8V
discharge 1h/d
≥ 16.5 h load resistor: 2.2ohms; EV: 0.9V
discharge 24h/d
≥ 112 h load resistor: 10ohms; EV: 0.9V
discharge 4h/d
internal resistance: ≤ 0.15 Ω at 1kHz, sine wave measurement
according to IEC 896-2
shelf life: 5 years under proper storage conditions
leakage resistance
over discharge: no leakage 2.2ohms continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature: no leakage store 20days at ta: 60°C; RH:90±5%
ambient temperature
range: - 10...50 °C
recommended storage
conditions: 5....25 °C ambient temp.
45...75 % rel. humidity
mechanical specifications
cell dimensions
diameter d1: 34.0 - 1.0 mm
diameter d2: 9.0 - 1.0 mm
height h1: 61.0 - 1.4 mm
height h2: 3.0 - 0.5 mm
weight: 138 ± 7 g
43
1520-0004
Version no.
701381
author / date
TG / 09.07.2014
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
ANSMANN Specifications for model:
Ansmann 35pcs Battery Mix Box
RED Alkaline D - size 4pcs
data sheet no. / part no.
battery type: Alkaline Manganese (Mercury free)
battery size: IEC: 6LR61; JIS: 6AM6; ANSI: E; MN1604; 9V-Block
chemical system: Zn / KOH-H2O / MnO
2
Conditions
nominal voltage: 9 V
open circuit voltage: 9.2...9.8 V new battery
9.0...9.8 V after 1 year storage at 20°C
capacity all measurements at 20°C ambient
rated: 500 mAh discharge at 35mA load; 24hours/day
End Voltage (EV): 5.4V
minimum: 525 mAh discharge at 10mA constant current
End Voltage (EV): 5.4V
350 mAh discharge at 75mA constant current
End Voltage (EV): 5.4V
typical service output (new batteries)
≥ 13 h discharge at 35mA constant current; EV: 5.4V
discharge 24h/d
≥ 18 h discharge at 270Ω resistive load; EV: 5.4V
discharge 1h/d
≥ 47 h discharge at 620Ω resistive load; EV: 5.4V
discharge 2h/d
≥ 17 d discharge at 10KΩ resistive load (continuous); additional pulse load
at 620Ω for 1s/h; EV: 7.5V
internal resistance: ≤ 4 Ω at 1kHz, sine wave measurement
according to IEC 896-2
shelf life: 5 years under proper storage conditions
leakage resistance
over discharge: no leakage 20ohms continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature: no leakage store 20days at ta: 60°C; RH:90±5%
ambient temperature
range: - 10...50 °C
recommended storage
conditions: 5....25 °C ambient temp.
45...75 % rel. humidity
mechanical specifications
cell dimensions
length L1: 26.5 -2 mm
length L2: 17.5 -2 mm
length L3: 12.7 ± 0.25 mm
height h1: 48.5 -2 mm
weight: 45 ± 3 g
plastic battery box:
dimensions: 138 x 128 x 65 mm
weight (assembled): 1480 ± 50 g
43
701381
author / date
TG / 09.07.2014
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
ANSMANN Specifications for model:
Ansmann 35pcs Battery Mix Box
RED Alkaline 9V E-Block 1pc
data sheet no. / part no.
1520-0004
Version no.
