battery type:
Alkaline Manganese (Mercury free)
battery size:
IEC: LR20; JIS: AM-1; ANSI: D; MN1300; Mono
chemical system:
Zn / KOH-H
2
O / MnO
Conditions
nominal voltage:
1.5
V
open circuit voltage:
1.57...1.62
V
new battery
1.55...1.62
V
after 1 year storage at 20°C
capacity
all measurements at 20°C ambient
rated:
18000
mAh
discharge at 25mA load; 24h/day
End Voltage (EV): 0.8V
15000
mAh
discharge at 10ohms load; 24h/day
End Voltage (EV): 0.9V
minimum:
14000
mAh
discharge at 100mA constant current
End Voltage (EV): 0.8V
5500
mAh
discharge at 1000mA constant current
End Voltage (EV): 0.8V
typical service output (new batteries)
≥ 20hdischarge at 2.2
Ω
resistive load; EV: 0.9V
discharge 4min/h 8h/d
≥
21hdischarge at 2.2
Ω
resistive load; EV: 0.8V
discharge 1h/d
≥
14hdischarge at 600mA constant current
discharge 2h/d
≥ 17.5
h
discharge at 2.2
Ω
resistive load; EV: 0.9V
discharge 24h/d
≥ 122
h
discharge at 10
Ω resistive load; EV: 0.9V
discharge 4h/d
internal resistance:
≤ 0.15
Ω
at 1kHz, sine wave measurement
according to IEC 896-2
shelf life:
7
years
under proper storage conditions
leakage resistance
over discharge:
no leakage
2.2ohms continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature:
no leakage
store 20days at ta: 60°C; RH:90±5%
ambient temperature
range:
- 10...50
°C
recommended storage
conditions:
5....25
°C
ambient temperature
45...75
%
rel. humidity
mechanical specifications
cell dimensions
diameter d1:
34.0
- 1.0
mm
diameter d2:
9.0
- 1.0
mm
height h1:
61.0
- 1.4
mm
height h2:
3.0
- 0.5
mm
weight:
140
± 5
g
blister card
dimensions:
120 x 85
mm
weight (incl. batteries):
280
± 15
g

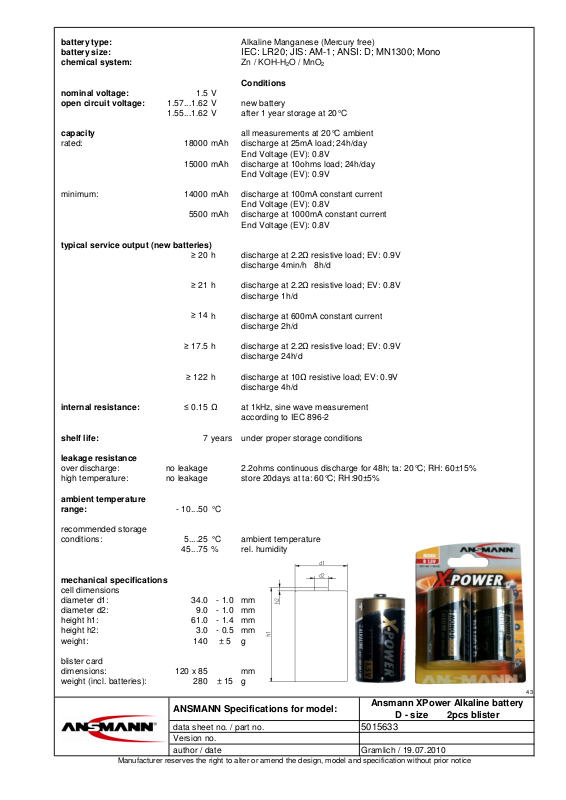

Ansmann XPower Alkaline battery
2
ANSMANN Specifications for model:
data sheet no. / part no.
Version no.
author / date
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
43
D - size 2pcs blister
5015633
Gramlich / 19.07.2010
