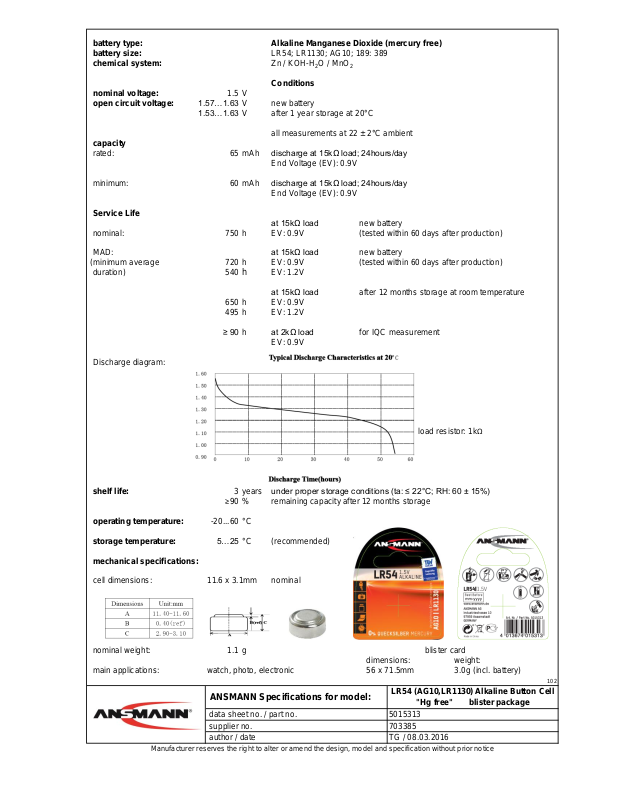

battery type: Alkaline Manganese Dioxide (mercury free)
battery size: LR54; LR1130; AG10; 189: 389
chemical system: Zn / KOH-H2O / MnO
2
Conditions
nominal voltage: 1.5 V
open circuit voltage: 1.57…1.63 V new battery
1.53…1.63 V after 1 year storage at 20°C
all measurements at 22 ± 2°C ambient
capacity
rated: 65 mAh discharge at 15kΩ load; 24hours/day
End Voltage (EV): 0.9V
minimum: 60 mAh discharge at 15kΩ load; 24hours/day
End Voltage (EV): 0.9V
Service Life
at 15kΩ load new battery
nominal: 750 h EV: 0.9V (tested within 60 days after production)
MAD: at 15kΩ load new battery
(minimum average 720 h EV: 0.9V (tested within 60 days after production)
duration) 540 h EV: 1.2V
at 15kΩ load after 12 months storage at room temperature
650 h EV: 0.9V
495 h EV: 1.2V
≥ 90 h at 2kΩ load for IQC measurement
EV: 0.9V

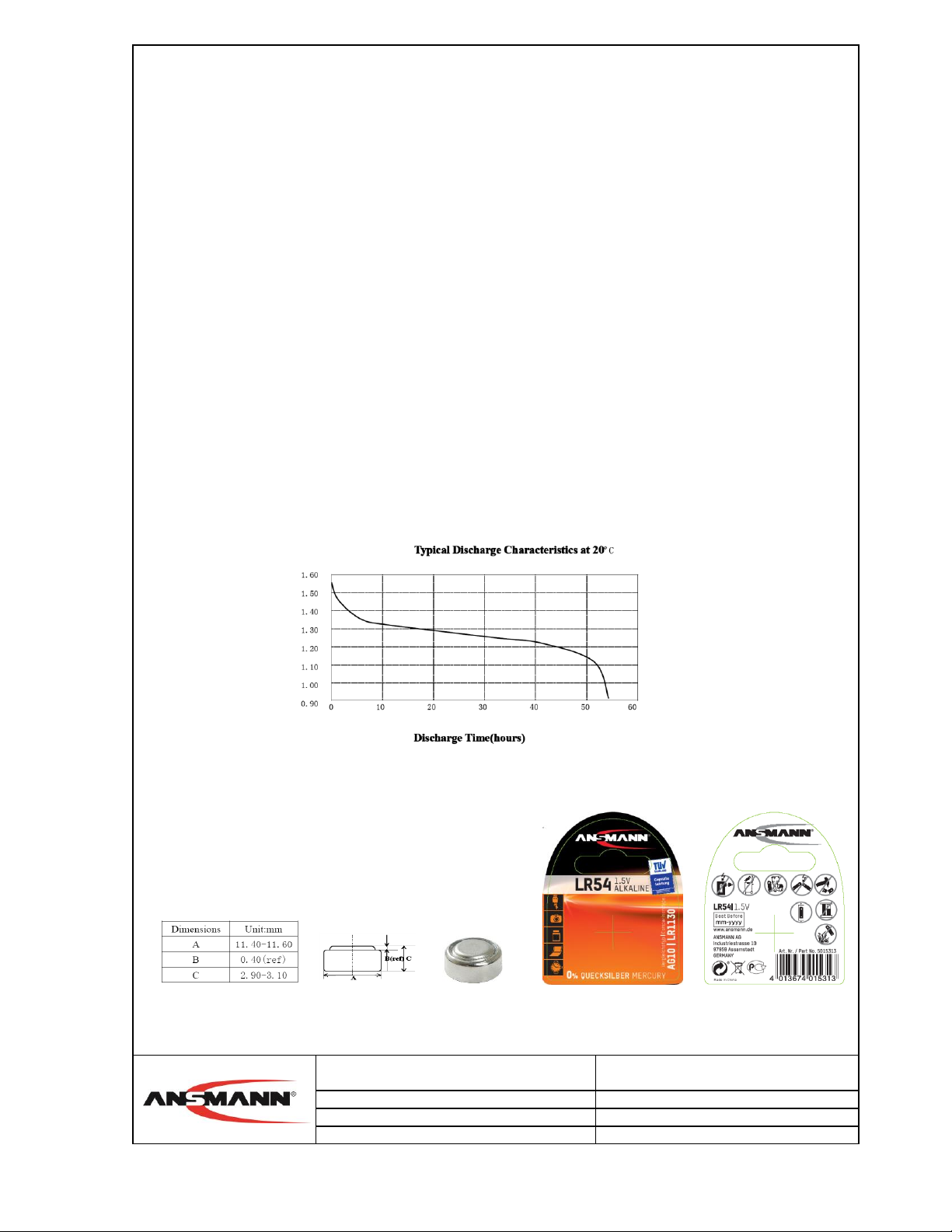

Discharge diagram:
load resistor: 1kΩ
shelf life: 3 years under proper storage conditions (ta: ≤ 22°C; RH: 60 ± 15%)
≥90 % remaining capacity after 12 months storage
operating temperature: -20...60 °C
storage temperature: 5…25 °C (recommended)
mechanical specifications:
cell dimensions: 11.6 x 3.1mm nominal
nominal weight: 1.1 g blister card
dimensions: weight:
main applications: watch, photo, electronic 56 x 71.5mm 3.0g (incl. battery)
102
703385
TG / 08.03.2016
ANSMANN Specifications for model:
data sheet no. / part no.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
author / date
supplier no.
LR54 (AG10,LR1130) Alkaline Button Cell
"Hg free" blister package
5015313
