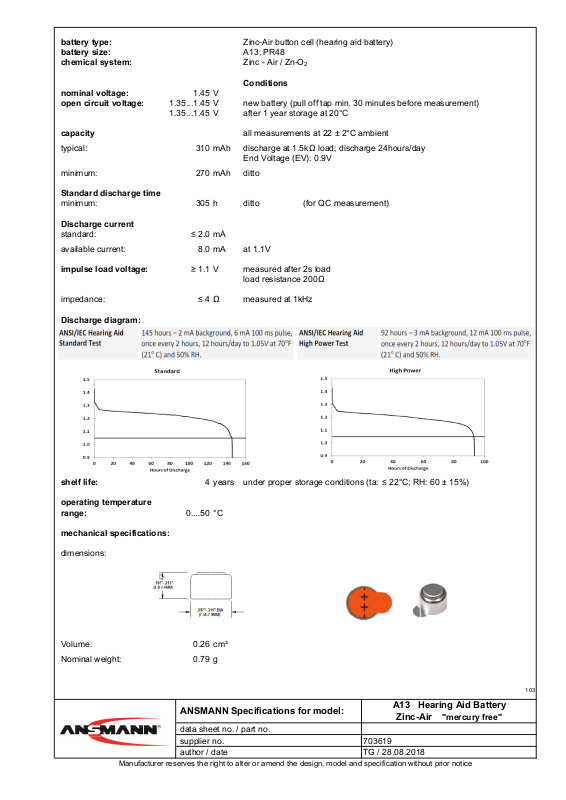

ANSMANN ANS 1516-0147 Datasheet

battery type:
Zinc-Air button cell (hearing aid battery)
battery size:
A13; PR48
Zinc - Air / Zn-O
2
Conditions
nominal voltage:
1.45
V
open circuit voltage:
1.35...1.45
V
new battery (pull off tap min. 30 minutes before measurement)
1.35...1.45
V
after 1 year storage at 20°C
capacity
all measurements at 22 ± 2°C ambient
typical:
310
mAh
discharge at 1.5k
load; discharge 24hours/day
End Voltage (EV): 0.9V
minimum:
270
mAh
ditto
Standard discharge time
minimum:
305hditto
(for QC measurement)
Discharge current
standard:
≤ 2.0
mA
available current:
8.0mAat 1.1V
impulse load voltage:
1.1Vmeasured after 2s load
load resistance 200
impedance:
≤ 4Ωmeasured at 1kHz
Discharge diagram:
shelf life:
4
years
under proper storage conditions (ta:
≤ 22°C; RH: 60 ± 15%)
operating temperature
range:
0....50
°C
mechanical specifications:
dimensions:
Volume:
0.26
cm³
Nominal weight:
0.79
g
A13 Hearing Aid Battery
ANSMANN Specifications for model:
data sheet no. / part no. supplier no. author / date
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
Zinc-Air
703619 TG / 28.08.2018
103
"mercury free"
