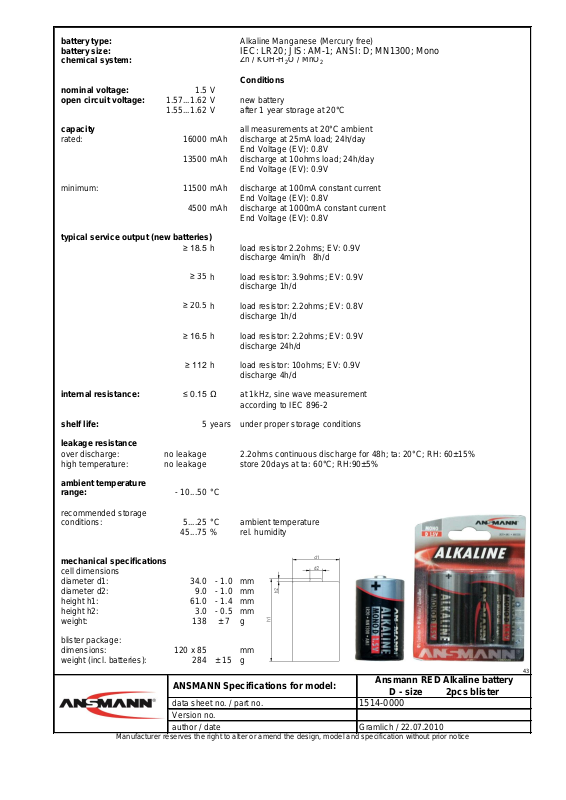

battery type: Alkaline Manganese (Mercury free)
battery size: IEC: LR20; JIS: AM-1; ANSI: D; MN1300; Mono
chemical system:
Zn / KOH-H2O / MnO
2
Conditions
nominal voltage: 1.5 V
open circuit voltage: 1.57...1.62 V new battery
1.55...1.62 V after 1 year storage at 20°C
capacity all measurements at 20°C ambient
rated: 16000 mAh discharge at 25mA load; 24h/day
End Voltage (EV): 0.8V
13500 mAh discharge at 10ohms load; 24h/day
End Voltage (EV): 0.9V
minimum: 11500 mAh discharge at 100mA constant current
End Voltage (EV): 0.8V
4500 mAh
discharge at 1000mA constant current
End Voltage (EV): 0.8V
typical service output (new batteries)
≥ 18.5 h load resistor 2.2ohms; EV: 0.9V
discharge 4min/h 8h/d
≥ 35
h load resistor: 3.9ohms; EV: 0.9V
discharge 1h/d
≥ 20.5
h load resistor: 2.2ohms; EV: 0.8V
discharge 1h/d
≥ 16.5 h load resistor: 2.2ohms; EV: 0.9V
discharge 24h/d
≥ 112 h load resistor: 10ohms; EV: 0.9V
discharge 4h/d
internal resistance: ≤ 0.15 Ω at 1kHz, sine wave measurement
according to IEC 896-2
shelf life: 5 years under proper storage conditions
leakage resistance
over discharge: no leakage
2.2ohms continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature: no leakage store 20days at ta: 60°C; RH:90±5%
ambient temperature
range: - 10...50 °C
recommended storage
conditions: 5....25 °C ambient temperature
45...75 % rel. humidity
mechanical specifications
cell dimensions
diameter d1: 34.0 - 1.0 mm
diameter d2: 9.0 - 1.0 mm
height h1: 61.0 - 1.4 mm
height h2: 3.0 - 0.5 mm
weight: 138 ± 7 g
blister package:
dimensions: 120 x 85 mm
weight (incl. batteries): 284 ± 15 g
43
Gramlich / 22.07.2010
ANSMANN Specifications for model:
data sheet no. / part no.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
author / date
Version no.
Ansmann RED Alkaline battery
D - size 2pcs blister
1514-0000
