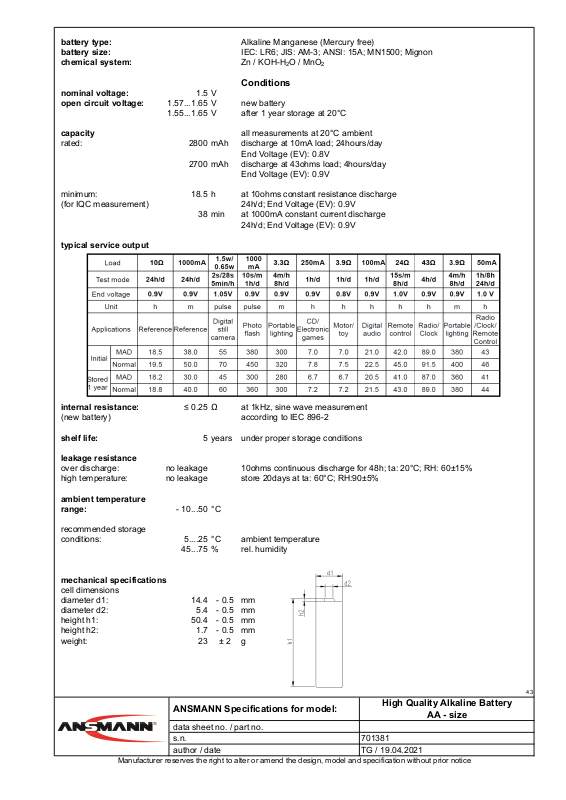

battery type:
Alkaline Manganese (Mercury free)
battery size:
IEC: LR6; JIS: AM-3; ANSI: 15A; MN1500; Mignon
chemical system:
Zn / KOH-H
2
O / MnO
Conditions
nominal voltage:
1.5
V
open circuit voltage:
1.57...1.65
V
new battery
1.55...1.65
V
after 1 year storage at 20°C
capacity
all measurements at 20°C ambient
rated:
2800
mAh
discharge at 10mA load; 24hours/day
End Voltage (EV): 0.8V
2700
mAh
discharge at 43ohms load; 4hours/day
End Voltage (EV): 0.9V
minimum:
18.5hat 10ohms constant resistance discharge
(for IQC measurement)
24h/d; End Voltage (EV): 0.9V
38
min
at 1000mA constant current discharge
24h/d; End Voltage (EV): 0.9V
typical service output
internal resistance:
≤ 0.25
Ω
at 1kHz, sine wave measurement
(new battery)
according to IEC 896-2
shelf life:
5
years
under proper storage conditions
leakage resistance
over discharge:
no leakage
10ohms continuous discharge for 48h; ta: 20°C; RH: 60±15%
high temperature:
no leakage
store 20days at ta: 60°C; RH:90±5%
ambient temperature
range:
- 10...50
°C
recommended storage
conditions:
5....25
°C
ambient temperature
45...75
%
rel. humidity
mechanical specifications
cell dimensions
diameter d1:
14.4
- 0.5
mm
diameter d2:
5.4
- 0.5
mm
height h1:
50.4
- 0.5
mm
height h2:
1.7
- 0.5
mm
weight:
23
± 2
g
High Quality Alkaline Battery
2
ANSMANN Specifications for model:
data sheet no. / part no.
s.n.
author / date
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
43
AA - size
701381
TG / 19.04.2021
