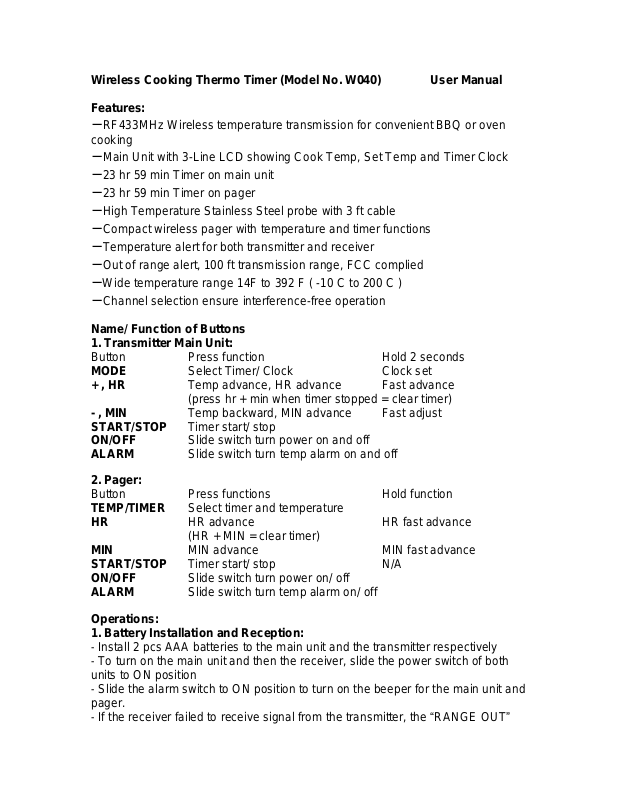

Wireless Cooking Thermo Timer (Model No. W040) User Manual
Features:
− RF433MHz Wireless temperature transmission for convenient BBQ or oven
cooking
− Main Unit with 3-Line LCD showing Cook Temp, Set Temp and Timer Clock
− 23 hr 59 min Timer on main unit
− 23 hr 59 min Timer on pager
− High Temperature Stainless Steel probe with 3 ft cable
− Compact wireless pager with temperature and timer functions
− Temperature alert for both transmitter and receiver
− Out of range alert, 100 ft transmission range, FCC complied
− Wide temperature range 14F to 392 F ( -10 C to 200 C )
− Channel selection ensure interference-free operation
Name/ Function of Buttons
1. Transmitter Main Unit:
Button Press function Hold 2 seconds
MODE Select Timer/ Clock Clock set
+ , HR Temp advance, HR advance Fast advance
(press hr + min when timer stopped = clear timer)
- , MIN Temp backward, MIN advance Fast adjust
START/STOP Timer start/ stop
ON/OFF Slide switch turn power on and off
ALARM Slide switch turn temp alarm on and off
2. Pager:
Button Press functions Hold function
TEMP/TIMER Select timer and temperature
HR HR advance HR fast advance
(HR + MIN = clear timer)
MIN MIN advance MIN fast advance
START/STOP Timer start/ stop N/A
ON/OFF Slide switch turn power on/ off
ALARM Slide switch turn temp alarm on/ off
Operations:
1. Battery Installation and Reception:
- Install 2 pcs AAA batteries to the main unit and the transmitter respectively
- To turn on the main unit and then the receiver, slide the power switch of both
units to ON position
- Slide the alarm switch to ON position to turn on the beeper for the main unit and
pager.
- If the receiver failed to receive signal from the transmitter, the “RANGE OUT”
icon will appear and the beeper will sound. Press any key to stop alarm. To
disable the alarm, please slide the alarm switch to OFF position
2. Setting Up Clock & Thermometer for the main unit:
Press the MODE button to display time
Hold the MODE button for 3 seconds until the time flash, press HR and MIN to
adjust
Press MODE to confirm
Press HR to select 12 or 24 hour mode
Press MIN to select C or F
Press MODE to confirm and exit
3. To SET Temperature:
Press MODE button to select display to Clock
Press +, - to set the target temperature
4. To SET Timer:(TX)
Press MODE button to select display to Timer
Press HR, MIN to enter the countdown timing. Press START/ STOP to start and
stop counting. To reset timer, stop it and press HR and MIN together
5. To SET Timer:(RX)
Press TEMP/TIMER button to select display to Timer
Press HR, MIN to enter the countdown timing. Press START/ STOP to start and
stop counting. To reset timer, stop it and press HR and MIN together
Meat-Taste temp table for quick reference:
WELL DONE MEDIUM MEDIUM RARE RARE
BEEF 170 160 145 140
G. BEEF 160 n/a n/a n/a
VEAL 170 160 145 n/a
LAMB 170 160 145 n/a
PORK 175 n/a n/a n/a
CHICKEN 175 n/a n/a n/a
TURKEY 175 n/a n/a n/a
BATTERY DISPOSAL
Replace only with the same or equivalent type recommended by the
manufacturer.
Please disposal of old, defective batteries in an environmentally friendly manner
in accordance with the relevant legislation.
To save batteries for the wireless units, please turn power to off after use.
Remove batteries for long term storage.
