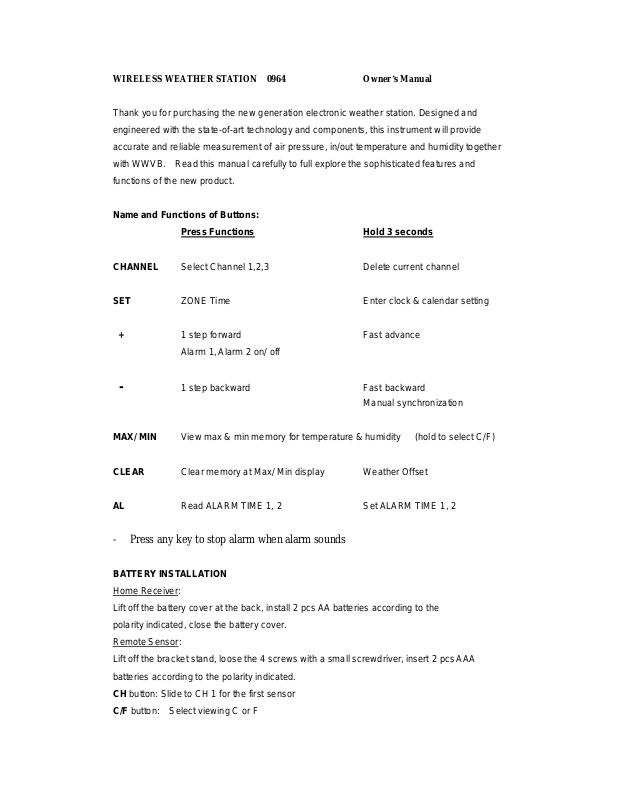

WIRELESS WEATHER STATION 0964 Owner’s Manual

Thank you for purchasing the new generation electronic weather station. Designed and
engineered with the state-of-art technology and components, this instrument will provide
accurate and reliable measurement of air pressure, in/out temperature and humidity together
with WWVB. Read this manual carefully to full explore the sophisticated features and
functions of the new product.

Name and Functions of Buttons:
Press Functions Hold 3 seconds

CHANNEL Select Channel 1,2,3 Delete current channel

SET ZONE Time Enter clock & calendar setting

+ 1 step forward Fast advance

Alarm 1, Alarm 2 on/ off

- 1 step backward Fast backward

Manual synchronization

MAX/ MIN View max & min memory for temperature & humidity (hold to select C/F)

CLEAR Clear memory at Max/ Min display Weather Offset

AL Read ALARM TIME 1, 2 Set ALARM TIME 1, 2

- Press any key to stop alarm when alarm sounds

BATTERY INSTALLATION

Home Receiver:
Lift off the battery cover at the back, install 2 pcs AA batteries according to the
polarity indicated, close the battery cover.
Remote Sensor:
Lift off the bracket stand, loose the 4 screws with a small screwdriver, insert 2 pcs AAA
batteries according to the polarity indicated.

CH button: Slide to CH 1 for the first sensor
C/F button: Select viewing C or F

Tx button: Press to trigger a manual transmission

After selecting the desired modes, replace the cover and tighten the 4 screws.

SET UP:

Enter the Existing Weather Condition into your Weather Station

l Install batteries into the home unit and it will ask you to enter the existing

weather condition. Press “MAX/ MIN” to select the a weather condition
(Sunny, Partial Sunny, Cloudy, Rainy, Stormy), press “CLEAR” to confirm
the setting. The built-in barometer will be automatically offset in this
setting.

Seeking WWVB

l The clock will start to seek for the time signal after installing batteries. If radio time signal

is available, the correct time and date will appear in around 2.5 to 5 minutes.

RADIO-CONTROLLED CLOCK
The unit will start synchronizing the clock before registering the RF thermometer.
Insert batteries into the remote sensor after the clock received the DCF time.

The Tower icon will flash regularly during synchronization. Signal strength level is indicated
in this way:

1.Very Weak or no signal

2. Weak

3. Good

4. Icon appear fixed (Reception successful)

5. Icon out

If signal level is weak and time reception is not successful, move the unit away the source of
interference and try again in another location with better radio signal.

The R/C clock will have a daily synchronization at 01:00 everyday. If not successful,
the R/C clock will seek for time signal every hour. Each R/C reception cycle around
2 minutes to 5 minutes. To avoid interference, the unit will disable the buttons
functions during radio time reception. This is not a defect. Simply press “ –
“ button to turn radio time reception temporarily off.
