Ansen Electronics Co 0790TX User Manual

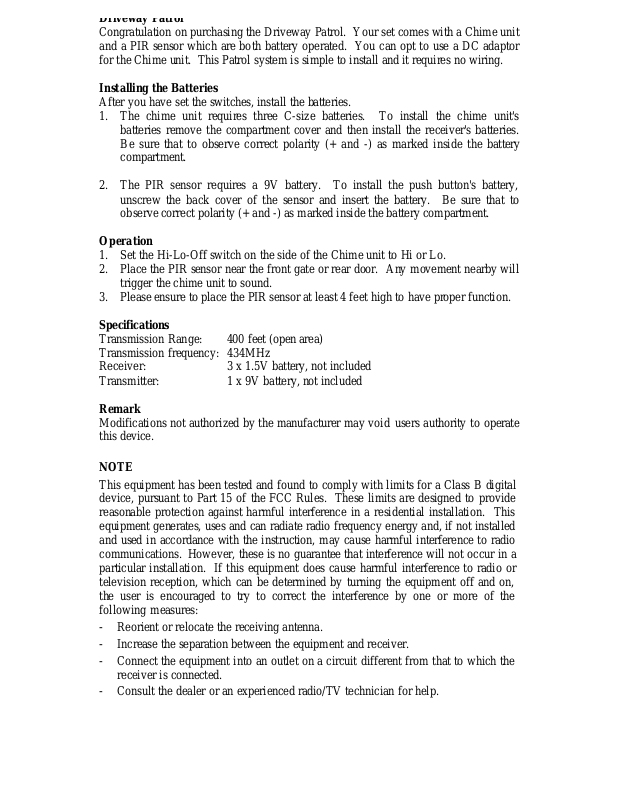

Driveway Patrol
Congratulation on purchasing the Driveway Patrol. Your set comes with a Chime unit
and a PIR sensor which are both battery operated. You can opt to use a DC adaptor
for the Chime unit. This Patrol system is simple to install and it requires no wiring.
Installing the Batteries
After you have set the switches, install the batteries.
1. The chime unit requires three C-size batteries. To install the chime unit's
batteries remove the compartment cover and then install the receiver's batteries.
Be sure that to observe correct polarity (+ and -) as marked inside the battery
compartment.
2. The PIR sensor requires a 9V battery. To install the push button's battery,
unscrew the back cover of the sensor and insert the battery. Be sure that to
observe correct polarity (+ and -) as marked inside the battery compartment.
Operation
1. Set the Hi-Lo-Off switch on the side of the Chime unit to Hi or Lo.
2. Place the PIR sensor near the front gate or rear door. Any movement nearby will
trigger the chime unit to sound.
3. Please ensure to place the PIR sensor at least 4 feet high to have proper function.
Specifications
Transmission Range: 400 feet (open area)
Transmission frequency: 434MHz
Receiver: 3 x 1.5V battery, not included
Transmitter: 1 x 9V battery, not included
Remark
Modifications not authorized by the manufacturer may void users authority to operate
this device.
NOTE
This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to radio
communications. However, these is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
