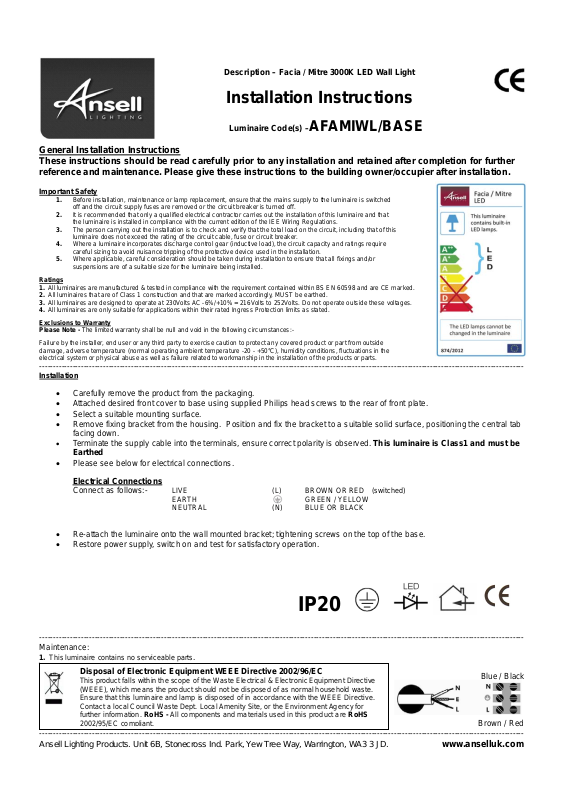

Description – Facia / Mitre 3000K LED Wall Light
p
Installation Instructions
General Installation Instructions
These instructions should be read carefully prior to any installation and retained after completion for further
reference and maintenance. Please give these instructions to the building owner/occupier after installation.
Important Safety
1. Before installation, maintenance or lamp replacement, ensure that the mains supply to the luminaire is switched
off and the circuit supply fuses are removed or the circuit breaker is turned off.
2. It is recommended that only a qualified electrical contractor carries out the installation of this luminaire and that
the luminaire is installed in compliance with the current edition of the IEE Wiring Regulations.
3. The person carrying out the installation is to check and verify that the total load on the circuit, including that of this
luminaire does not exceed the rating of the circuit cable, fuse or circuit breaker.
4. Where a luminaire incorporates discharge control gear (inductive load), the circuit capacity and ratings require
careful sizing to avoid nuisance tripping of the protective device used in the installation.
5. Where applicable, careful consideration should be taken during installation to ensure that all fixings and/or
Ratings
1. All luminaires are manufactured & tested in compliance with the requirement contained within BS EN 60598 and are CE marked.
2. All luminaires that are of Class 1 construction and that are marked accordingly, MUST be earthed.
3. All luminaires are designed to operate at 230Volts AC -6%/+10% = 216Volts to 252Volts. Do not operate outside these voltages.
4. All luminaires are only suitable for applications within their rated Ingress Protection limits as stated.
Exclusions to Warranty
Please Note - The limited warranty shall be null and void in the following circumstances:-
Failure by the installer, end user or any third party to exercise caution to protect any covered product or part from outside
damage, adverse temperature (normal operating ambient temperature -20 - +50°C), humidity conditions, fluctuations in the
electrical system or physical abuse as well as failure related to workmanship in the installation of the products or parts.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Installation
suspensions are of a suitable size for the luminaire being installed.
Carefully remove the product from the packaging.
Attached desired front cover to base using supplied Philips head screws to the rear of front plate.
Select a suitable mounting surface.
Remove fixing bracket from the housing. Position and fix the bracket to a suitable solid surface, positioning the central tab
facing down.
Terminate the supply cable into the terminals, ensure correct polarity is observed. This luminaire is Class1 and must be
Earthed
Please see below for electrical connections.
Electrical Connections
Connect as follows:- LIVE (L) BROWN OR RED (switched)
EARTH GREEN / YELLOW
NEUTRAL (N) BLUE OR BLACK
Re-attach the luminaire onto the wall mounted bracket; tightening screws on the top of the base.
Restore power supply, switch on and test for satisfactory operation.
Luminaire Code(s) –AFAMIWL/BASE
IP20
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Maintenance:
1. This luminaire contains no serviceable parts.
Blue / Black
Brown / Red
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Ansell Lighting Products. Unit 6B, Stonecross Ind. Park, Yew Tree Way, Warrington, WA3 3
Disposal of Electronic Equipment WEEE Directive 2002/96/EC
This product falls within the scope of the Waste Electrical & Electronic Equipment Directive
(WEEE), which means the product should not be disposed of as normal household waste.
Ensure that this luminaire and lamp is disposed of in accordance with the WEEE Directive.
Contact a local Council Waste Dept. Local Amenity Site, or the Environment Agency for
further information. RoHS - All components and materials used in this product are RoHS
2002/95/EC com
liant.
JD. www.anselluk.com
