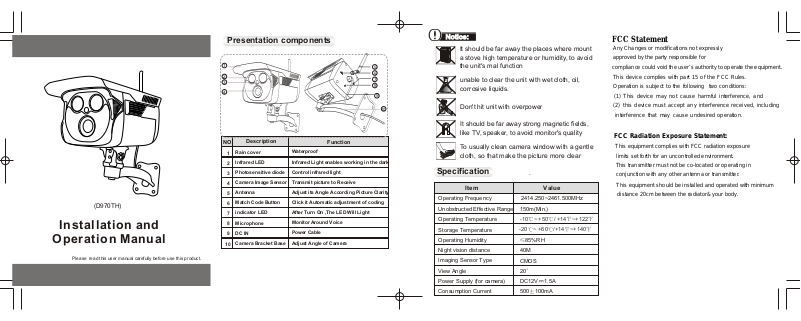

ANPOSI D970TH User Manual

(D970TH)

Installation and

Operation Manual

Please read this user manual carefully before use this product.

Presentation components

1

2
3

4

Description

NO

Rain cover

1

Infrared LED

2

Photosensitive diode

3

Camera Image Sensor

4

Antenna

5

Match Code Button

6

indicator LED

7

Microphone

8

DC IN

9

Camera Bracket Base

10

Waterproof

Infrared Light enables working in the dark

Control infrared light

Transmit picture to Receive

Adjust its Angle According Picture Clarity

Click it Automatic adjustment of coding

After Turn On ,The LED Will Light

Monitor Around Voice

Power Cable

Adjust Angle of Camera

Function

Notice:Notice:

It should be far away the places where mount
a stove high temperature or humidity, to avoid

5
6
7
8

9

10

the unit's mal function

unable to clear the unit with wet cloth, oil,
corrosive liquids.

Don't hit unit with overpower

It should be far away strong m gnetic fields,

a

like TV, speaker, to avoid monitor's quality

To usually clean camera window with a gentle
cloth, so that make the picture more clear

Specification

.

Item Value

Operating Frequency

Unobstructed Effective Range 150m(Min.)

Operating Temperature

Storage Temperature

Operating Humidity 85%RH

Night vision distance

Imaging Sensor Type

View Angle

Power Supply (for camera)

Consumption Current

2414.250~2461.500MHz

-10 ~ +50 / +14 ~+122

-20 ~ +60 /+14 ~+140

40M

CMOS

20

DC12V 1.5A

500 100mA

FCC Statement

Any Changes or modifications not expressly

approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including

interference that may cause undesired

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure

limits set forth for an

This transmitter must not be co-located or operating in

conjunction with any
This equipment should be installed and operated with minimum

distance 20cm between the radiator& your body.

uncontrolled environment.

other antenna or transmitter.

operation.
