ANPEC APL5331U5C-TRL, APL5331U5C-TR, APL5331KC-TRL, APL5331KC-TR, APL5331KAC-TRL Datasheet
...
3A Bus Termination Regulator
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw1
ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise
customers to obtain the latest version of relevant information to verify before placing orders.
••
••
• Provide Bi-direction Current
- Sourcing or Sinking Current up to 3A
••
••
• 1.25V/0.9V Output for DDR I/II Applications
••
••
• Fast Transient Response
••
••
• High Output Accuracy
- ±20mV over Load, VOUT Offset and
Temperature
••
••
• Adjustable Output Voltage by External Resistors
••
••
• Current-Limit Protection
••
••
• On-Chip Thermal Shutdown
••
••
• Shutdown for Standby or Suspend Mode
••
••
• Simple SOP-8, SOP-8-P with thermal pad,
TO-252- 5 and TO-263-5 Packages
Features General Description (Cont.)
On-chip thermal shutdown provides protection against
any combination of overload that would create excessive junction temperature. The output voltage of
APL5331 track the voltage at VREF pin. A resistor
divider connected to VIN, GND and VREF pins is
used to provide a half voltage of VIN to VREF pin. In
addition, an external ceramic capacitor and an opendrain transistor connected to VREF pin provides softstart and shutdown control respectively. Pulling and
holding the VREF to GND shuts off the output. The
output of APL5331 will be high impedance after being shut down by VREF or thermal shutdown function.
Applications
• DDR I/II SDRAM Termination
• SSTL-2/3 Termination Voltage
• Applications Requiring the Regulator with
Bi-direction 3A Current Capability
Pin Configuration
TO-252-5 (Top View)
VOUT
VREF
VCNTL
GND
VIN
12345
TAB is VCNTL
TO-263-5 (Top View)
VIN
GND
VCNTL
VREF
VOUT
1
2
3
4
5
TAB is VCNTL
SOP-8 (Top View)
1
2
3
45
6
7
8
VIN
GND
VREF
VOUT VCNTL
VCNTL
VCNTL
VCNTL
General Description
The APL5331 linear regulator is designed to provide
a regulated voltage with bi-directional output current
for DDR-SDRAM termination. The APL5331 integrates
two power transistors to source or sink current up to
3A. It also incorporate current-limit, thermal shutdown and shutdown control functions into a single
chip. Current-limit circuit limits the short-circuit
current.
1
2
3
45
6
7
8
VIN
GND
VREF
VOUT
NC
VCNTL
NC
NC
SOP-8-P (Top View)
= Thermal Pad
NC = No internal connection
(connected to GND plane for better heat
dissipation)
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw2
Package Code
K : SOP-8 KA : SOP-8-P
U5 : TO-252-5 G5 : T O-263-5
Tem p. Range
C : 0 to 7 0
o
C
Handling Code
TR : Tape & Re el
Lead Free Code
L : Lead Free Device Blank : Orginal Device
APL5331
Handling Code
Tem p. Range
Package Code
APL5331
XXXXX
APL5331K C-TR :
APL5331 KAC -TR :
XXXXX - Date Code
APL5331
XXXXX
APL5331 U5C -TR :
APL5331 G5C -TR :
XXXXX - Date Code
Lead Free Code
Ordering and Marking Information
Pin Description
PIN NAME I/O DESCRIPTION
VIN I
Main power input pin. Connect this pin to a voltage source and an input
capacitor. The APL5331 sources current to VOUT pin by controlling the upper
NPN pass transistor, providing a current path from VIN pin.
GND O
Power and signal ground. Connect this pin to system ground plane with shortest
traces. The APL5331 sinks current from VOUT pin by controlling the lower NPN
pass transistor, providing a current path to GN D pin. This pin is also the ground
path fo r inter n a l co n tr o l c ircu itry.
VCNTL I
Power input pin for internal control circuitry. Connect this pin to a voltage source,
providing a bias for the internal control circuitry. A bypass capacitor is usually
connected near this pin.
VREF I
Reference voltage input and active-low shutdown control pin. Apply a voltage to
this pin as a reference voltage for the AP L5331. Connect this pin to a resistor
divider, between VIN and GND, and a capacitor for soft-start and filtering noise
purposes. Applying and holding this pin low by an open-drain transistor to shut
down th e o u tp u t.
VOUT O
Output pin of the regulator. Connect this pin to load. Output capacitors
connected this pin improves stability and transient response. The output voltage
tracks the reference voltage and is capable of sourcing or sinking current up to
3A.
Block Diagram
GND
VOUT
VIN
VCNTL
VREF
Current
Limit
Therm al
Limit
Voltage
Regulation
Shutdown
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw3
Symbol Parameter Range Unit
V
CNTL
VCNTL Supply Voltage 3.1 ~ 6V V
V
IN
VIN Supply Voltage 1.6 ~ 3.5 V
V
REF
VREF Input Voltage 0.8 ~ 1.75 V
I
OUT
VOUT Output Current (Note1, 2) -3 ~ +3 A
T
J
Junction Temperature 0 ~ 125
o
C
Symbol Parameter Rating Unit
V
CNTL
VCNTL Supply Voltage, VCNTL to GND -0.2 ~ 7 V
V
IN
VIN Supply Voltage, VIN to G ND -0.2 ~ 3.9 V
P
D
Power Dissipation Internally Limited W
T
J
Junction Temperature 150
o
C
T
STG
Storage Temperature -65 ~ 150
o
C
T
SDR
Soldering Temperature, 10 Seconds 300
o
C
V
ESD
Minimum ESD R ating (Human Body Mode)
±3
kV
Note1 : The symbol “+” means the VOUT sources current to load; the symbol “-“ means the VOUT sinks
current to GND.
Note2 : The max. IOUT varies with the TJ. Please refer to the typical characteristics.
Absolute Maximum Ratings
Thermal Characteristics
Symbol
Parameter Rating Unit
θ
JA
Thermal Resistance in Free Air
SOP-8
SOP-8-P
TO-252-5
TO-263-5
160
80
80
50
°C/W
Recommended Operating Conditions
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw4
Electrical Characteristics
Refer to the typical application circuit. These specifications apply over, VCNTL=3.3V, VIN=2.5V/1.8V,
VREF=0.5VIN and TJ= 0 to 125°C, unless otherwise specified. Typical values refer to TJ =25°C.
APL5331
Symbol
Parameter Test Conditions
Min Typ Max
Unit
Output Voltage
V
OUT
VOUT O utput Voltage I
OUT
=0A
V
REF
V
System Accuracy
Over temperature, VOUT offset, and
load regulation
-20 20 mV
I
OUT
=+10mA -14
-9
V
OS
VOUT O ffset Voltage
(V
OUT–VREF
)
I
OUT
=-10mA
2
8
mV
I
OUT
=+10mA to +3A -6
-3
Load Regulation
I
OUT
= -10 mA to -3 A
7
12
mV
Protection
Sourcing Current TJ=25°C
(V
IN
=2.5V) TJ=125°C
+3.3 +3.6
+3.1
Sinking Current TJ=25°C
(V
IN
=2.5V) TJ=125°C
-3.3 -3.6
-3.1
Sourcing Current TJ=25°C
(V
IN
=1.8V) TJ=125°C
+2.9 +3.2
+2.6
I
LIM
Current Limit
Sinking Current T
J
=25°C
(V
IN
=1.8V) TJ=125°C
-2.9 -3.2
-2.6
A
T
SD
Thermal Shutdown
Tem perature
Rising T
J
150
o
C
Therm al Shutdown Hysteresis
40
o
C
Input Current
I
OUT
=0A 2
4.5
6
I
OUT
=±3A (Norm al Operation),
V
CNTL
=5V
50 110
I
CNTL
VCNTL S upply Current
V
REF
=GND (S hutdown)
2.6
mA
V
REF
=1.25V/0.9V (Normal Operation)
150
500 nA
I
VREF
VREF Bias Current
(The current flows out of VREF)
V
REF
=GND (Shutdown)
20
40
µA
Shutdown Control
Shutdown Threshold Voltage
0.2
0.35
0.65 V
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw5
Typical Application Circuit
COUT : 470µF, ESR=25mΩ
R1, R2 : 1kΩ, 1%
Q1 : APM2300 AC
V
CNTL
+3.3V
C
CNTL
47uF
V
OUT
+1.25V/0.9V
-3~+3A
C
SS
0.1uF
GND
R
1
1k
R
2
1k
V
IN
+2.5V/1.8 V
GND
C
IN
470uF
Q
1
Shutdown
C
OUT
470uF
V
REF
GND
VREF
VIN
VOU T
VCNTL
Note : Since R1 and R2 are very small, the voltage offset
caused by the bias current of VREF can be ignore.
2. VOUT=1.4V Application
V
CNTL
+5V
C
CNTL
47µF
V
OUT
+1.4V/
-3~+3A
C
SS
0.1µF
GND
R
1
1k
R
2
1k
V
IN
+2.8V
GND
C
IN
470µF
C
OUT
470µF
V
REF
GND
VREF
VIN
VOU T
VCNTL
1. VOUT=1.25V/0.9V Application
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw6
2.0
2.5
3.0
3.5
4.0
4.5
5.0
-50 -25 0 25 50 75 100 125
-5.0
-4.5
-4.0
-3.5
-3.0
-2.5
-2.0
-50 -25 0 25 50 75 100 125
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
-50 -25 0 25 50 75 100 125
Typical Characteristics
Sourcing Current-Limit
vs Junction T emperature
Current-Limit, ILIM (A)
Junction Temperature (°C)
VREF Bias Current
vs Junction T emperature
Junction Temperature (°C)
VREF Bias Current, IVREF (µA)
Junction Temperature (°C)
VREF Shutdown Threshold (V)
Junction Temperature (°C)
Current-Limit, ILIM (A)
Sinking Current-Limit
vs Junction T emperature
VREF Shutdown Threshold
vs Junction T emperature
V
REF
=1.25V/0.9V
0.1
0.2
0.3
0.4
0.5
0.6
-50 -25 0 25 50 75 100 125
V
CNTL
=5V
V
CNTL
=3.3V
VCNTL=5V,VIN=2.5V
VCNTL=3.3V,VIN=2.5V
VCNTL=5V,VIN=1.8V
VCNTL=3.3V,VIN=1.8V
VCNTL=5V,VIN=1.8V
VCNTL=3.3V,VIN=1.8V
VCNTL=3.3V,VIN=2.5V
VCNTL=5V,VIN=2.5V
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw7
0
2
4
6
8
10
12
14
16
18
20
22
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
-50-250 255075100125
-16
-14
-12
-10
-8
-6
-4
-2
0
2
4
6
-50 -25 0 25 50 75 100 125
Typical Characteristics (Cont.)
VOUT Offset V oltage
vs Junction T emperature
VOUT Offset V oltage, VOS (mV)
Junction Temperature (°C)
V
REF
=1.25V/0.9V
Quiescent VCNTL Current
vs Junction T emperature
Junction Temperature (°C)
VREF Bias Current
vs VREF Supply Voltage
VREF Supply Votage, VREF (V)
VREF Bias Current, IVREF (µA)
I
OUT
=-10mA
I
OUT
=+10mA
Quiescent VCNTL Current (mA)
I
OUT
=0A
V
CNTL
=5V
V
CNTL
=3.3V
TJ=25°C
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw8
Operating Waveforms
1. Load Transient Response : IOUT = +10mA -> +3A -> +10mA
- VIN = 2.5V, VCNTL = 3.3V
- VREF is 1.250V supplied by a regulator
- COUT = 470µF/10V, ESR = 30mΩ
- IOUT slew rate = ±3A/µS
I
OUT = +10mA -> +3A
V
OUT
I
OUT
Ch1 : VOUT, 20mV/Div, DC,
Offset = 1.250V
Ax1 : IOUT, 1A/Div
Time : 1µS/Div
Ch1 : VOUT, 20mV/Div, DC,
Offset = 1.250V
Ax1 : IOUT, 1A/Div
Time : 20µS/Div
Ch1 : VOUT, 20mV/Div, DC,
Offset = 1.250V
Ax1 : IOUT, 1A/Div
Time : 1µS/Div
IOUT = +10mA -> +3A -> +10mA
I
OUT = +3A -> +10mA
V
OUT
I
OUT
+3A
+10mA
V
OUT
I
OUT
2. Load Transient Response : IOUT = -10mA -> -3A -> -10mA
- VIN = 2.5V, VCNTL = 3.3V
- VREF is 1.250V supplied by a regulator
- COUT = 470µF/10V, ESR = 30mΩ
- IOUT slew rate = ±3A/µS
IOUT = -10mA -> -3A
V
OUT
I
OUT
Ch1 : VOUT, 20mV/Div, DC,
Offset = 1.250V
Ax1 : IOUT, 1A/Div
Time : 1µS/Div
Ch1 : VOUT, 20mV/Div, DC,
Offset = 1.250V
Ax1 : IOUT, 1A/Div
Time : 20µS/Div
Ch1 : VOUT, 20mV/Div, DC,
Offset = 1.250V
Ax1 : IOUT, 1A/Div
Time : 1µS/Div
IOUT = -10mA -> -3A -> -10mA
IOUT = -3A -> -10mA
V
OUT
I
OUT
-3A
-10mA
V
OUT
I
OUT
Load Regulation = -2.8mV
Load Regulation = +6.2mV
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw9
Operating Waveforms (Cont.)
3. Load Transient Response : IOUT = +3A -> -3A -> +3A
- VIN = 2.5V, VCNTL = 3.3V
- VREF is 1.250V supplied by a regulator
- COUT = 470µF/10V, ESR = 30mΩ
- IOUT slew rate = ±3A/µS
I
OUT = +3A -> -3A
Ch1 : VOUT, 50mV/Div, DC,
Offset = 1.250V
Ax1 : IOUT, 2A/Div
Time : 1µS/Div
Ch1 : VOUT, 50mV/Div, DC,
Offset = 1.250V
Ax1 : IOUT, 2A/Div
Time : 20µS/Div
Ch1 : VOUT, 50mV/Div, DC,
Offset = 1.250V
Ax1 : IOUT, 2A/Div
Time : 1µS/Div
IOUT = +3A -> -3A -> +3A
I
OUT = -3A -> +3A
4. Short-Circuit Test
- V
IN = 2.5V, VCNTL = 3.3V
VOUT is Shorted to GND
V
OUT
I
OUT
Ch1 : VOUT, 500mV/Div, DC,
Ax1 : IOUT, 2A/Div
Time : 5mS/Div
Ch1 : VOUT, 500mV/Div, DC,
Ax1 : IOUT, 2A/Div
Time : 5mS/Div
VOUT is Shorted to VIN (2.5V)
V
OUT
I
OUT
V
OUT
I
OUT
V
OUT
I
OUT
+3A
-3A
V
OUT
I
OUT
V
OUT
I
OUT
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw10
Application Information
General
The APL5331 is a linear regulator and is capable of
sourcing or sinking current up to 3A. The APL5331
has fast transient response, accurate output voltage
(small voltage offset, load regulation), active-low shutdown control and fault protections (current-limit, thermal shutdown). The APL5331 is available in several
packages to meet different of power dissipation in
requirement various applications.
Output Voltage Regulation
The output voltage at VOUT pin tracks the reference
voltage applied at VREF pin. Two internal NPN pass
transistors controlled by separate high bandwidth error amplifiers regulate the output voltage by sourcing
current from VIN pin or sinking current to GND pin.
The base currents of the pass transistors are provided by VCNTL pin. An internal kelvin sensing
scheme use at the VOUT pin for perfect load regulation at various load current. To prevent the two pass
transistors from shoot-through, a small voltage offset
is created between the positive inputs of the two error
amplifiers. This results in higher output voltage while
the regulator sinks light or heavy load current. Since
the APL5331 exhibits very fast load transient
response, lesser amount of capacitors can be use.
In addition, capacitors with high ESR can also be
use.
Shutdown and Soft-Start
The VREF pin is a dual-function input pin, acting as
reference input and shutdown control input. Applying and holding a voltage below 0.35V(typ.) to VREF
pin shuts down the output of the regulator. An NPN
transistor or N-channel MOSFET is used to pull down
the VREF while applying a “high” signal to turn on the
transistor. When shutdown function is active, the
two pass transistors are turned off and the impedance of the VOUT is about 10MΩ (typ.), sourcing or
sinking no current. When release the VREF pin, the
current through the resistor divider charges the softstart capacitor to initiate a soft-start cycle. The output
voltage tracks the rising VREF. The soft start process
limits the input surge current.
Thermal Shutdown
An thermal shutdown circuit limits the junction temperature of the APL5331. When the junction temperature exceeds TJ= +150oC, a thermal sensor turns
off both pass transistors, allowing the device to cool
down. The regulator starts to regulate again after the
junction temperature reduces by 40oC, resulting in a
pulsed output during continuous thermal overload
conditions. The thermal limit designed with a 40oC
hysteresis lowers the average TJ during continuous
thermal overload conditions, extend life time of
APL5331.
Current Limit
The APL5331 monitors sourcing and sinking current,
and limits the maximum output current to prevent damages during overload or short-circuit, To increase
the input voltage of VIN or VCNTL will get higher
current-limit points.
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw11
Application Information
Power Inputs
Input power sequence are not required for VIN and
VCNTL. However, do not apply a voltage to VOUT
when there is not voltage VCNTL. This is due to the
internal parasitic diodes between VOUT to VIN and
VOUT to VCNTL which will be forward bias. The
APL5331 can source few current or sinks current up
to 3A for load when the input Voltage at VIN is not
present.
Reference V oltage
A reference voltage is applied at the VREF pin by a
resistor divider between VIN and GND pins. Normally
the bias current of the VREF pin flows out of the IC
and is about 150nA(typ.), creating voltage offset at
the resistor divider and affecting the output voltage
accuracy. The recommended resistor is <5kΩ to
maintain the accuracy of the output voltage. An external bypass capacitor is also connected to VREF.
The capacitor and the resistor divider form a lowpass filter to reduce the inherent reference noise from
VIN. A ceramic capacitor can be use and is selected
to be greater than 0.1µF. Connected the capacitor
as close to VREF as possible for optimal effect. More
capacitance and large resistor divider will increase
the soft-start interval. Do not place any additional loading on this reference input pin.
Output Capacitor
The APL5331 requires a proper output capacitor to
maintain stability over full temperature and current
ranges, and improve transient response. The output
capacitor selection is dependent upon the ESR
(equivalent series resistance) and capacitance of the
output capacitor over full temperature range. The following chart shows the stable region of the output
capacitor for APL5331. The stable region is above
the curve, indicating minimum required ESR and
capacitance to maintain stability. However, the out
put capacitor should have an ESR less than 1Ω.
Ultra-low-ESR capacitors, such as ceramic chip
capacitors, may promote under-damped transient
response, but proper ceramic chip capacitors placed
near loads can be used as decoupling capacitors. A
low-ESR solid tantalum and aluminum electrolytic capacitor (ESR<1Ω) works extremely well and provides
good transient response and stability over temperature.
The output capacitors are also used to reduce the
slew rate of load current and help the APL5331 to
minimize variations of the output voltage, improving
transient response. For this purpose, the low-ESR
capacitors are recommended and depend on the stepping and slew rate of load current.
Input Capacitor
The input capacitors of VCNTL and VIN pins are not
required for stability but for supplying surge currents
during large load transients, This will prevent the input rail from drooping and improve the performance
of the APL5331. Because of parasitic inductors from
voltage sources or other bulk capacitors to the VCNTL
and VIN pins will limit the slew rate of the surge currents during large load transients, resulting in voltage
drop at VIN and VCNTL pins.
0
5
10
15
20
25
10 100 1000
Capacitance(µF)
ESR (m
Ω
)
Stable Region
0
5
10
15
20
25
10 100 1000
Capacitance(µF)
ESR (m
Ω
)
Stable Region
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw12
A capacitor of 1µF (ceramic chip capacitor) or greater
(aluminum electrolytic capacitor) is recommended to
connect near VCNTL pin. For VIN pin, an aluminum
electrolytic capacitor (>50µF) is recommended. It is
not necessary to use low-ESR capacitors.
Layout and Thermal Consideration
The input capacitors for VIN and VCNTL pins are
normally placed near each pin for good
performances. Ceramic decoupling capacitors at
output must be placed as close to the load to reduce
the parasitic inductors of traces. It is also recommended that the APL5331 and output capacitors are
placed near the load for good load regulation and
load transient response. The negative pins of the input and output capacitors and the GND pin of the
APL5331 should connect to analog ground plane of
the load.
See figure 1. The SOP-8-P utilizes a bottom thermal
pad to minimize the thermal resistance of the package,
making the package suitable for high current
applications. The thermal pad is soldered to the top
ground pad and is connected to the internal or bottom ground plane by several vias. The printed circuit
board (PCB) forms a heat sink and dissipates most
of the heat into ambient air. The vias are recommended to have proper size to retain solder, helping
heat conduction.
Thermal resistance consists of two main elements,
? JC (junction-to-case thermal resistance) and ? CA
(case-to-ambient thermal resistance). ? JC is specified from the IC junction to the bottom of the thermal
pad directly below the die. ?CA is the resistance from
the bottom of thermal pad to the ambient air and it
includes ? CS (case-to-sink thermal resistance) and
?SA (sink-to-ambient thermal resistance). The speci-
fied path for heat flow is the lowest resistance path
and it dissipates majority of the heat to the ambient
air. T ypically, ?CA is the dominant thermal resistance.
Therefore, enlarging the internal or bottom ground
plane reduces the resistance ?CA . The relationship
between power dissipation and temperatures is the
following equation :
PD = (TJ - TA) / ?JA
where,
PD : Power dissipation
TJ : Junction Temperature
TA : Ambient Temperature
? JA : Junction-to-Ambient Thermal Resis tance
Thermal
pad
Die
Top
ground
pad
Printed
circuit
board
Internal
ground
plane
Vias
Ambient
Air
118 mil
102 mil
SOP-8-P
Figure 2 shows a board layout using the SOP-8-P
package. The demo board is made of FR-4 material
and is a two-layer PCB. The size and thickness are
65mm* 65mm and 1.6mm. An area of 140mil*105mil
on the top layer is use as a thermal pad for the
APL5331 and this is connected to the bottom layer
by vias. The bottom layer using 2 oz. copper acts as
the ground plane for the system. The PCB and all
components on the board form a heat sink. The ?JA
of the APL5331(SOP-8-P) mounted on this demo
board is about 37oC/W in free air. Assuming the
TA=25oC and the maximum TJ=150oC (typical thermal
limit temperature), the maximum power dissipation is
calculated as :
Figure 1 Package Top and side view
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw13
PD (max) = (150 - 25) / 37
= 3.38W
If the TJ is designed to be below 125oC, the calculated power dissipation should be less than :
PD = (125 - 25) / 37
= 2.70W
Figure 2(a) TopOver layer
Figure 2(b) Top layer
Figure 2(c) Bottom layer
APL5331
APL5331
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw14

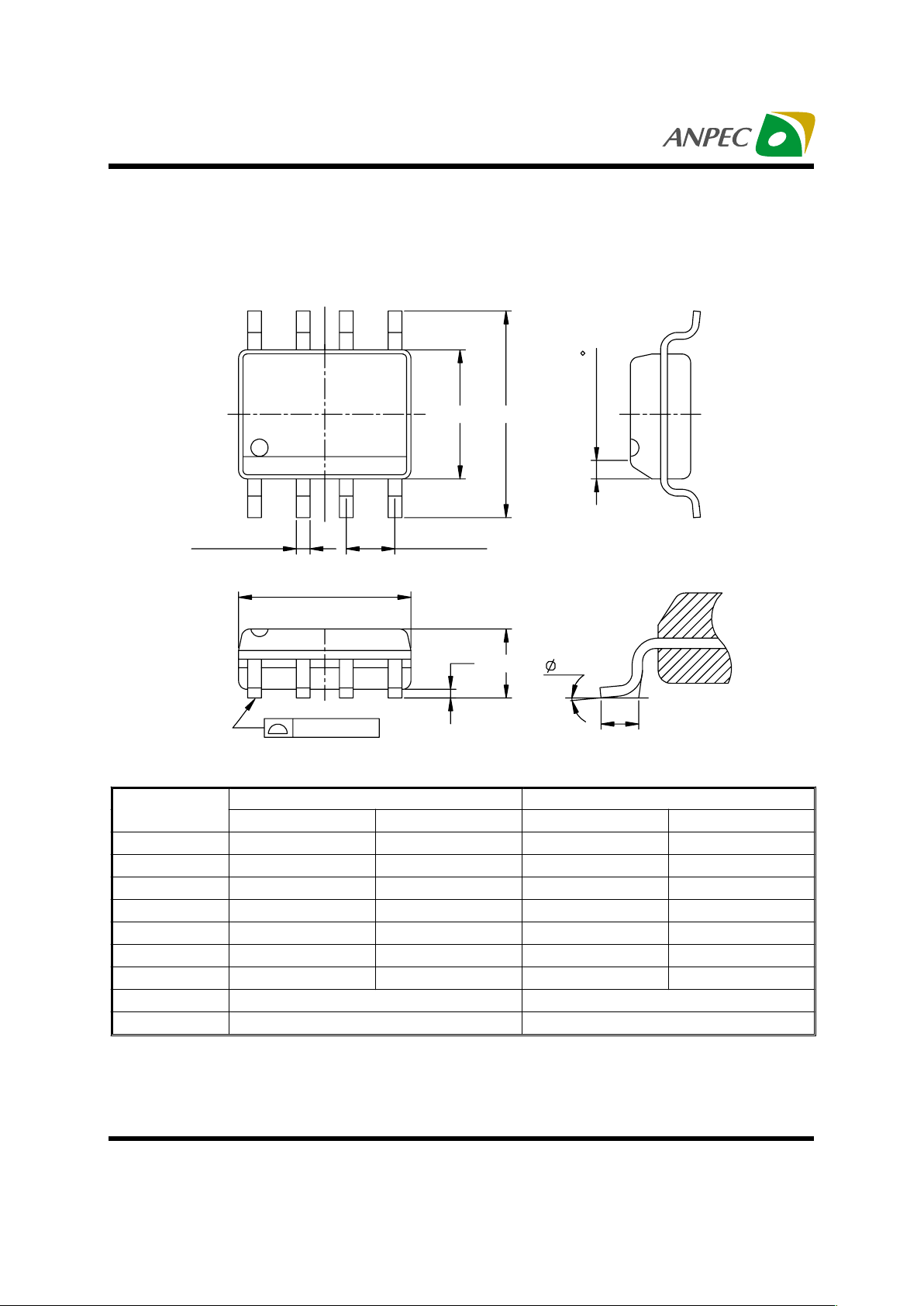

Packaging Information
Millimeters Inches
Dim
Min. Max. Min. Max.
A 1.35 1.75 0.053 0.069
A1 0.10 0.25 0.004 0.010
D 4.80 5.00 0.189 0.197
E 3.80 4.00 0.150 0.157
H 5.80 6.20 0.228 0.244
L 0.40 1.27 0.016 0.050
e1 0.33 0.51 0.013 0. 020
e2 1.27BSC 0.50BSC
φ
18
°
8
°
HE
e1 e2
0.015X45
D
A
A1
0.004max.
1
L
SOP-8 pin ( Reference JEDEC Registration MS-012)
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw15
Packaging Information
Millimeters Inches
Dim
Min. Max. Min. Max.
A 1.3 5 1.75 0.053 0.069
A1 0.10 0.25 0.004 0.0 10
D 4.80 5.00 0.189 0.197
D1
3.00REF
0.118REF
E 3.8 0 4.00 0.150 0.157
E1 2.60REF 0.102REF
H 5.80 6.20 0.228 0.244
L 0.40 1.27 0.0 16 0.050
e1 0.33 0.5 1 0.013 0.020
e2 1.27BSC 0.50BSC
φ 18° 8°
SOP-8-P pin ( Reference JEDEC Registration MS-012)
HE
e1 e2
0.015X45
D
A
A1
0.004max.
1
L
E1
D1
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw16
Packaging Information
TO-252-5
Millimeters Inches
Dim
Min. Max. Min. Max.
A 6.40 6.80 0.25 0.26
B 5.20 5.50 0.20 0.21
C 6.80 7.20 0.26 0.27
D 2.20 2.80 0.08 0.11
D1 5.2REF 0.205REF
E1 5.3REF 0.209REF
P 1.27REF 0.05REF
S 0.50 0.80 0.02 0.03
H 2.20 2.40 0.08 0.09
J 0.45 0.55 0.01 0.02
K 0.45 0.60 0.018 0.024
L 0.90 1.50 0.03 0.06
M 5.40 5.80 0.21 0.22
A
B
M
CD
J
H
L
PS
K
E1
D1
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw17
Packaging Information
TO-263-5
Millimeter s Inches
Dim
Min. Max. Min. Max.
A
4.06 4.83
0.160 0.190
b
0.50 0.99
0.020 0.039
b1
1.52 1.83
0.060 0.072
c
0.457 0.736
0.018 0.029
c1
1.14 1.40
0.045 0.055
D
8.25 9.66
0.325 0.380
E
9.65 10. 29
0.380 0.405
L
14.60 15.88
0.575 0.625
L1
2.28 2.80
0.090 0.110
L2
1.40
0.055
D
A
c
L2
A1
c1
v
e
e1
b
L
L1
BE
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw18
Physical Specifications
Reference JEDEC Standard J-STD-020A APRIL 1999
Reflow Condition (IR/Convection or VPR Reflow)
Pre-heat temperature
183 C
Peak temperature
Time
°
temperature
Classification Reflow Profiles
Convection or IR/
Convection
VPR
Average ramp-up rate(183°C to Peak) 3°C/second max. 10 °C /second max .
Preheat temperature 125 ± 25°C)
120 seconds max
Temperature maintained above 183°C
60 – 150 seconds
Time within 5°C of actual peak temperature
10 –20 seconds 60 seconds
Peak temperature range
220 +5/-0°C or 235 +5/-0°C 215-219°C or 235 +5/-0°C
Ramp-down rate
6 °C /second max. 10 °C /second max .
Time 25°C to peak temperature
6 minutes max.
Package Reflow Conditions
pkg. thickness
≥≥≥≥
2.5mm
and all bgas
pkg. thickness < 2.5mm and
pkg. volume
≥≥≥≥
350 mm³
pkg. thickness < 2.5mm and pkg.
volume < 350mm³
Convection 220 +5/-0 °C Convection 235 +5/-0 °C
VPR 215-219 °C VPR 235 +5/-0 °C
IR/Convection 220 +5/-0 °C IR/Convection 235 +5/-0 °C
Terminal Material Solder-Plated Copper (S o lder Material : 90/10 or 63/37 SnPb)
Lead Solderab ility Meets EIA Specification RSI86-91, A NSI/J-STD-002 Category 3.
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw19
R e lia bility te s t pro g r am
Test item Method D escription
SOLDERABILITY M IL-STD-883D-2003
245°C , 5 SEC
HO LT MIL-STD-883D-1005.7
1000 Hrs Bias @ 125 °C
PCT JESD-22-B, A102
168 Hrs, 100 % RH , 121°C
TST MIL-STD-883D-1011.9
-65°C ~ 150°C, 200 Cycles
ESD MIL-STD-883D -3015.7 VHBM > 2KV, VMM > 200V
La tc h -Up J E SD 7 8 10 ms , Itr > 100mA
Carrier Tape
A
J
B
T2
T1
C
t
Ao
E
W
Po
P
Ko
Bo
D1
D
F
P1
Copyright ANPEC Electronics Corp.
Rev. A.8 - Oct., 2003
APL5331
www.anpec.com.tw20
Application Carrier Width Cover Tape Width Devices Per Reel
SOP- 8 / SOP -8-P
12 9.3 2500
TO- 252
16 13.3 2500
TO- 263
24 21.3 1000
Application
A B C J T1 T2 W P E
330 ± 1 62 +1.5
12.75+
0.15
2 ± 0.5 12.4 ± 0.2 2 ± 0.2 12± 0. 3 8± 0.1 1.75±0.1
F D D1 Po P1 Ao Bo Ko t
SOP- 8
SOP-8-P
5.5± 1 1.55 +0.1 1.55+ 0.25 4.0 ± 0.1 2.0 ± 0.1 6.4 ± 0.1 5.2± 0. 1 2.1± 0.1 0.3±0.013
Application
A B C J T1 T2 W P E
330 ±3100 ± 213 ± 0. 5 2 ± 0.5
16.4 + 0.3
-0.2
2.5± 0.5
16+ 0.3
- 0.1
8 ± 0.1 1.75± 0.1
F D D1 Po P1 Ao Bo Ko t
TO-252
7.5 ± 0.1 1.5 +0.1 1.5± 0.25 4.0 ± 0.1 2.0 ± 0.1 6.8 ± 0.1 10.4± 0.1 2.5± 0.1 0.3±0.05
Application
A B C J T1 T2 W P E
380±380 ± 213 ± 0. 5 2 ± 0.5 24 ± 42± 0.3
24 + 0.3
- 0.1
16 ± 0.1 1.75± 0.1
F D D1 Po P1 Ao Bo Ko t
TO-263
11.5 ± 0.1 1.5 +0.1 1.5± 0.25 4.0 ± 0.1 2.0 ± 0.1 10.8 ± 0.1 16.1± 0.1 5.2± 0.1 0.35±0.013
Cover Tape Dimensions
Anpec Electronics Corp.
Head Office :
5F, No. 2 Li-Hsin Road, SBIP,
Hsin-Chu, T aiwan, R.O.C.
T el : 886-3-5642000
Fax : 886-3-5642050
Taipei Branch :
7F, No. 137, Lane 235, Pac Chiao Rd.,
Hsin Tien City, T aipei Hsien, Taiwan, R. O. C.
T el : 886-2-89191368
Fax : 886-2-89191369
Customer Service
Loading...
