ANPEC APL5302-50KI-TR, APL5302-50KC-TR, APL5302-50D5I-TR, APL5302-50D5C-TR, APL5302-50BI-TR Datasheet
...
Low IQ, Low Dropout 300mA Fixed Voltage Regulator
Copyright ANPEC Electronics Corp.
Rev. A.9 -Apr., 2003
APL5301/2
www.anpec.com.tw1
ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise
customers to obtain the latest version of relevant information to verify before placing orders.
Features
The APL5301/2 series are micropower, low noise, low
dropout linear regulators, which operate from 3V to
6V input voltage and deliver up to 300mA. Typical output noise is just 60uV
RMS
with the addition of an external 0.33uF bypass capacitor in BP pin and typical
dropout voltage is only 260mV at 300mA loading. Designed for use in battery-powered system, the low 50uA
quiescent current makes it an ideal choice. Design
with an internal P-channel MOSFET pass transistor,
the APL5301/2 maintain a low supply current, independent of the load current and dropout voltage.
Other features include reverse current protection, ther-
mal-shutdown protection, current limit protection to
ensure specified output current and controlled short-
circuit current. The APL5301/2 regulators come in a
miniature SOP-8, SOT-23, SOT-23-5, SOT-89 and
SOT-89-5 packages.
Applications
• Notebook Computer
• PDA or Portable Equipments
• Noise-Sensitive Instrumentation Systems
••
••
• Low Noise : 60uV
RMS
(100Hz to 100kHz)
••
••
• Low Quiescent Current : 50uA (No load)
••
••
• Low Dropout Voltage : 400mV
(VOUT(Nominal)=3.0V Version @300mA)
••
••
• Very low Shutdown Current : < 0.5uA
••
••
• Fixed Output Voltage : 1.3V ~ 5.0V
by step 0.1V increment
••
••
• Stable with 1uF Output Capacitor
••
••
• Stable with Aluminum, Tantalum or Ceramic
Capacitors .
••
••
• Reverse Current Protection
••
••
• No Protection Diodes Needed
••
••
• Built in Thermal Protection
••
••
• Built in Current Limit Protection
••
••
• Controlled Short Circuit Current : 50mA
••
••
• Fast Transient Response
••
••
• Short Setting Time
••
••
• SOP-8, SOT-23, SOT-23-5, SOT-89,
and SOT-89-5 Packages
Pin Configuration
APL5301
SOT-89 (T op View)
GND
V
INVOUT
123
TAB is V
IN
SOT-23 (T op V iew)
GND
12
3
V
OUT
V
IN
APL5301
V
IN
GND
BP
V
OUT
1
2
3
5
SHDN
4
APL5301
SOT-23-5 (T op View)
APL5301
SOT-89-5 (T op View)
V
IN
GND
V
OUT
123
54
SHDNBP
GND
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw2
Package Code
A : S O T -23 B : S O T -2 3-5 D : SO T -89
D5 : SOT-89 -5 K : S O P -8
Temp . Range
C : 0 to 70 C I : -40 to 85 C
Handling Code
TR : Tape & Reel
Voltage Code :
13 : 1.3V ~ 34 : 3.4V 50 : 5.0V
APL5301/2 -
Handling Code
Temp . Range
Package Code
Voltage Code
APL5301/2
XXXXX 13
XXX XX - Date Code ; 13 - 1.3VAPL5301/2 -13 D/K :
Product Name Marking Product Name Marking
APL5301-13A/B 317X APL5302-13A/B 327X
APL5301-14A/B 318X APL5302-14A/B 328X
APL5301-15A/B 319X APL5302-15A/B 329X
APL5301-16A/B 31AX APL5302-16A/B 32AX
APL5301-17A/B 31BX APL5302-17A/B 32BX
APL5301-18A/B 31CX APL5302-18A/B 32CX
APL5301-19A/B 31DX APL5302-19A/B 32DX
APL5301-20A/B 31EX APL5302-20A/B 32EX
APL5301-21A/B 31FX APL5302-21A/B 32FX
APL5301-22A/B 31GX APL5302-22A/B 32GX
APL5301-23A/B 31HX APL5302-23A/B 32HX
APL5301-24A/B 31IX APL5302-24A/B 32IX
APL5301-25A/B 31JX APL5302-25A/B 32JX
APL5301-26A/B 31KX APL5302-26A/B 32KX
APL5301-27A/B 31LX APL5302-27A/B 32LX
APL5301-28A/B 31MX APL5302-28A/B 32MX
APL5301-29A/B 31NX APL5302-29A/B 32NX
APL5301-30A/B 31OX APL5302-30A/B 32OX
APL5301-31A/B 31PX APL5302-31A/B 32PX
Marking Information
SOT-23 and SOT-23-5 packages
V
IN
GND
BP
V
OUT
1
2
3
5
SHDN
4
Pin Configuration (Cont.)
APL5302
SOT-89 (T op View)
SOT-23 (T op
View)
APL5302
Ordering and Marking Information
°°
SOP-8 (Top View)
1
2
3
45
6
7
8SHDN
V
IN
V
OUT
BP GND
GND
GND
GND
APL5301
GND V
IN
V
OUT
123
TAB is GND
GND
12
3
V
OUTVIN
SOT-23-5 (Top View)
APL5302
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw3
Product Name Marking Product Name Marking
APL5301-32A/B 31QX APL5302-32A/B 32QX
APL5301-33A/B 31RX APL5302-33A/B 32RX
APL5301-34A/B 31SX APL5302-34A/B 32SX
APL5301-35A/B 31TX APL5302-35A/B 32TX
APL5301-48A/B 31XX APL5302-48A/B 32XX
APL5301-49A/B 31YX APL5302-49A/B 32YX
APL5301-50A/B 31ZX APL5302-50A/B 32ZX
Marking Information (Cont.)
SOT-23 and SOT-23-5 packages
Pin Description
PIN
No. Name
I/O Description
1VINI Supply vol tage input.
2GND
Ground pins of the circuitry, and all ground pins must be soldered
To PCB with pr oper po w er dis sipa tion.
3 SHDN
(Note1)
I Shutdow n c o ntrol pin, low = off, high = n ro mal.
4BP
(Note1)
O Bypass signal pin of the regulator.
5V
OUT
O Output pin of the regulator.
Note1 : This pin does not exist in 3-pin package.
Symbol Parameter Rating Unit
VIN, V
OUT
Input Voltage or Out Voltage 6 V
SHDN
Shutdown Control Pin
6V
R
TH,JA
Thermal Resistance – Junction to Ambient 357 °C/W
P
D
Power Dissipation Internally Limited W
T
J
Operating Junction Temperature °C
Control Section 0 to 125
Power Transistor 0 to 150
T
STG
Storage Temperature Range -65 to +150 °C
T
L
Lead Temperature (Soldering, 10 second) 260 °C
Absolute Maximum Ratings
The last character “X” in the marking is for data code.
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw4
Electrical Characteristics
Unless otherwise noted these specifications apply over full temperature, VIN=3.8V, CIN=COUT=1uF, SHDN=VIN,
TJ=0 to 125°C. Typical values refer to TJ=25°C.
APL5301/2
Symbol Parameter Test Conditions
Min. Typ. Max.
Unit
VINInput Voltage 2.7 6 V
V
OUT
Output Voltage
V
OUT
+1.0V< VCC<6.0V, 0mA< I
OUT
V
OUT
-2
%
V
OUT
V
OUT
+2
%
V
I
LIMIT
Circuit Current Limit
V
IN=VOUT
+0.5V
500 mA
I
SHORT
Short Current V
OUT
=0V 50 mA
I
OUT
Load Current
V
IN=VOUT
+0.5V 300 mA
REG
LINE
Line Regulation
V
OUT
+0.5V< VCC<6.0V,
I
OUT
=150mA
410mV
REG
LOA
Load Regulation VIN =V
OUT
+0.5V, 0mA< I
OUT
< I
MAX
1
6
mV
Load Transient
V
IN
= V
OUT
+0.5V , I
OUT
=1mA-
150mA in 1us
70 150
mV
mV
1.3V≤V
OUT
<1.5V 1 .2 1.6
1.5V≤V
OUT
<2.0V 1 1.2
2.0V≤V
OUT
<2.5V 0 .8 0.9
2.5V≤V
OUT
<3V 0.6 0.7
V
DROP
Dropout Voltage
(Note2)
I
OUT
=300mA
3V≤V
OUT
≤
5V 0.4 0.5
V
PSRR Ripple Rejection
F≤1kHz, 1Vpp at V
IN
= V
OUT
+1.0V
45 55 dB
No load 50 80
I
Q
Quiescent Current
I
OUT
=300mA 150 180
µ
A
Shutdown Supply
Current
(Note3)
Shutdown = low
I
OUT
=0, VCC=6.0V
0.01 1
µ
A
100Hz<f<100kHz, typical load,
C
BP
=0.1uF, C
OUT
= 1uF
80
Noise
100Hz<f<100kHz, typical load,
C
BP
=0.33uF, C
OUT
= 1uF
60
µ
Vrms
CBP=0.1uF,C
OUT
=1uF, no load 4
Shutdown Recovery
Delay
(Note3)
CBP=0.33uF,C
OUT
=1uF, no load 13.2
ms
OTS Over Temperature Shutdown 150
°
C
Over Temperature Shutdown
Hysteresis
Hysteries 10
°
C
TC
Output Voltage Temperature
Coefficient
50 ppm/°C
C
OUT
Output Capacitor 0.8 1.0 2.6
µ
F
ESR 0.02 0.1 1 Ohm
Shutdown Input
Threshold
(Note3)
V
OUT
+1.0V< VIN <6.0V 0.4 1.6 2.5 V
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw5
APL5301/2
Symbol Parameter Test Conditions
Min. Typ. Max.
Unit
I
SHDN
Shutdown i np ut B ias
current
(Note3)
V
SHDN
=V
IN
0.01 100 nA
Input Reverse Leakage
current
V
OUT-VIN
=0.1V 0.1 0.5
µ
A
Reverse Protection
Threshold
11 50 mV
Electrical Characteristics (Cont.)
Application Circuit
BP
V
OUT
V
IN
GND
SHDN
VOUT
C
IN
1uF
off
on
APL5301/2
INP UT
2.7V to 6V
0.33uF
C
BP
C
OUT
1uF
Note2 : Dropout voltage definition : VIN-VOUT when VOUT is 2% below the value of VOUT for VIN = VOUT+ 0.5V
Note3 : For 5-pin devices only.
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw6
Typical Characteristics
(All Curves are For Fix 3.3V)
0
20
40
60
80
100
120
140
160
0123456
Ground Pin Current vs. Input Voltage
Input Voltage (V)
Ground Pin Current vs. Load Current (uA)
IOUT=50mA
NO LOAD
0
0.5
1
1.5
2
2.5
3
3.5
0123456
Input Voltage vs. Output Voltage
Input Voltage (V)
Output Voltage (V)
0
20
40
60
80
100
120
140
160
0 50 100 150 200 250 300
Ground Pin Current vs. Load Current
Ground Pin Current vs. Load Current (uA)
Load Current (mA)
3.28
3.29
3.3
3.31
3.32
-40 -15 10 35 60 85
Output Voltage vs. Temperature
T emperature (°C )
Output Voltage (V)
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw7
Typical Characteristics
1
1.1
1.2
1.3
1.4
1.5
1.6
3.544.555.56
SHDN Threshold Voltage vs. Input V oltage
SHDN Threshold Voltage (V)
Input Voltage (V)
-80
+0
-70
-60
-50
-40
-30
-20
-10
10 200k20 50 100 200 500 1k 2k 5k 10k 20k 50k
PSRR vs. Frequency
Frequency (HZ)
PSRR (dB)
VIN=4.3V
IOUT =50mA
COUT=1uF
CBP=0.1uF
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0123456
Reverse Leakage Current vs. Output Voltage
Reverse Leakage Current (uA)
Output Voltage (V)
0
50
100
150
200
250
300
0 50 100 150 200 250 300
Dropout Voltage vs. Load Current
Load Current (mA)
Dropout Voltage (mV)
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw8
Typical Characteristics
Output Noise
Time (s)
VOUT (50uV/div)
-300u
300u
-250u
-200u
-150u
-100u
-50u
0
50u
100u
150u
200u
250u
0 10m2m 4m 6m 8m
VIN=4.3V f=100HZ-80KHZ
IOUT =50mA COUT=1uF
C
BP=0.33uF
0
50
100
150
200
250
0 0.1 0.2 0 .3 0 .4
Output Noise vs. Bypass Capacitor
Output Noise (uV)
Bypass Capacitor (uF)
VIN=4.3V f=100HZ-80KHZ
IOUT=50mA COUT=1uF
1mA
50mA
Load-Transient Response
Output Voltage (20mV/div)
Time (100us)
VOUT
IOUT
4V
5V
Time (500us/div)
VOUT
VIN
IOUT=50mA
Line-Transient Response
VIN=4.3V
Output Voltage (50mV/div)
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw9
Typical Characteristics

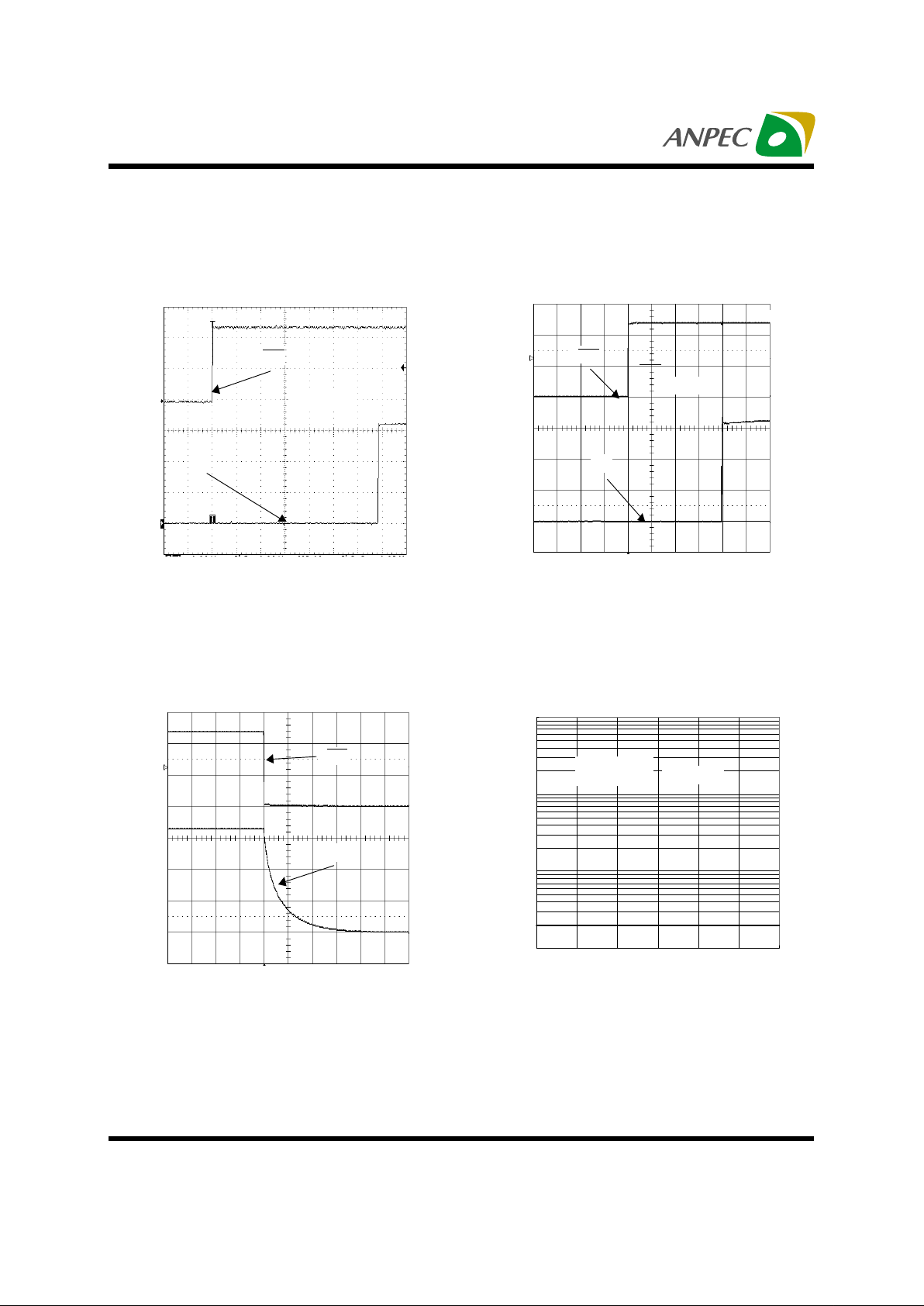

Entering Shutdown
2.5V
0V
0V
Time (2ms/div)
VOUT
vSHDN
cBP=0.33uF
2.5V
0V
0V
Shutdown Exit Delay
Time (4ms/div)
VOUT
vSHDN
CBP=0.1uF
2.5V
0V
0V
Time (0.1ms/div)
VOUT
VSHDN
Shutdown Exit Delay
0.01
0.1
1
10
0 50 100 150 200 250 300
Region of Stable ESR vs. Load Current
Load Current (mA)
COUT ESR (Ω)
Stable
Region
COUT=1uF
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw10
The minimum input-output voltage difference (dropout)
determines the lowest usable supply voltage. In battery-powered systems, this will determine the useful
end-of-life battery voltage. Because the APL5301/2
use a p-channel MOSFET pass transistor, the dropout voltage is a function of drain-to-source on-resistance (R
DS(ON)
) multiplied by the load current.
The APL5301/2 load-transient response graphs in typical characteristics show the transient response. A
step change in the load current from 1mA to 50mA at
1us will cause a 60mV transient spike. Larger output
capacitor and lower ESR can reduce transient spike.
Application Information
Capacitor Selection and Regulator
Stability
The APL5301/2 use at least a 1uF capacitor on the
input, and this capacitor can be Aluminum, Tantalum
or Ceramic capacitor. The input capacitor with larger
value and lower ESR provides better PSRR and linetransient response. The output capacitor also can use
Aluminum, T antalum or Ceramic capacitor, and a minimum value of 1uF and ESR above 0.06Ω is
recommended. The curve of the stable region in typical characteristics shows the appropriate output capacitor ESR for different load current stable operation.
A larger output capacitor can reduce noise and improve load-transient response, stability, and PSRR.
Note that some ceramic dielectrics exhibit large capacitance and ESR variation with temperature. When
using this capacitor, a minimum 2.2uF or more may
be required to ensure the stability at low temperature
operation. Use a bypass capacitor at BP pin for low
output nvise. Increasing the capacitance will slightly
decrease the output noise, but increase the start-up
time. (See Shutdown Exit Delay and Output Noise
vs.Bypass Capacitor graph in the typical
characteristics)
Load-Transient Considerations
Input-Output (Dropout)Voltage
Reverse Cur r ent Pr otection
The APL5301/2 have an internal reverse protection, it
does not need an external schottky diode to connect
the regulator input and output. If the output voltage is
forced above the input voltage by more than 11mV,
the IC will be shutdown and the ground pin current is
below 0.1uA.
Current Limit
The APL5301/2 have a current limit protection. The
ouptut voltage will drop close to zero volt, when load
current reaches the limit, and then the load current
will be limited at 50mA after output voltage is below 0.
7V. When the load current back to the value where
limiting started, the output voltage and current will return to normal value. When output is shorted to
ground, the APL5301/2 will keep short circuit current
at 150mA .
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw11
Thermal protection limits total power dissipation in the
device. When the junction temperature exceeds
T
J
=+150J, the thermal sensor generates a logic signal to turn off the pass transistor and allows IC to
cool. When the IC’s junction temperature is down by
10J, the thermal sensor will turn the pass transistor
on again, resulting in a pulsed output during continuous thermal protection. Thermal protection is designed
to protect the APL5301/2 in the event of fault
conditions. For continuous operation, do not exceed
the absolute maximum junction temperature of
T
J
=+150J.
Operating Region and Power Dissipation
The thermal resistance of the case to circuit board,
and the rate of air flow all control the APL5301/2’s
maximum power dissipation. The power dissipation
across the device is PD = I
OUT (VIN-VOUT
) and the maximum power dissipation is:
P
DMAX
= (TJ-TA) / (?JC +?CA)
where TJ-TA is the temperature difference between the
junction and ambient air, ?JC is the thermal resistance of the package, and?CA is the thermal resistance through the printed circuit board, copper traces,
and other materials to the ambient air.
The GND pin of the APL5301 and APL5302 that the
packages ard SOT-23-5, SOT-89-5 AND SOP-8 provide an electrical connection to ground and channeling heat away. If power dissipation is large, connect
the GND pin to ground using a large pad or ground
plane, can improve the problem of over heat of IC.
Thermal Protection
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw12
Millimeters Inches
Dim
Min. Max. Min. Max.
A 1.35 1.75 0.053 0.069
A1 0.10 0.25 0.004 0.010
D 4.80 5.00 0.189 0.197
E 3.80 4.00 0.150 0.157
H 5.80 6.20 0.228 0.244
L 0.40 1.27 0.016 0.050
e1 0.33 0.51 0.013 0. 020
e2 1.27BSC 0.50BSC
φ
18
°
8
°
HE
e1 e2
0.015X45
D
A
A1
0.004max.
1
L
SOP-8 pin ( Reference JEDEC Registration MS-012)
Packaging Information
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw13
SOT-23
Packaging Information
D
E H
S
e
A
A1
L
C
B
3
2
1
Millimeters Inches
Dim
Min. Max. Min. Max.
A 1.00 1.30 0.039 0.051
A1 0.00 0.10 0.000 0.0 04
B 0.35 0.51 0.014 0.020
C 0.10 0.25 0.004 0.010
D 2.70 3.10 0.106 0.122
E 1.40 1.80 0.055 0.071
e 1.90 BSC 0.075 BSC
H 2.40 3.00 0.094 0.118
L 0.37 0.0015
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw14
Packaging Information
SOT-23-5

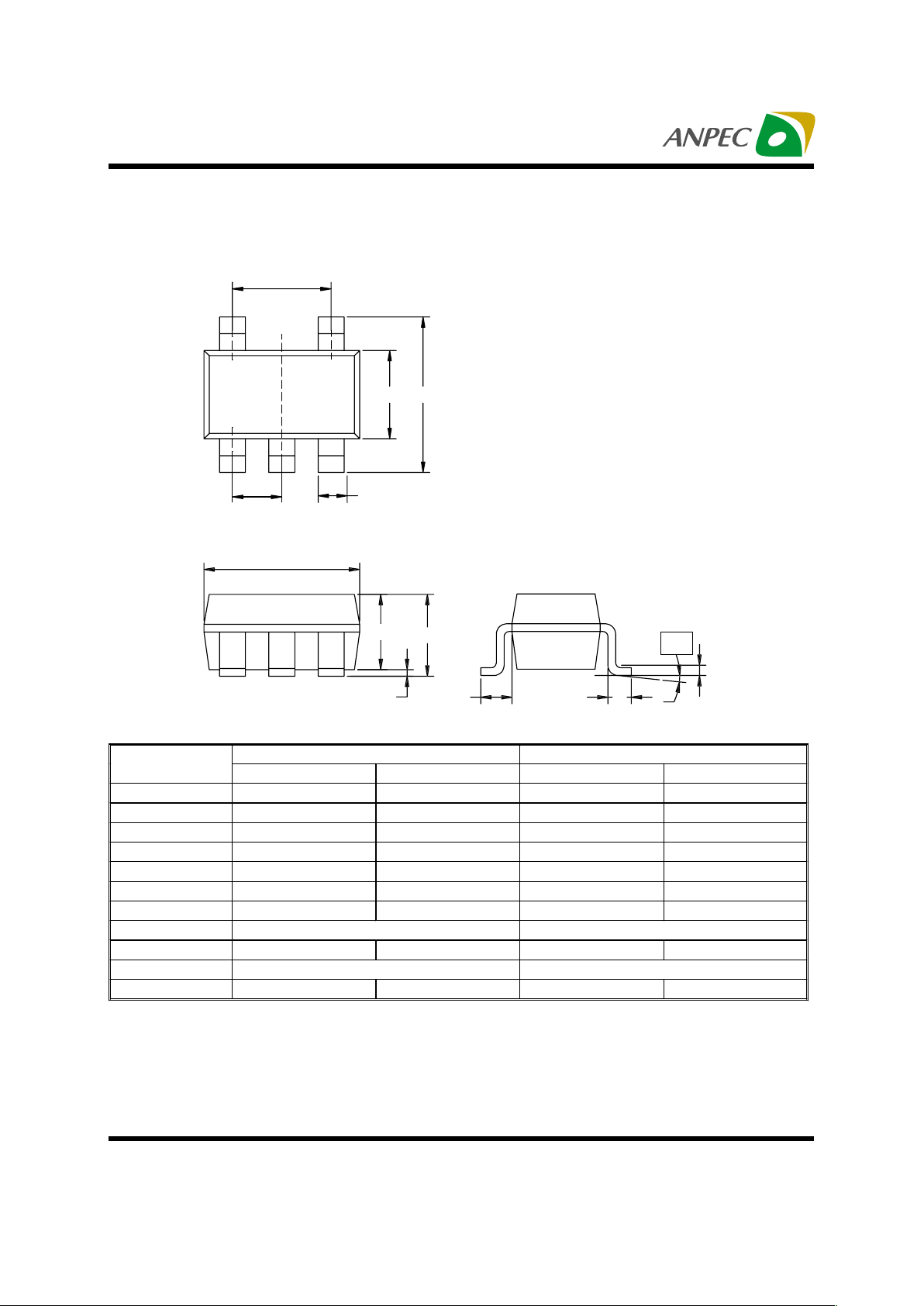

e1
E1 E
b
12
3
45
e
D
A2
A
A1 L 2
L
L 1
a
Millimeters Inches
Dim
Min. Max. Min. Max.
A 0.95 1.45
0.037 0.057
A1 0.05 0.15
0.002 0.006
A2 0.90 1.30
0.035 0.051
D2.83.00
0.110 0.118
E2.63.00
0.102 0.118
E1 1.5 1.70
0.059 0.067
L 0.35 0.55
0.014 0.022
L1 0.20 BSC 0.008 BSC
L2 0.5 0.7
0.020 0.028
N5 5
α
0
°
10
°
0
°
10
°
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw15
SOT-89 (Reference EIAJ ED-7500A Reg stration SC-62)
Packaging Information
D
D1
e
B1
e1
B
123
L
H
E
C
a
a
A
Millimeters Inches
Dim
Min. Max. Min. Max.
A 1.40 1.60 0.055 0.063
B 0.40 0.56 0.016 0.022
B1 0 .35 0.48 0.014 0.019
C 0.35 0.44 0.014 0.017
D 4.40 4.60 0.173 0.181
D1 1.35 1 .83 0 .053 0.072
e 1.50 BSC 0.059 BSC
e1 3.00 BSC 0.118 BSC
E 2.29 2.60 0.090 0.102
H 3.75 4.25 0.148 0.167
L 0.80 1.20 0.031 0 .047
α
10
°
10
°
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw16
Packaging Information
SOT-89-5
M illimete rs In c h e s
Dim
Min. Max. Min. Max.
A 4 .4 0 4.60 0 .1 7 0.18
B 4 .0 5 4.25 0 .1 6 0.17
C 1 .5 0 1 .7 0 0.06 0 .0 7
D 1 .3 0 1 .5 0 0.05 0 .0 6
E 2 .4 0 2.60 0 .0 9 0.1
F 0.80 - 0.03 G 3.00 REF 0.12 REF
H 1.50 REF 0.06 REF
I 0.40 0.52 0.01 0 .0 2
J 1.4 0 1.60 0 .0 5 0.06
K 0 .3 5 0.41 0 .0 1 0.02
L 5 TYP 0.2 TYP
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw17
Physical Specifications
Pre-heat temperature
183 C
Peak temperature
Time
°
temperature
Classification Reflow Profiles
Convection or IR/
Convection
VPR
Average ramp-up rate(183°C to Peak) 3°C/second max. 10 °C /second max.
Preheat temperature 125 ± 25°C)
120 seconds max
Temperature maintained above 183°C
60 – 150 seconds
Time within 5°C of actual peak temperature
10 –20 seconds 60 seconds
Peak temperature range
220 +5/-0°C or 235 +5/-0°C 215-219°C or 235 +5/-0°C
Ramp-down rate
6 °C /second max. 10 °C /second max.
Time 25°C to peak temperature
6 minutes max.
Package Reflow Conditions
pkg. thickness
≥≥≥≥
2.5mm
and all bgas
pkg. thickness < 2.5mm and
pkg. volume
≥≥≥≥
350 mm³
pkg. thickness < 2.5mm and pkg.
volume < 350mm³
Convection 220 +5/-0 °C Convection 235 +5/- 0 °C
VPR 215-219 °C VPR 235 +5/-0 °C
IR/Convection 220 +5/-0 °C IR/Convection 235 +5/-0 °C
Terminal Material Solder-Plated Copper (Solder Material : 90/10 or 63/37 SnPb)
Lead Solderability Meets EIA Specification RSI86-91, ANSI/J-STD-002 Category 3.
Reference JEDEC Standard J-STD-020A APRIL 1999
Reflow Condition (IR/Convection or VPR Reflow)
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw18
R e lia bilit y te s t pr o g r a m
Test item Method Description
SOLDERABILITY MIL-STD-883D-2003
245°C , 5 SEC
HO LT M IL-STD-883D-1005.7
1000 Hrs Bias @ 125 °C
PCT JESD-22-B, A102
168 Hrs, 100 % RH , 121°C
TST MIL-STD-883D-1011.9
-65°C ~ 150°C, 200 Cycles
ESD MIL-STD-883D-3015.7 VHBM > 2KV, VMM > 200V
La tc h -Up J ES D 7 8 10ms , Itr > 100mA
Carrier Tape
A
J
B
T2
T1
C
t
Ao
E
W
Po
P
Ko
Bo
D1
D
F
P1
Copyright ANPEC Electronics Corp.
Rev. A.9 - Apr., 2003
APL5301/2
www.anpec.com.tw19
Application
A B C J T1 T2 W P E
330 ± 162 +1.5
12.75+
0.15
2 ± 0.5 12.4 ± 0.2 2 ± 0.2 12± 0. 3 8± 0.1 1.75±0.1
F D D1 Po P1 Ao Bo Ko t
SOP- 8
5.5± 1 1.55 +0.1 1.55+ 0.25 4.0 ± 0.1 2.0 ± 0.1 6 .4 ± 0.1 5 .2± 0. 1 2.1± 0.1 0.3±0.013
Application
A B C J T1 T2 W P E
178 ±170 ± 213.5 ± 0.15 3 ± 0.15 14 ± 21.3 ± 0.3
12 + 0.3
12 - 0.1
8 ± 0.1 1 .7 5± 0.1
F D D1 Po P1 Ao Bo Ko t
SOT-89
5.5 ± 0.05 1.5± 0.1 1 .5± 0.1 4.0 ± 0.1 2.0 ± 0.1 4 .8 ± 0.1 4.5± 0.1 1.80± 0.1 0.3±0.013
Application
A B C J T1 T2 W P E
178±172 ± 1.0 13.0 + 0.2 2.5 ± 0.15 8.4 ± 21.5± 0.3
8.0+ 0.3
- 0.3
4 ± 0.1 1 .7 5± 0.1
F D D1 Po P1 Ao Bo Ko t
SOT-23-5
3.5 ± 0.05 1.5 +0.1 1.5 +0.1 4.0 ± 0.1 2.0 ± 0.1 3.15 ± 0.1 3.2± 0.1 1.4± 0.1 0.2±0.03
Cover Tape Dimensions
Anpec Electronics Corp.
Head Office :
5F, No. 2 Li-Hsin Road, SBIP,
Hsin-Chu, T aiwan, R.O.C.
T el : 886-3-5642000
Fax : 886-3-5642050
Taipei Branch :
7F, No. 137, Lane 235, Pac Chiao Rd.,
Hsin Tien City, Taipei Hsien, Taiwan, R. O. C.
T el : 886-2-89191368
Fax : 886-2-89191369
Customer Service
Reel Dimensions
Application Carrier Width Co ver Tape Width Devices Per Reel
SOP- 8
12 9.3 2500
SOT- 23
8 5.3 3000
SOT- 89
12 9.3 1000
Loading...
