GS37 Racing Simulator Stand
GS37
Product Assembly Manual
1 / 8
GS37 Racing Simulator Stand

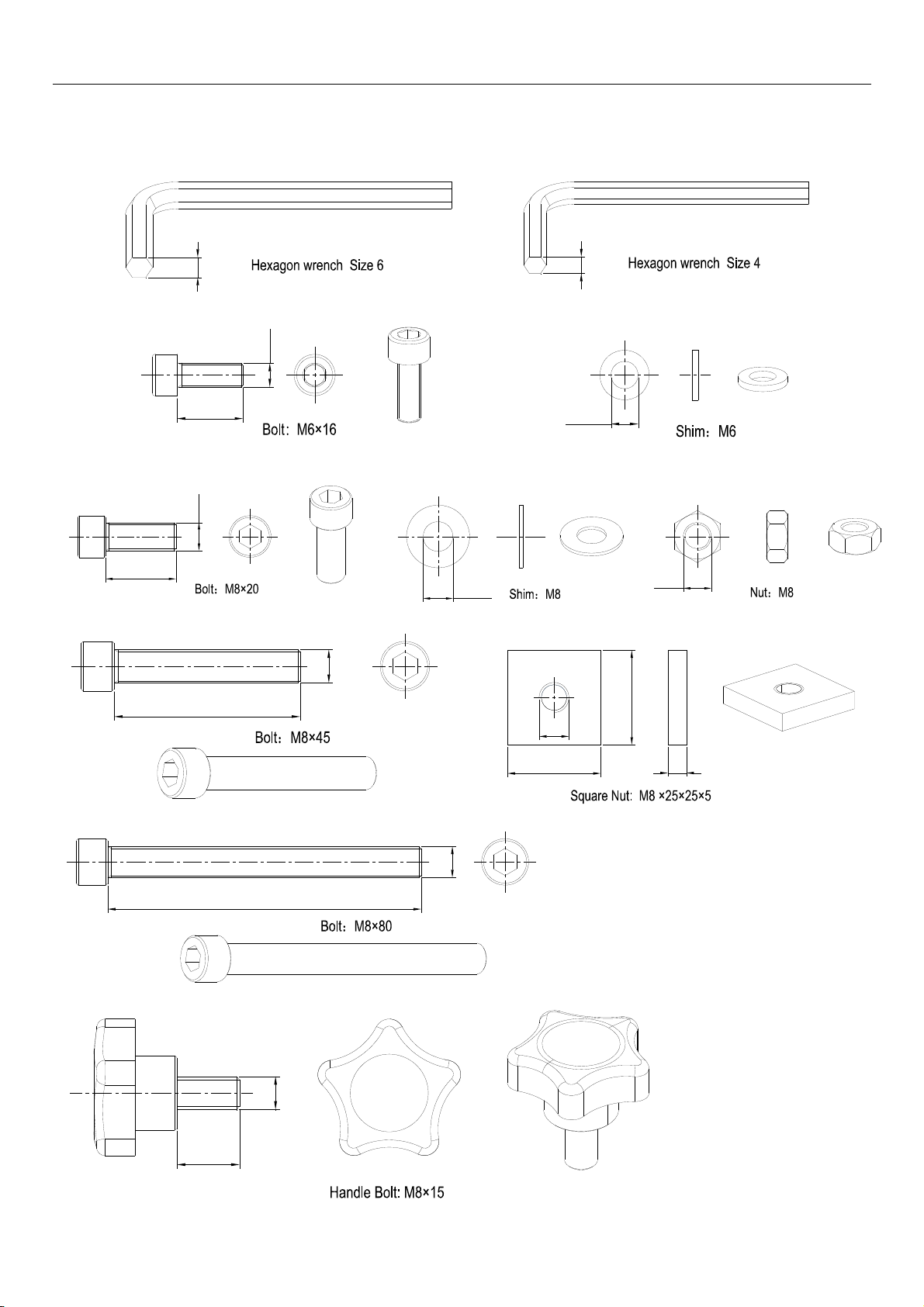

accessories explanation
6
4
M6
16
φ6.0
M8
20
φ8.0
M8
45
M8
M8
25
25
M8
80
5
M8
15
2 / 8
GS37 Racing Simulator Stand
Assembly Processes

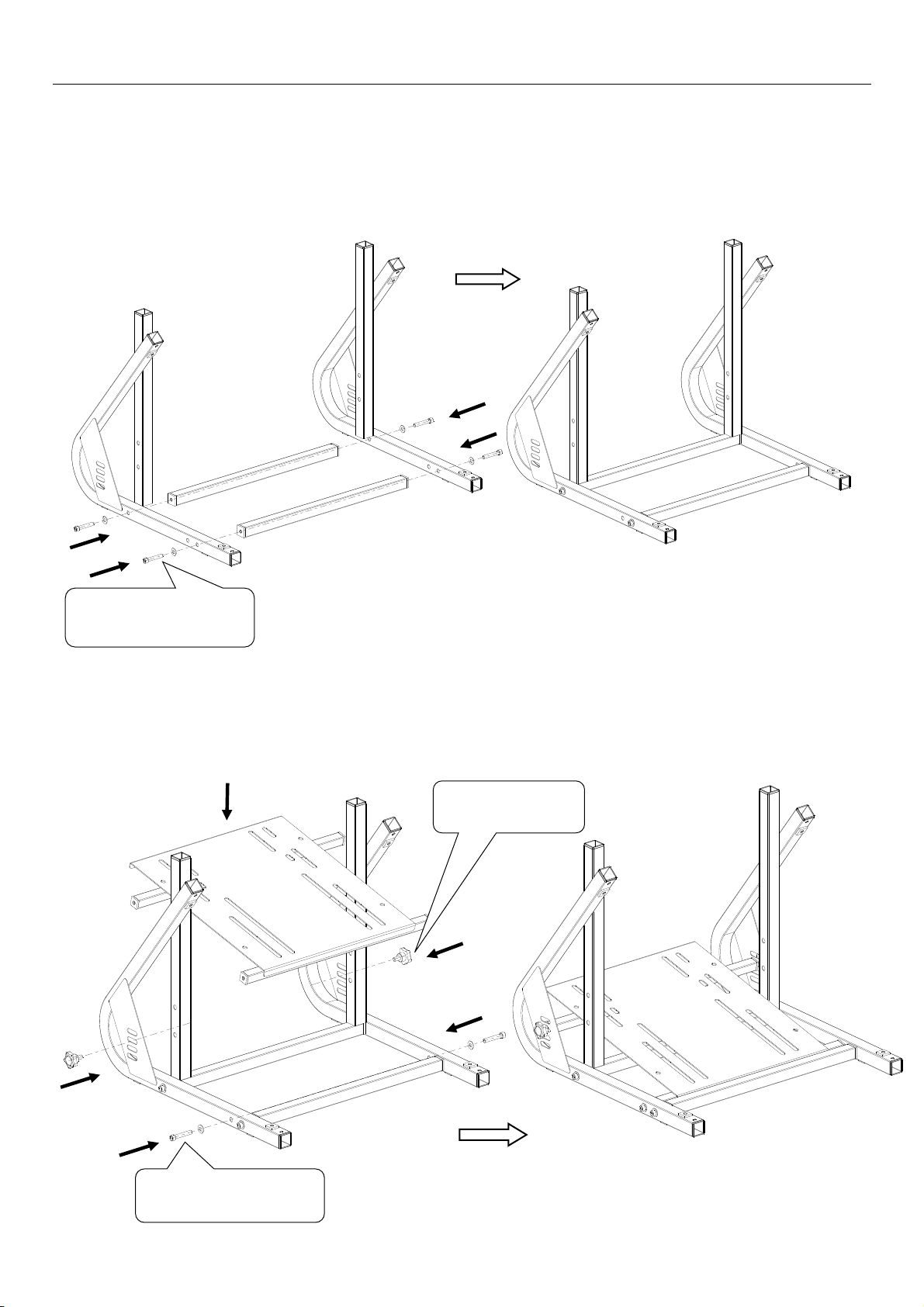

1. Assemble the left and right retaining stand with 4 pieces of the bolt(M8×45 ) and
4 pieces of the shim (M8)
Bolt: M8×45 (4 PCS)
Shim: M8 (4 PCS)
2. Assemble the base plate support stand with 2 pieces of the Handle Bolt (M8×15) 、
2 pieces of the bolt (M8×45) and 2 pieces of the shim (M8)
Handle Bolt:
×
Bolt: M8×45 (2 PCS)
3 / 8
GS37 Racing Simulator Stand
(

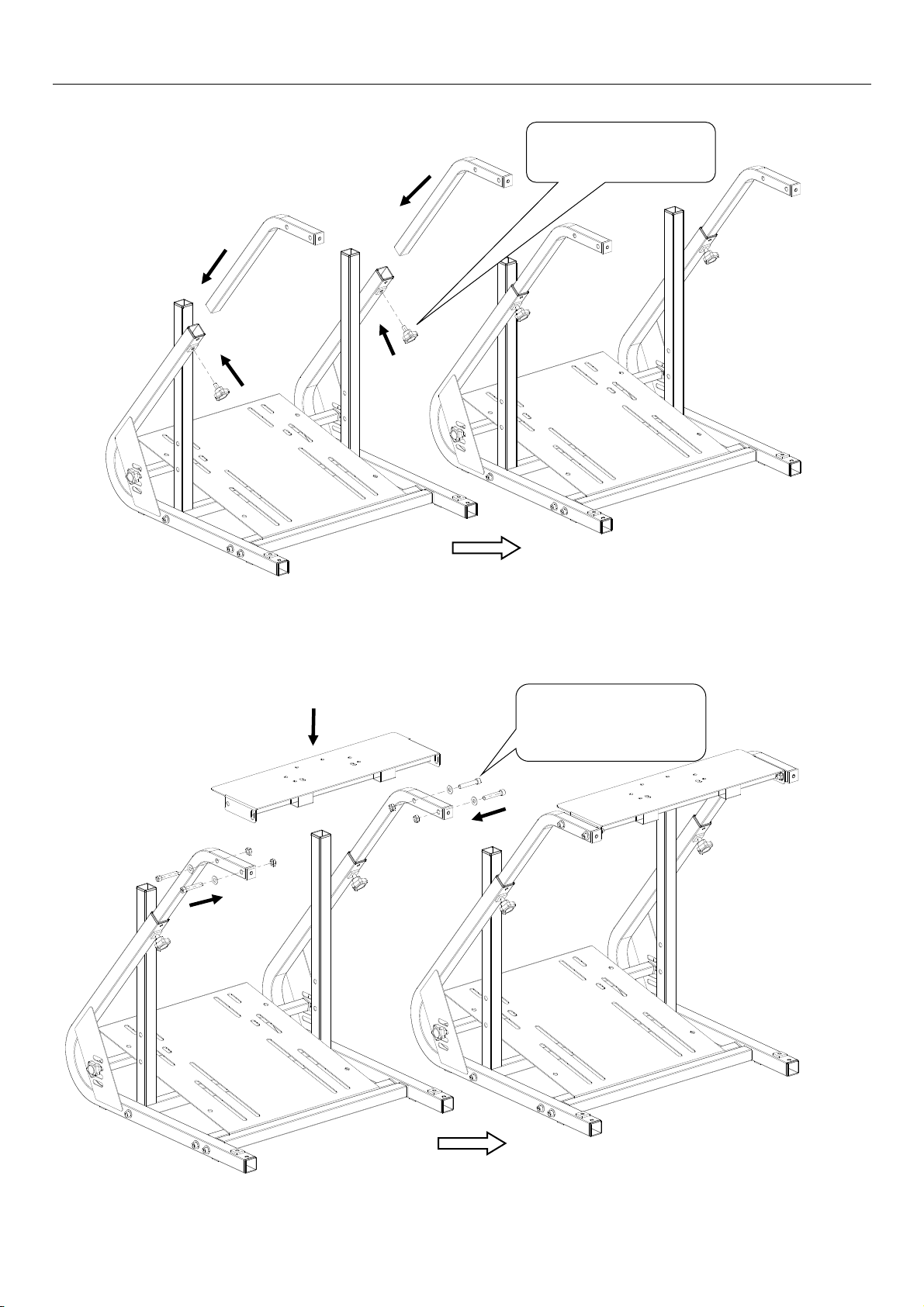

3. Assemble left and right adjusting stand with 2 pieces of the Handle Bolt (M8×15)
Handle Bolt:
M8×15 (2 PCS)
4. Assemble the steering wheel mounting stand with 4 pieces of the bolt (M8×45) 、4
pieces of the shim (M8) and 4 pieces of the nut (M8)
Bolt: M8×45 (4 PCS)
Shim: M8 (4 PCS)
Nut: M8
4 PCS)
4 / 8
GS37 Racing Simulator Stand
5. Assemble 4 picses of the anti-skid foot bolt (M8×20) to the frontpart stand
Foot Bolt: M8×20 (4 PCS)
6. Assemble 4 picses of the anti-skid foot bolt (M8×20) to the afterpart stand
Foot Bolt: M8×20 (4 PCS)
5 / 8
GS37 Racing Simulator Stand
(

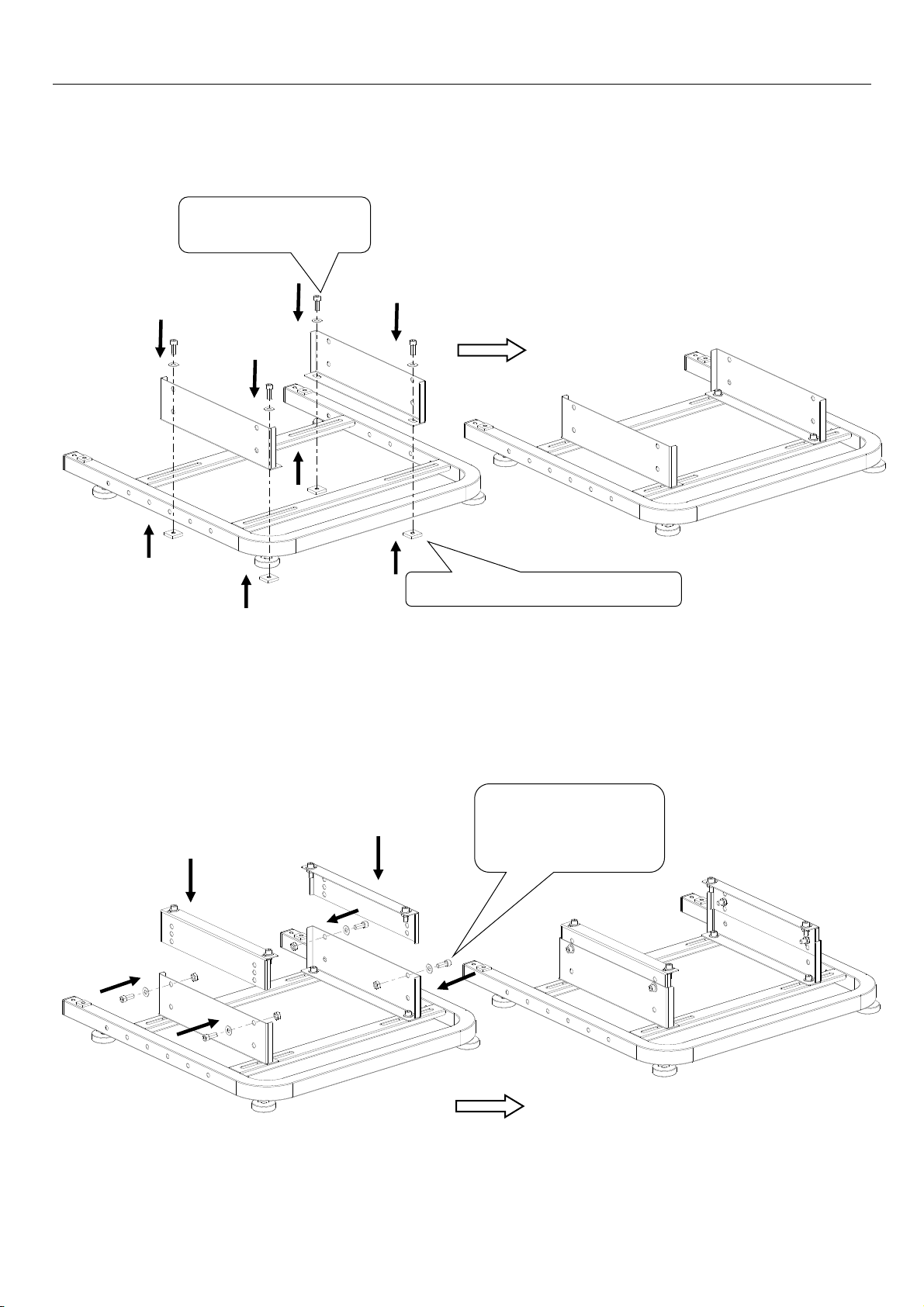

7. Assemble the seat mounting stand with 4 pieces of the bolt (M8×20) 、4 pieces of
the shim (M8) and 4 pieces of the Square Nut (M8 ×25×25×5)
Bolt: M8×20 (4 PCS)
Shim: M8
4 PCS)
Square Nut: M8 ×25×25 (4 PCS)
8. Assemble the seat adjustment stand with 4 pieces of the bolt (M8×20) 、4 pieces of
the shim (M8) and 4 pieces of the nut (M8)
Bolt: M8×20 (4 PCS)
Shim: M8 (4 PCS)
Nut: M8 (4 PCS)
6 / 8
GS37 Racing Simulator Stand
(
9. Assemble the gear mounting stand with 2 pieces of the bolt (M6×16)、 2 pieces of
the shim (M6) and 1 pieces of the Handle Bolt (M8×15)
Bolt: M6×16 (2 PCS)
Shim: M6 (2 PCS)
Handle Bolt:
M8×15 (1 PCS)
10 Assemble the elbow fixing stand and fixing plate on the left or right as your like to
the Seat stand with 2 pieces of the bolt (M8×80) 、2 pieces of the shim (M8) and 2
pieces of the nut (M8)
fixing plate
Bolt: M8×80 (2 PCS)
Shim: M8 (2 PCS)
Nut: M8
2 PCS)
7 / 8
GS37 Racing Simulator Stand
(
11 Connect the frontpart stand and the afterpart stand with 4 pieces of the Handle
Bolt (M8×15)
Handle Bolt:
M8×15 (2 PCS)
Handle Bolt:
M8×15
2 PCS)
8 / 8
