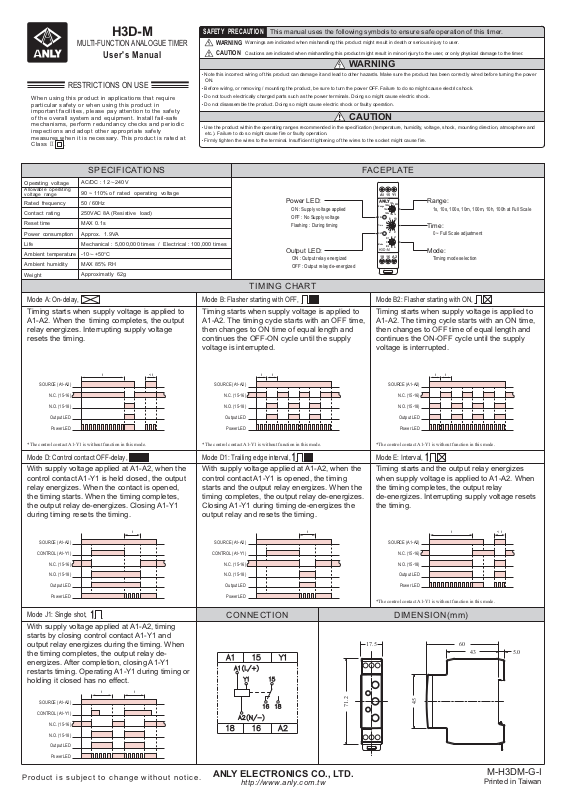

ANLY H3D-M User Manual

1

1

1

A1 15 Y1

18 16 A2

A1 (L/+)

Y1 15

A2(N/-)

16 18

H3D-M

MULTI-FUNCTION ANALOGUE TIMER

User's Manual

RESTRICTIONS ON USE

When using this product in applications that require
particular safety or when using this product in
important facilities, please pay attention to the safety
of the overall system and equipment. Install fail-safe
mechanisms, perform redundancy checks and periodic
inspections and adopt other appropriate safety
measures when it is necessary. This product is rated at
Class Ⅱ .

SAFETY PRECAUTION

WARNING

CAUTION

This manual uses the following symbols to ensure safe operation of this timer.

Warnings are indicated when mishandling this product might result in death or serious injury to user.

Cautions are indicated when mishandling this product might result in minor injury to the user, or only physical damage to the timer.

WARNING

ΘNote this incorrect wiring of this product can damage it and lead to other hazards. Make sure the product has been correctly wired before turning the power
ON.

ΘBefore wiring, or removing / mounting the product, be sure to turn the power OFF. Failure to do so might cause electric shock.

ΘDo not touch electrically charged parts such as the power terminals. Doing so might cause electric shock.

ΘDo not disassemble the product. Doing so might cause electric shock or faulty operation.

CAUTION

ΘUse the product within the operating ranges recommended in the specification (temperature, humidity, voltage, shock, mounting direction, atmosphere and
etc.). Failure to do so might cause fire or faulty operation.

ΘFirmly tighten the wires to the terminal. Insufficient tightening of the wires to the socket might cause fire.

SPECIFICATIONS

Operating voltage

Allowable operating
voltage range

Rated frequency

Contact rating

Reset time

Power consumption

Life

Ambient temperature

Ambient humidity

Weight

AC/DC : 12Д240V

90 ~ 110% of rated operating voltage

50 / 60Hz

250VAC 8A (Resistive load)

MAX 0.1s

Approx. 1.9VA

Mechanical : 5,000,000 times / Electrical : 100,000 times

-10Д+50°C

MAX 85% RH

Approximatly 62g

TIMING CHART

Mode A: On-delay,

Timing starts when supply voltage is applied to
A1-A2. When the timing completes, the output
relay energizes. Interrupting supply voltage
resets the timing.

t < t

SOURCE (A1-A2)

N.C. (15-16)

N.O. (15-18)

Output LED

Power LED

*The control contact A1-Y1 is without function in this mode.

Mode D: Control contact OFF-delay, Mode E: Interval,Mode D1: Trailing edge interval,

With supply voltage applied at A1-A2, when the
control contact A1-Y1 is held closed, the output
relay energizes. When the contact is opened,
the timing starts. When the timing completes,
the output relay de-energizes. Closing A1-Y1
during timing resets the timing.

Mode B: Flasher starting with OFF, Mode B2: Flasher starting with ON,

Timing starts when supply voltage is applied to
A1-A2. The timing cycle starts with an OFF time,
then changes to ON time of equal length and
continues the OFF-ON cycle until the supply
voltage is interrupted.

tt

SOURCE (A1-A2)

N.C. (15-16)

N.O. (15-18)

Output LED

Power LED

*The control contact A1-Y1 is without function in this mode. *The control contact A1-Y1 is without function in this mode.

With supply voltage applied at A1-A2, when the
control contact A1-Y1 is opened, the timing
starts and the output relay energizes. When the
timing completes, the output relay de-energizes.
Closing A1-Y1 during timing de-energizes the
output relay and resets the timing.

Power LED:

ON : Supply voltage applied

OFF : No Supply voltage

Flashing : During timing

Output LED:

ON : Output relay energized

OFF : Output relay de-energized

FACEPLATE

15A1 Y1

10h

100h

100m

Range

10m

100s

1s

10s

PW

810

6

Time

4

2

0

OUT

E

J1

D1

D

Mode

B2

A

B

H3D-M

1618 A2

Timing starts when supply voltage is applied to
A1-A2. The timing cycle starts with an ON time,
then changes to OFF time of equal length and
continues the ON-OFF cycle until the supply
voltage is interrupted.

SOURCE (A1-A2)

N.C. (15-16)

N.O. (15-18)

Output LED

Power LED

Range:

1s, 10s, 100s, 10m, 100m, 10h, 100h at Full Scale

Time:

0 ~ Full Scale adjustment

Mode:

Timing mode selection

tt

Timing starts and the output relay energizes
when supply voltage is applied to A1-A2. When
the timing completes, the output relay
de-energizes. Interrupting supply voltage resets
the timing.

t

SOURCE (A1-A2)

CONTROL (A1-Y1)

N.C. (15-16)

N.O. (15-18)

Output LED

Power LED

Mode J1: Single shot,

With supply voltage applied at A1-A2, timing
starts by closing control contact A1-Y1 and
output relay energizes during the timing. When
the timing completes, the output relay de­energizes. After completion, closing A1-Y1
restarts timing. Operating A1-Y1 during timing or
holding it closed has no effect.

tt

SOURCE (A1-A2)

CONTROL (A1-Y1)

N.C. (15-16)

N.O. (15-18)

Output LED

Power LED
