Anker Technology R5121 user manual

Roav Smart Car-Charger Spectrum

Safety

Instructions

Introduction

Get Started

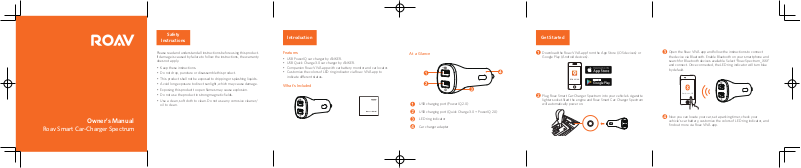

Owner’s Manual

Please read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

• Keep these instructions.

• Do not drop, puncture or disassemble this product.

• This product shall not be exposed to dripping or splashing liquids.

• Avoid long exposure to direct sunlight, which may cause damage.

• Exposing this product to open ﬂames may cause explosion.

• Do not use the product in strong magnetic ﬁelds.

• Use a clean, soft cloth to clean. Do not use any corrosive cleaner/ oil to clean.

Features

• USB PowerIQ car charger by ANKER.

• USB Quick Charge 3.0 car charger by ANKER.

• Companion Roav VIVA app with car battery monitor and car locator.

• Customize the colors of LED ring indicator via Roav VIVA app to indicate dierent status.

What’s Included

Owner’s Manual

At a Glance

USB charging port (PowerIQ 2.0)

USB charging port (Quick Charge 3.0 + PowerIQ 2.0)

LED ring indicator

Car charger adapter

Download the Roav VIVA app from the App Store (iOS devices) or

Google Play (Android devices).

ROAV VIVA

Plug Roav Smart Car-Charger Spectrum into your vehicle’s cigarette

lighter socket.Start the engine and Roav Smart Car-Charger Spectrum will automatically power on.

Open the Roav VIVA app and follow the instructions to connect

the device via Bluetooth. Enable Bluetooth on your smartphone and search for Bluetooth devices available. Select “Roav Spectrum_XXX” and connect. Once connected, the LED ring indicator will turn blue by default.

Roav

Spectrum

_XXX

Now you can locate your car, set a parking timer, check your

vehicle’s car battery, customize the colors of LED ring indicator, and ﬁnd out more via Roav VIVA app.

Model: R5121

51005000734 V01

Charge Your

Devices

The Roav Smart Car-Charger Spectrum contains dual USB charging ports. You can charge two devices at the same time with maximum output power of 30W.

Charge Your

Devices

Specifications are subject to change without notice.

DC input: 12V-24V

Standard output: 5V 2.4A

Quick Charge 3.0 output: 3.6V-6.5V 3A, 6.5V-9V 2A, 9V-12V 1.5A

Total Wattage: 30W

Bluetooth version: V 4.1

Operating temperature range: -4°F to 104°F / -20°C to 40°C

Storage temperature range: -40°F to 185°F / -40°C to 85°C

Notice

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in ﬁxed/mobile exposure condition. The min separation distance is 20cm.

Qualcomm Quick Charge is a product of Qualcomm Technologies, Inc. Qualcomm and Quick Charge are trademarks of Qualcomm Incorporated, registered in the United States and other countries. All Qualcomm Incorporated trademarks are used with permission.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.Google Play and the Google Play logo are trademarks of Google Inc.

Customer

Service

18-month limited warranty

Lifetime technical support
