Anker Technology A7912 user manual

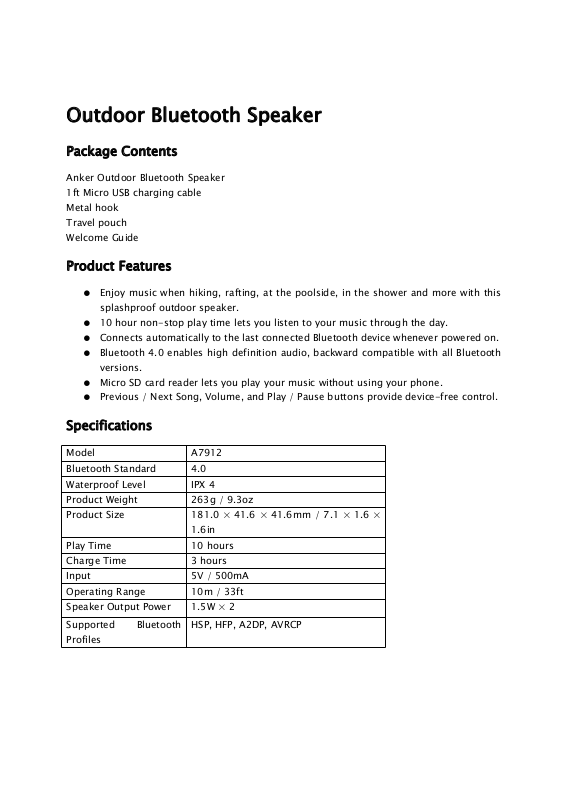

Outdoor Bluetooth Speaker

Package Contents

Anker Outdoor Bluetooth Speaker
1ft Micro USB charging cable
Metal hook
Travel pouch
Welcome Guide

Product Features

● Enjoy music when hiking, rafting, at the poolside, in the shower and more with this
splashproof outdoor speaker.

● 10 hour non-stop play time lets you listen to your music through the day.

● Connects automatically to the last connected Bluetooth device whenever powered on.

● Bluetooth 4.0 enables high definition audio, backward compatible with all Bluetooth

versions.

● Micro SD card reader lets you play your music without using your phone.

● Previous / Next Song, Volume, and Play / Pause buttons provide device-free control.

Specifications

Model A7912

Bluetooth Standard 4.0

Waterproof Level IPX 4

Product Weight 263g / 9.3oz

Product Size 181.0 × 41.6 × 41.6mm / 7.1 × 1.6 ×

1.6in

Play Time 10 hours

Charge Time 3 hours

Input 5V / 500mA

Operating Range 10m / 33ft

Speaker Output Power 1.5W × 2

Supported Bluetooth
Profiles

HSP, HFP, A2DP, AVRCP

Product Overview

1. Status Indicator

2. Play / Pause

3. Volume Up / Next Song

4. Volume Down / Previous Song

5. Power / Function Button

6. Micro SD Card Slot

7. Micro USB Charging Port

8. Battery Indicator

HowtoPairwithYourDevice

1. Press the power button for 3 seconds. The speaker will turn on and automatically enter
pairing mode indicated by the flashing blue LED.

2. Activate your device’s Bluetooth function and search for the device.

3. Once the Bluetooth speaker has been detected, select the product name “Anker A7912” to
connect. (For devices with Bluetooth versions earlier than 3.0, press “Yes” to confirm pairing.
Enter a passkey or PIN code “0000” (4 zeros), then press the “Yes” or “OK” key to finish
pairing.)

4. When the Bluetooth speaker and your device are successfully paired, the blue LED will go
on and remain on while connected.

When turning on the speaker, it will automatically connect to the last connected device as
long as Bluetooth is still enabled. Before pairing with another device, disable the Bluetooth
function on the previous device and the speaker will automatically return to pairing mode.
