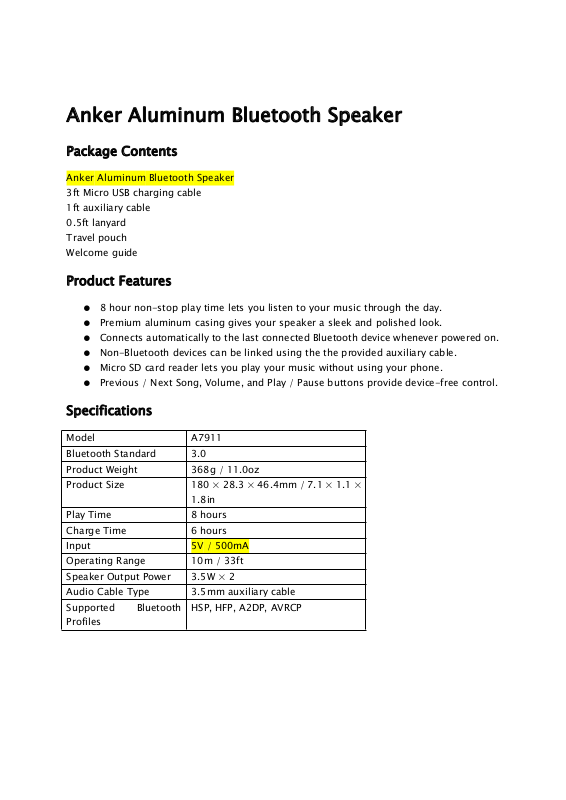

Anker Technology A7911 user manual

Anker Aluminum Bluetooth Speaker

Package Contents

Anker Aluminum Bluetooth Speaker
3ft Micro USB charging cable
1ft auxiliary cable

0.5ft lanyard
Travel pouch
Welcome guide

Product Features

● 8 hour non-stop play time lets you listen to your music through the day.

● Premium aluminum casing gives your speaker a sleek and polished look.

● Connects automatically to the last connected Bluetooth device whenever powered on.

● Non-Bluetooth devices can be linked using the the provided auxiliary cable.

● Micro SD card reader lets you play your music without using your phone.

● Previous / Next Song, Volume, and Play / Pause buttons provide device-free control.

Specifications

Model A7911

Bluetooth Standard 3.0

Product Weight 368g / 11.0oz

Product Size 180 × 28.3 × 46.4mm / 7.1 × 1.1 ×

1.8in

Play Time 8 hours

Charge Time 6 hours

Input

Operating Range 10m / 33ft

Speaker Output Power 3.5W × 2

Audio Cable Type 3.5mm auxiliary cable

Supported Bluetooth
Profiles

5V / 500mA

HSP, HFP, A2DP, AVRCP

Product Overview

1. Volume Down / Previous Song

2. Play / Pause

3. Volume Up / Next Song

4. Auxiliary Input Port

5. Micro SD Card Slot

6. Micro USB Charging Port

7. Battery Indicator

8. On / Off Switch

9. Bluetooth Indicator

10. Power Indicator

11. Microphone

HowtoPairwithYourDevice

1. Push the on / off switch to turn on the speaker. The speaker will automatically enter
pairing mode as indicated by a flashing Bluetooth Indicator.

2. Activate your device’s Bluetooth function and search for the device.

3. Once the Bluetooth speaker has been detected, select the model name “Anker A7911” to
connect. (For devices with Bluetooth 3.0 and earlier, press “Yes” to begin pairing. Enter a
passkey or PIN code “0000” (4 zeros) and press “Yes” or “OK” to complete pairing.)

4. Once the speaker and your device have been successfully paired, the speaker will beep
once and the Bluetooth Indicator

When turning on the speaker, it will automatically connect to the last connected device as
long as Bluetooth is still enabled. Before pairing with another device, disable the Bluetooth
function on the previous device and the speaker will automatically return to pairing mode.

To switch to SD card or Aux Line-In modes, simply insert your Micro SD card

Note:

or the auxiliary cable and its connected device when in standby or Bluetooth
mode. The speaker enters Bluetooth mode by default when turning on the

will come on.
