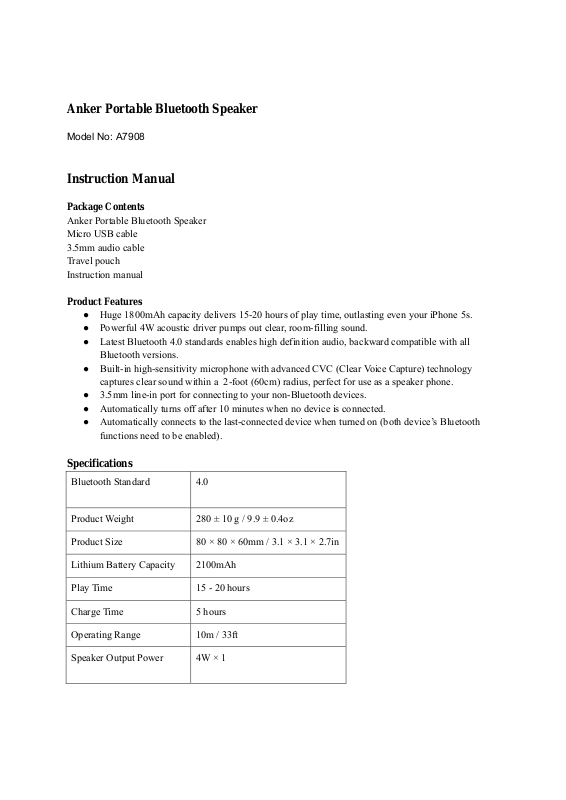

Anker Technology A7908 user manual

Anker Portable Bluetooth Speaker

Model No:

A7908

Instruction Manual

Package Contents

Anker Portable Bluetooth Speaker
Micro USB cable

3.5mm audio cable
Travel pouch
Instruction manual

Product Features

● Huge 1800mAh capacity delivers 15-20 hours of play time, outlasting even your iPhone 5s.

● Powerful 4W acoustic driver pumps out clear, room-filling sound.

● Latest Bluetooth 4.0 standards enables high definition audio, backward compatible with all

Bluetooth versions.

● Built-in high-sensitivity microphone with advanced CVC (Clear Voice Capture) technology

captures clear sound within a 2-foot (60cm) radius, perfect for use as a speaker phone.

● 3.5mm line-in port for connecting to your non-Bluetooth devices.

● Automatically turns off after 10 minutes when no device is connected.

● Automatically connects to the last-connected device when turned on (both device’s Bluetooth

functions need to be enabled).

Specifications

Bluetooth Standard 4.0

Product Weight 280 ± 10 g / 9.9 ± 0.4oz

Product Size 80 × 80 × 60mm / 3.1 × 3.1 × 2.7in

Lithium Battery Capacity 2100mAh

Play Time 15 - 20 hours

Charge Time 5 hours

Operating Range 10m / 33ft

Speaker Output Power 4W × 1

Audio Cable Type 3.5mm audio cable

Supported Bluetooth
Profiles

Product Overview

HSP, HFP, A2DP and AVRCP

1. Volume Down

2. Volume Up

3. Play/Pause

4. Micro USB Input

5. Audio Input

6. Power Switch

7. Status Indicator

8. Battery Indicator

How to Pair with Your Device

1. Turn the Power Switch on. The Status Indicator will light up. The speaker will enter pairing mode
automatically within 3 seconds, and the Status Indicator will begin to flash.
