Anker Technology 98AN01BA user manual

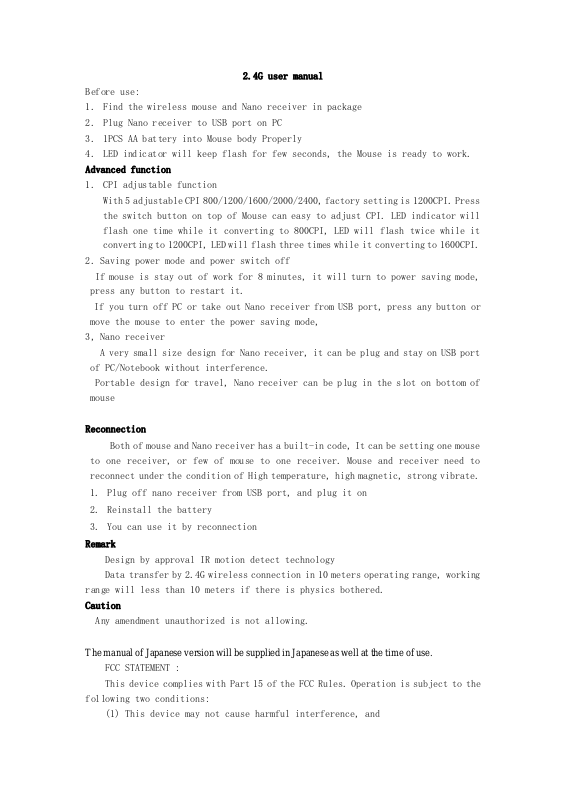

2.4G user manual

Before use:

1. Find the wireless mouse and Nano receiver in package

2. Plug Nano receiver to USB port on PC

3. 1PCS AA battery into Mouse body Properly

4. LED indicator will keep flash for few seconds, the Mouse is ready to work.
Advanced function

1. CPI adjustable function
With 5 adjustable CPI 800/1200/1600/2000/2400, factory setting is 1200CPI. Press
the switch button on top of Mouse can easy to adjust CPI. LED indicator will
flash one time while it converting to 800CPI, LED will flash twice while it
converting to 1200CPI, LED will flash three times while it converting to 1600CPI.

2. Saving power mode and power switch off

If mouse is stay out of work for 8 minutes, it will turn to power saving mode,

press any button to restart it.

If you turn off PC or take out Nano receiver from USB port, press any button or

move the mouse to enter the power saving mode,

3, Nano receiver

A very small size design for Nano receiver, it can be plug and stay on USB port

of PC/Notebook without interference.

Portable design for travel, Nano receiver can be plug in the slot on bottom of

mouse

Reconnection

Both of mouse and Nano receiver has a built-in code, It can be setting one mouse
to one receiver, or few of mouse to one receiver. Mouse and receiver need to
reconnect under the condition of High temperature, high magnetic, strong vibrate.

1. Plug off nano receiver from USB port, and plug it on

2. Reinstall the battery

3. You can use it by reconnection

Remark

Design by approval IR motion detect technology

Data transfer by 2.4G wireless connection in 10 meters operating range, working
rangewilllessthan10metersifthereisphysicsbothered.
Caution

Any amendment unauthorized is not allowing.

The manual of Japanese version will be supplied in Japanese as well at the time of use.

FCC STATEMENT :

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference
that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there isno
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouragedto
try to correct the interference by one or more of the following measures:

　 Reorient or relocate the receiving antenna.

　 Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

　 Consult the dealer or an experienced radio/TV technician for help.
