PREFACE

Introduction

Congratulations on your purchase of one of our products. We hope that you will enjoy using it.

Models

This manual covers the following storage water heaters:

WKTn HA WKTn VA WKT-Dn HA WKT-Dn VA

Manual  lling Fixed water connection Manual  lling Fixed water connection

Double walled Double walled

Purpose of the appliance

The sole purpose of this appliance is to heat drinking water. The use of the appliance for other
purposes is not permitted and may be hazardous. The manufacturer cannot be held liable for losses
caused by using the appliance for purposes other than those indicated here or by incorrect use.

Guarantee conditions

The guarantee conditions applicable to this appliance form an integral part of the general terms of
delivery.

Appliances and the environment

The packing material

Your new coffee maker has been carefully packaged to protect it against damage. The packing is not
harmful to the environment and consists of the following materials:

• Corrugated cardboard

• Filler elements made of polyurethane foam <PUR> covered with a polythene film (>PE-HD<).
The waste processing plant in your municipality will be pleased to inform you about where you
can dispose of the materials.

Discarding the appliance

No appliance lasts forever. When the time comes to discard your appliance it will
usually be possible to return it to your dealer. If this is not the case, ask your municipal
council about the alternatives for recycling the materials. All plastic parts have been
given standard codes. The parts of the appliance such as the printed circuit board and
accompanying parts form electrical and electronic waste. The metal pipes are made of
stainless steel and can be completely dismantled.

Rev. 4.0 01/2008

13

WKTn / WKT-Dn

Read these instructions for use carefully, before using this appliance. This will protect
your safety and prevent damage being caused to the appliance. Perform the various
actions in the order given. Always keep this manual close by the appliance.

1. GENERAL DESCRIPTION WKTn

1

In fig. 1 the main parts are indicated.

1. Lid

2

2. Handle

3. Gauge with litre index scale

4. Hot water no-drip tap

5. Adjustable thermostat

6. Indicator light

7. Filling switch (model VA)

8. Dry-boil safety protection

9. Electrical supply

10. Water connection (model VA)

1.1 Technical details

Model WKTn 10
Article number HA 30145
Article number VA 30140
Contents 10 litre
Buffer stock hot water 8 litre
Hour capacity (hot water) 30 liter
Heating time (20-97°C) approx. 17 min.
Recovery time after 1,8L approx. 3,5 min
Electrical connection* 1N~220-240V
Frequency 50-60 Cy
Power* 3200 W
Dimensions  g. 7
Weight empty 5,5 kg
Weight  lled 15,5 kg
Water system (model VA)
Water connection 3/4" outer thread
Min. Water pressure 0,02 MPa (0,2 bar)
Max. water pressure 1 MPA (10 bar)

3

4

5

6

89

WKTn 20
30155

30150
20 litre
18 litre
30 liter
approx. 34 min.
approx. 3,5 min
1N~220-240V
50-60 Cy
3200 W
 g. 8
7,8 kg
27,8 kg

3/4" outer thread
0,02 MPa (0,2 bar)
1 MPA (10 bar)

7

fig. 1

10

Technical alterations reserved

WKTn / WKT-Dn

* CH / DK: 1N~220-240V / 2200W or 2N~400V 3200W

14

Rev. 4.0 01/2008

2. GENERAL DESCRIPTION WKT-Dn

In fig. 1 the main parts are indicated.

1. Insulated lid

2. Handle

3. Gauge with litre index scale

4. Hot water no-drip tap

5. Adjustable thermostat

6. Indicator light

7. Filling switch (model VA)

8. Dry-boil safety protection

9. Electrical supply

10. Water connection (model VA)

2.1 Technical details

1

2

3

4

5

6

7

fig. 2

8910

Model WKT-Dn 5
Article number HA 30040
Article number VA 30055
Contents 5 litre
Buffer stock hot water 4 litre
Hour capacity (hot water) 30 liter
Heating time (20-97°C) approx. 9 min.
Recovery time after 1,8L approx. 3,5 min
Elektrical connection* 1N~220-240V
Frequency 50-60 Cy
Power* 3200 W
Dimensions  g. 9
Weight empty 6 kg
Weight  lled 11 kg

WKT-Dn 10 WKT-Dn 20
30045 30050

30060 30065
10 litre 20 litre
8 litre 18 litre
30 liter 30 litre
approx. 17 min. approx. 34 min.
approx. 3,5 min approx. 3,5 min.
1N~220-240V 1N~220-240V
50-60 Cy 50-60 Cy
3200 W 3200 W
 g. 10  g. 11
8 kg 12 kg

18 kg 32 kg
Water system (model VA)
Water connection 3/4" outer thread 3/4" outer thread 3/4" outer thread
Min. Water pressure 0,02 MPa (0,2 bar) 0,02 MPa (0,2 bar) 0,02 MPa (0,2 bar)
Max. water pressure 1 MPA (10 bar) 1 MPA (10 bar) 1 MPA (10 bar)

Technical alterations reserved

Rev. 4.0 01/2008

* CH / DK: 1N~220-240V / 2200W or 2N~400V 3200W

15

WKTn / WKT-Dn

WARNING

- Always remove the plug from the socket if the machine has to be opened for repair or maintenance.

- Do not position the machine in areas where the temperature drops below freezing point
because there is always water left in the system.

- Always plug the machine into an earthed wall socket.

- Do not submerge or spray the machine.

- Have all repairs carried out by a specially trained technician.

- During use, some parts will become very hot.

- In case the machine is not used for a relatively long period of time, it is advisable to remove
the plug from the socket and to close the water drain* (*model VA).

3. INSTALLATION

 only suitable for indoor use
 not suitable for use in humid areas
 not suitable for areas with explosion hazard

Unpacking
The machine has been carefully packed to prevent damage being caused to your new appliance.
Remove the packing carefully without using sharp objects. Check if the appliance is complete.
To protect the stainless steel parts from scratches these surfaces are temporary protected
by a foil. This foil must be removed during installation.

The appliance is delivered with the following accessories:

WKTn WKTn WKT-Dn WKT-Dn

HA VA HA VA
Lid 1 1 1 1
Transport disk - - 1 1
Water supply hose 1.5m (model VA) - 1 - 1
1 sachet scale remover 1 1 1 1
Spare gauge glass (integrated) - - 1 1
This manual 1 1 1 1

Please contact your dealer in case parts are missing or damaged.

3.1 Placing the machine
 Place the appliance at buffet height on a firm, level base that can withstand the weight
of the machine when filled.
 Make sure that the appliance is level and placed somewhere where it will not cause
damage should leakage occur.
 The power connection must be within half a metre of where the machine is positioned.

3.2 Connection to the water supply system (model VA)

 The WKT-Dn VA requires a water stop valve near the machine.
 Connect the provided water hose between the cold water supply and the water connection on the
back of the unit. The hose has a length of 1.5 m.

WKTn / WKT-Dn

16

Rev. 4.0 01/2008

3.3 Connection to the electricity supply system

A

B

C

Depending on the model, the appliance should be connected according to the instructions in (fig. 3).
 For 240V 1 phase with plug socket.
 For 240V 1 phase (3-core cable).

The following remarks apply to fig. 3:
 If the plug fitted on the electric cable does not fit in your socket, you have to replace it
with a suitable one.
 The replaced plug should be thrown away as it can be dangerous if plugged in a socket.

The following points should be observed when wiring a new plug:

1. The green/yellow-coloured wire (“EARTH”) should be connected to the terminal which is
either marked with the letter “E”, the “earth” symbol (

2. The blue-coloured wire (“NEUTRAL”) should be connected to the terminal which is either
marked with the letter “N” or coloured black.

3. The brown-coloured wire (“PHASE”) should be connected to the terminal which is either
marked with the letter “L” or coloured red.

), coloured green or green/yellow.

IMPORTANT!
The 3 core main cable (fig. 3) has the
following wiring code:

4. CONTROLS

A. Adjustable thermostat /
ON/OFF

B. Heating indicator light

Green/yellow - Earth (E)
Blue - Neutral (N)
Brown - Phase (L)

fig. 3

fig. 4

C. On/Off switch filling system
(model VA)

Rev. 4.0 01/2008

17

WKTn / WKT-Dn

5. FIRST TIME USE & USE

This chapter will explain the coffee brewing and hot water system process: when the appliance is used
for the first time. When the appliance has not been used for more than one week, for example after a
holiday period.

Model HA (manual filling)

1. Remove the cover of the storage water heater.

2. Fill the storage water heater with water, while reading out the litre index scale.
Never overfill the reservoir!

3. Always put the cover on the storage water heater.

4. Put the plug fitting in the wall socket and switch the machine on by turning the thermostat
to the required temperature (fig. 3A).

5. The indicator light (fig. 3B) will now be on until the water has reached the required temperature.

6. When the indicator light switches off, the storage water heater is ready for use. During use the
indicator light will regularly switch on and off, to show that the water is heating up.

7. Regularly check (after draining of hot water) if the water heater needs to be refilled.

Draw off an amount of hot water, when the machine is used for the first time.

Model VA (water connection)

1. Remove the cover of the storage water heater.

2. Fill the reservoir with a minimum of 4 litres water and put the cover back on the storage
water heater.

3. Connect one side of the water supply hose between the swivel joint at one side on the back
of the machine and the other side to a manually operated water stop valve.

4. Put the plug in the wall socket and switch the machine on by turning the thermostat to the
required temperature (fig. 3A).

5. The indicator light (fig. 3B) will now be on until the water has reached the required temperature.

6. Open the manually operated water stop valve and make sure that the swivel connections are
not leaking.

7. Activate the filling system by turning the switch (fig. 3C). The storage water heater starts to fill
and stops automatically when the reservoir is full.

8. When the indicator light switches off, the storage water heater is ready for use. During use the
indicator light will regularly switches on and off, to show that the water is heating up.

Draw off an amount of hot water, when the machine is used for the first time.

WKTn / WKT-Dn

18

Rev. 4.0 01/2008

WARNING

- Stay near the machine while maintenance is being carried out.

- When descaling, always follow the instructions of the scale remover used.

- It is advisable to wear safety glasses and gloves during descaling.

- Allow the machine to run through at least three times to rinse the solution from the
system after it has been descaled.

- The appliance should not be submerged or hosed off.

- Make sure all the repairs to the appliance are carried out by a quali ed technician.

6. MAINTENANCE

 Clean the machine with a clean damp cloth.
 Avoid using abrasive. It can cause scratches and dim spots.
 Remove scale deposits by using scale remover.

6.1 Descaling

During operation scale will develop in the machine. Therefore the machine needs to be descaled
approx. once a month to guarantee the lowest energy consumption and proper functioning.

When to descale?

 Depending on the frequency of use and hardness of water used, we advise to inspect the
unit regularly for scale formation.
 Remove the cover of the storage water heater regularly. If there is loose scale on the bottom
or if there is severe scale formation on the walls, then the unit needs to be descaled.
 In some cases it is sufficient to only remove the loose scale.

1. Switch off the machine and remove the plug from the wall socket.

2. Remove the cover from the storage water heater.

3. Turn the machine upside down over the sink. The loose scale will come out.

4. If there isn’t any scale in the machine anymore, it taken into use again.
Consult section 5 “Preparation before use”.

To remove remaining scale use Animo scale remover.

5. Carefully read the caution notice and the directions on the sachet Animo scale remover.

6. Dissolve 1 sachets of 50 gram Animo scale remover into 2 litres of warm water.

7. Fill the hot water reservoir with the solution. This will now undergo a reaction with the
scale deposits.

8. Allow the solution to soak in for about 10 minutes until the frothing has stopped.

9. Tap some of the acid off and pour it back into the reservoir.

10. Turn the machine upside down above the sink. Rinse the reservoir and the hot water tap,
clean with hot water.

11. If there is no scale left in the machine anymore, it taken into use again. Consult section
5 “FIRST TIME USE & USE”.

Rev. 4.0 01/2008

19

WKTn / WKT-Dn

7. TEMPERATURE PROTECTION

There is a temperature protection in the machine that can be
accessed from the outside of the machine. This protection is
located at the back of the machine (fig. 5A). It is activated when
the temperature gets too high. The most common cause for
activating the security is scale that has not been removed in time.
If the temperature protection is activated, you should proceed with
the following steps:

1. Let the unit cool down.

2. Unscrew the black protection cover.

A

3. Push the button that now appears, replace its black cover
and fasten it tightly.

If the dry-boil protection triggers owing to
increased scale deposits, descale the appliance.
See chapter 6.1. Consult your dealer if the fault was caused by a problem other than the dry-boil
protection being triggered.

8. TRANSPORT

The transport of the machine should be done as follows:

1. Switch the machine off and remove the plug from the wall socket.

2. Close the tap of the cold water supply and disconnect the water
hose (VA).

3. Remove the cover of the reservoir.

4. Turn the machine upside down to let the remaining water out
above the sink.

5. Place the cover again.

6. The machine is now ready for transportation.

7. Proceed with section 3 “INSTALLATION” to reinstall the machine.

fig. 5

WKTn / WKT-Dn

20

fig. 6

Rev. 4.0 01/2008

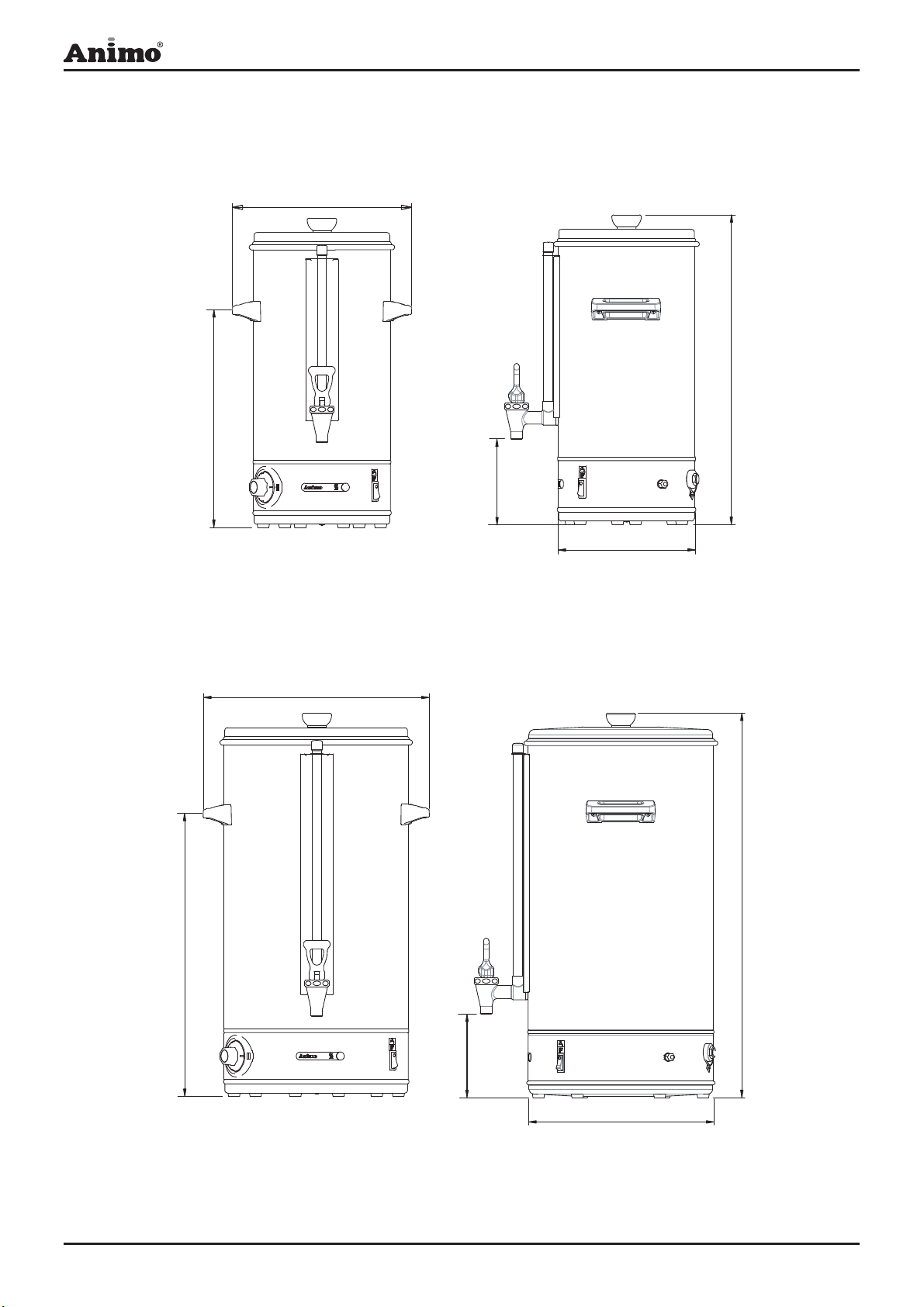

Afmetingen / Dimensions / Abmessungen / Dimensions

293

506

356

140

Ø224

WKTn 10 HA/VA

420

fig./ Abb. 7

385

560

WKTn 20 HA/VA

Rev. 4.0 01/2008

137

39

Ø304

fig./ Abb. 8

WKTn / WKT-Dn

Afmetingen / Dimensions / Abmessungen / Dimensions

312

305

125

Ø237

407

WKT-Dn 5 HA/VA

321

fig./ Abb. 9

390

425

125

WKT-Dn 10 HA/VA

WKTn / WKT-Dn

40

Ø306

fig./ Abb. 10

Rev. 4.0 01/2008

384

Afmetingen / Dimensions / Abmessungen / Dimensions

446

515

125

Ø355

WKT-Dn 20 HA/VA

fig./ Abb. 11

Rev. 4.0 01/2008

41

WKTn / WKT-Dn

Animo B.V. Headoffice

Dr. A.F. Philipsweg 47

P.O. Box 71

9400 AB Assen

The Netherlands

Tel. no. [phone]

Fax no. [phone]

E-mail: [e-mail]

Internet: http://www.animo.eu

Rev. 4.0 01/2008 Art.nr. 09798
