OptiBean
TABLE OF CONTENTS
1 Copyright ................................................................................................................................... 3
2 Safety .......................................................................................................................................... 4
2.1 Important information ......................................................................................................... 4
2.2 Warning signs ..................................................................................................................... 4
2.3 Intended use ....................................................................................................................... 5
2.4 Modifications ...................................................................................................................... 5
2.5 Safety devices .................................................................................................................... 6
2.6 Safety precautions .............................................................................................................. 7
2.7 Users .................................................................................................................................. 8
2.8 Directives ............................................................................................................................ 9
2.9 Guarantee .......................................................................................................................... 9
2.10 Disposal .............................................................................................................................. 9
2.11 Further help and information .............................................................................................. 9
3 Description ............................................................................................................................... 10
3.1 Overview .......................................................................................................................... 10
3.2 Working principle .............................................................................................................. 13
3.3 Canisters .......................................................................................................................... 13
3.4 Grinder ............................................................................................................................. 13
3.5 Brewer .............................................................................................................................. 14
3.6 Mixer ................................................................................................................................. 14
3.7 Outlet ................................................................................................................................ 15
3.8 Specifications ................................................................................................................... 15
3.9 Display .............................................................................................................................. 17
3.10 Configuration menu .......................................................................................................... 18
3.11 Energy safe mode ............................................................................................................ 20
4 Transport & Installation .......................................................................................................... 22
4.1 Transport .......................................................................................................................... 22
4.2 Installation ........................................................................................................................ 22
5 Operation ................................................................................................................................. 27
5.1 Overview control panel ..................................................................................................... 28
5.2 Overview control panel (inside) ........................................................................................ 29
5.3 Opening the door .............................................................................................................. 29
5.4 Switching on and off ......................................................................................................... 30
5.5 Start dispensing cups ....................................................................................................... 30
5.6 Start dispensing jugs ........................................................................................................ 30
5.7 Stop dispensing cups or jugs ........................................................................................... 30
5.8 Filling the bean canister ................................................................................................... 31
5.9 Filling the instant canisters ............................................................................................... 31
5.10 Using the coin mechanism (optional) ............................................................................... 32
5.11 Using the coin changer (optional) ..................................................................................... 32
6 Maintenance ............................................................................................................................. 33
6.1 Cleaning and disinfecting detergents ............................................................................... 33
6.2 Cleaning ........................................................................................................................... 33
2011/04 1 EN
OptiBean
7 Troubleshooting ...................................................................................................................... 41
7.1 Error messages ................................................................................................................ 41
7.2 Display messages ............................................................................................................ 43
7.3 Malfunctions ..................................................................................................................... 43
EN 2 2011/04
OptiBean
1 Copyright
© 2011 Animo®
No part of this document may be reproduced and/or made public in print, microfilm, electronic media or
any other form without the manufacturer’s prior consent. This also applies to the corresponding
diagrams and/or charts.
Animo retains the right to alter parts at any given time without prior or immediate announcement to the
consumer. The content of this manual can also be changed without any prior warning. This manual is
valid for the standard model of the device. Animo can therefore not be held liable for possible damage
resulting from specifications deviating from the standard model for the device supplied to you.
This manual was created with the utmost care, but the manufacturer cannot be held responsible for any
mistakes in this document or their consequences.
This manual was originally written in English. All other languages in this document are a translation of
the English source text.
2011/04 3 EN
OptiBean
2 Safety
2.1 Important information
This user manual is intended to help you operate this machine safely and effectively. This manual gives
information about installation, operation and maintenance of the equipment. Make sure to read and
understand the manual before use.
It is your respons bility to operate this machine in accordance with all the safety instructions and
procedures in this manual, and with all other safety procedures in your workplace. It is the user's
responsibility to make sure that the machine is correctly installed, configured, commissioned, operated,
serviced and maintained and that such actions are only carried out by people who have been fully and
properly trained for those tasks. It is also the user's respons bility to make sure that the machine is only
used in full accordance with laws - and regulations, which have the force of law - in the jurisdiction in
which the machine is installed.
WARNING
Before attempting to use the machine, read, understand and know all the safety information in
this chapter. Pay particular attention to all warnings and cautions throughout this manual. If
you do not follow all the warnings and procedures in this manual, this could lead to serious
injury to yourself or others, including death.
WARNING
If there is any safety instruction or procedure that you do not understand, do not use the
machine. Contact your supervisor and arrange proper training on the use of the machine. Use
of the machine without understanding and following all the safety instructions and procedures
in this manual could lead to serious injury to yourself or others, including death.
WARNING
Do not use the machine until you have received adequate and proper training in its safe and
effective use. If you are unsure of your ability to use the machine safely and effectively, do not
do so. Never attempt to remove, modify, over-ride or frustrate any safety device on the
machine. Interfering with safety devices could lead to fatal or other serious personal injury.
2.2 Warning signs
Safety signs are attached to the machine to give safety information. All safety signs are repeated and
usually further explained in this manual.
2.2.1 Classification of safety signs
Safety signs are of the internationally accepted types and described below.
WARNING
Warning sign that identifies a hazard.
EN 4 2011/04
OptiBean
2.2.2 Warning, caution and note
WARNING
‘Warning' identifies a hazard that could lead to personal injury, including death.
Caution
'Caution' identifies a hazard that could lead to damage to the machine, damage to other
equipment and/or environmental pollution.
Note
’Note' is used to highlight additional information.
2.3 Intended use
The machine is an assembly to make coffee with coffee beans and hot drinks. Any other or additional
use will be considered to be not in conformity with the purpose. The manufacturer cannot be held liable
for any damages caused by use for any other purposes than what is described above or by incorrect
operation.
WARNING
Do not attempt to grind products that do not comply with the applicable foodstuffs regulations.
2.4 Modifications
WARNING
Do not attempt to make any modifications or alterations to the machine without the prior
express agreement of Animo. Unauthorised modifications or alterations to the machine could
lead to serious personal injury, including death.
WARNING
Do not attempt to change, remove or defeat the safety features.
WARNING
Do not attempt to apply changes that violate local, regional or national regulations.
WARNING
Make sure the main switch and operating button are freely accessible.
Animo is always willing to discuss improving the value of its machines to users by means of
modifications or alterations. Refer to ‘Further help and information’.
2011/04 5 EN
2.5 Safety devices

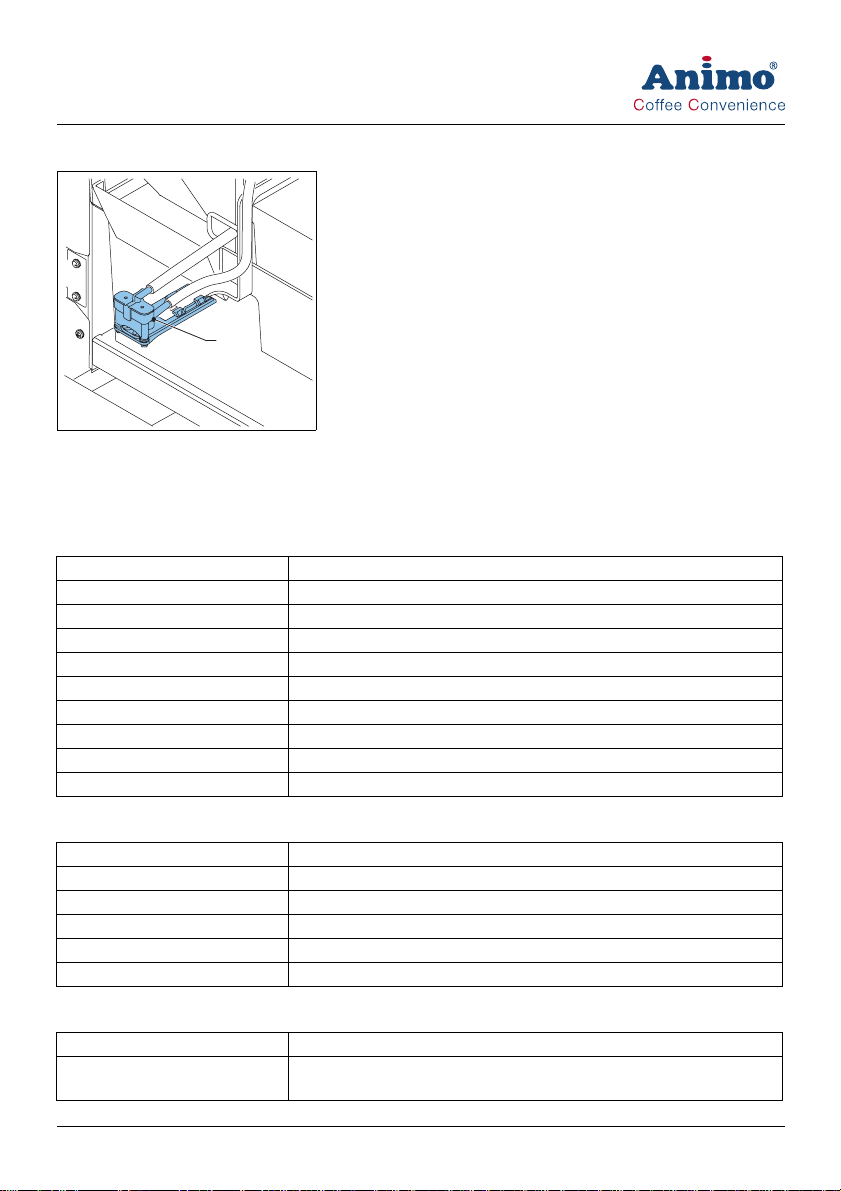

2.5.1 Door switch
A
The door switch (A) automatically switches off the machine when the door is opened.
2.5.2 Temperature safety device
The temperature safety device turns off the heating element if the temperature is too high.
2.5.3 On/Off switch
OptiBean
A
The on/off switch (A) puts the machine in the on/off position. The machine can still be charged after the
machine is switched off. Unplug the machine to make sure that the machine is entirely uncharged.
EN 6 2011/04
OptiBean
2.5.4 Cancel button
A
The cancel button (A) cancels the selected recipe.
2.5.5 Display
A
The display shows technical malfunction with error codes. The display also provides additional user
information or warnings.
2.6 Safety precautions
2.6.1 General safety precautions
• Make sure that the environment around the machine is dry, clean and lit sufficiently well;
• Keep away from moving parts;
• Use Animo replacement parts only.
• Use Animo recommended products only.
2.6.2 During installation
• Place the machine at work top height on a firm and flat surface.
• Plug the machine into a safety-grounded power outlet.
• Make sure the machine does not leak.
• Do not place the machine in an area with temperatures below 0 °C.
2011/04 7 EN
OptiBean
• Observe local regulations and use approved materials and parts.
• Check if the details on the type plate correspond to the country.
2.6.3 During normal operation
• Inspect the machine for damage before use.
• Do not tilt the machine.
• Do not submerge or hose down the machine.
• Do not use sharp object to operate the machine.
• Keep the operating controls free of dirt and grease.
• Switch off the machine and unplug the water supply when the machine is not used for a longer
period of time.
2.6.4 During maintenance and repair
• Perform regular maintenance on the machine.
• Wear protective gloves when performing maintenance.
• Do not leave the machine during maintenance.
• Make sure that the repairs are performed by trained and authorised personnel only
• Unplug the machine to perform maintenance regarding error messages.
WARNING
To entirely uncharge the machine, unplug the machine.
2.7 Users
2.7.1 Personnel qualifications
• The machine is designed only for personnel being 14 years or older. Consider the respective
national regulations for occupational safety and health.
• Only personnel who have been given permission are allowed to work with the machine.
• All personnel must only carry out the work they have been trained to perform. This applies to both
maintenance work and the normal machine operation.
• All personnel working with the machine must have free access to the applicable manuals.
• The operators must be familiar with all situations that may occur so that they can act rapidly and
effectively in the event of emergencies.
2.7.2 Personal and food hygiene
The machine processes drinks for human consumption. So the highest standards of hygiene are to be
maintained within the process area.
Caution
As an operator, you should have received training in personal and food hygiene from your
employer(s). If you have not, do not use the machine or enter the process area. Arrange
training with your supervisor or training manager. Working in the process area without a good
understanding of hygiene can lead to contamination of drinks.
• Wash your hands thoroughly before entering the process area.
• Remove your watch and any loose jewellery before entering the process area.
• Make sure that the machine is cleaned regularly.
EN 8 2011/04
OptiBean
2.8 Directives
This machine meets the following EC directives:
EMC directive: 2004/108/EC
Low voltage directive: 2006/95/EC
Machinery directive: 2006/42/EC
RoHS directive: 2002/95/EC
WEEE directive: 2002/96/EC
Food contact directive: 1935/2004/EC
2.9 Guarantee
The guarantee provisions that apply to this machine are part of the general terms of delivery.
2.10 Disposal
The use and maintenance of the machine includes no environmental dangers. Most parts can be
disposed in the regular way
Note
Ensure compliance with local legislation, regulations, instructions and precautions concerning
health, safety and environment.
2.11 Further help and informati on
Animo is committed to provide the highest level of support to users and operators of its products.
Contact the dealer for information regarding settings, maintenance and repair work, which is not
included in this document. See the back page for the dealer’s details.
2011/04 9 EN
3 Description
3.1 Overview
3.1.1 Front
A
OptiBean
B
C
D
E
A: Bean canister
B: Control panel
C: Outlet
D: Tray
E: Drip tray
F: Water outlet
G: Door lock
H: OptiLight
H
G
F
EN 10 2011/04
OptiBean
3.1.2 Back
A
B
C
A: Fan
B: Water connection
C: Power cord
2011/04 11 EN
3.1.3 Inside
H
OptiBean
A
B
C
D
E
F
G
A: Grinder
B: Canisters
C: On/off switch
D: Brewer
E: Mixer
F: Waste bins
G: Outlet
H: Control panel
EN 12 2011/04
OptiBean
3.2 Working principle
3.3 Canisters
A
B
The canisters contain the coffee beans (A) and instant products (B).
3.4 Grinder
A
The grinder (A) grinds the coffee beans and transfers the product to the brewer.
2011/04 13 EN
OptiBean
3.5 Brewer
A
The brewer (A) receives the product from the grinder. The product is made after adding pressurized hot
water. The brewer transfers the product to the outlet and transfers the residue to the waste bin.
3.6 Mixer
A
The mixer (A) mixes the instant products with hot water and transfers the product to the outlet.
EN 14 2011/04
OptiBean
3.7 Outlet
A
The outlet (A) transfers the product into the cup or jug.
3.8 Specifications
3.8.1 Standard machine
Item Specification
Machine dimensions 402 x 564 x 790 mm
Weight: empty/full 36/40 kg
Pressure 2-10 bar
Water temperature 90 °C
Water hardness > 5 °dH
Boiler volume 1.1 l
Boiler heating time 3 min
Boiler temperature 90 °C
Acoustic pressure < 70 dB(A)
3.8.2 Electrical system
Item Specification
Voltage 220-240 V
Frequency 50-60 Hz
Power 2275 W
Heating element power 1800 W
Fuse 10 A
3.8.3 Power consumption - OptiBean
Item Specification
Reaching operating
temperature
2011/04 15 EN
90 Wh
Item Specification
Opering mode without
dispensing
Operating mode with
dispensing
Standby (every hour) 0 Wh
3.8.4 Capacities - Coffee
Item Specification
Hour capacity per cup of 120 ml 90 cups
Preparation time per cup of 120 ml40 sec
Wh
20
30 Wh
OptiBean
Preparation time per jug of 12 x
120 ml cups
3.8.5 Capacities - Cocoa
Item Specification
Hour capacity per cup of 120 ml 150 cups
Preparation time per cup of 120 ml40 sec
3.8.6 Capacities - Hot water
Item Specification
Hour capacity per cup of 120 ml 150 cups
Preparation time per cup of 120 ml14 sec
3.8.7 Capacities - Cold water
Item Specification
Hour capacity per cup of 120 ml 80 cups
Preparation time per cup of 120 ml14 sec
Preparation time per jug of 6 x
120 ml cups
3.8.8 Ambient conditions
Item Specification
Temperature 0 °C < T < 40 °C
Relative humidity 80%
4 min
1.5 min
EN 16 2011/04
OptiBean
... .... .............. V 50-60Hz ....................W
MADE IN HOLLAND
........................ / .........................
.. ....................
Coffee- and teamakngsystems
Animo
3.8.9 Type plate
A
o
.. .... ............. ....................
B
A A
C
A: Model number
B: Article number
C: Supply voltage [V]
D: Machine number
E: Power [W]
F: Frequency [Hz]
3.9 Display
3.9.1 Main Screen
D
E
F
A
B
C
C
A: Product name area
B: Instruction/Message area
C: Strength icon
2011/04 17 EN

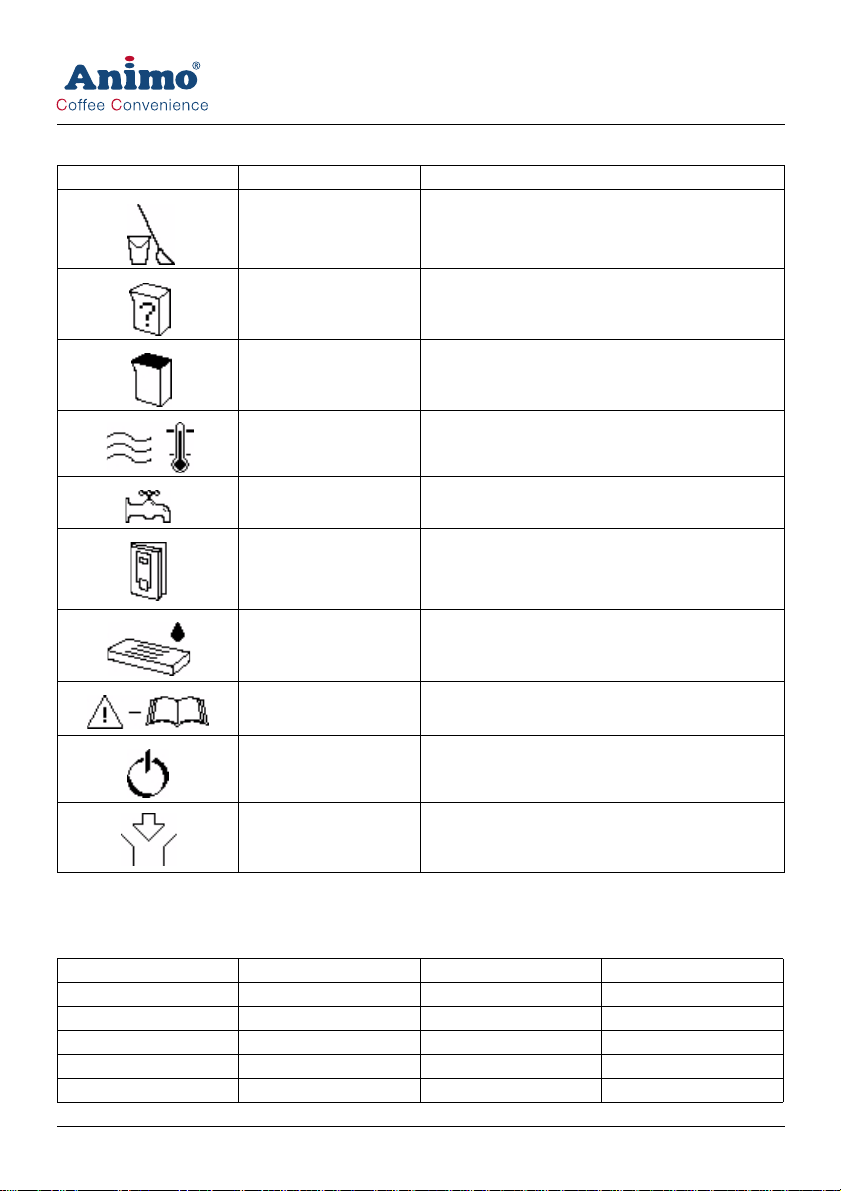

3.9.2 Icons
Icon Name D
Rinsing The machine is rinsing.
Waste Bin Missing The waste bin is missing.
Waste Bin Full The waste bin is full.
Boiler Heating The boiler is heating up.
Boiler Filling The boiler is filling up.
Door Open The door of the machine is open.
Drip Tray Full The drip tray is full.
OptiBean
escription
The machine must be rinsed.
Error The machine generated an error.
Standy The machine is on standby.
Cleaning The machine is cleaning.
The machine must be cleaned.
3.10 Configuration menu
3.10.1 Main menu
Screen Title Level See
0 Main Operator 3.9.1
1.0 Free dispensing Operator 3.10.2
1.1 Clock Operator 3.10.3
1.2 Switching times Operator 3.10.4
1.3 Recipe counters Operator 3.10.5
EN 18 2011/04
OptiBean
Screen Title Level See
1.4 Quick recipe Operator 3.10.6
1.6 Software Operator 3.10.7
1.7 PIN-code Service 3.10.8
1.8 OptiLight Operator 3.10.9
1.9 Contrast Operator 3.10.10
3.10.2 Free dispensing
Screen Item Description
1.0 Free dispensing To activate free dispensing on machines with a payment system
[yes|no]
3.10.3 Time
Screen Item Description
1.1.0 Time To set the time [hour:min]
1.1.1 Date To set the date [dd - mm - yyyy]
3.10.4 Switching times
Screen Item Description
1.2.0 Mo-Fri To set the on and off time from Mondays until Fridays [hour:min]
00:00 = not active. There are 3 switching times available.
1.2.1 Sa To set the on and off time on Saturdays [hour:min]. 00:00 = not
active. There are 3 switching times available.
1.2.2 Su To set the on and of f time on Sundays [hour:min]. 00:00 = not active.
There are 3 switching times available.
1.2.3 Energy safe mode To activate and set the energy safe mode: active / not active,
backlight on/off, OptiLight on/off and boiler temperature in energy
safe mode. See 3.11.
3.10.5 Recipe counters
Screen Item Description
1.3.0 Recipe 1-12 To show the amount of free, paid, jug and total cups [0-99999 cups].
1.3.1 Recipe total To show the total amount of free, paid, jug and total cups [0-99999
cups].
1.3.2 Service counters To show the amount of rinsing of the brewer and mixer [0-99999].
1.3.3 Reset counters If available, to reset all counters.
1.3.4 Save counters To save counters.
3.10.6 Quick recipe
1
Screen Item Description
1.4.0-11 Recipe: <recipe
name>
To set the volume [25-180], strength of coffee [-5% - +5%], cocoa
[-5% - +5%], topping [-5% - +5%] and sugar [-5% - +5%] per recipe.
2011/04 19 EN
OptiBean
3.10.7 Software
Screen Item Description
1.6 Software To show the software version.
3.10.8 PIN-code
Screen Item Description
1.7 PIN-code To enter the service menus.
3.10.9 OptiLight
Screen Item Description
1.8.0 Red To set the amount of red in the colour [0-100%].
1.8.1 Green To set the amount of green in the colour [0-100%].
1.8.2 Blue To set the amount of blue in the colour [0-100%].
1.8.3 Random To show all colours of the complete colour spectrum [0-60 min]. 0 =
3.10.10 Contrast
Screen Item Description
1.9 Contrast To set the contrast of the display [0-100%].
2
not active.
3.11 Energy safe mode
The machine in energy safe mode uses less energy. The recipe buttons are still active and the boiler
cools down in steps of 5 °C. After choosing a recipe the machine needs some time to heat up the boiler.
Example:
Three set switching times
12 3
9.00 - 11.00
The machine switches on at 9.00/12.00/14.00 automatically. The machine is on standby at
11.00/13.00/15.00. During standby mode the control panel is switched off and the boiler temperature
drops to the set boiler temperature.
1. The quick recipe menu is only available if it has been activated by the service engineer.
2. For service personnel only.
EN 20 2011/04
12.00 - 13.00
14.00 - 15.00
OptiBean
12 3
9.00 - 11.00
If the machine is switched on after being on standby and there is no dispensing, the machine will be in
energy safe mode after 30 min. The temperature of the boiler drops every 30 min. with 5 °C. If there is
dispensing after 2 hours the machine is reactivated. The machine uses less energy if there is no
dispensing or is left switched on.

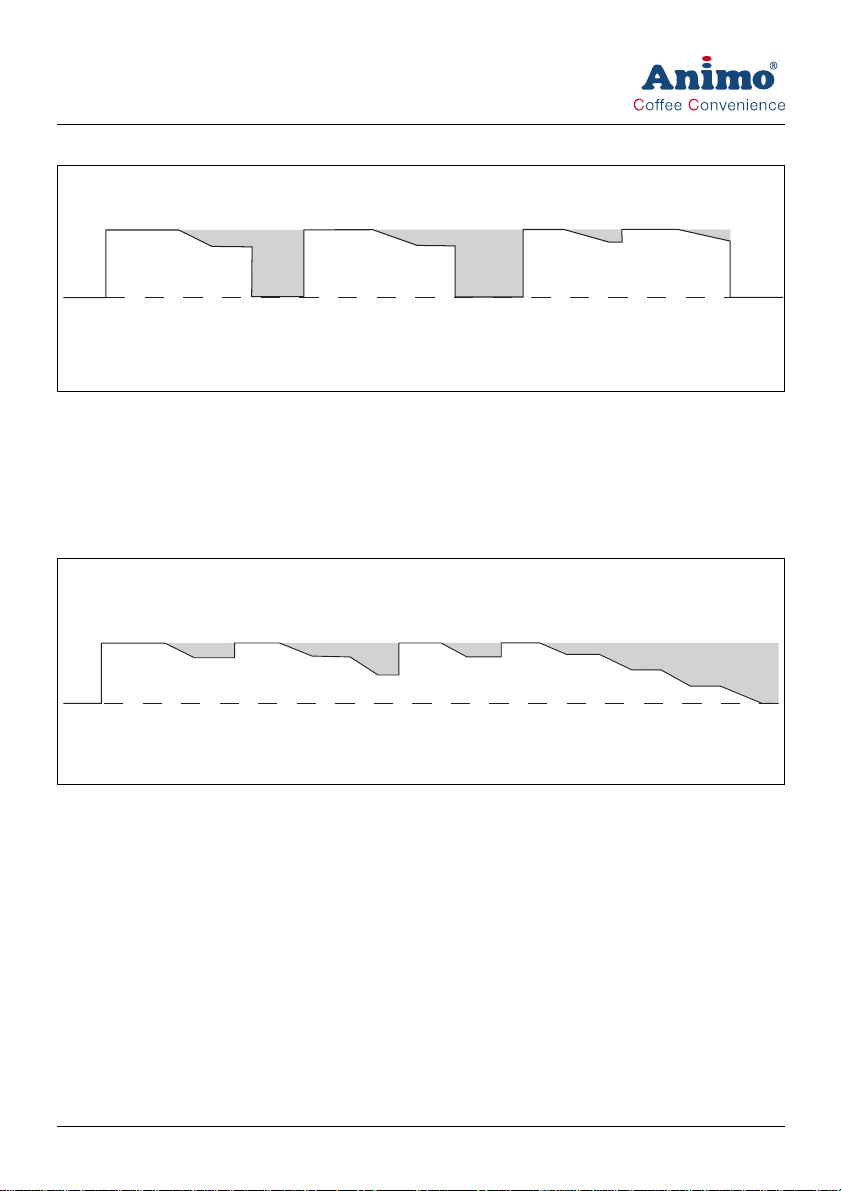

Energy safe mode with three set switching times
Energy safe mode without switching times
If the machine is switched on and there is no dispensing, the machine will be in energy safe mode after
30 min. The temperature of the boiler drops every 30 min. with 5 °C. If there is dispensing after 2 hours
the machine is reactivated. The machine uses less energy if there is no dispensing or is left switched
on.
12.00 - 13.00
14.00 - 15.00
2011/04 21 EN
4 Transport & Installation
4.1 Transport
4.1.1 General
When the machine and its additional equipment is delivered.:
• Check the machine for possible transport damage.
• Make sure the delivery is complete. Refer to the sales and delivery conditions.
4.2 Installation
Caution
• Use a filter system with a water softener if the tap water has been chlorinated or is too
hard. This increases the quality of the drink and will ensure that you do not have to
descale the machine too often.
• Do not place the machine in an area with temperatures below 0 °C.
4.2.1 Package contents
The machine is supplied with the following accessories:
• 1x coffee residue litter bin
• 1x waste water bin with cover
• 1x drip tray + grid
• 4x door key
• 1x door pin
• 2x jug lock key
• Recipe strips
• Ingredient stickers
• Strength strips
• 1x user manual
• 1x service manual
• 1x connection hose
• 1x product registration card
• 1x cleaning brush
OptiBean
EN 22 2011/04
OptiBean

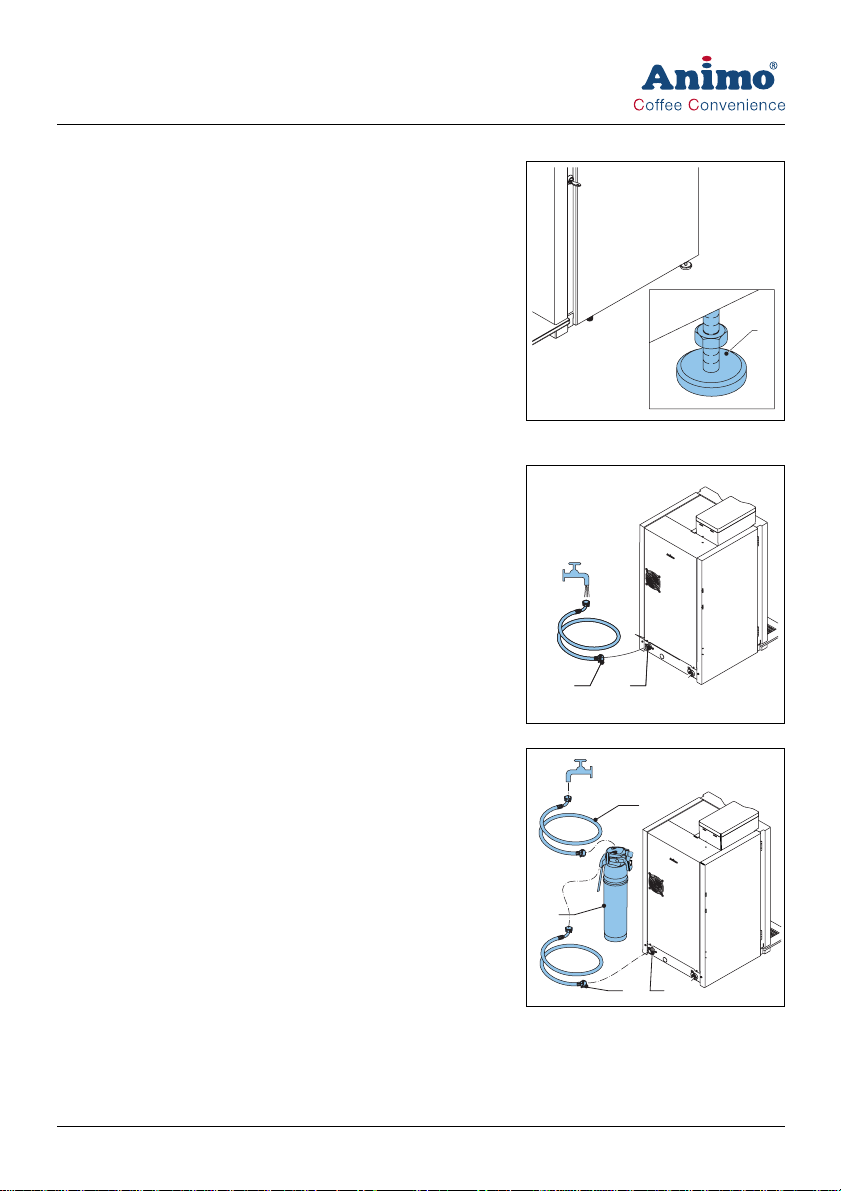

4.2.2 Positioning
1 Place the machine at work top on a firm, flat surface.
2 If available, place the machine on a base cabinet.
3 Make sure that the area on the left of the machine is at least
11 cm to open the door.
4 Make sure that the area above the machine is at least 22 cm
to remove and/or refill the canisters.
5 Turn the feet (A) at the back of the machine to level the
machine.
4.2.3 Water connection
1 Connect the machine (A) to a tap (B) with air valve.
2 Open the tap and check for leakage.
A
B A
3 If necessary, connect the machine (A) with the hose (B) to
the filter system (C) and connect the filter system with the
hose (D) to a tap.
D
C
B
A
2011/04 23 EN

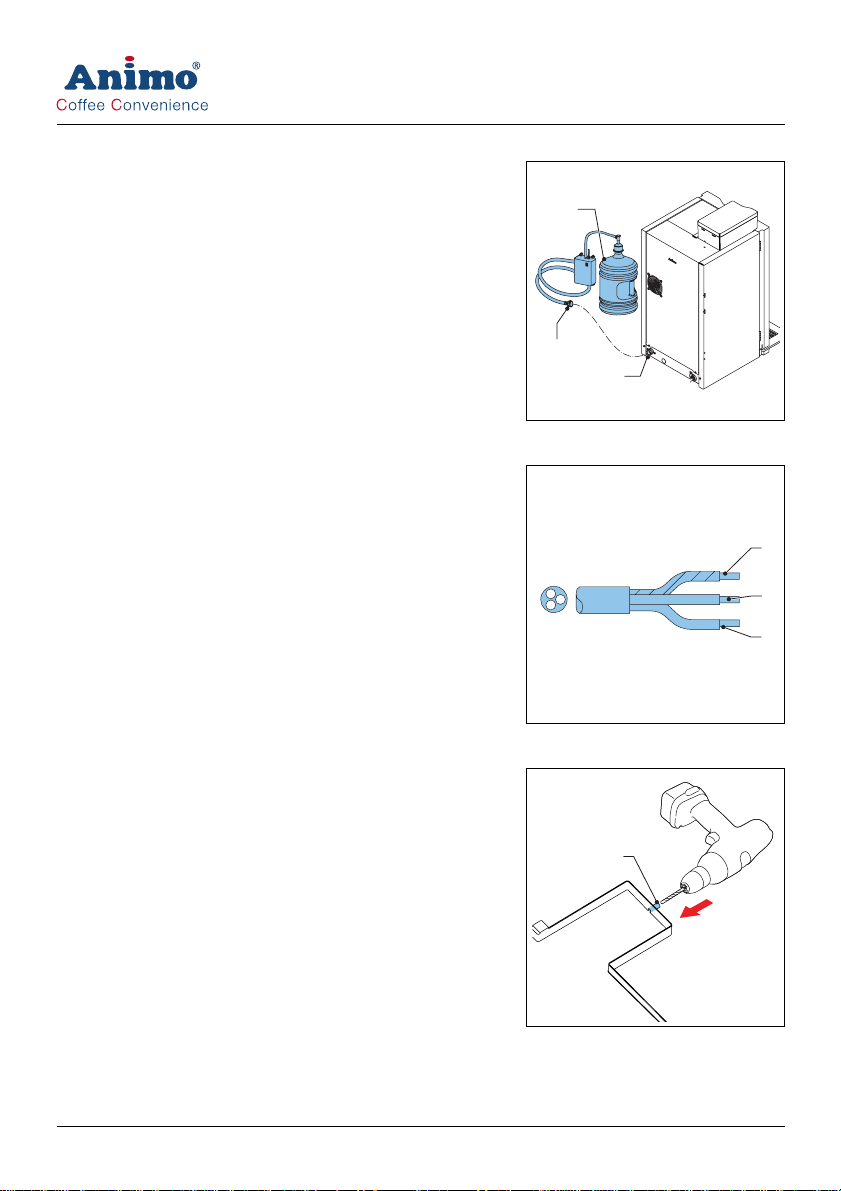

4 If necessary, connect the machine (A) with the hose (B) to
the stand-alone pump set (E).
5 Make sure that the minimal water pressure is not below 2 bar
(at 5 l/min flow pressure).
4.2.4 Electrical connection
The machine is provided with an electrically suitable plug as
advised and provided by the installer.
1 Connect the green/yellow coloured wire (A) either to the
terminal which is either marked with PE, the earth symbol, or
coloured green/yellow.
2 Connect the blue coloured wire (B) to the terminal which is
either marked with N or coloured black.
3 Connect the brown coloured wire (C) to the terminal which is
marked with L.
OptiBean
C
B
A
A
B
C
4.2.5 Drip tray discharge
1 Open the drip tray discharge (A) with a drill (Ø 6 mm).
2 Connect a waste hose to the drip tray.
A
EN 24 2011/04
OptiBean

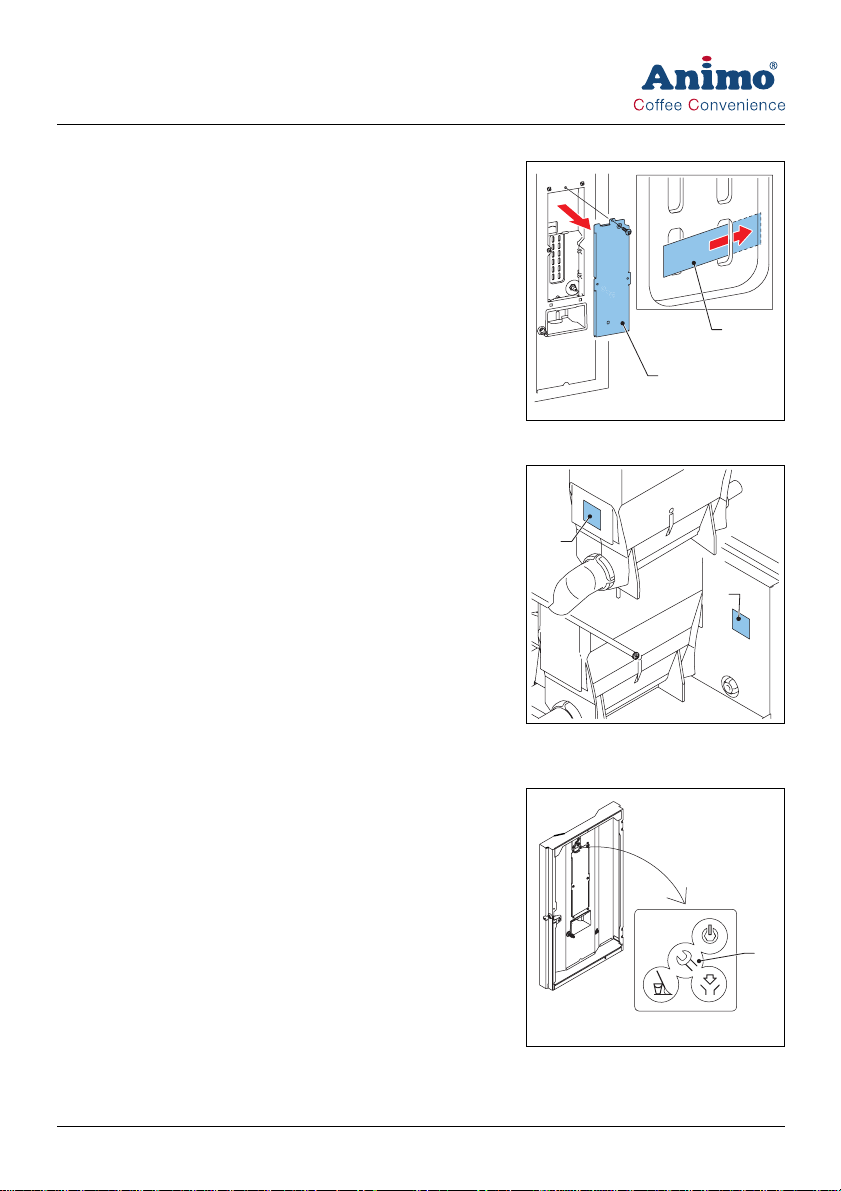

4.2.6 Applying the recipe strips
1 Open the machine door.
2 Remove the screws and remove the cover (A).
3 Insert the recipe strip (B).
4.2.7 Applying the ingredient stickers
1 Open the machine door.
2 Place the stickers as shown (A & B).
B
A
A
B
4.2.8 Setting the software for first use
1 Open the machine door.
2 Press the configuration menu button (A).
A
2011/04 25 EN

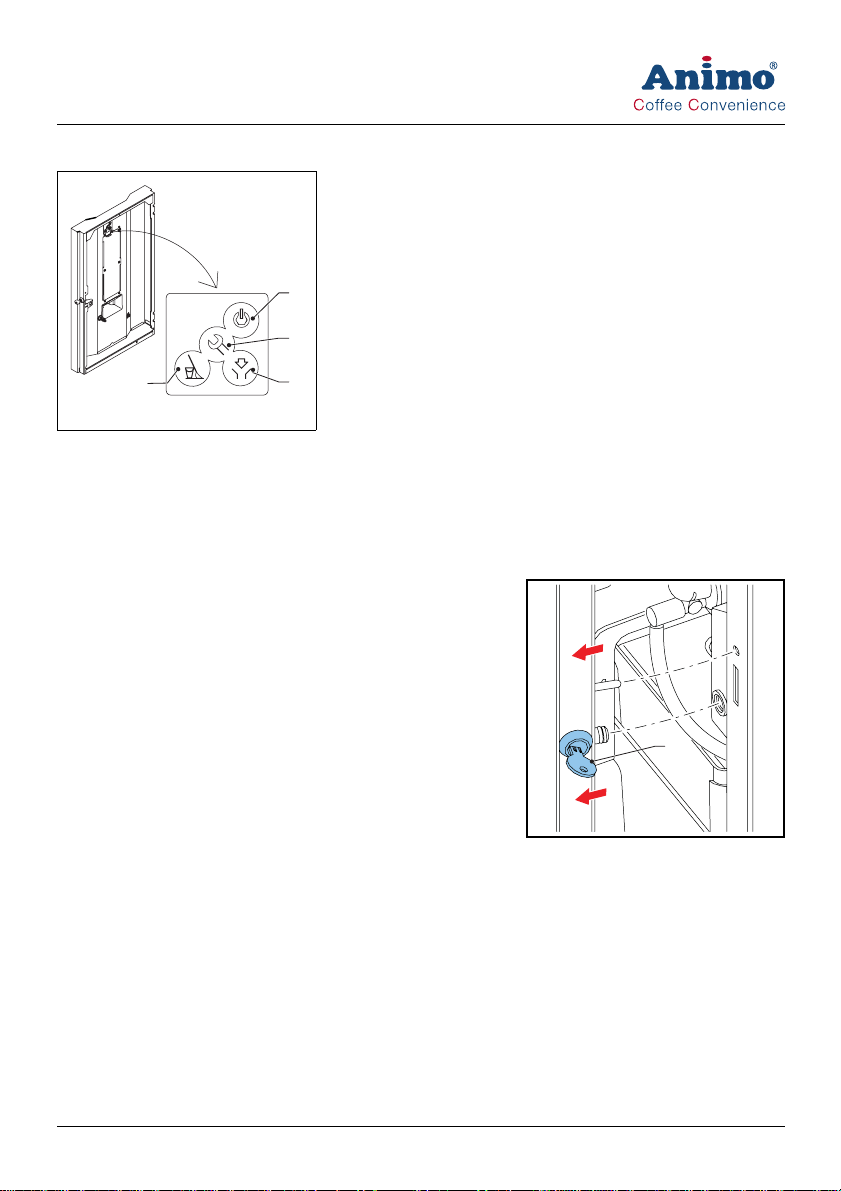

3 Use the recipe buttons (B) to navigate through the menu.
4 Select clock to set the time and date.
5 Select switching time / energy save mode to set the mode.
6 Select OptiLight to set the colour setting.
4.2.9 Using the machine for the first time
1 Plug the machine into an earthed socket.
2 Switch on the machine and follow the instructions on the display.
3 Place a bowl (min. 1.5 l) under the outlet.
4 Select a recipe and press the start dispensing button.
5 Check whether the taste and quantity is as desired.
6 Repeat the previous steps for every recipe to ensure all recipes are as desired.
7 If the taste or quantity is not as desired, inform your dealer.
OptiBean
B
EN 26 2011/04
OptiBean
5Operation
WARNING
• Inspect the machine for damage before use.
• Do not submerge or hose down the machine.
• Do not use sharp objects to operate the buttons.
• Keep the operating controls free of dirt.
• Unplug the machine and unplug the water supply when the machine is not used for a
longer period of time.
Note
The energy safe mode is activated by default.
Only use coffee beans; only use instant products
2011/04 27 EN
5.1 Overview control panel
OptiBean
A
I
B
H
C
C
G
D
F
E
A: Display
B: Strength button
C: Recipe selection buttons / Navigation buttons / Confirm button / Cancel button
D: Jug lock
E: Recipe dispensing button
F: Water dispensing button
G: Dispensing LED
H: Stop button
I: Strength button
EN 28 2011/04
OptiBean
5.2 Overview control panel (inside)
A
B
D
A: Standby button
B: Configuration menu button
C: Rinsing button
D: Cleaning button
C
5.3 Opening the door
1 Place the key in the door lock (A).
2 Turn the key and open the machine door.
A
2011/04 29 EN
5.4 Switching on and off
1 Open the machine door.
2 Press the on/off switch (A) to switch the machine on or off.
5.5 Start dispensing cups
1 Place a cup on the tray.
2 Press a recipe or press the hot water button. The dispensing
LED starts to flash.
3 If required, press the strength button to set the strength of
the coffee, mik and chocolate.
4 If required set the quality for the milk.
5 Press the start dispensing button.
OptiBean
A
5.6 Start dispensing jugs
1 Place the key into the jug lock.
2 Turn the key to activate the jug mode.
3 Turn away the tray.
4 Place a jug on the drip tray.
5 Press a recipe or press the hot water button
6 If required press the strength button to set the amount of
cups for 1 jug.
7 Press the start dispensing button.
5.7 Stop dispensing cups or jugs
1 Press the stop button.
EN 30 2011/04
OptiBean
5.8 Filling the bean canister
1 If required, unlock the cover of the bean canister.
2 Remove the cover (A).
3 Fill the bean canister.
4 First put the beans in the small section and then in the large
section of the bean canister.
5 Replace the cover (A).
6 If required, lock the cover of the bean canister.
5.9 Filling the instant canisters
1 Open the machine door.
2 Turn the canister’s outlet upwards (A).
3 Lift the canister from the socket and pull it out from the rotor
(B).
A
C
A
B
4 Remove the cover (C).
5 Fill the instant canister . Make sure that you do not overfill the
instant canister.
6 Replace the cover.
7 Replace the canister into the socket.
8 Make sure the canister locks into place with the pin in the
hole.
9 Turn the canister’s outlet downwards (A).
10 Close the machine door.
2011/04 31 EN
A
C
5.10 Using the coin mechanism (optional)
1 Place a cup on the tray.
2 Press a recipe or press the hot water button.
3 Insert the correct amount of money. The dispensing LED
starts to flash if sufficient money is inserted.
4 Press the strength button to set the strength.
5 Press the start dispensing button.
5.11 Using the coin changer (optional)
1 Place a cup on the tray.
2 Press a recipe or press the hot water button.
3 Insert the correct amount of money (A). The dispensing LED
starts to flash if sufficient money is inserted.
4 Press the strength button to set the strength.
5 Press the start dispensing button.
6 If required remove the change from the machine (B).
OptiBean
A
A
B
EN 32 2011/04
OptiBean
6 Maintenance
6.1 Cleaning and disinfecting detergents
WARNING
• Do not use other chemicals unless it is approved by Animo.
• Do not put the machine parts in a dishwasher except for the instant canister.
• Dry the canister thoroughly before replacing it.
Purpose Product Remarks
Mixer cleaning Coffee cleaner art. no. 49009
Brewer cleaning Cleaning tablets art. no. 1001397
6.2 Cleaning
6.2.1 Daily cleaning
Machine part Dishwasher proof See
Brewer No 6.2.4
Mixer No 6.2.4
Waste bin No 6.2.7
Drip tray No 6.2.9
6.2.2 Weekly cleaning
Machine part Dishwasher proof See
Brewer No 6.2.5 & 6.2.6
Mixer No 6.2.10
Outlet No 6.2.13
Exterior & Interior No 6.2.8
Brewer No 6.2.5
6.2.3 Monthly cleaning
Machine part Dishwasher proof See
Bean canister No 6.2.11
Instant canister Yes 6.2.12
2011/04 33 EN
6.2.4 Using the rinsing program
1 Open the machine door.
2 Press the rinsing button (A) from the control panel on the
inside on the machine.
3 Close the door of the machine.
4 Place a bowl (min. 1.5 l) under the outlet.
5 Follow the instructions on the display.
6.2.5 Using the cleaning program
1 Open the machine door.
2 Press the cleaning button (A) from the control panel on the
inside of the machine.
3 Follow the instructions on the display.
OptiBean
A
A
4 Remove the guide (B).
5 Put the cleaning product (C) in the brewer.
6 Close the door of the machine.
7 Replace the guide (B).
8 Place a bowl (min. 1.5 l) under the outlet.
B
C
EN 34 2011/04
OptiBean
6.2.6 Cleaning the brewer
1 Open the machine door.
2 Switch off the machine.
3 Remove and clean the hood (A).
4 Remove the bean canister.
5 Clean the surface of the brewer with the brush.
6 Replace the hood (A).

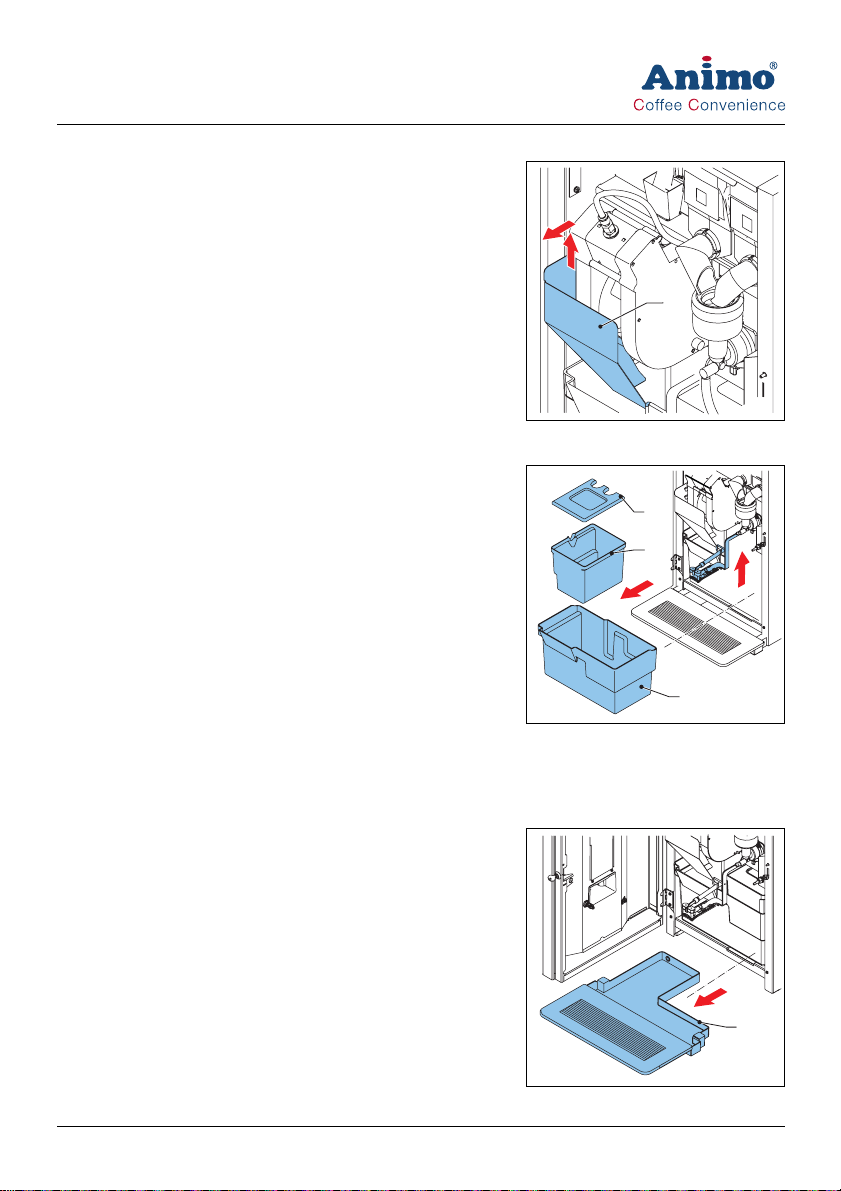

6.2.7 Cleaning/Emptying the waste bins
1 Open the machine door.
2 Lift the outlet.
3 Take out the waste bin (C).
4 Remove the cover (A).
5 Clean/Empty the waste bins (B & C).
6 Replace the waste bins.
7 Lower the outlet.
8 Close the machine door.
A
A
B
C
6.2.8 Cleaning the exterior and interior
1 Clean the exterior and interior with a damp cloth.
6.2.9 Cleaning/Emptying the drip tray
1 Remove the drip tray (A) under the machine.
2 If required, remove the trip tray hose.
3 Clean the drip tray.
4 Replace the trip tray hose.
5 Replace the trip tray under the machine.
A
2011/04 35 EN
6.2.10 Cleaning the mixer
1 Turn the canister’s outlet upwards.
2 Remove the outlet hose from the mixer.
3 Turn the green mounting ring (C) to the right.
4 Take off the mixer housing (B).
5 Pull off the mixer fan (A).
6 Turn the green mounting ring (A) to the right.
7 Remove the mounting ring.
8 Clean the parts.
OptiBean
A
9 Remove the dust tray (D).
10 Clean and dry the dust tray.
11 Replace the dust tray.
12 Replace the mounting ring and turn it to the left to lock the
ring into place.
13 Replace the mixer fan. Make sure that the mixer fan locks
into place. The mixer fan must not touch the green mounting
ring.
14 Replace the mixer housing.
15 Turn the green mounting to the left to lock the mixer into
place.
16 Replace the outlet hose.
B
C
D
EN 36 2011/04
OptiBean

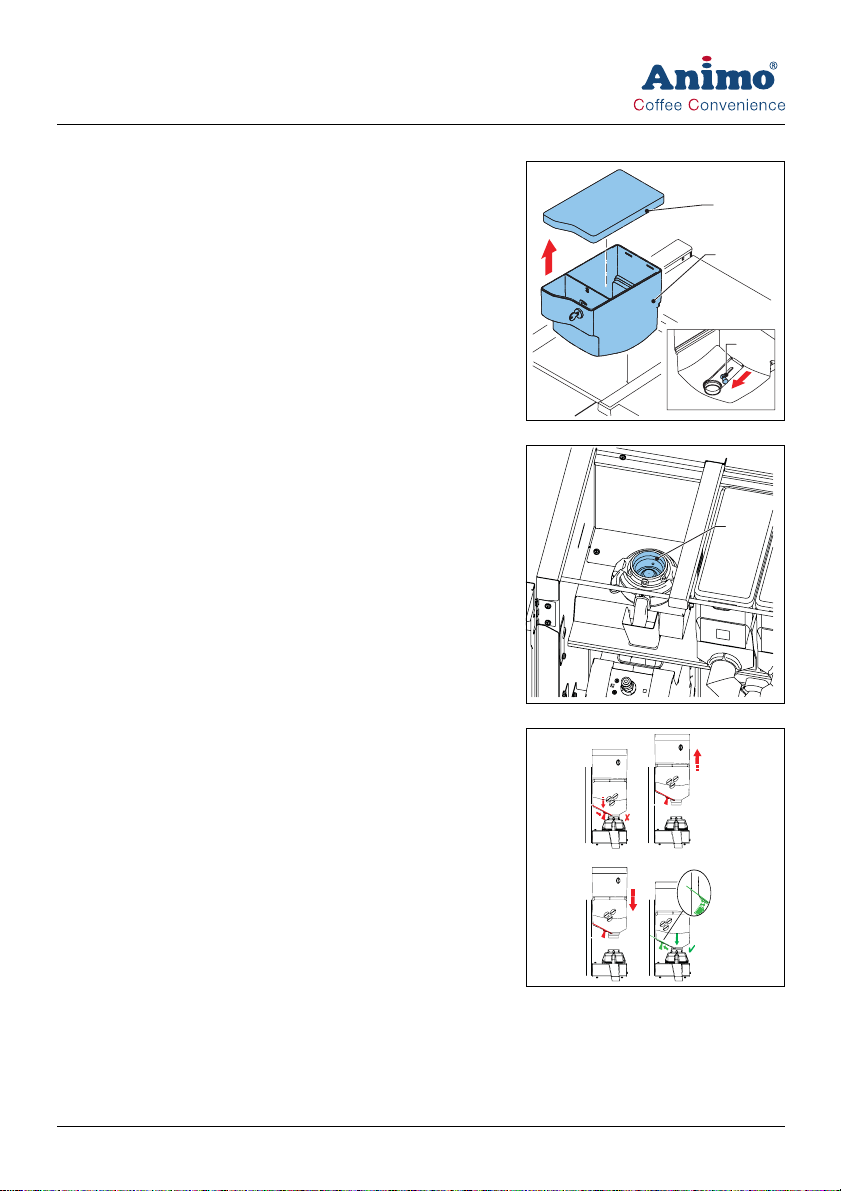

6.2.11 Cleaning the bean canister
1 Close the supply (A) to the grinder.
2 Take out the bean canister (B).
3 Remove the cover (C).
4 Clean and dry the canister.
5 Clean the grinder (D) with the brush.
C
B
A
D
6 Replace the canister as shown.
7 Open the supply.
1
3
2011/04 37 EN
2
4
6.2.12 Cleaning the instant canisters
1 Open the machine door.
2 Turn the canister’s outlet upwards (A).
3 Lift the canister from the socket and pull it out from the rotor
(B).
4 Remove the cover (C).
OptiBean
C
A
B
C
A
5 Clean the instant canister and its parts.
6 Dry the parts thoroughly.
7 Replace the cover.
8 Replace the canister into the socket.
9 Make sure the canister locks into place with the pin in the
hole.
10 Turn the canister’s outlet (A) downwards.
11 Close the machine door.
EN 38 2011/04
OptiBean
6.2.13 Cleaning the outlet
1 Open the machine door.
2 Remove the outlet front (A) while holding the t ab at the back
of the front.
3 Take out the outlet housing (B).
4 Clean the outlet housing.
5 Replace the outlet housing.
6 Replace the outlet front.
A
B
7 Take out the splitter (C) and drink outlet (D) from the front
piece of the outlet arm (E).
C
D
E
2011/04 39 EN
8 Remove the front piece from the outlet arm (F).
9 Clean the parts.
10 Replace the outlet hoses.
OptiBean
F
EN 40 2011/04
OptiBean
7 Troubleshooting
7.1 Error messages
Problem Possible cause Correction
E3 Fill error Boiler is filling up too slowly. Check the water pressure. Turn
the water supply tap completely
open. Check the connection tube
for any kinks. Switch the machine
off and on again.
E5 Brewer error Brewer error during start-up. Switch the machine off and on.
Contact the dealer of service
engineer.
E6 Temperature error Temperature sensor problem. Contact the dealer of service
engineer.
E7 Brewer motor error Brewer motor overload/stuck.
Brewer motor outlet overload.
The control switched off the outlet.
E8 Mixer 2 error Mixer 2 overload/stuck.
Mixer motor outlet overload.
The control switched off the outlet.
E10 Valve error Valve overload/stuck.
Valve outlet overload.
The control switched off the outlet.
E11 Ingredient motor error Ingredient motor overload/stuck.
Ingredient motor outlet overload.
The control switched off the outlet.
E13 Mixer group error Brewer and mixer group over-
load.
The control switched off the outlets.
E14 Output error Outlet group of the ingredient
motor oerload.
The control switched off the outlets.
Valve outlet group overload.
The control switched off the outlets.
Remove the brewer from the
machine, clean and install the
brewer correctly. Switch the
machine off and on again. Use
the brush to clean the brewer.
Contact the dealer of service
engineer.
Remove the mixer from the
machine, clean and install the
mixer correctly. Switch the
machine off and on again.
Contact the dealer or service
engineer.
Clean the canisters. Switch the
machine off and on again.
Clean the mixer rotor. Switch the
machine off and on again.
Clean the canisters. Switch the
machine off and on again.
Contact the dealer or service
engineer.
2011/04 41 EN
OptiBean
Problem Possible cause Correction
E17 MDB error There is no communication
between the machine and MDB
payment system.
E18 Mixer group FET error Brewer or mixer motor still active Contact the dealer or service
E19 Output FET error Ingredient motor, valve or ventila-
tion motor still active
E20 Software error Software error Switch the machine off and on
E21 Boiler timeout Boiler is not heating. Contact the dealer or service
E22 Brew timeout Brewer process too long Switch the machine on and off.
E23 Inletvalve error Inlet valve is leaking. Close the water tap. Contact the
E24 Brewer error Brewer error during coffee mak-
ing
E25 Flowmeter error No water pressure.
Water tank is empty (if applicable).
Switch the machine off and on
again. Contact the dealer or service engineer.
engineer.
Contact the dealer or service
engineer.
again.. Contact the dealer or
service engineer.
engineer.
Clean or rinse the machine. Contact the dealer or service engineer.
dealer or service engineer.
Switch the machine on and off.
Contact the dealer or service
engineer.
Check water pressure. Open the
water supply. Check the water
hose. Switch the machine on and
off.
EN 42 2011/04
OptiBean
7.2 Display messages
Problem Possible cause Correction
Out of order boiler filling Boiler is still empty, boiler is not
filling up or is filling up too slowly.
Out of order boiler heating The boiler temperature is too low
Out of order drip tray full Drip tray is full. Empty drip tray.
Out of order waste bin full Waste bin full Empty waste bins.
Out of order waste bin is miss-
ing
Out of order door open The door is open. Close the door or use the door
Out of order stand-by The machine is on standby. Remove the standby mode in the
Close door The door is not closed correctly. Close the door.
because too much water is used.
Waste bin is missing. Replace the waste bins.
No action required.
Wait until the boiler temperature
has reached the correct level.
pin.
configuration menu.
7.3 Malfunctions
Problem Possible cause Correction
The machine does not work. Broken fuse. Check fuses.
The machine is switched off. Switch on the machine
Broken cable. Check the power cable.
The machine does not
reponse.
Bad product taste. The canister is empty. Fill the canister.
The machine is in standby. Switch of fthe standy mode.
The canister is incorrectly positioned.
The outlet of the canister is
blocked.
The distributor of the canistor
does not work.
Wrong ingredient. Use the correct ingredient.
The ingredient is solidified
(caked).
The mixer is not cleaned. Clean the mixer.
The ingredient has expired. Replace the ingredient.
The boiler temperature is too low. Cont act the dealer or service
The ingredient is damp. Check the ventilation system and
Position the canister correctly.
Clean the outlet of the canister.
Check the distributor of the canister or clean the canister.
Replace the ingredient.
engineer.
replace the ingredient.
2011/04 43 EN
Animo B.V.
Dr. A. F. Philipsweg 47
P.O. Box 71
9400 AB Assen
The Netherlands
Tel: +31 (0) 592 376376
Fax: +31 (0) 592 341751
E-mail: info@animo.nl
www.animo.eu
2011/04 1001222
Loading...
