Operations Manual
for ANETS P/N 60149509 Single Vat
I12 Cooking Computer
This control was developed specifically for ANETS fryer products. It utilizes the latest in
microprocessor technology and is completely solid state. This control offers the latest cooking
technology, including temperature and time compensation that requires no user adjustments for
consistently cooked product. Other features include, drain valve interlock, faulty probe detection,
selectable melt cycles, beeper volume, and cook temperature. Each product key may be programmed
with cook, shake and hold times to keep pace with changing menus over time.
This manual details the operation and adjustment of the ANETS I12 Cooking Computer control. The
target audience for this text is the Service Technician. This manual reveals all adjustments that are
possible by keyboard entry, including passwords.
and retain this manual for the life of the equipment:
Model #: __________________________
Serial #: __________________________
Date Purchased: ___________________
English
L20-381 Rev 0 (12/23)
Page 2
ANETS I12 Cooking Computer
ANETS P/N 60149509
Table of Contents:
1 Key Locations and Functions: .......................................................................................................... 3
1.1 To turn the appliance ON: _______________________________________________________ 3
1.2 To turn the appliance OFF: _______________________________________________________ 3
1.3 To start a cook: ________________________________________________________________ 3
1.4 To cancel a cook: ______________________________________________________________ 4
1.5 To check Actual and Set temperatures: _____________________________________________ 4
1.6 To View Current Settings for Cook, Shake, Hold, and Hold Pre-Alarm: _____________________ 4
1.7 To perform a Boil Out operation: __________________________________________________ 5
1.7.1 Automatic Boil Entry (Water Detection): ......................................................................................................................... 5
1.7.2 Manual Boil Entry: .......................................................................................................................................................... 5
2 To Enter Programming Level 1 (for the Store Manager): ............................................................... 6
2.1 To Set Cook Temperature: _______________________________________________________ 6
2.2 To Change a Product Key–Cook, Shake, Hold, and Hold Pre-Alarm Times: _________________ 7
2.2.1 Cook Time ...................................................................................................................................................................... 7
2.2.2 Shake Time .................................................................................................................................................................... 7
2.2.3 Hold Time ....................................................................................................................................................................... 7
2.2.4 Hold Pre-Alarm ............................................................................................................................................................... 8
2.3 To Exit Level 1 programming: _____________________________________________________ 8
3 To Change Options Level 2 ( for the Store Manager): .................................................................... 9
3.1 Fahrenheit or Celsius Display: ____________________________________________________ 9
3.2 Password Change or Required? __________________________________________________ 9
3.3 Beeper Volume and Tone: ______________________________________________________ 10
3.4 Language Selection: ___________________________________________________________ 10
3.5 Melt Cycle Type: ______________________________________________________________ 10
3.6 Recovery Test Value: __________________________________________________________ 11
3.7 Control or Timer: (Left side of Dual or Single Vat) ____________________________________ 11
L20-381 Rev 0 Page 2 of 12
Page 3
1 Key Locations and Functions:
ANETS I12 Cooking Computer
ANETS P/N 60149509
1.1 To turn the appliance ON:
If power is applied to the appliance, the displays will show . Press the key.
Displays will show one of the following:
; , or . Some messages may show in both left
and right displays. Wait for the appliance to heat up to the [READY] condition before cooking.
1.2 To turn the appliance OFF:
Press the key. Display will momentarily show the software version number ,
and then
1.3 To start a cook:
When the display is showing the appliance h as reached set
temperature and is ready to cook. Press the desired product key, and place
product into the vat. The indicator above the product key will flash to indicate the
cook timer is running. In the example above, product 4 is cooking with 2 minutes
and 28 seconds remaining. The right side display of the dual vat control shown
above, has no running cook timers, and shows
Multiple cooks may run together. While cooks are running, the displays will
always show the cook with the least time remaining. Longer running cooks will
flash their indicators at a slower rate. Cook time remaining on these keys may be
.
.
checked by pressing the
Page 3 of 12 L20-381 Rev 0
key then pressing a product key.
Page 4
ANETS I12 Cooking Computer
ANETS P/N 60149509
1.4 To cancel a cook:
Press and hold the product key to cancel a running cook. If no other cooks are
pending, controller displays will return to
.
1.5 To check Actual and Set temperatures:
To view the actual vat temperature, press the key. The display will show
or
will return to
, where “F’ is Fahrenheit, and “C” is Celsius. After a few moments, the display
; , or ,if no cooks are running. [CKn
mm:ss] will display for any cooks still running.
To view the set temperature, press the
or
will return to
, where “F’ is Fahrenheit, and “C” is Celsius. After a few moments, the display
; , or ,or, [CKn mm:ss] for any cook
key twice. The display will show
still running.
1.6 To View Current Settings for Cook, Shake, Hold, and Hold Pre-Alarm:
To view the current settings for any product key, press the key, followed by the desired
product key. The display will show [CKn mm:ss], followed by [SHn mm:ss], then [HDn mm:ss],
ending with [PA4 mm:ss]. Where “n” is the key number, and “mm:ss” is the time setting.
After a few moments, the display will return to
; , or
, or, [CKn mm:ss] for any cook still running.
Typical displays using key 4 as an example:
Key 1 Cook Time [C1] is set for 3 minutes and 28
seconds.
Key 1 Shake Time [S1] is set for 2 minutes and :00
seconds before the end of the Cook. Default value is
00:00, or inactive.
Key 1 Hold Time [H1] is set for 15:00 minutes. This is the
amount of time cooked product may sit in holding bins
before a new batch is started. Default value is 00:00, or
inactive.
Key 1 Hold Pre-Alarm [P1] is set for 00:00 and is inactive
(default setting). When activated his alarm warns the
operators that the Hold Time is about to run out.
In a few moments, the display will return to
.
+
L20-381 Rev 0 Page 4 of 12
Page 5
ANETS I12 Cooking Computer Service
ANETS P/N 60149509
1.7 To perform a Boil Out operation:
Normal maintenance of a fryer requires regular tank cleaning. This process involves drai ning the
vat of oil and filling with water. Cleaning solution is added, and the control is set to boil by one of
the following methods:
1.7.1 Automatic Boil Entry (Water Detection):
Fill the appliance with water and turn the appliance on. Heat will be applied to the vat warming
the water. This control will detect the presence of water by temperatures not rising above the
boiling point of water; 212°F (100°C). After a time at this temperature, displays will show
Heat will be disabled until the operator responds to this prompt. Pressing the [0] key is a YES
response to the boil prompt. If pressed, display will show . Heat will maintain
vat temperature at 185°F (85°C) for cleaning as long as the control remains on. To exit boil
mode control must be turned off.
Warning: Pressing any other key at the
prompt is regarded
by the control as a NO response. With this response, the control will apply heat to the vat as if
oil were present in the vat. With water in the vat, a rolling boil will result. This will cause
undesirable foam over conditions. And, a potential steam burn hazards to operators
performing cleaning operations.
1.7.2 Manual Boil Entry:
After filling an empty vat with water, turn the appliance on. Press the
key and enter key sequence [2], [1], [2]. If control is set to
display in the Celsius scale, press [1], [0], [0] keys to manually enter boil
mode. The display will show
to indicate entry into boil
mode.
To exit boil mode, control must be turned off.
1
22
1
00
Page 5 of 12 L20-381 Rev 0
Page 6
ANETS I12 Cooking Computer
ANETS P/N 60149509
2 To Enter Programming Level 1 (for the Store Manager):
Note: The factory default setting for this control does not require a password to be entered.
However, the operator password requirement and value m ay be changed in section 3.2.
Entry of a password when NOT required will not interfere with the programming process.
With no cook timers running, displays will show one of the following displays:
, or . Press the key.
If display shows:
, a password is required.
If display shows:
to enter a password.
Enter password
using the product keys
as a numeric keypad for entry. With correct password entry,
display will show
.
From the
display, continue with this section or
go to section 3, or 4.
2.1 To Set Cook Temperature:
Press the key once. The display will show [SET xxxF] [TEMP] or [SET xxxC]
[TEMP], where “xxx” is the temperature setting.
;
; you do not need
Use the product keys for numeric entry to adjust the current setting. Press the key
to save setting.
Display now shows . To exit here, press again, or continue.
L20-381 Rev 0 Page 6 of 12
Page 7

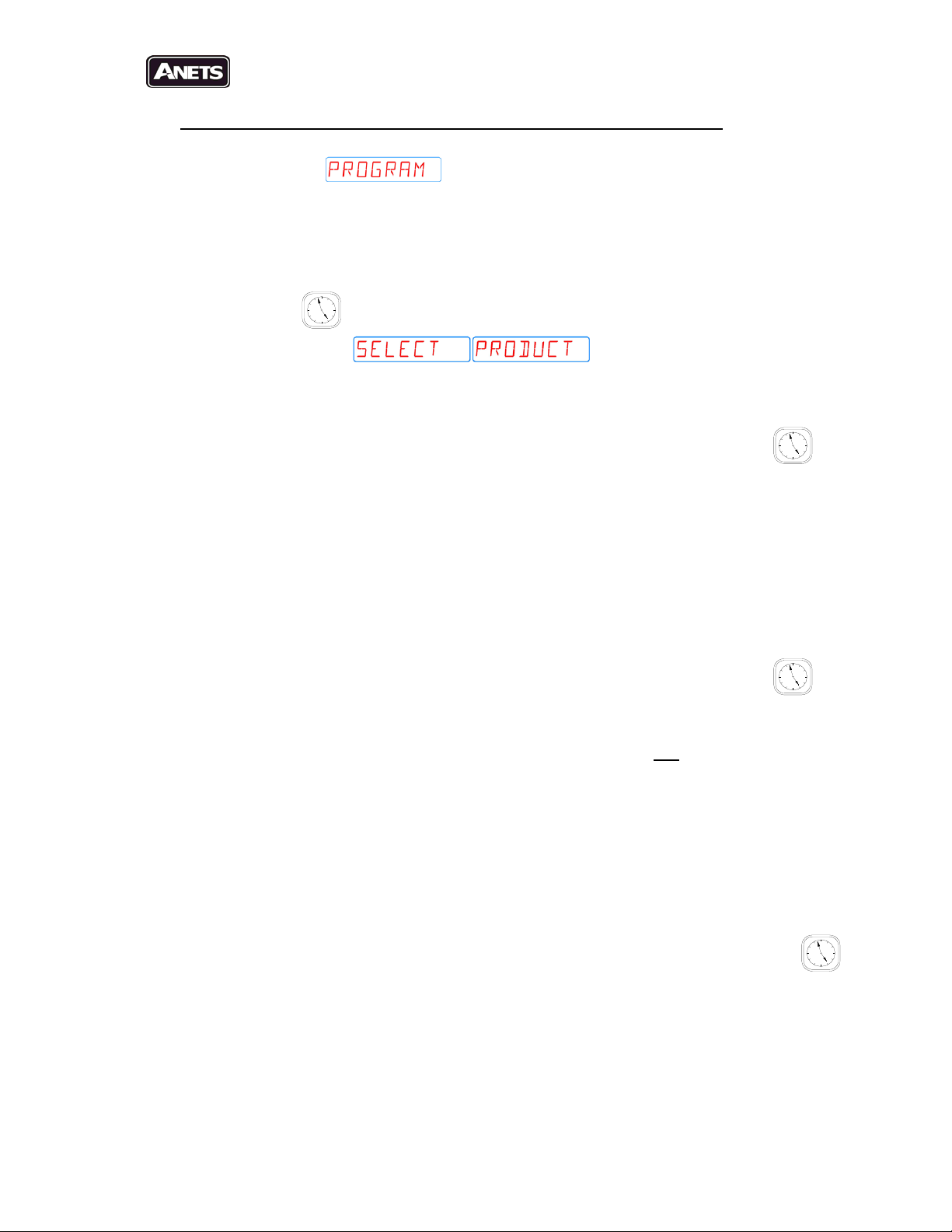

ANETS I12 Cooking Computer
ANETS P/N 60149509
2.2 To Change a Product Key–Cook, Shake, Hold, and Hold Pre-Alarm Times:
For each product key, Cook, Shake, Hold, and Hold Pre-alarm times are set in this section.
With display showing
, continue with the following section for each product key to
change.
2.2.1 Cook Time
Cook Time may be set for each product key. To deactivate any product key enter a zero value
for cook time.
Press the key.
Display will show . Press the desired product key to
change.
Display shows [nCK mm:ss] [TIME] where “n” is the key number, “CK” means Cook, and
“mm:ss” is minutes and seconds.
Use the product keys for numeric entry to adjust the current setting. Press the key to
save cook time and continue setup for this product key.
2.2.2 Shake Time
Shake time is an alarm that sounds during Cook Time to prompt operators to shake the basket.
Default for this value is zero, meaning the Shake Time is inactive. To use Shake Time, the time
value must be a non-zero value, and, must be set to a value less than cook time.
Display shows [nSH mm:ss] [TIME] where “n” is the key number, “SH” means Shake, and
“mm:ss” is time in minutes and seconds.
Use the product keys for numeric entry to adjust the current setting. Press the key to
save shake time and continue setup for this product key.
Note: The value entered for shake time is the time from the end of the cook.
2.2.3 Hold Time
Cooked product may stand in holding bins for a period of time. This timer produces an alarm to
inform operators to discard old product and start a new cook. Default for this value is zero,
meaning the Hold Time is inactive.
Display shows [nHD mm:ss] [TIME], where “n” is the key number, “HD means HOLD,
and “mm:ss” is minutes and seconds.
Use the product keys for numeric entry to adjust the current setting. Press the
key to save hold time and continue setup for this product key.
Page 7 of 12 L20-381 Rev 0
Page 8

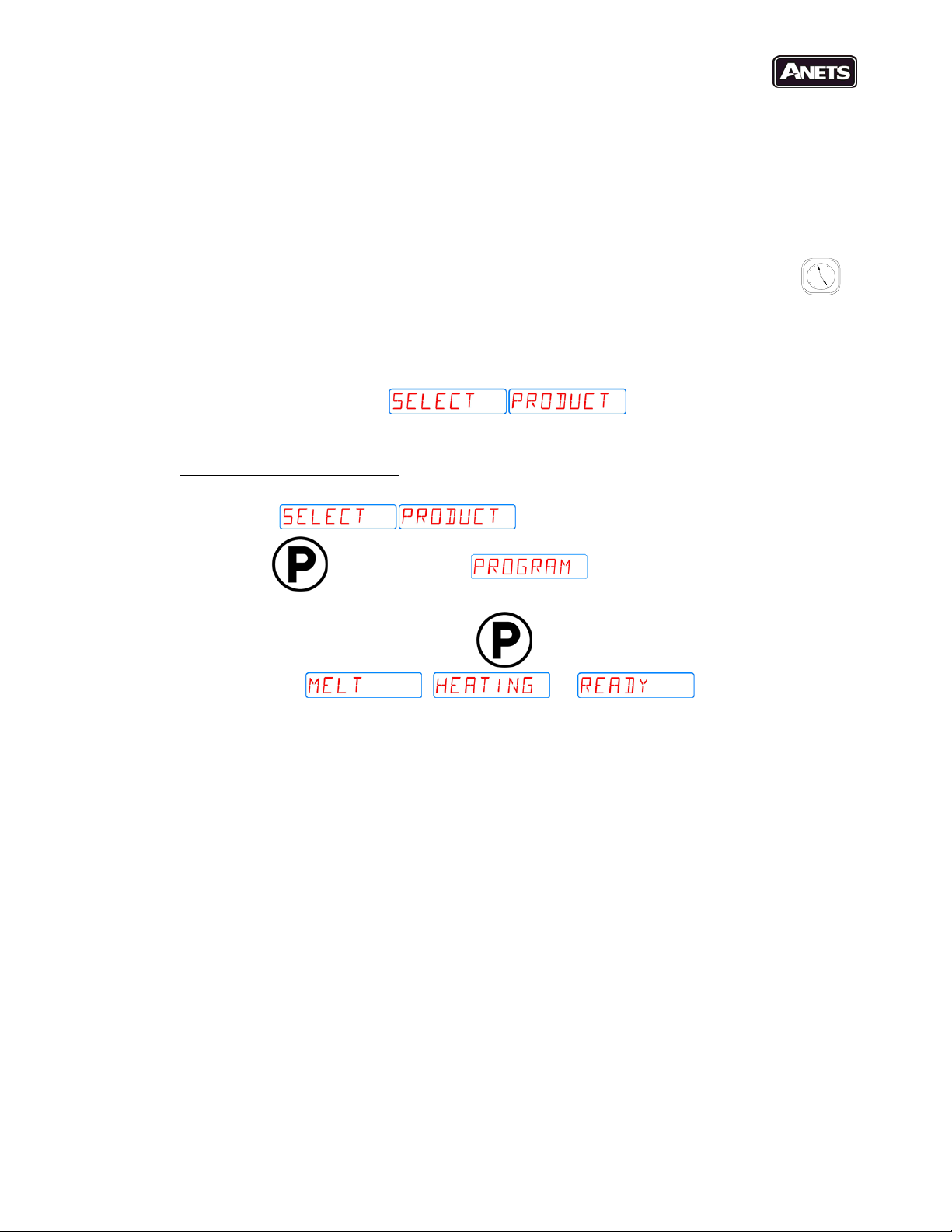

ANETS I12 Cooking Computer
ANETS P/N 60149509
2.2.4 Hold Pre-Alarm
Hold Pre-Alarm is a timer setting that is used to warn operators that the Hold Time is about to
expire. To use Hold Pre-Alarm, the time value must be a non-zero value, and, must be set to a
value less than Hold Time. Default value is zero, meaning the Hold Pre-Alarm is inactive.
Display shows [nPA mm:ss] [TIME] where “n” is the key number, PA means Pre-Alarm,
and “mm:ss” is minutes and seconds.
Use the product keys for numeric entry to adjust the current setting. Press the
key to save pre-alarm time.
Note: Value entered for hold pre-alarm time is the time from the end of the hold period.
Display will again return to
to make changes to any other product keys or continue with section 2.3.
2.3 To Exit Level 1 programming:
Display shows
. Repeat steps from section 2.2.2
.
Press the key. Display shows . Continue to section 3 “To Change
Options”, or, exit here in the next step.
To exit Level 1 programming, press the key again.
Displays will show
; , or , when no active cooks
are running.
L20-381 Rev 0 Page 8 of 12
Page 9
ANETS I12 Cooking Computer
ANETS P/N 60149509
3 To Change Options Level 2 ( for the Store Manager):
The display must show from section 2 to change these options. When the
product key [10/0] is pressed, the display will show
lights above product keys will illuminate to represent options that may be changed. Each option
listed below uses the product key [0] to toggle or scroll through available choices in the display.
. Indicator
0
When the correct value is displayed, press the
to
for another option selection.
key to save choice. The display will again return

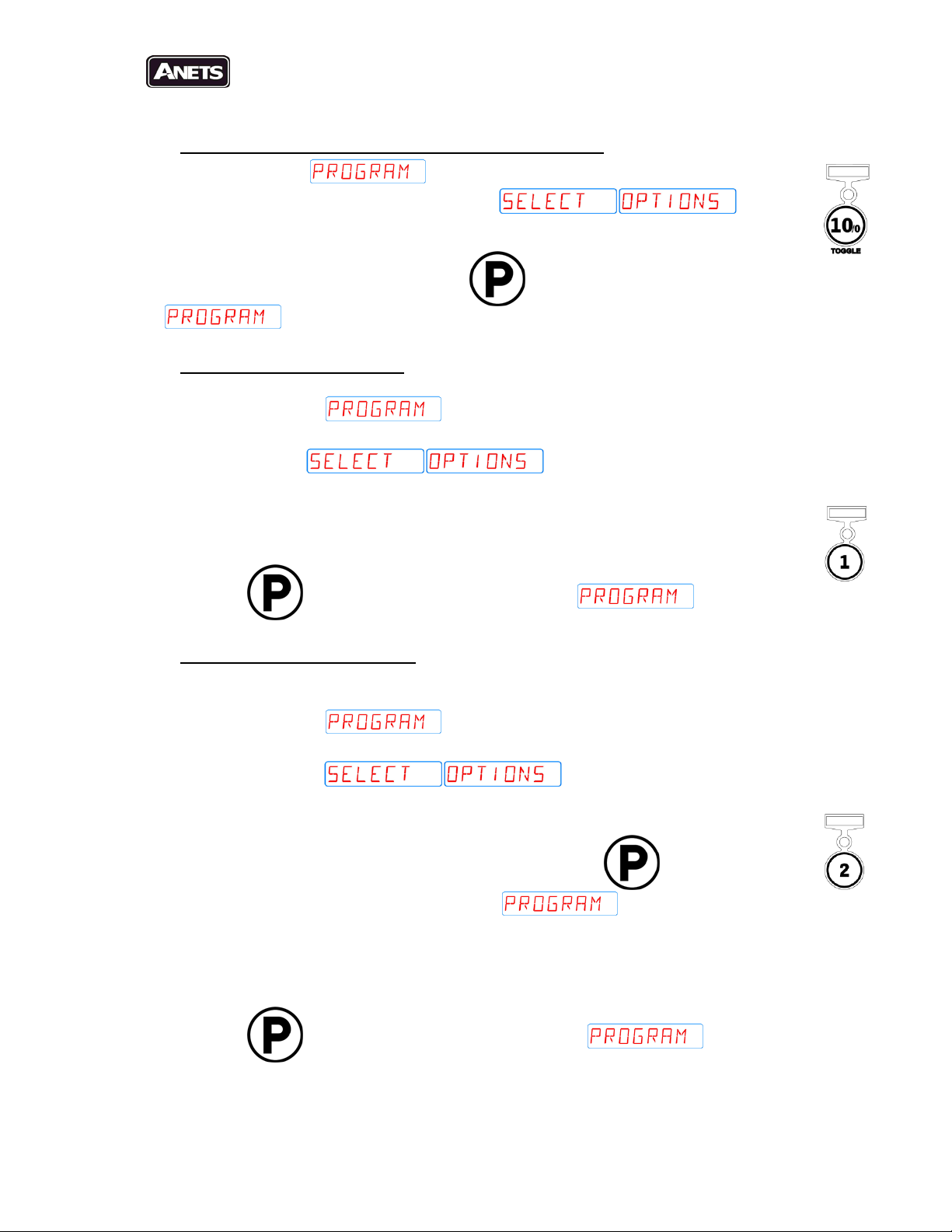

3.1 Fahrenheit or Celsius Display:
The Controller will display temperatures in the Fahrenheit or Celsius scales. The default scale is °F.
With display showing
, press the product key [0].
Display shows .
Press product key 1, display shows [DEGREE n] [F OR C], where “n” is the current
setting.
Use the product key [0] to scroll through choices (F or C).
Press key to save choice. Display now shows .
3.2 Password Change or Required?
With factory settings, an operator password is not required to enter programming Levels 1 and 2.
The password may be activated or changed in these steps.
With display showing
, press the product key [0].
1
Display will show .
Press product key 2, display shows [SET PAS] [NEW PASS]. Use the product key [0] to
scroll through choices [NO PASS] or [PASS REQ]. Press
If [NO PASS] is selected Display returns to .
key to save choice.
If [PASS REQ]. is selected, display will show [PASSnnnn] [NEW PASS] to prompt for new
password. Displayed value “nnnn” is the current password. Use the product keys for numeric
entry to change password.
Press key to save choice. Display then shows .
Note: The factory default password (6684) will always work even if a different password is selected
here.
Page 9 of 12 L20-381 Rev 0
2
Page 10
ANETS I12 Cooking Computer
ANETS P/N 60149509

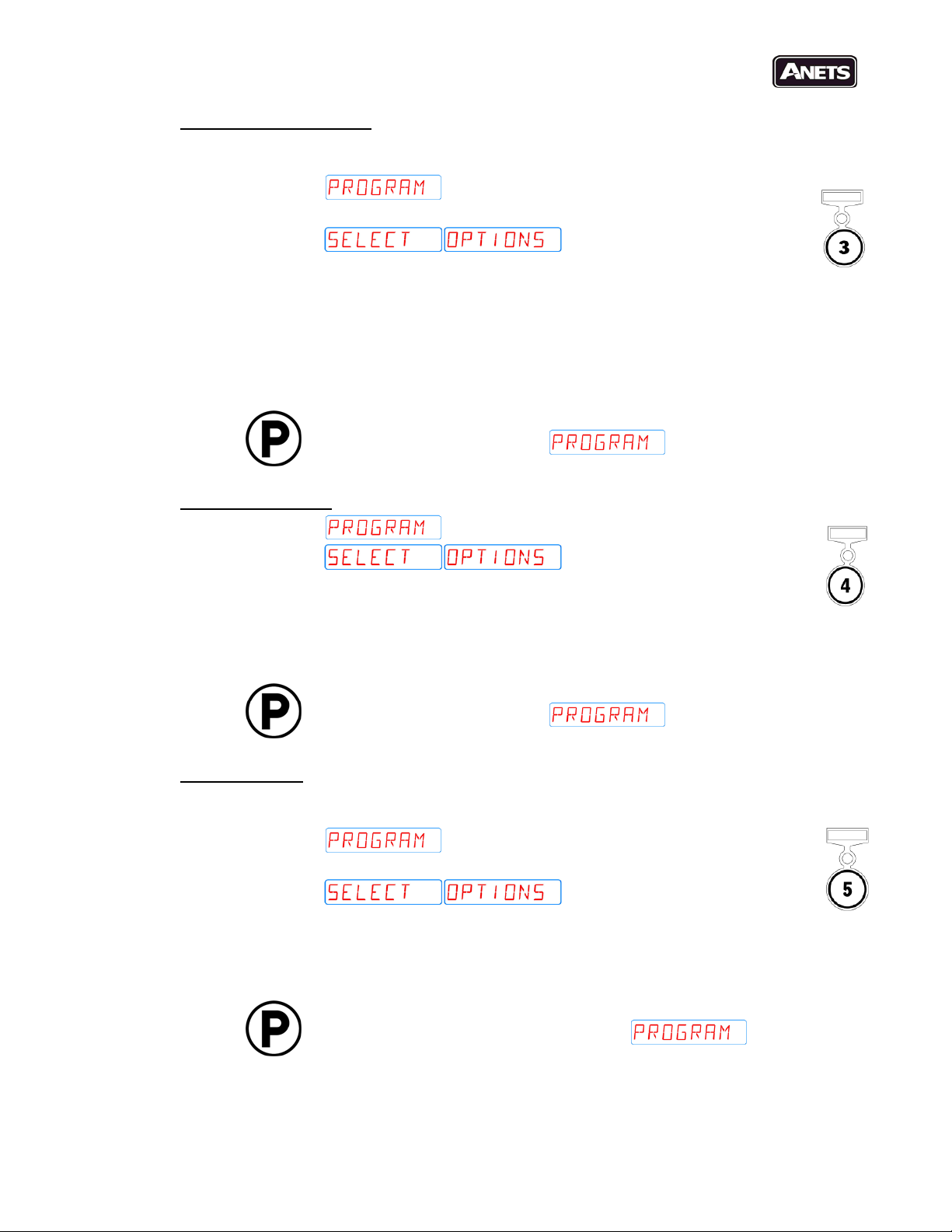

3.3 Beeper Volume and Tone:
Volume and Tone of the beeper alarm may be changed in this section. Volume ranges are 1,2 and
3, where 3 is the loudest setting. This model also has a selection for tone.
With display showing
, press the product key [0].
Display will show . Press product key 3, display
shows [VOLUME n] [BEEPER].
Use the product key [0] to scroll through choices (n= 1,2,3, or T). Beeper volume will
change as each selection is made.
If “T” is selected an additional display is shown, [TONE n] [BEEPER]. Use the product key [0] to
scroll through choices (n= 1,2,3). Beeper tone will change as each sele ction is made.
Press
key to save choice. Display shows
.
3.4 Language Selection:
With display showing , press the product key [0].
Display will show .
Press product key 4, display shows [ENGLISH] [LANGUAGE].
Use the product key [0] to scroll through choices (ENGLISH, ESPANOL, FRANCAIS,
DEUTSCH, HOLLAND).
Press
key to save choice. Display shows
.
3.5 Melt Cycle Type:
This adjustment allows selection of the melt cycle type and requirement when starting the appliance
from a cold start.
With display showing
, press the product key [0].
Display will show .
Press product key 5, display shows [LIQUID], the default setting.
Use the product key [0] to scroll through choices (liquid, solid, or, no melt).
Press
key to save choice. Display will again return to
.
L20-381 Rev 0 Page 10 of 12
Page 11
ANETS I12 Cooking Computer
ANETS P/N 60149509
3.6 Recovery Test Value:
This controller maintains a record of heat up times for the appliance. A poorly running appliance will
have increased recovery times stored in this display. There is no selection done here, just the
display of recovery time values.
With display showing
, press the product key [0].
Display will show .
Press product key 6, display will show [RECOVERY] [TEST].
Press the product key [0]. Display will show [FnnnLyyy], where nnn is the factory recovery
value, and yyy is the last warm- up recovery value.
After recording these values, press the key. Display will again return to

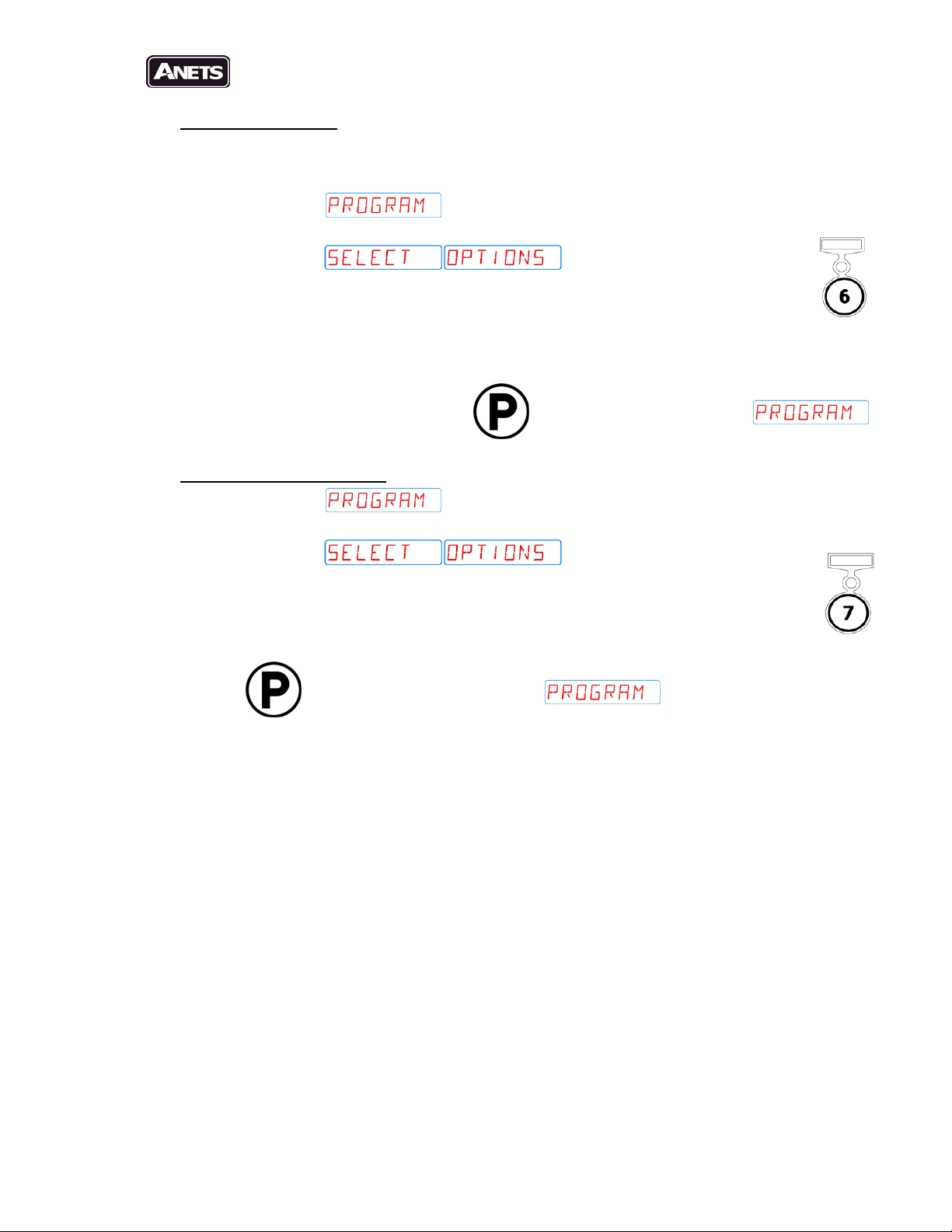

3.7 Control or Timer: Single Vat
With display showing , press the product key [0].
6
Display will show .
Press product key 7, display will show [CONTROL].
Use the product key [0] to scroll through choices (Control, Timer).
Press key to save choice. Display shows .
Note: If timer is selected, heat control outputs are disabled, leaving only the timer functions active.
7
Page 11 of 12 L20-381 Rev 0
Page 12
ANETS I12 Cooking Computer
ANETS P/N 60149509
In the event of problems with or questions
about your order, please contact the ANETS
factory at
(603) 225-6684 World Wide
www.anets.com
MAILING ADDRESS – P.O. BOX 501, CONCORD, NH 03302-0501
SHIPPING ADDRESS – 10 FERRY ST., CONCORD, NH 03301
L20-381 Rev 0 Page 12 of 12
In the event of problems with or questions
about your equipment, please contact the
ANETS Authorized Service and Parts
representative (ASAP) covering your area,
or contact ANETS at the numbers
the left.
listed to
Loading...
