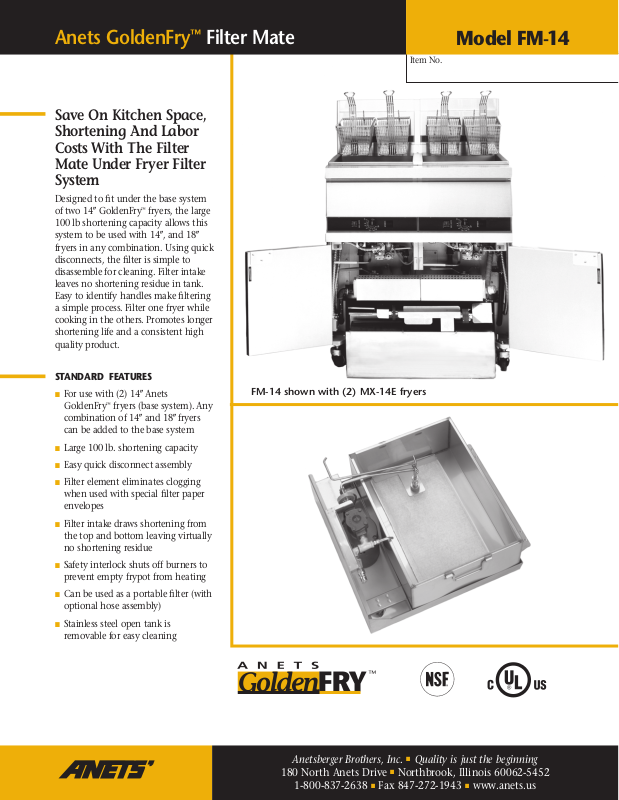

Anets FM-14 Specifications
Anets GoldenFry™Filter Mate
Save On Kitchen Space,
Shortening And Labor
Costs With The Filter
Mate Under Fryer Filter
System
Designed to fit under the base system
of two 14! GoldenFry™fryers, the large
100 lb shortening capacity allows this
system to be used with 14!, and 18!
fryers in any combination. Using quick
disconnects, the filter is simple to
disassemble for cleaning. Filter intake
leaves no shortening residue in tank.
Easy to identify handles make filtering
a simple process. Filter one fryer while
cooking in the others. Promotes longer
shortening life and a consistent high
quality product.
Model FM-14
Item No.
STANDARD FEATURES
■ For use with (2) 14! Anets
GoldenFry™fryers (base system). Any
combination of 14! and 18! fryers
can be added to the base system
■ Large 100 lb. shortening capacity
■ Easy quick disconnect assembly
■ Filter element eliminates clogging
when used with special filter paper
envelopes
■ Filter intake draws shortening from
the top and bottom leaving virtually
no shortening residue
■ Safety interlock shuts off burners to
prevent empty frypot from heating
■ Can be used as a portable filter (with
optional hose assembly)
■ Stainless steel open tank is
removable for easy cleaning
FM-14 shown with (2) MX-14E fryers
Anetsberger Brothers, Inc. ■Quality is just the beginning
■
180 North Anets Drive
1-800-837-2638
Northbrook, Illinois 60062-5452
■
Fax 847-272-1943 ■www.anets.us
Anets GoldenFry™Filter Mate
SPECIFICATIONS
■ Model FM-14, Filter Mate
■ Certification NSF, UL, CUL
■ Electrical Requirements 120V, 60Hz, 1 Ph, 8 Amps
■ Motor 1/3 HP
■ Pump Speed 5 Gallons per minute
■ Casters 2!
■ Filter Tank Stainless steel
■ Shortening Capacity 100 lbs
See individual fryer specification sheets for fryer specifications and options
STANDARD ACCESSORIES
■ 100 Envelope filter papers
■ Base fryer/filter system comes with
4 adjustable swivel locking casters
14"
(36 CM)
14"
(36 CM)
Model FM-14
31"
(79 CM)
Top View
(37 CM)
14.5"
OPTIONS AND ACCESSORIES
■ Hose assembly for shortening disposal
and converting filter to portable unit
■ Envelope filter paper
■ Cleaning brush
■ Filter powder
Side View
31.25"
(79 CM)
15.25"
(39 CM)
Front View
Specifications subject to change without notice.
SS# 255 Revised 9/08
Printed in the U.S.A.
Anetsberger Brothers, Inc. ■Quality is just the beginning
■
180 North Anets Drive
1-800-837-2638
Northbrook, Illinois 60062-5452
■
Fax 847-272-1943 ■www.anets.us
