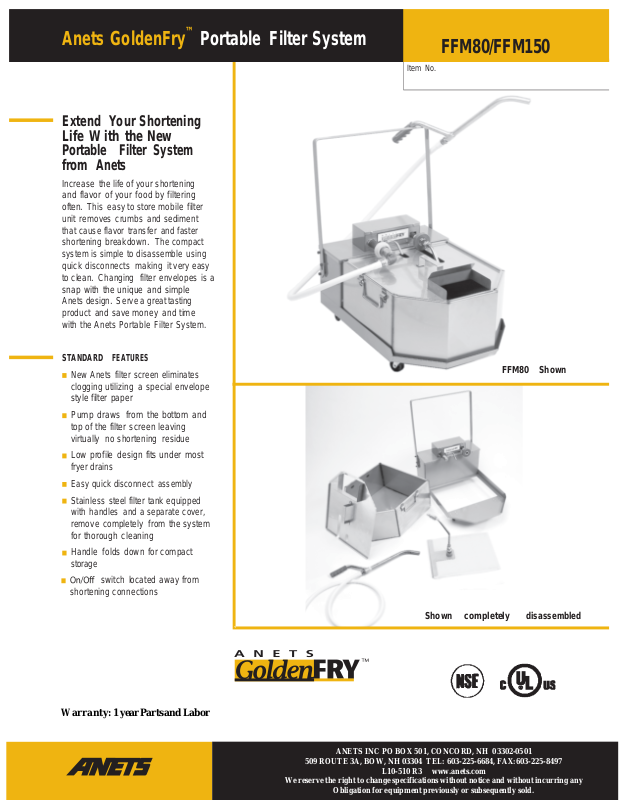

Anets FFM150 User Manual
Anets GoldenFry
Extend Your Shortening
Life W ith the New
Portable
from
Increase the life of your shortening
and flavor of your food by filtering
often. This easy to store mobile filter
unit removes crumbs and sediment
that cause flavor transfer and faster
shortening breakdown. The compact
system is simple to disassemble using
quick disconnects making it ve ry ea sy
to clean. Changing filter envelopes is a
snap with the unique and simple
Anets design. Serve a great tasting
product and save money an d time
with the Anets Portable Filter System.
STANDARD FEATURES
New Anets filter screen elimina tes
clogging utilizing a special envelope
style filter paper
Pump draws from the bottom and
top of the filter screen leaving
virtually no shortening residue
Low profile design fits under most
fryer drains
Easy quick disc onnect assembly
Stainless steel filter tank equipped
with handles and a separate cover,
remove completely fro m the system
for thorough cleaning
Handle folds down for compact
storage
shortening connections
W
arranty: 1 year Parts and Labor
Filter System
Anets
switch located away from
Portable Filter System
™
FFM80/FFM150
Item No.
FFM80
Shown completely disassembled
Anets
509 ROUTE 3A, BOW, NH 03304 TEL: 603-225-6684, FAX:603-225-8497
We reserve the right to change specifications without notice and without incurring any
1-603-225-6684
ANETS INC PO BOX 501, CONCORD, NH 03302-0501
P.O. Box 501
Obligation for equipment previously or subsequently sold.
L10-510 R3 www.anets.com
Shown
Anets GoldenFry
A
A
Portable Filter System
™
FFM80/FFM150
SPECIFICATIONS
Model
Certification
Electrical
Motor
Pump Speed
Shortening
Casters
Filter Tank
Approx. Shipping wt
STANDARD ACCESSORIES
5 Envelope Filter Papers
Hose assembly for shortening disposal
Requirements
Capacity
.
FFM80
FFM150
NSF, UL, CUL
120V , 1 Phase, 8 Amps
6’ cord and plug included
220- 240V, 1 Phase, 3 Amps
Cord and Plug Not Included
1/3 HP
5 Gallons per minute
FFM80 - 80 lbs.
FFM150 - 150 lbs.
2
Stainless steel
FFM80, 145 lbs
FFM150, 150 lbs
B
8.25"
(21 cm)
E
D
Top View
Side View
7"
(18 cm)
4.5"
(11 cm)
C
OPTIONS AND ACCESSORIES
Cleaning brush
Envelope Filter paper
100 Envelope Filter papers
FFM80
20.00”
(51cm)
B
C
D
28.25”
(72cm)
12.50”
(32cm)
16.00”
(41cm)
E
28.5”
(72cm)
FFM150
24.00”
(61cm)
32.5”
(83cm)
13.50”
(34cm)
17.00”
(43cm)
31.75”
(81cm)
ANETS INC PO BOX 501, CONCORD, NH 03302-0501
509 ROUTE 3A, BOW, NH 03304 TEL: 603-225-6684, FAX:603-225-8497
We reserve the right to change specifications without notice and without incurring any
Obligation for equipment previously or subsequently sold.
L10-510 R3 www.anets.com
