Anets 20EG Specifications

Output Large Batches
Of Fried Food Where No
Electrical Hook-up Is
Available

This heavy duty 20  fryer is excellent
for large chicken pieces. Exclusive tube
design provides fast recovery,
minimizes cleanup time, and
maximizes heat transfer. The elliptical
shape of the tubes eliminates
sedimentation on tubes, improves
shortening life and minimizes the
number of times you have to drain
fryer. The stainless steel tubes
accommodate 160,000 BTUH burners
and feature computer designed
radiants for the best performance and
recovery.

STANDARD FEATURES

■ Stainless steel frypot has a lifetime

warranty

■ No electrical hook-up required

■ Stainless steel front panel, trim and

door

■ Tube type design assures maximum

heat transfer in the 20 wide frypot

■ Unique shape of tubes allows access

to cold zone for easy cleaning

■ Burner tubes are equipped with

computer designed radiants for fast
recovery and energy efficiency

■ Dual shortening levels (100 to 120

lbs) for varying cooking capacities

■ Recessed Lexan faced control panel

protects controls from damage

■ Stainless steel basket hanger lifts off

for easy cleaning and access to the
backsplash

Anetsberger Brothers, Inc.■Foodservice Equipment That Turns Food Into Gold

180 North Anets Drive

■

Northbrook, Illinois 60062

1-800-837-2638

■

Fax [phone] ■www.anetsberger.com

Item No.

Anets GoldenFry™20” Fryer

Model 20EG

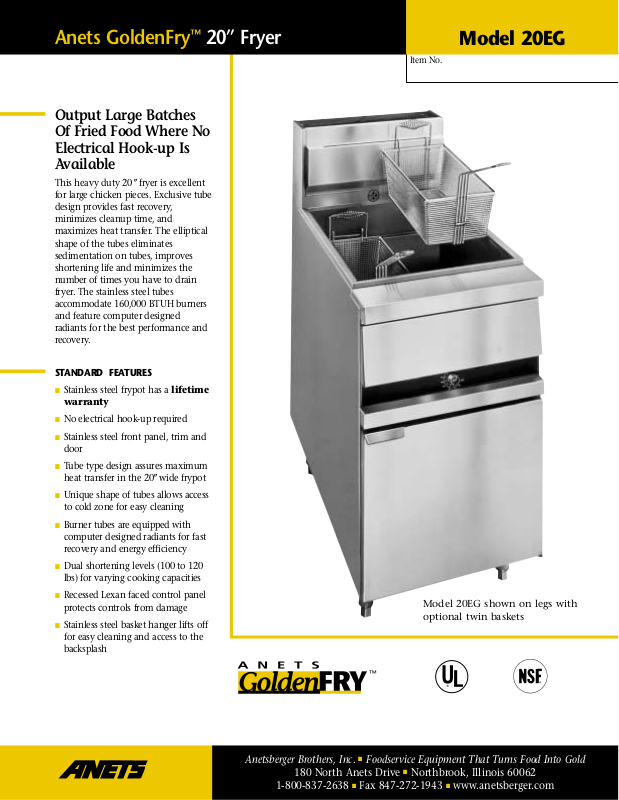

Model 20EG shown on legs with
optional twin baskets

Anetsberger Brothers, Inc.■Foodservice Equipment That Turns Food Into Gold

180 North Anets Drive

■

Northbrook, Illinois 60062

1-800-837-2638

■

Fax [phone] ■www.anetsberger.com

SPECIFICATIONS

■ Model 20EG, 20” Gas Fryer with gas

operated thermostat

■ Certification UL, NSF

■ BTUH 160,000

■ Gas Pressure NG 3.5 WC, LP 10 WC

■ Gas Connection 3/4 NPT

■ Electrical Requirements None

■ Thermostat Gas snap action type

■ Temperature Range 200° to 375°F, (93°-191°C)

■ Burners Atmospheric pre-mix

■ Hi-limit Safety control turns off main gas

supply at 440°F (227°C)

■ Safety Pilot 100% gas shut off valve

■ Spark Ignitor Piezo electric

■ Frypot Stainless steel

■ Tubes Stainless steel

■ Cabinet Front panel, door, trim and

backsplash are Stainless Steel.
Sides are painted

■ Shortening Capacity 100 lbs - 120 lbs

■ Cooking Capacity 90 lbs of chicken per hour

120 lbs. of fries per hour

■ Frying Area 20x20 (51x51cm)

STANDARD ACCESSORIES

■ Rack type basket support

■ Clean out rod

■ 6 Adjustable chrome plated legs

■ Drain pipe extension

■ Piezo ignitor

Note: No baskets are provided
with this fryer. Must order baskets
separately, if required.

Top View

Specifications subject to change without notice.
SS#132 Revised 8/02
Printed in the U.S.A.

Model 20EG

Anets GoldenFry™20” Fryer

OPTIONS AND ACCESSORIES

■ Stainless steel sides

■ Filtronic II built-in filter systems

■ Multiple units can be banked at no

additional charge

■ Single, twin or triple baskets

■ Drain table

■ Fryer cover

■ Front drain tray

■ Casters

Side View

Front View

(51 CM)

(116 CM)

(90 CM)

(15 CM)

(89 CM)

(51 CM)

(55 CM)

21.5"

3/4

(21 CM)

(5 CM)

NPT

15.25"

(39 CM)

10.75"

(27 CM)
